Studio: Vallribera Arquitectes
Location: Sabadell, Barcelona
Phase: Finished construction
Total floor area renovation: 244m2
Design date: 2010
Construction date: 2011
Developer: Private
Architect: Llorenç Vallribera (Vallribera Arquitectes)
Collaborators: Xavier Delgado, quantity surveying; Beatriz Arbide, interior design:
Photographs: © José Hevia

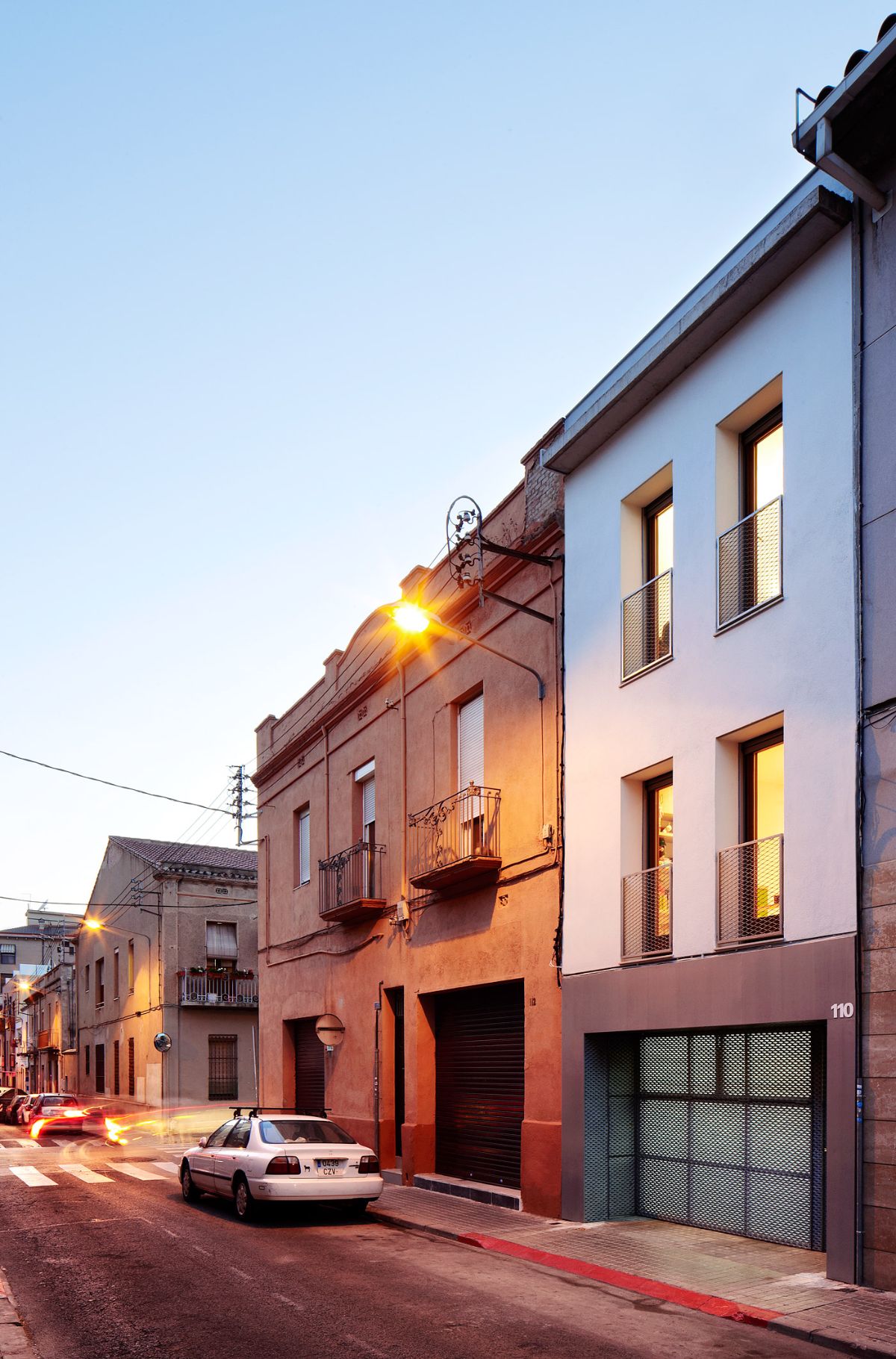

Compared to the windows of the neighboring houses, you can see that the building has been modified.

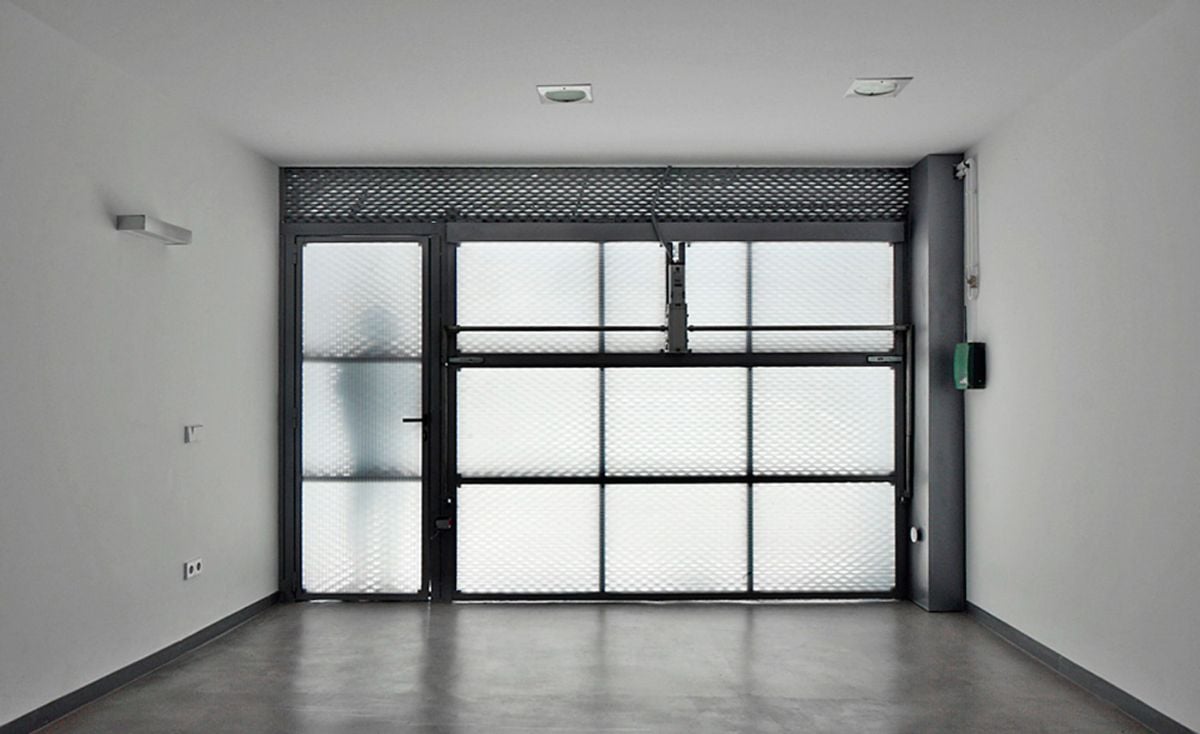

The entrance also serves the building's garage, where the building's new foundation will be laid. — The entrance also serves the building’s garage, where the building’s new foundation will be laid.

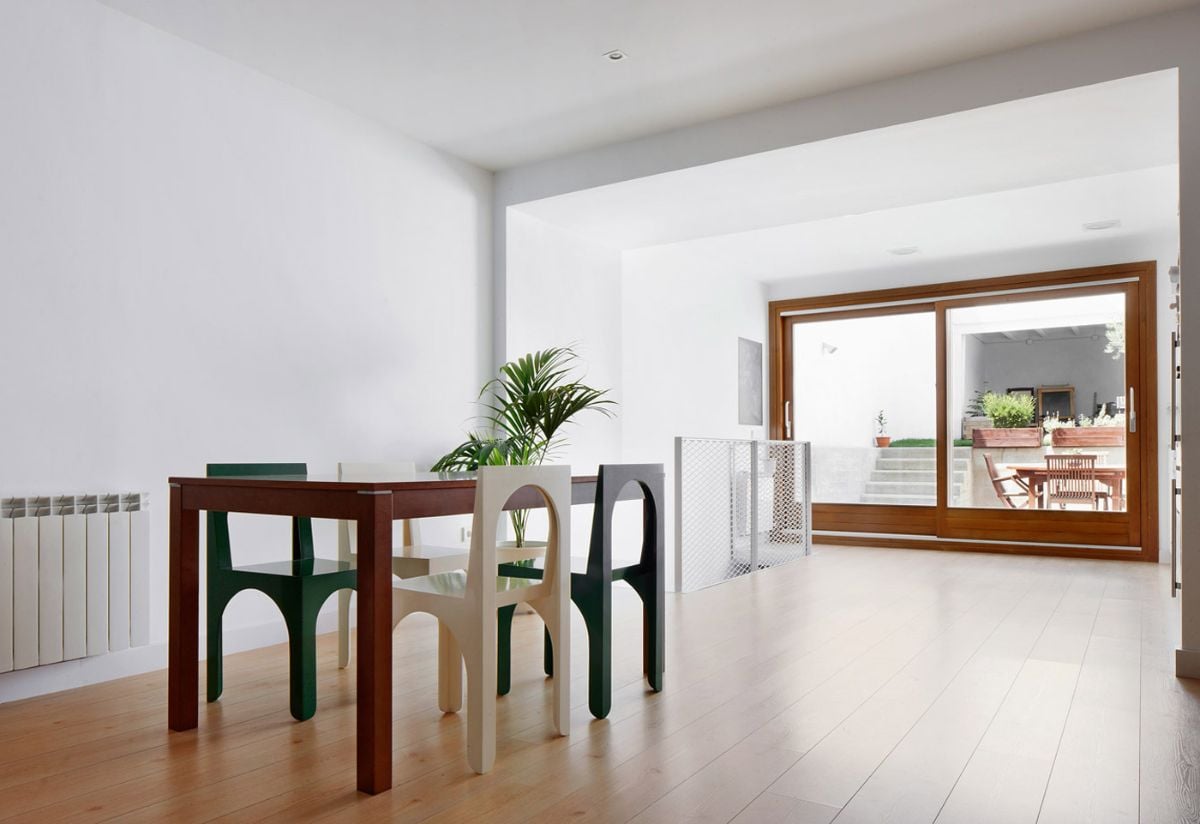

Because of the narrow space, a large opening was made for the living-dining room to bring more light as possible.

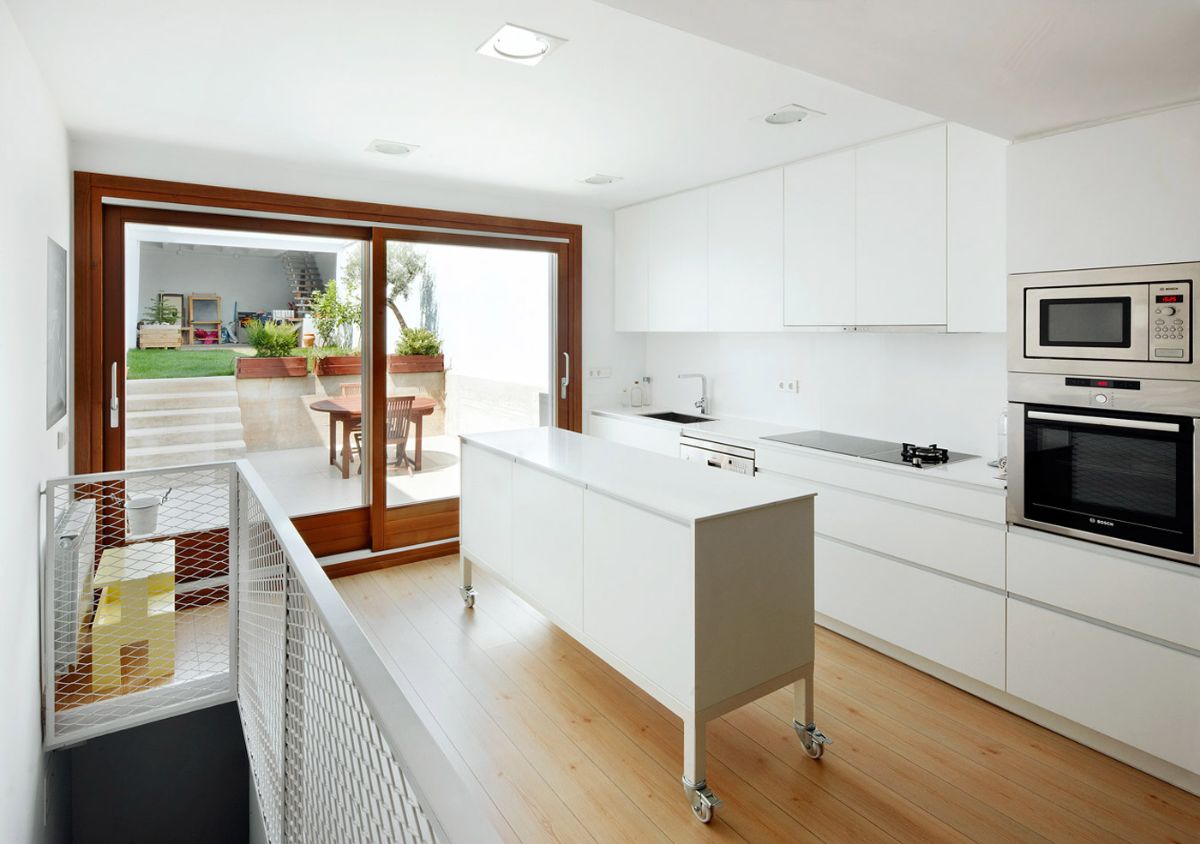

The room is designed in such a way that the kitchen is treated as an extension of the living room. There is also a Portable kitchen island that can be moved if space is needed.

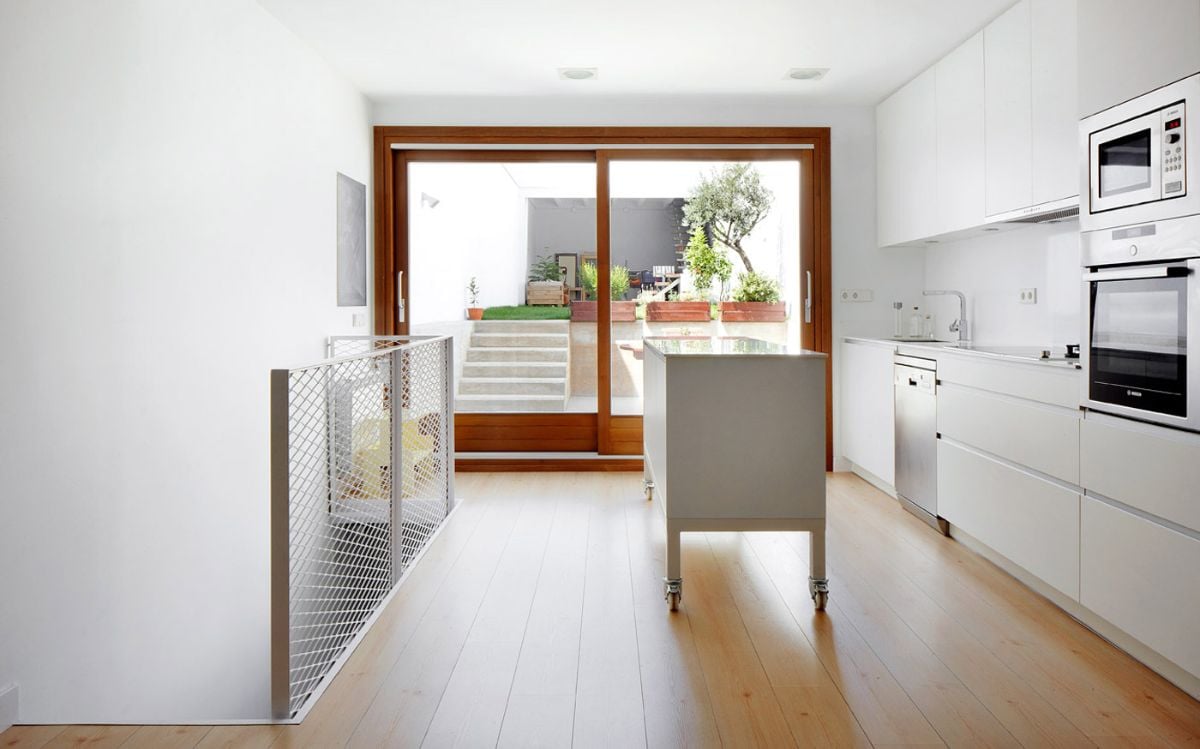

This picture shows the kitchen connected to the backyard and the existing pantry-storeroom. — This picture shows the kitchen connected to the backyard and the existing pantry storeroom.

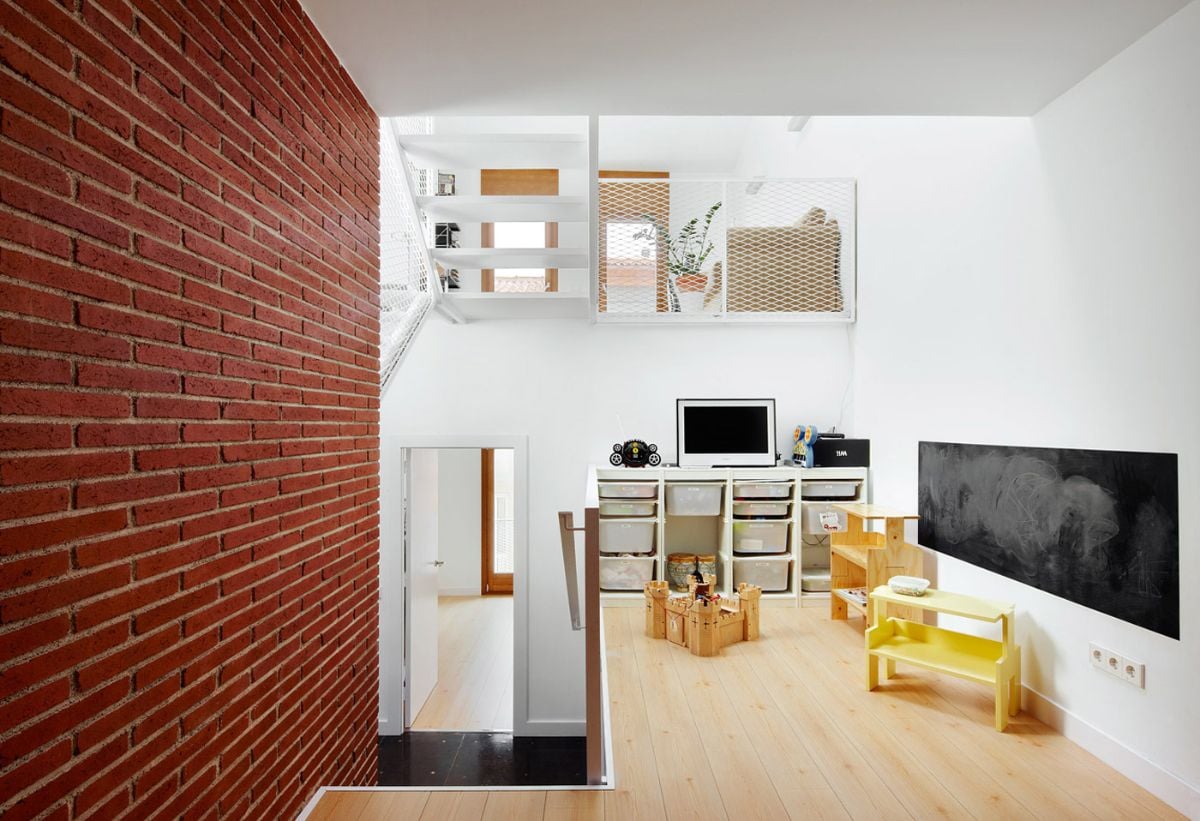

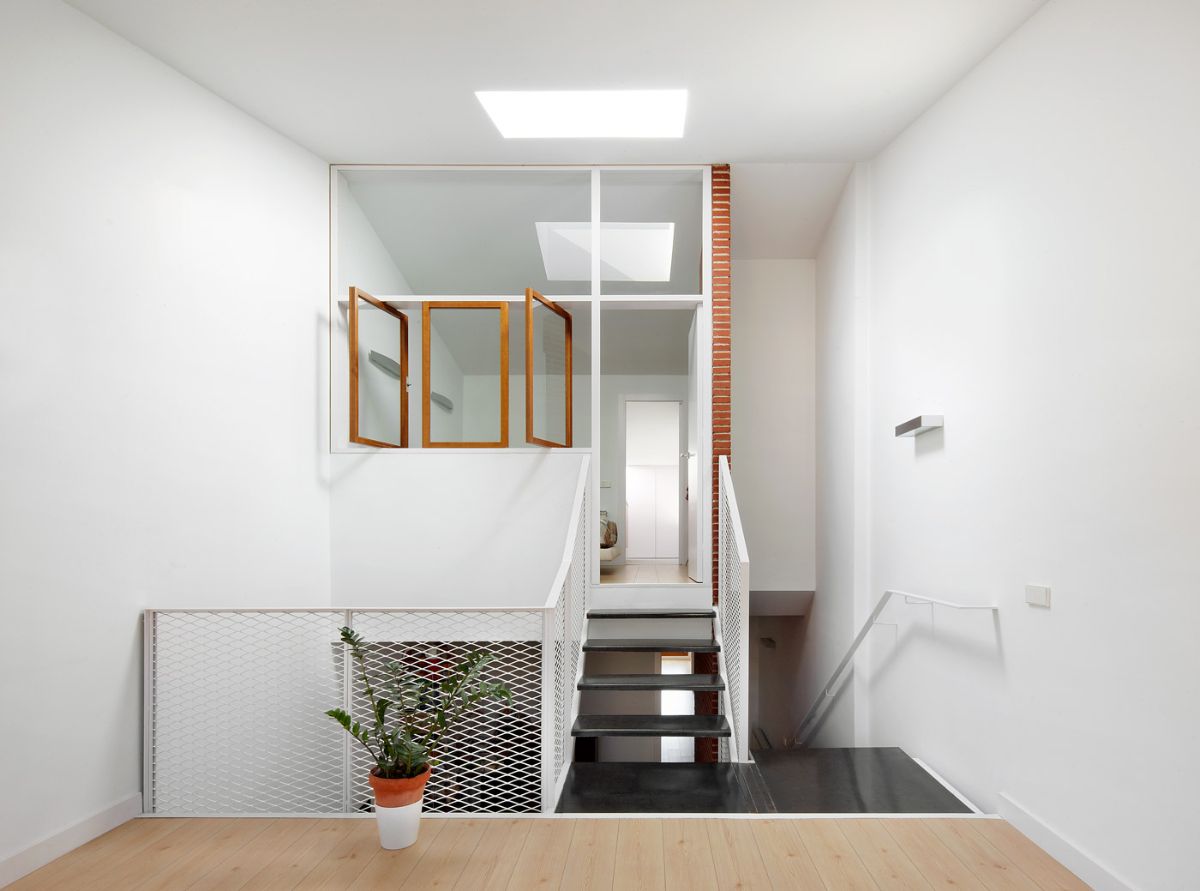

The second floor of the house is intended for children, and the presence of a brick wall gives the room an aesthetic feeling.

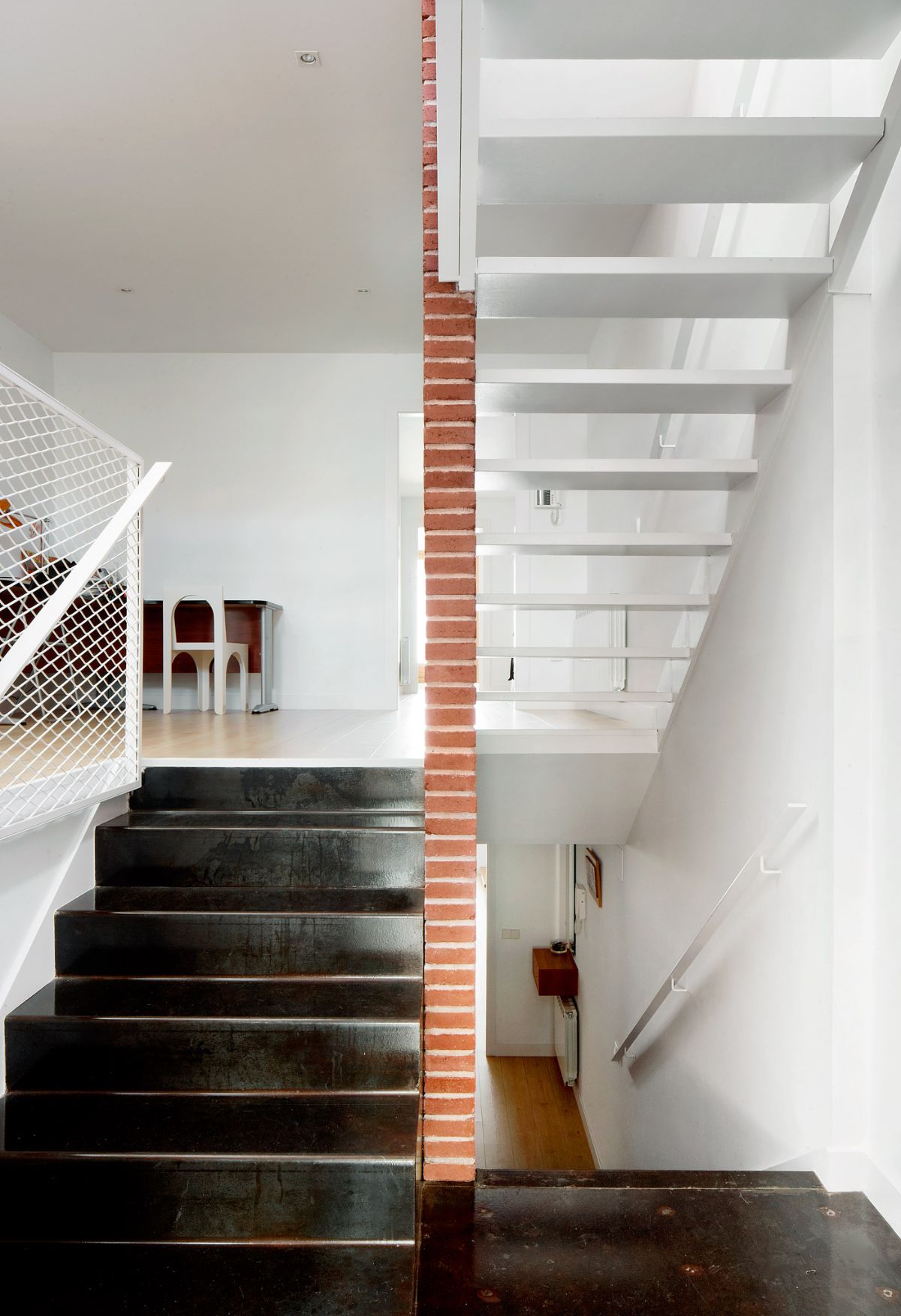

The presence of the brick wall on all floors gives an aesthetic feeling while climbing the stairs.

On the third floor, where the master bedroom and the study were located and taking advantage of the space the study was built against the facade.

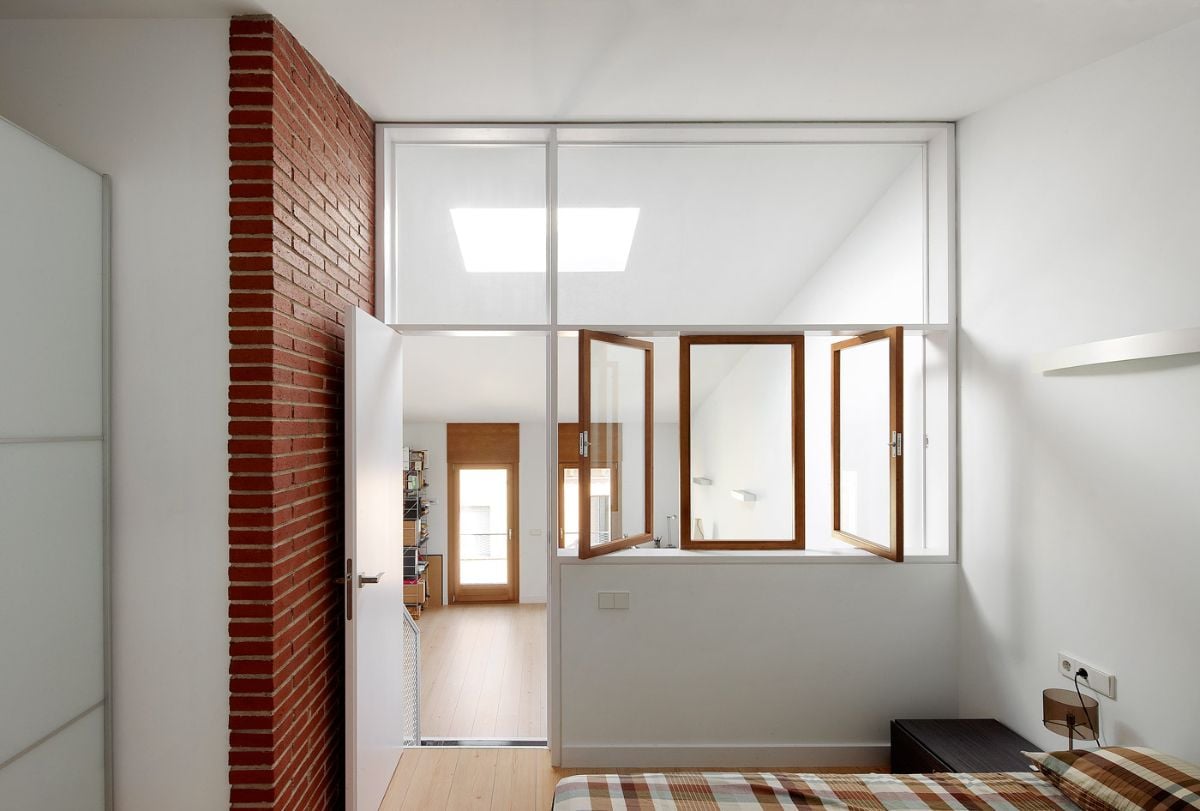

The bedroom is carefully designed with glasses to bring in more light as much as possible.

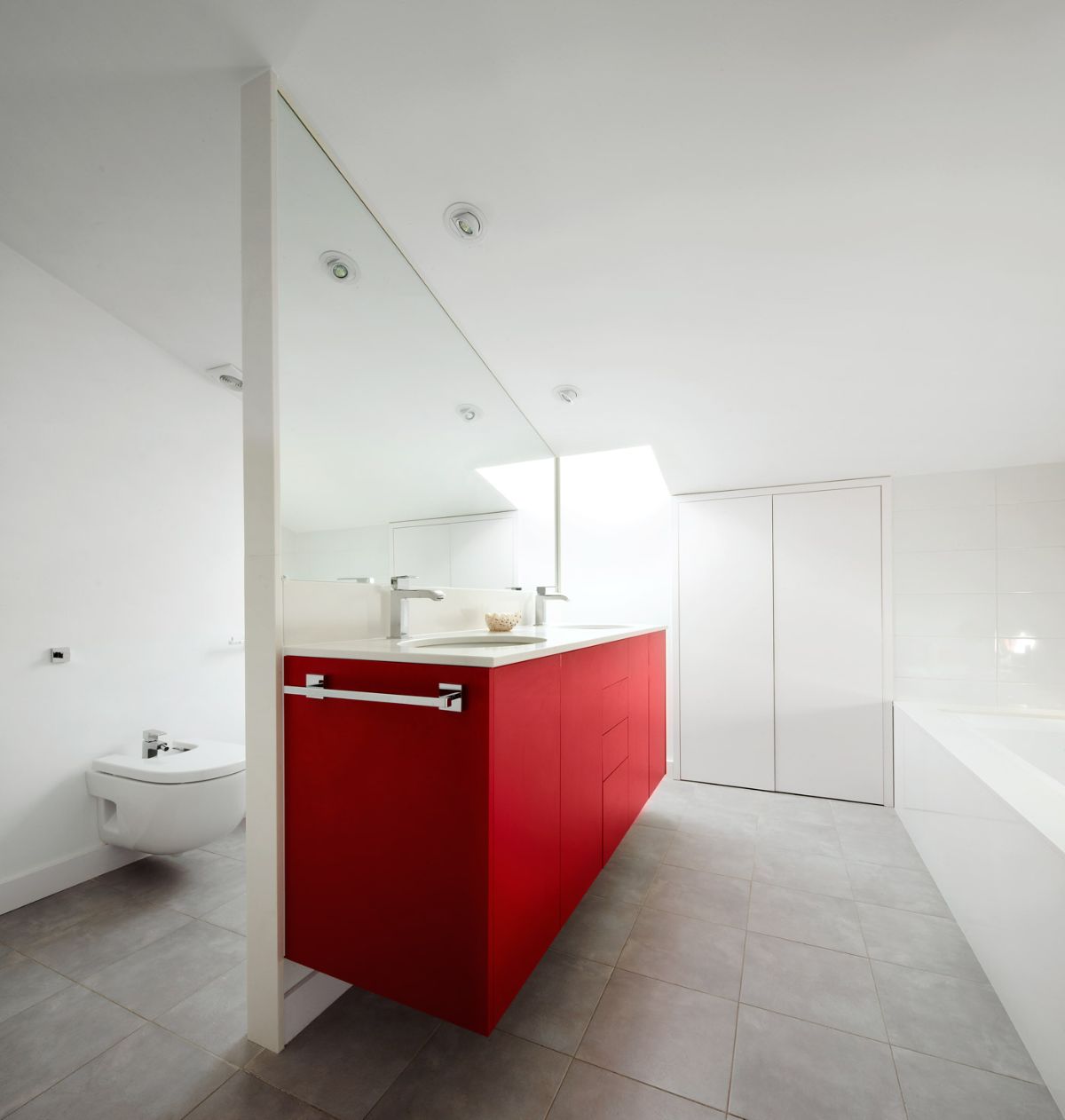

The bathroom has a floating toilet and a floating vanity. The lower part of the vanity has a red color that highlights the room.

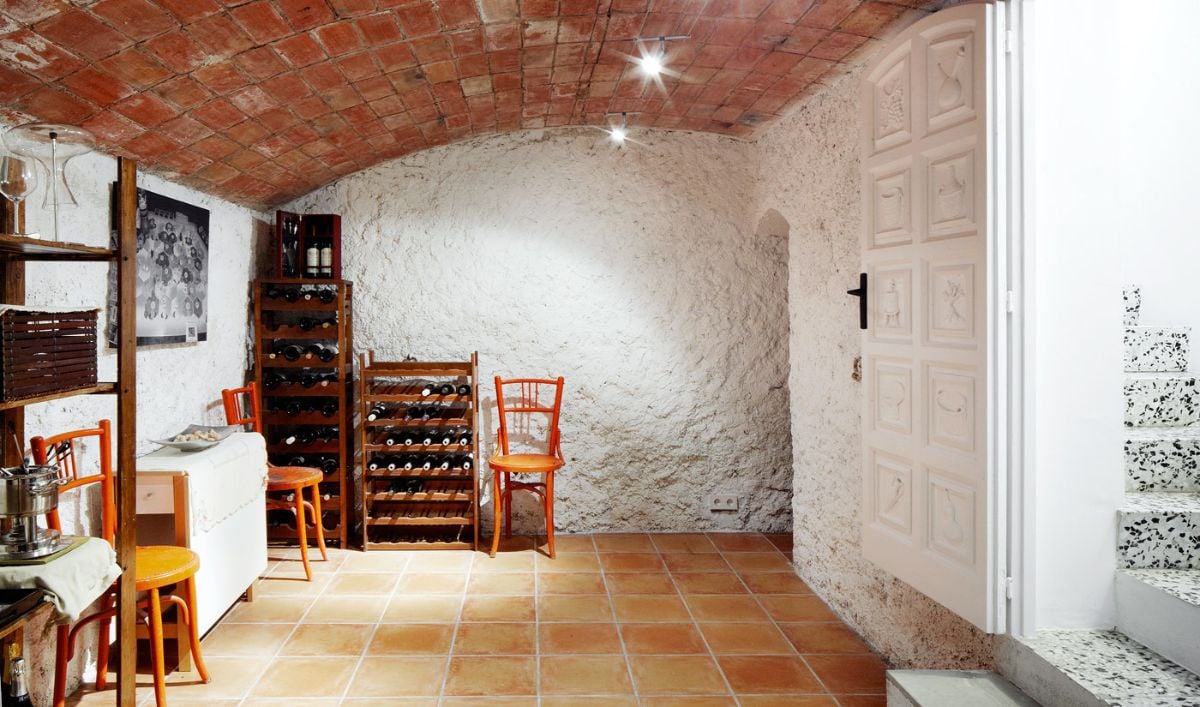

The store room has the original structure and the walls are painted white, which gives the room a classic look.

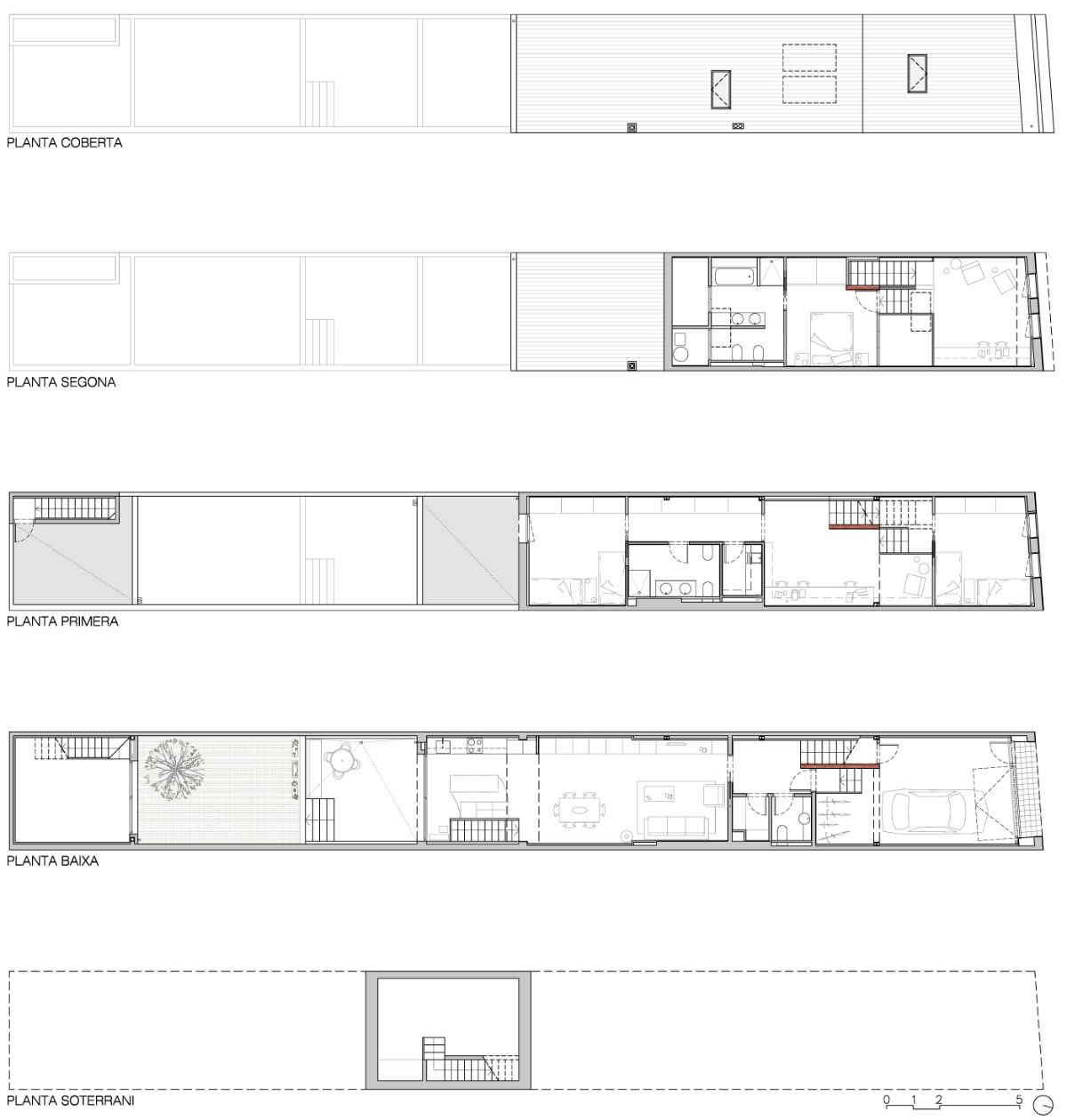

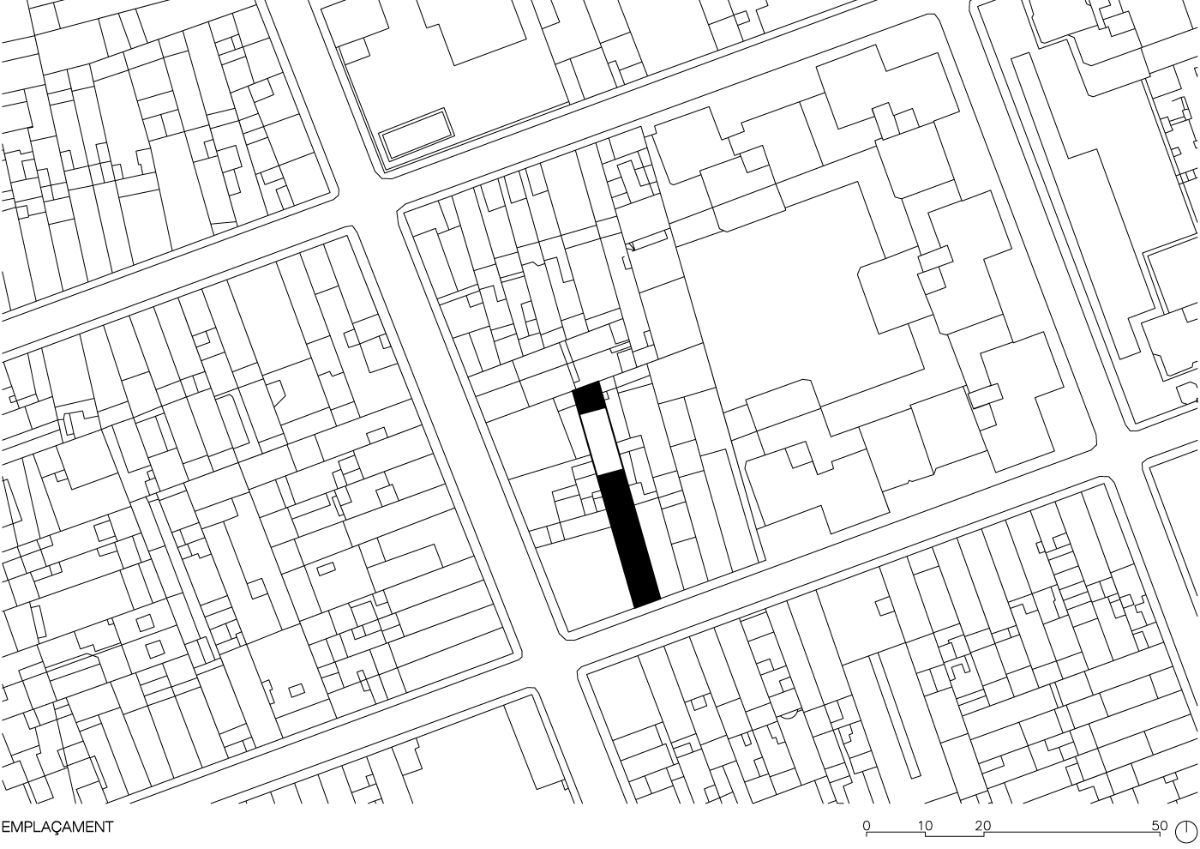

Location plan of the house. — Row house floor plan.

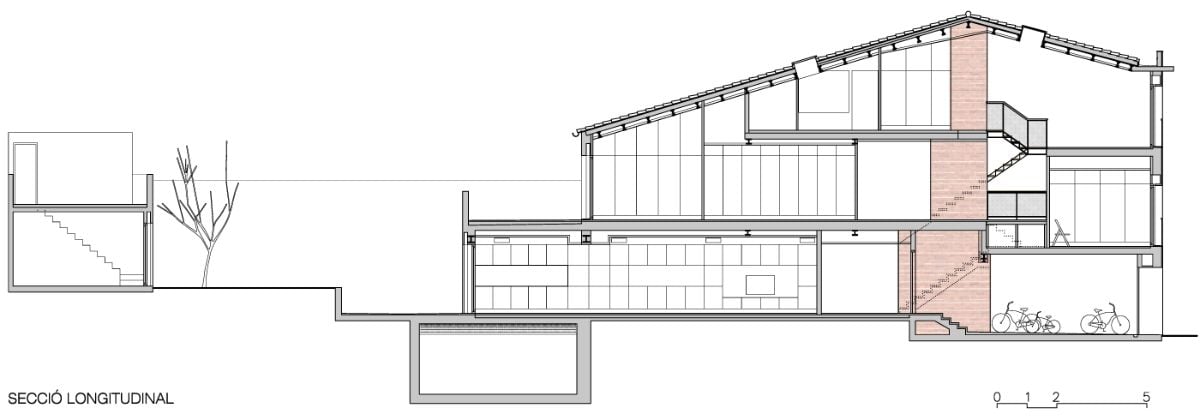

Longitudinal sections of the house. — Row house floor plan.

When we receive the commission, we find that the original house has already been modified. In fact, the construction has been halted half-way through, the only completed work being an inopportune structural intervention. Given the budget, it will be impossible to alter the existing “reinforced” floor slabs, the new stairwell, the façades, or the roofs.

Since we cannot undo what has been done, the new design is approached as a series of small isolated actions intended to correct, organize, and improve the built volume.

Notable elements of the project include:
A) An exposed brick load-bearing wall present on all three levels of the building. This is the only structural element to be added. It provides a structural and aesthetic solution for the stairway while reorganizing the house in section, regularizing the original floor structure.

B) Two existing interior partition walls are torn out, and the program distribution is altered to bring more light into the darkest areas of the house. On the second floor, for use by the children, the study is located in the middle and the bedrooms are along the façade. On the third floor, for the parents, the study is against the façade and the bedroom in the interior. The children’s study and the parent’s study are connected by sightlines.

C) The area for day use, on the ground floor, is a long narrow space. The single opening is made as large as possible to bring in more light. The kitchen is treated like an extension of the furnishings in the living-dining room. It connects with the exit into the back yard and with the existing pantry-storeroom.

D) The façade is what it is. The proportions of the openings are modified. Taking advantage of the garage door and the street door, a new base for the building is created, which reaches up to the second-floor windows to correct the slight buckling of the old façade. The expanded metal sheet doors let light into the garage.

E) No alterations are made to the pantry-storeroom, the back yard, or the roof. They just get a new coat of paint, which is all they need.
