1-Bedroom Single-Story Carriage Home with Studio Apartment and Double Garage (Floor Plan)

1-Bedroom Single-Story Carriage Home with Studio Apartment and Double Garage

Specifications:

  • Sq. Ft.: 420
  • Bedrooms: 1
  • Bathrooms: 1
  • Stories: 1
  • Garages: 2

Welcome to photos and footprint for a 1-bedroom single-story carriage home. Here’s the floor plan:

Entire floor plan of a 1-bedroom single-story carriage home with a foyer, full bath, a studio apartment, and a double garage.
Entire floor plan of the 1-bedroom single-story carriage home.
Front elevation sketch of the 1-bedroom single-story carriage home.Front elevation sketch of the 1-bedroom single-story carriage home.
Front elevation sketch of the 1-bedroom single-story carriage home.
Right elevation sketch of the 1-bedroom single-story carriage home.Right elevation sketch of the 1-bedroom single-story carriage home.
Right elevation sketch of the 1-bedroom single-story carriage home.
Left elevation sketch of the 1-bedroom single-story carriage home.
Left elevation sketch of the 1-bedroom single-story carriage home.
Rear elevation sketch of the 1-bedroom single-story carriage home.
Rear elevation sketch of the 1-bedroom single-story carriage home.

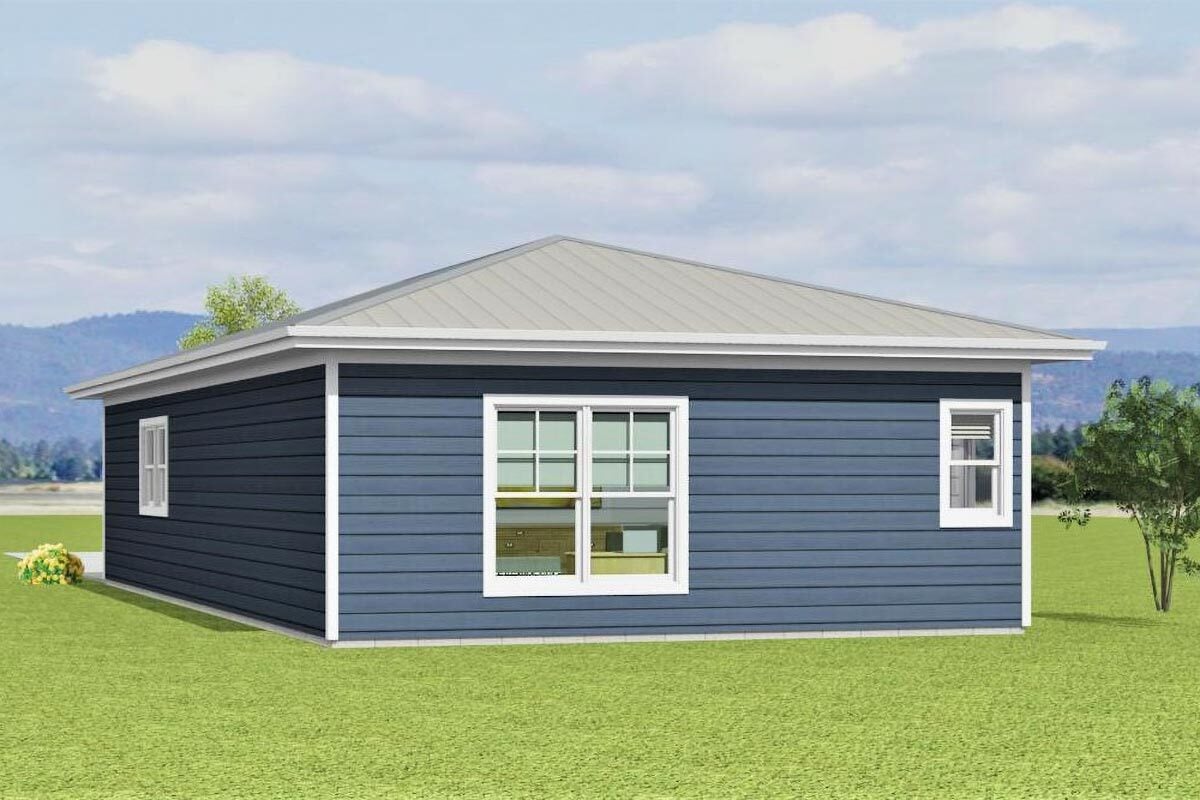

Blue siding and a combination of hip and valley roofs adorn the single-story carriage home.

Two-man doors sitting side by side on the left elevation grant access to the double garage and the studio apartment.

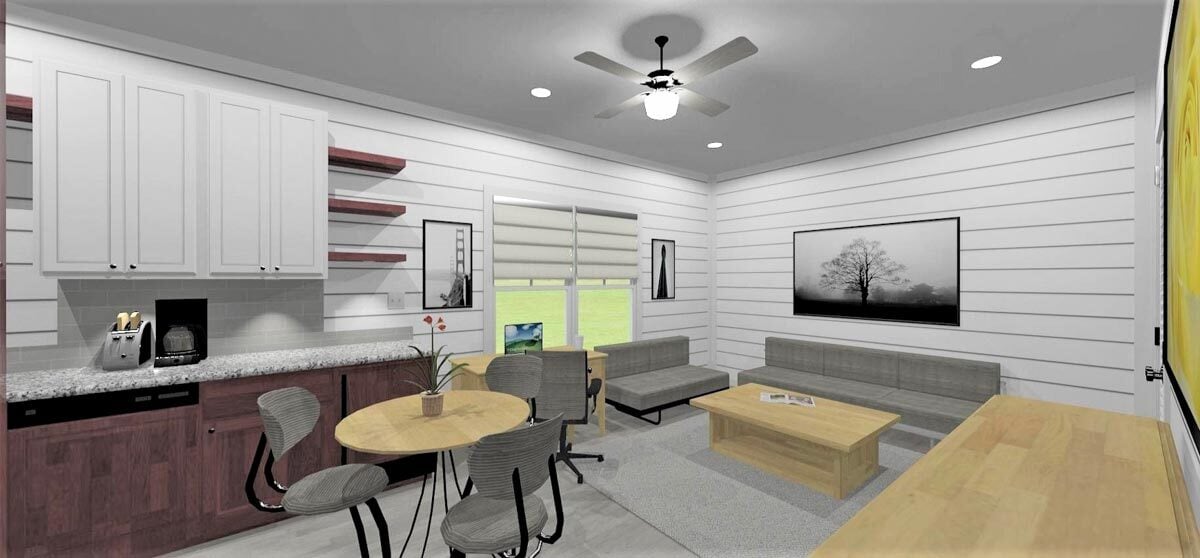

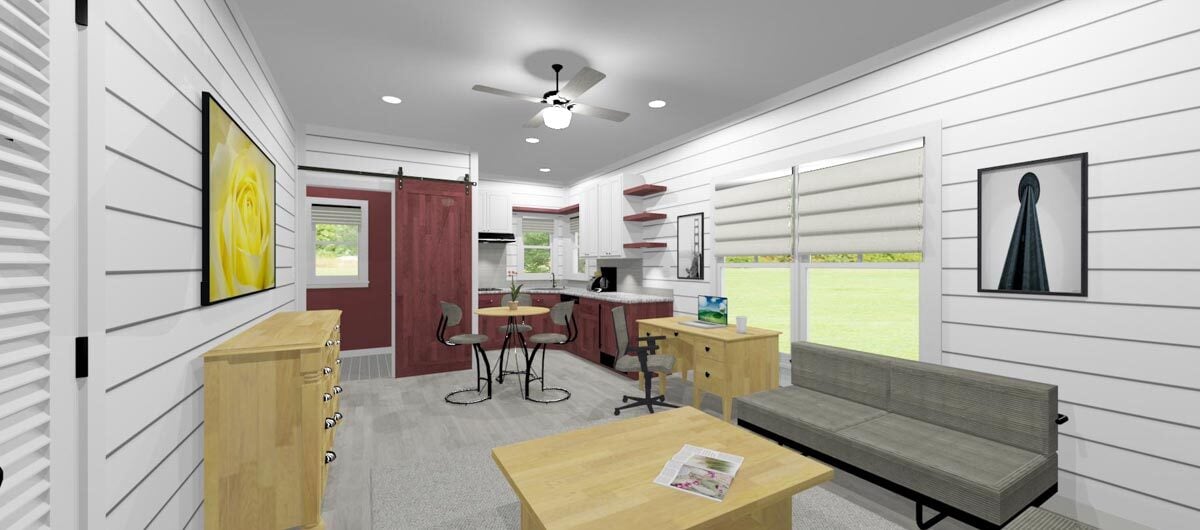

The main living space includes a foyer where you’ll find a coat closet and a full bath. A barn door reveals the shared spaces combining the living room, dining area, and kitchen while a french door opens to a sizable walk-in closet. The kitchen is equipped with a corner sink, a pantry, and enough counter space. A desk allows you to work comfortably and a TV provides great entertainment.

Plan 28941JJ
