Three Cusps Chalet by Tiago do Vale Architects

Architecture: Tiago do Vale Architects
Location: Sé, Braga, Portugal
Construction: Constantino & Costa
Project Year: 2012
Construction Year: 2013
Footprint: 57.20 m2
Gross Area: 171.60 m2
Net Usable Area: 114.20 m2
Net Assignable Area: 89.03 m2
Photography: João Morgado

In order to come up with the very specific design ideas, we create most designs with the assistance of state-of-the-art AI interior design software.

About Studio

“It is not completely wrong to say that there is a certain informality in the architecture of Tiago do Vale. There is a kind of rejection of schools, currents, or movements – even the modern, at least in a rationalized way. The style does not count, but the relationship between the work and life does.

This does not mean that the design of this office is light: quite the contrary, it is a design supported by deeply critical, discerning, and genuine responses to each circumstance, in responses more interested in appropriation, sensitivity, and continuity with the built culture, avoiding uncritical formal or conceptual limitations that impoverish the range of possibilities for the work. This is where the cohesion of this body of work comes from.

Following these principles, each project is a rehabilitation exercise: if there is a building, its merits, its history, its construction techniques, its values, ​​and its physical context and culture become the foundation for the most surgical ( but transformative) intervention, allowing to prolong the history (which is intended to be continuous and linear) of the building towards the future; if we find an empty space, the emptiness is rehabilitated according to the exact same principles, trying to reach the exact same objectives.

Thus, this practice proposes, in reality, that architecture ceases to be a circularly self-referenced object, both in its design and in its thinking, and that it once again becomes a part and product of the culture in which it operates.”

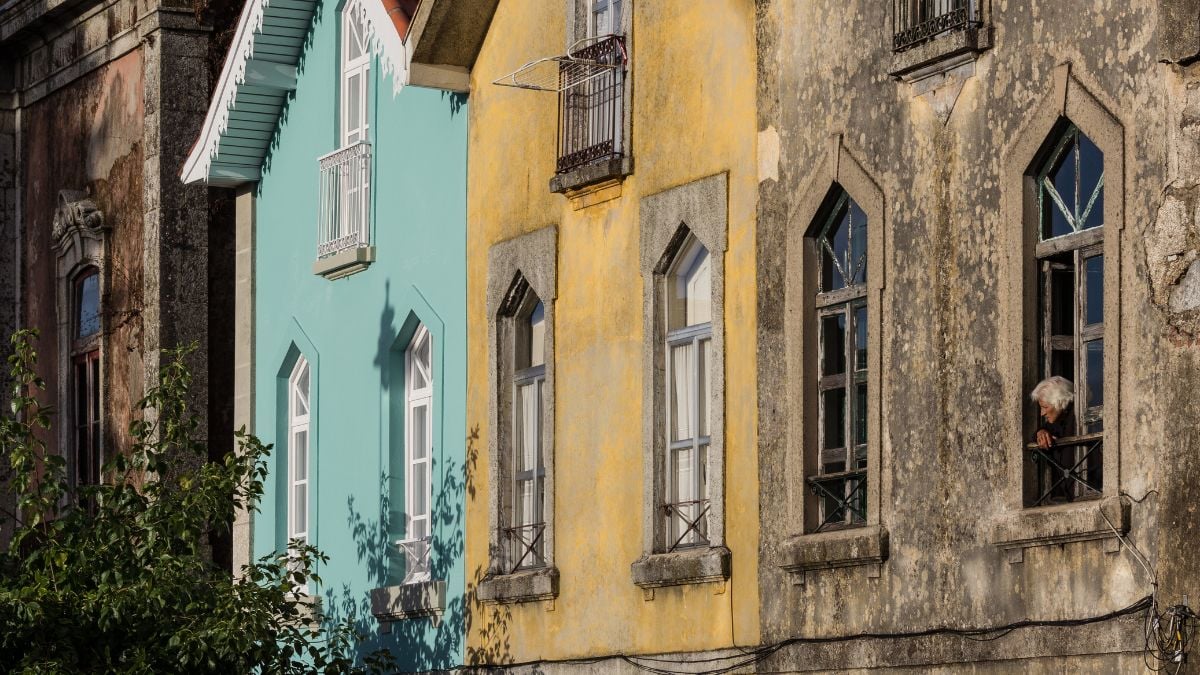

The “Three Cusps Chalet” is a very peculiar building, documenting this region’s history and diaspora, and combining typical 19th-century Portuguese architecture and urban design with an unexpected alpine influence. This influence was brought by a historic wave of rich Portuguese returning from Brazil in the eighteen hundreds (significantly influenced by central Europeans building Brazil’s second industrial revolution).

Conceived as an annex serving the small palace by its side and sitting at the heart of both the Roman and medieval walls of Braga, this is a particularly sunny building with two fronts, one facing the street at the West and another one facing a delightful, qualified block interior plaza at East, enjoying natural light all day long.

The building’s identity had been lost in 120 years of small unqualified interventions, over-compartment it, closing it to the street and to the light. Its façade was equally adulterated: modern aluminum window frames and exterior shade head boxes changed the openings’ stereotomy, the building’s scale and detail, and disrupted the original sense of the street.

So, the goal of this design was to clarify the building’s spaces and functions, returning it to its original image, constructive techniques, and (mainly habitational) program, while simultaneously making it fit for today’s way of living, giving it back to the city and potentially constituting a model for future rehabilitation projects in the neighborhood.

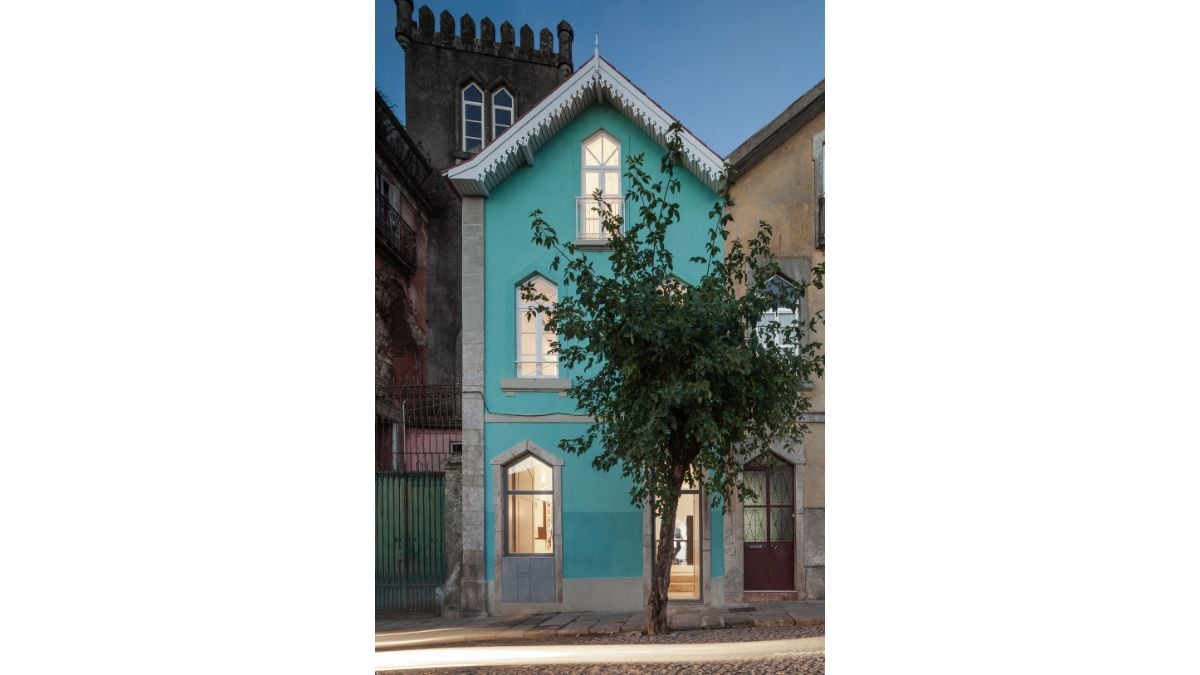

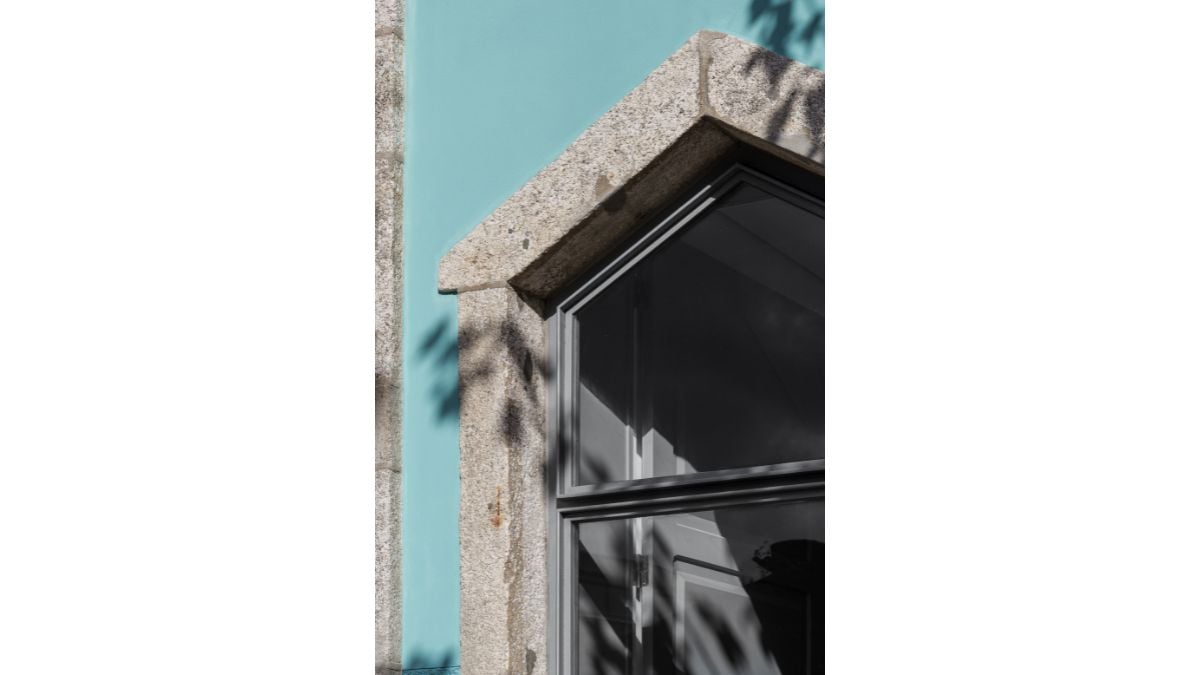

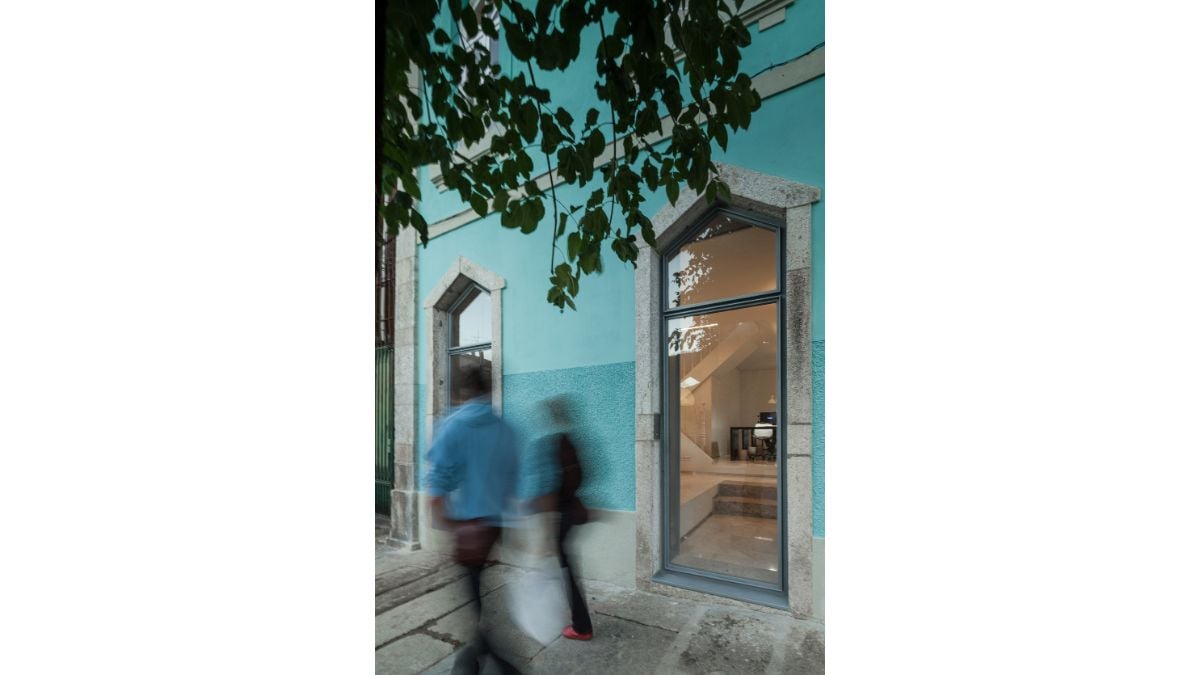

The façade was restored to its original glory, reinstating the original wooden window frames and preserving the delightfully decorated eave. The interior recuperated the original spacial and functional distribution, wooden floors and ceiling structures, and the original staircase while introducing Portuguese Estremoz marble on the wet areas and ground floor.

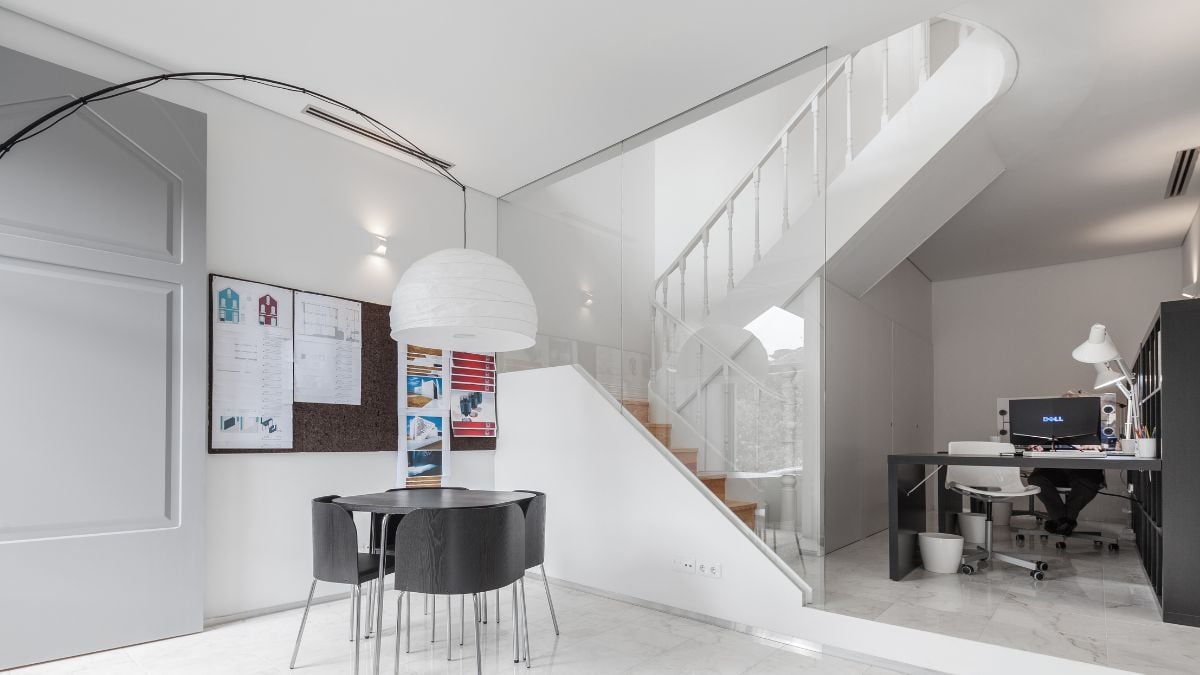

The program asked for the cohabitation of a working studio and a home program. A 1,5 m height difference between the street and the block’s interior plaza allowed to place the working area on the ground level, turning it westward and relating it to the street. This façade is bathed with the afternoon light. The domestic program relates with the interior plaza and the morning light.

The interior plaza is punctuated by several orange trees: these provide a delicious shadow during the summer and display a beautiful show during winter, covered with bright fruits. Given the reduced area of the building, the original strategy of hierarchizing spaces by floor was followed. The stairs are narrower with each flight of steps, informing the changing nature of the spaces it connects.

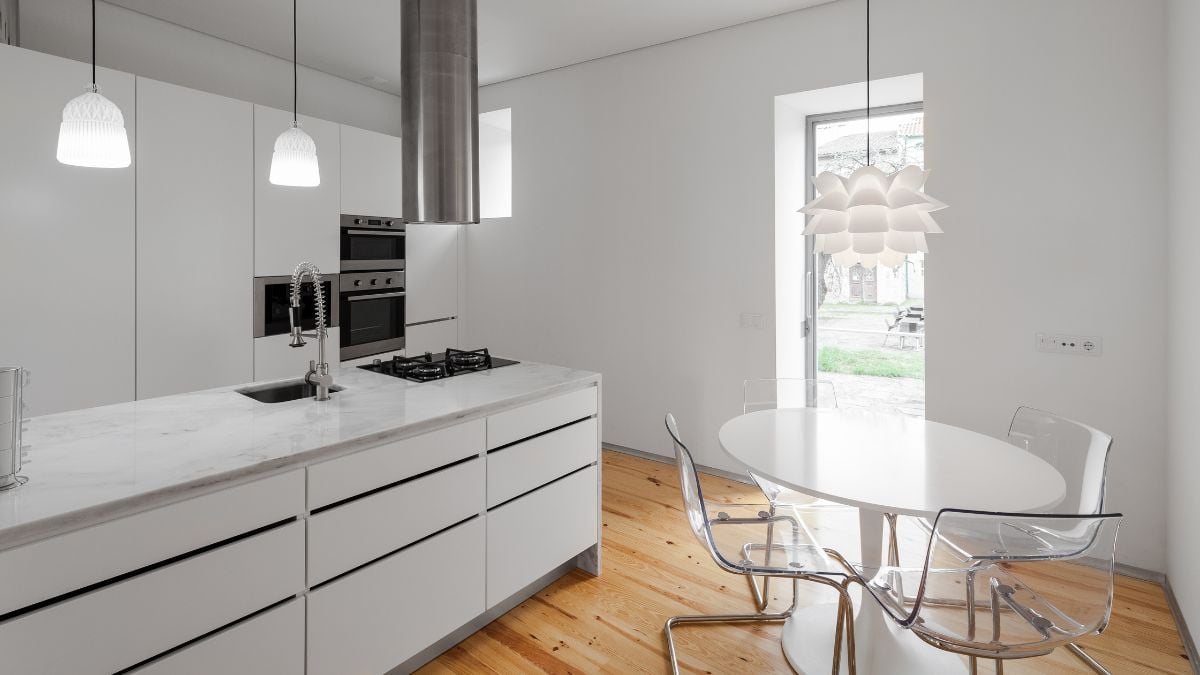

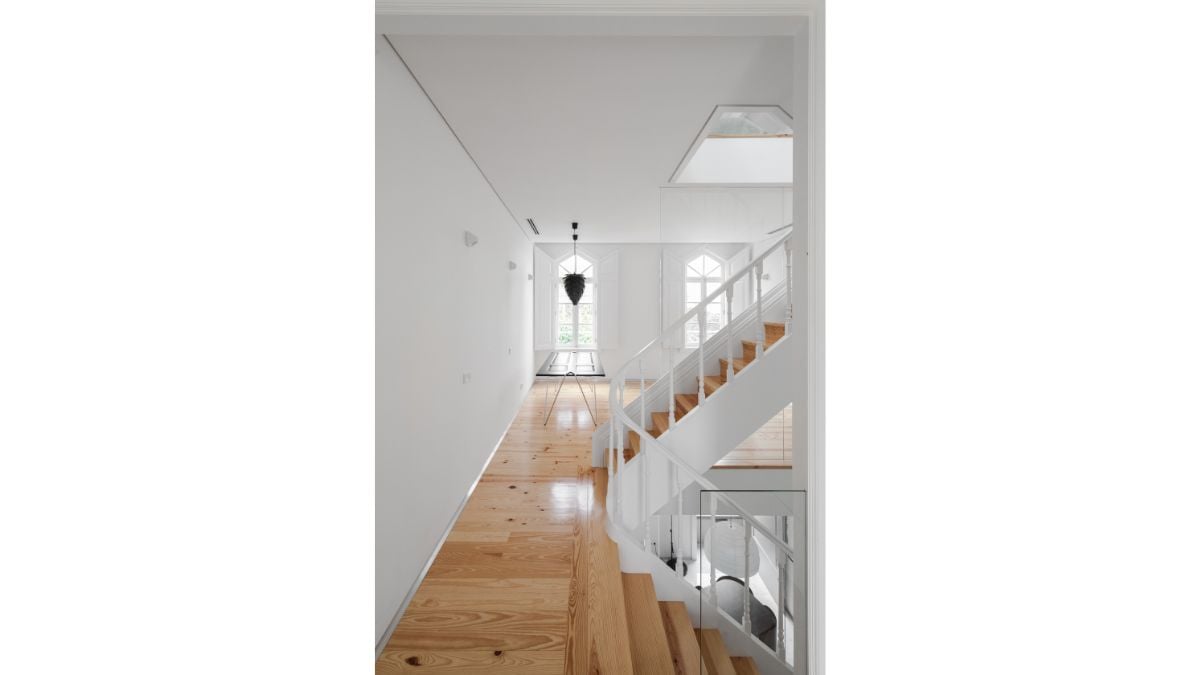

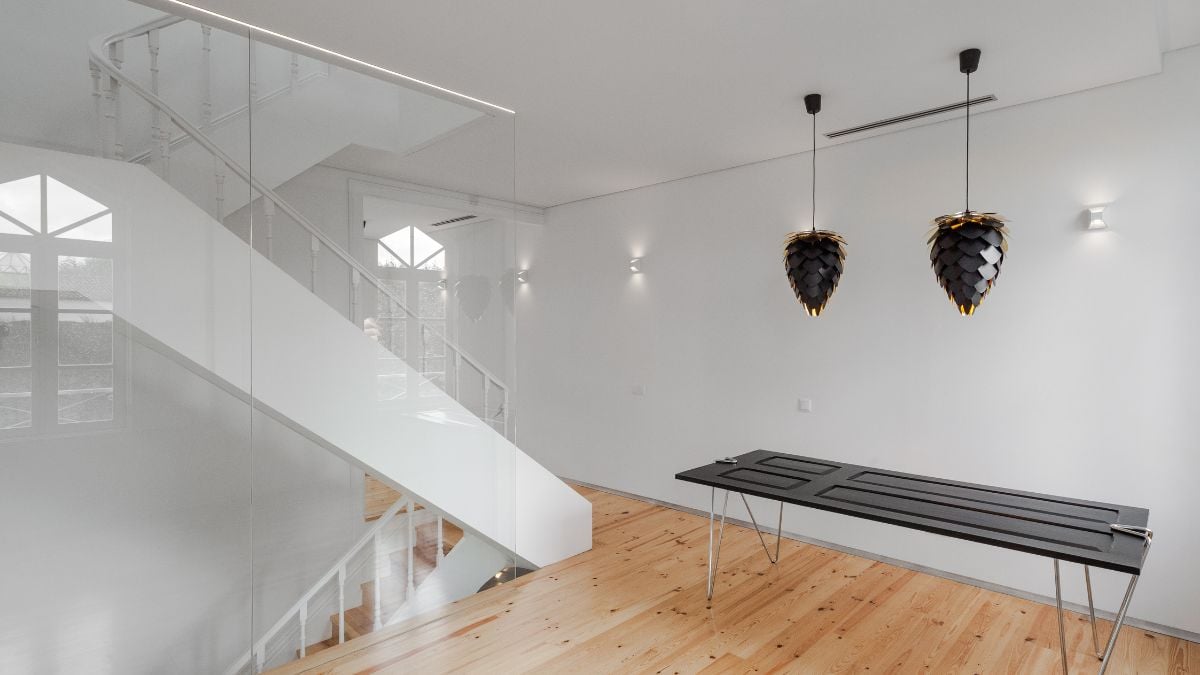

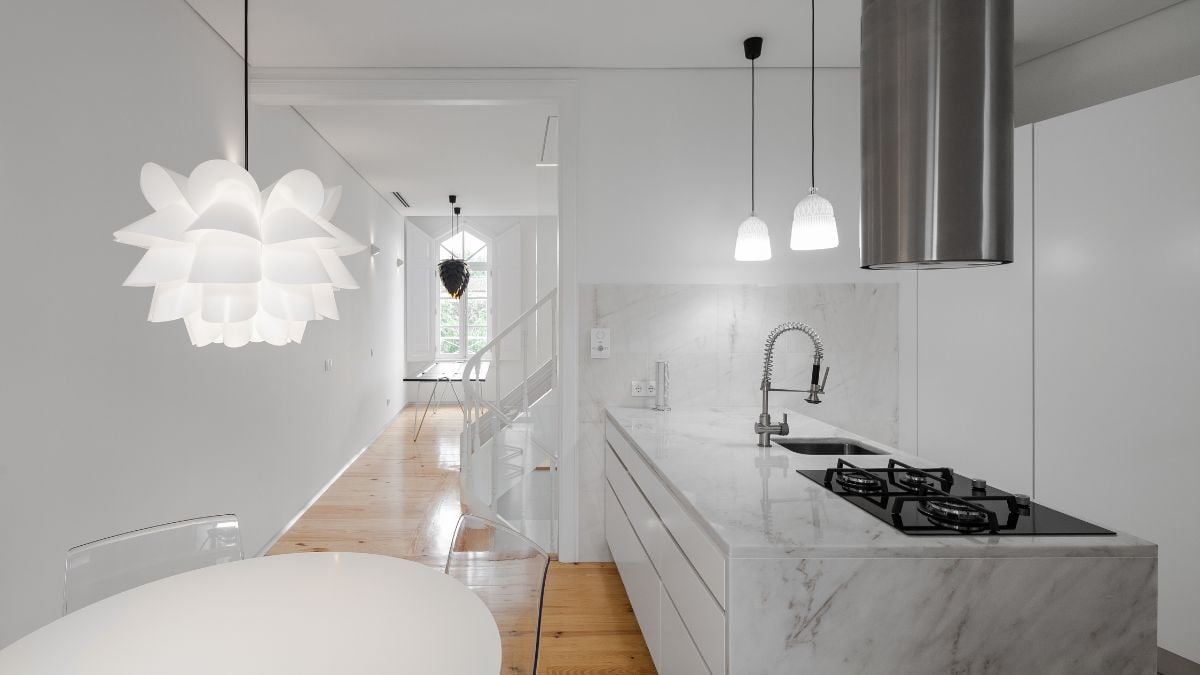

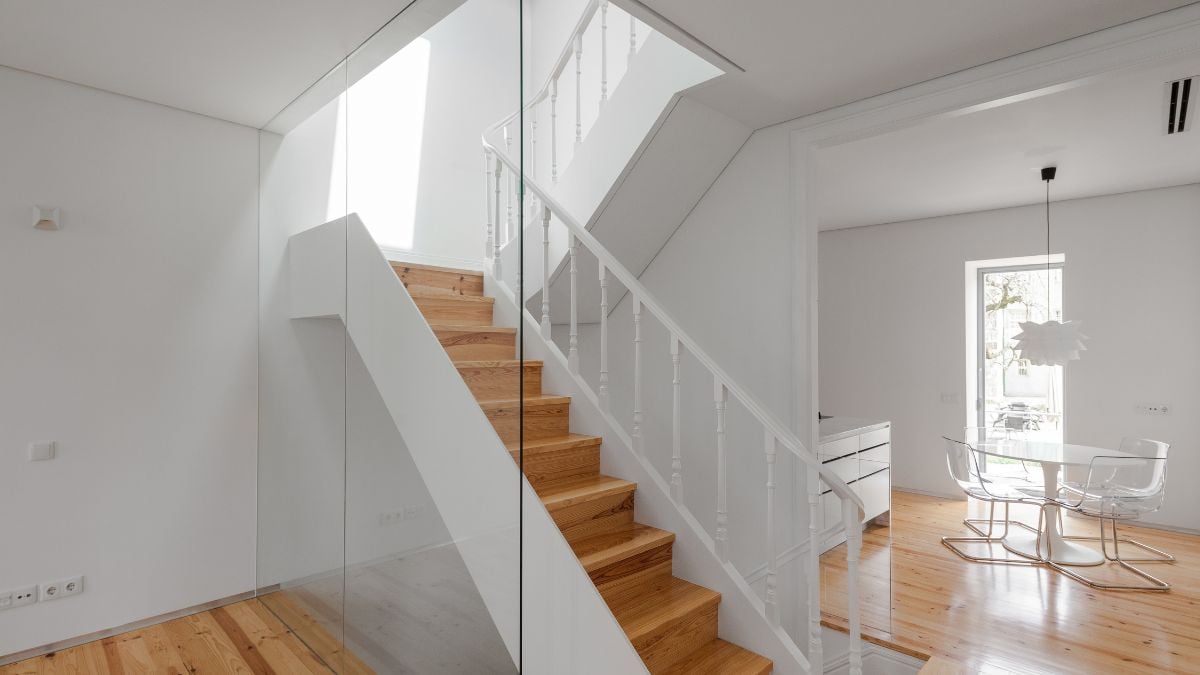

The staircase geometry efficiently filters the visual relations between both programs while still allowing for natural light to seep down from the upper levels. The first floor was kept for the social program of the house. Refusing the natural tendency for compartmentalizing, the staircase was allowed to define the perimeters of the kitchen and living room, creating an open floor with natural light all day long.

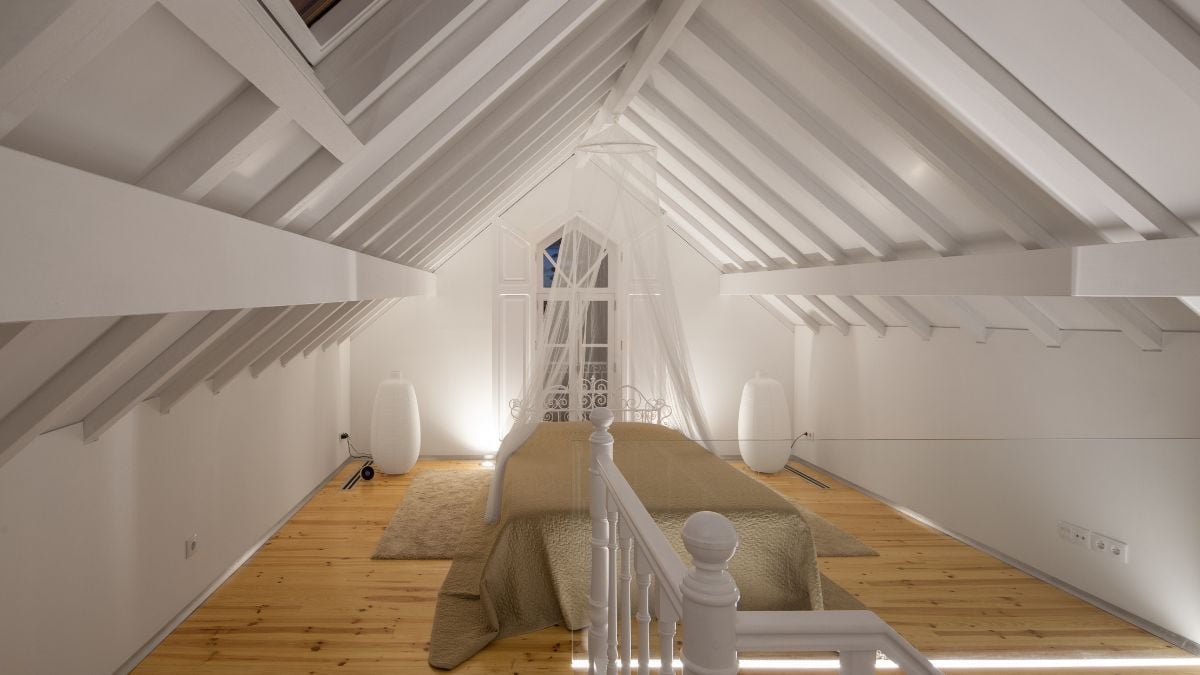

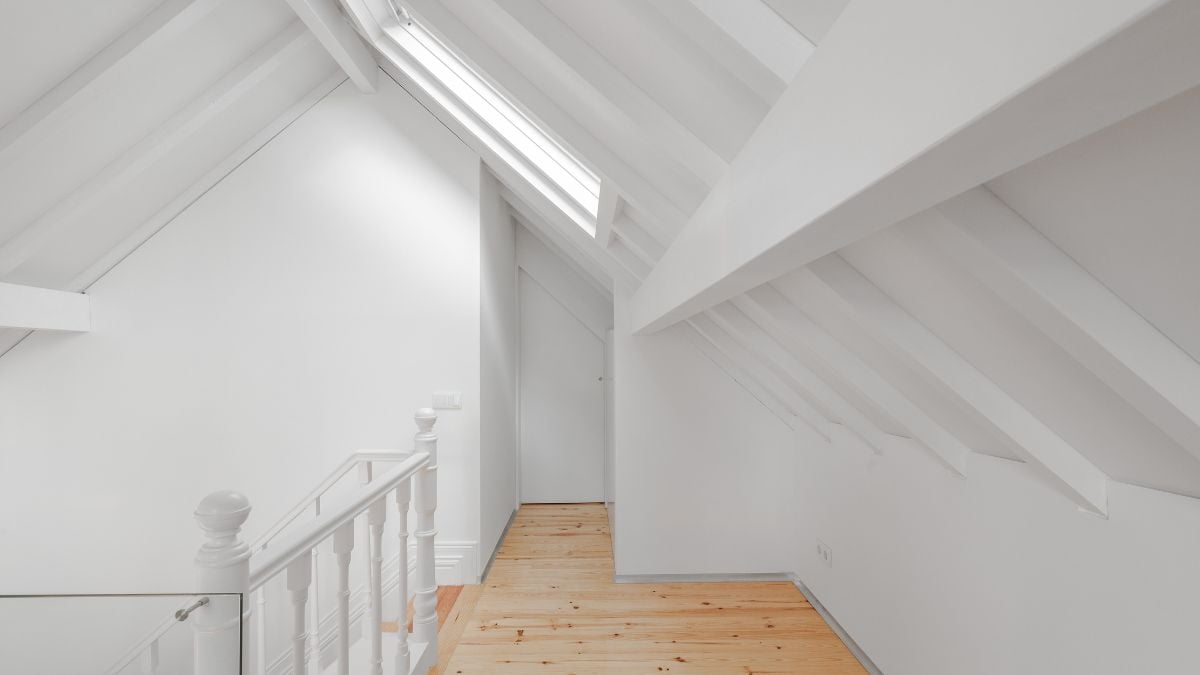

Light enters from the kitchen in the morning, from the staircase’s skylight and from the living room in the afternoon. Climbing the last narrow flight of stairs we reach the sleeping quarters where the protagonist is the roof, whose structure was kept apparent, though painted white. On the other side of the staircase there’s a clothing room, backed by a bathroom.

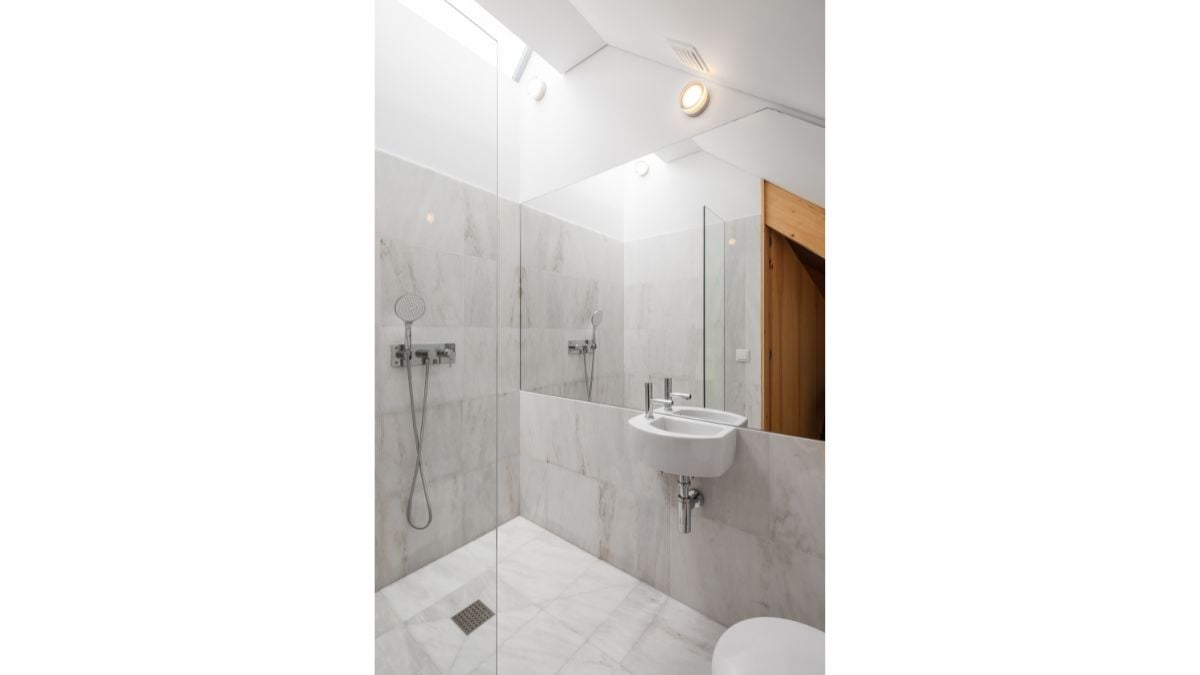

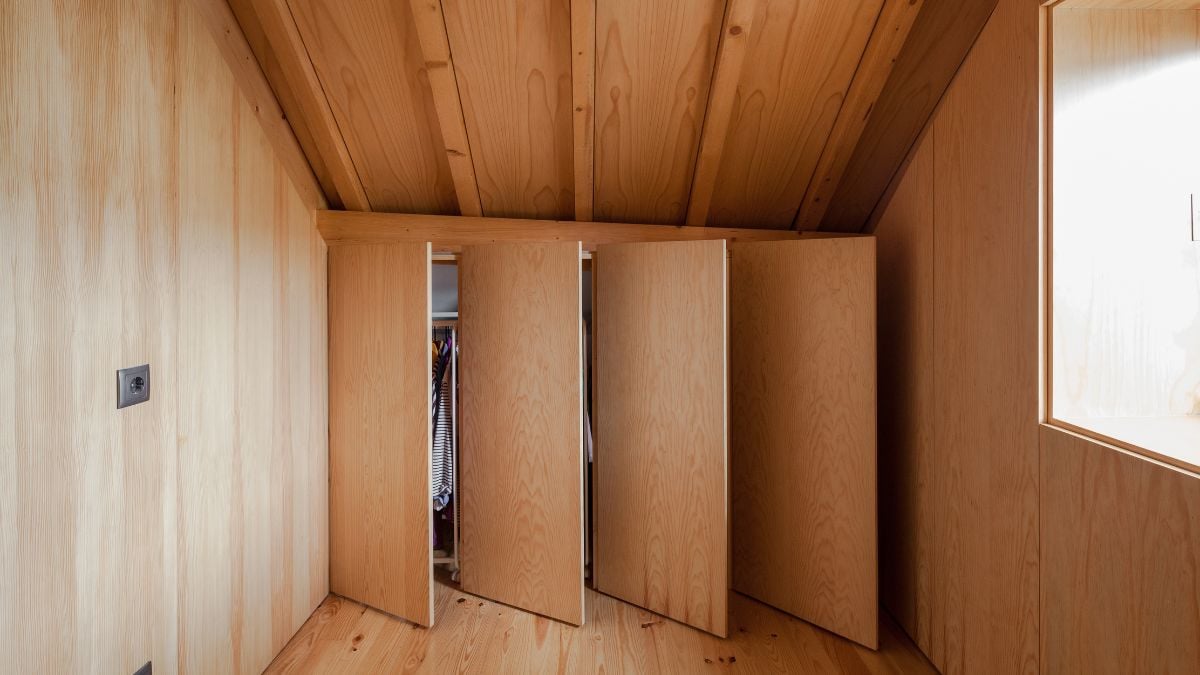

The white color is methodically repeated on walls, ceilings, carpentry and marble. The clothing room is the surprise at the top of the building. Both the floor and roof structure appear in their natural colors, surrounded by closet doors constructed in the same material. It reads as a small wooden box, a counterpoint to the home’s white box and to the marble box of the bathroom.
