Free Deck Plan with Pergola (Download Full PDF Blueprint)


Download this free deck with pergola plan and blueprint.  Full set of plans here as PDF and images.

Deck with Pergola

One of the most popular deck features these days is a pergola such as the deck above (source: Zillow DigsTM).

The above pergola design is a little different than most.  Most pergola tops are parallel boards sitting on their side.  The above is a checkered wood frame with some squares using lattice woodwork.  If you’d like more shade, you could place lattice woodwork in every square.

Pergolas are fairly easy to construct, are pleasing to the eye and offer a little shade while not totally obstructing the sun.

My favorite use of a pergola is to use it as a way to add more greenery to the deck by

The example above is a large Pergola that covers the entire deck area, but you can also build decks where the pergola is restricted to only a part of the deck.

If you wish to build a deck with a pergola, help yourself to our free plans/blueprint below.

=> Click here to download the PDF version of this deck design.

Otherwise, you can click the images below to enlarge them.

If you’re looking for a different deck, check out all of our free deck plans here.

Overview Design

Deck design with Pergola

Click to enlarge.

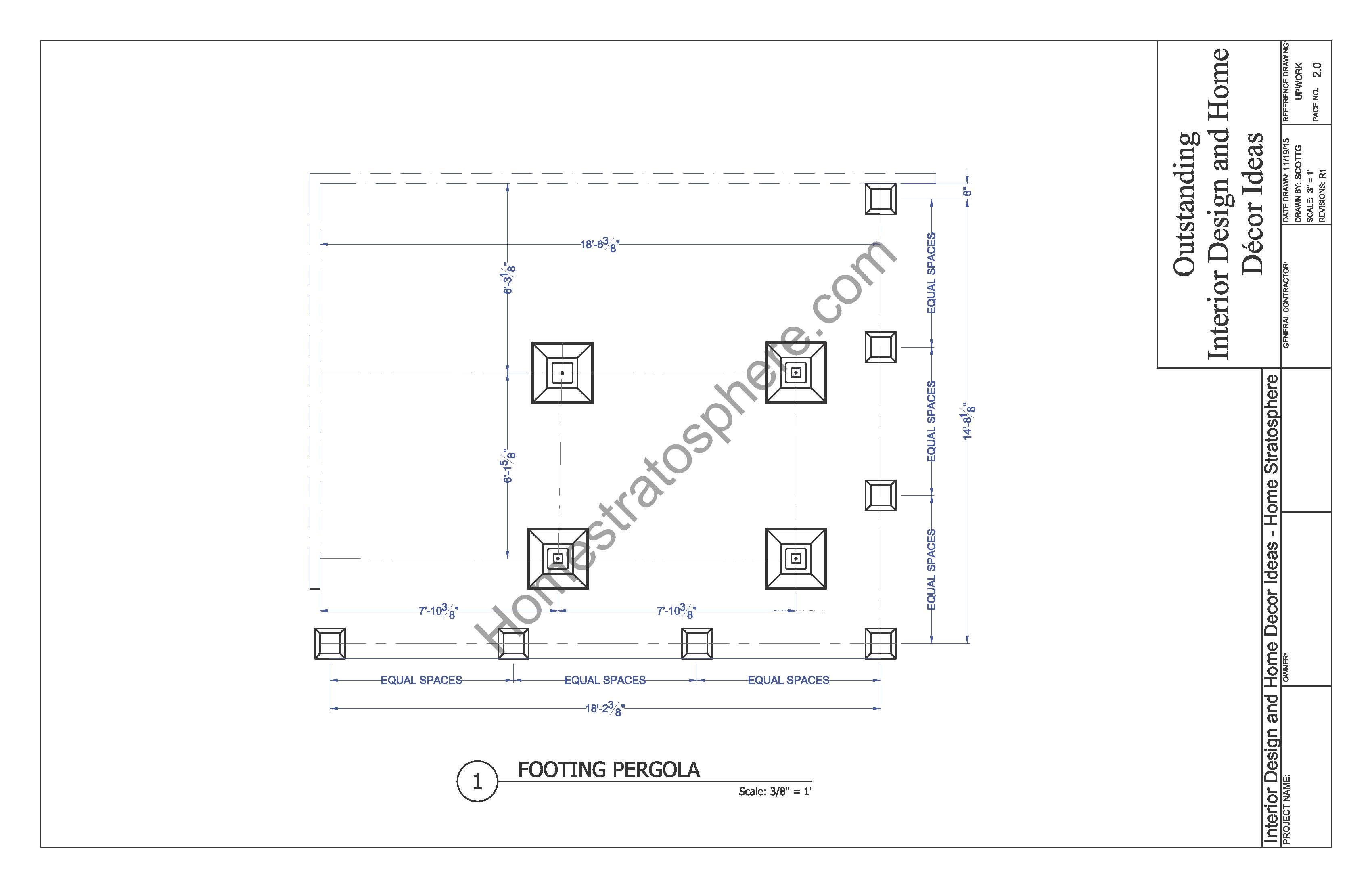

Pergola Footings

Deck Pergola Footings Blueprint

Click to enlarge.

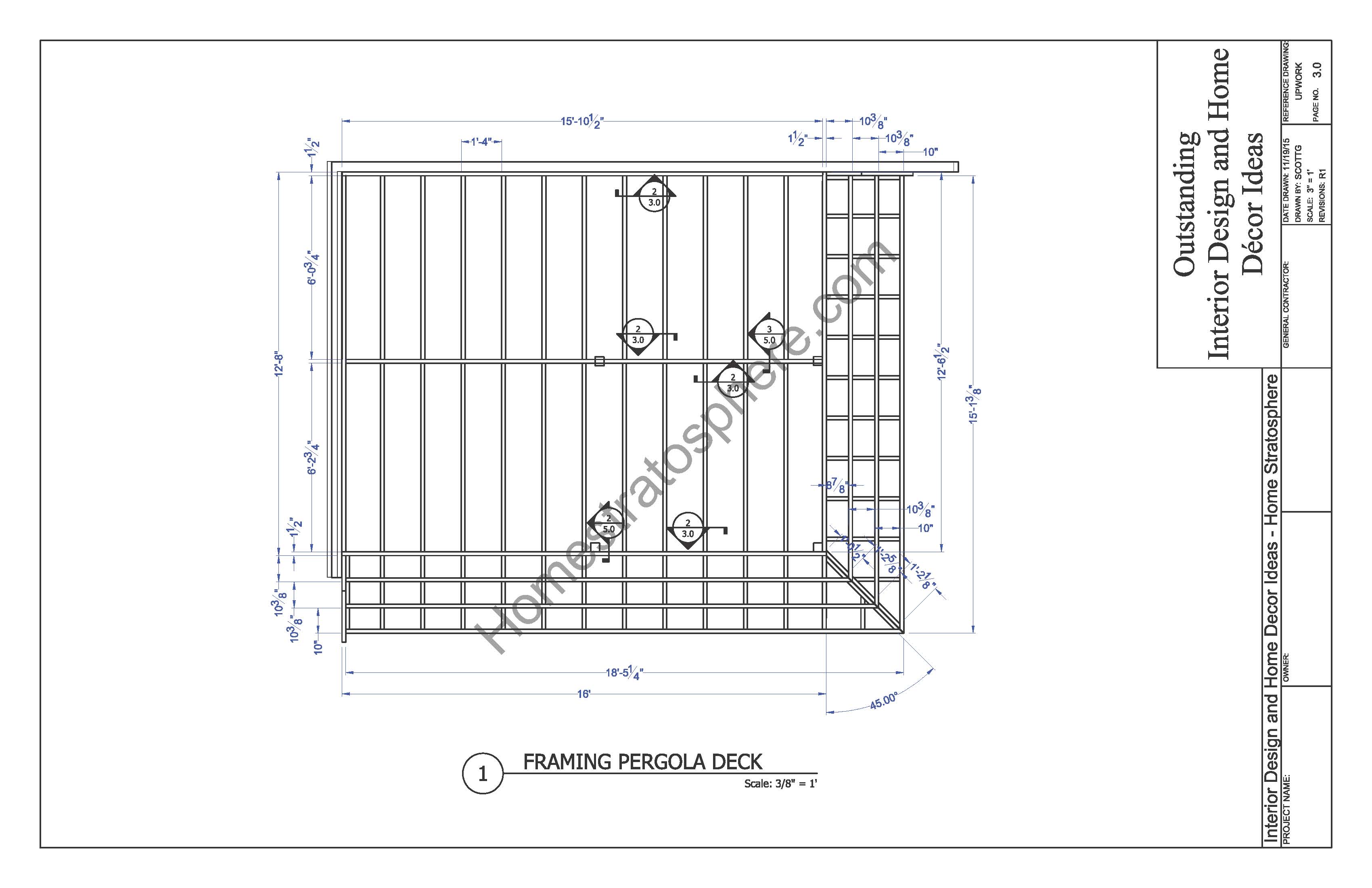

Pergola Deck Framing

Pergola Deck Framing

Click to enlarge.

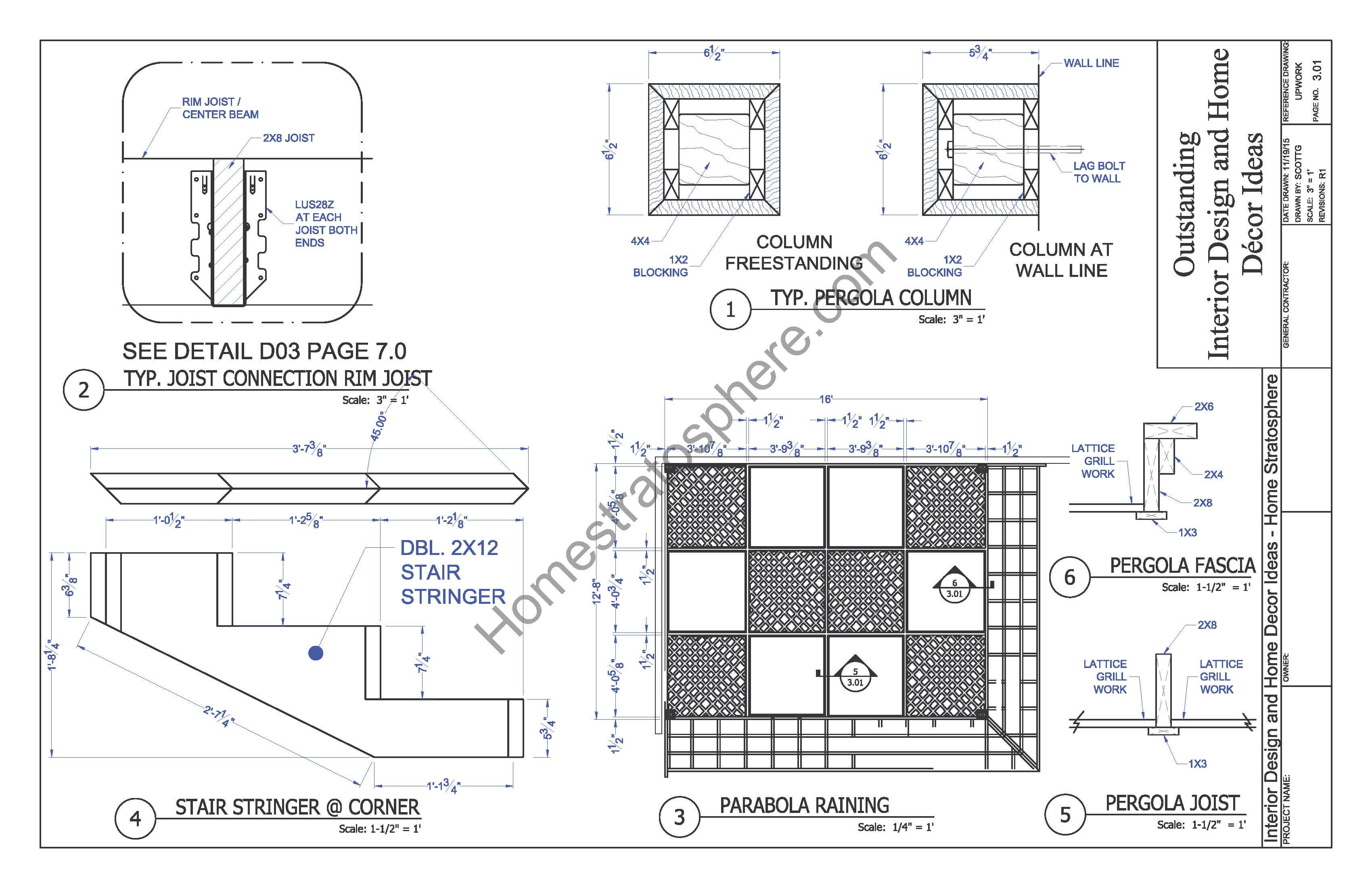

Deck Design with Pergola_Page_04

Click to enlarge

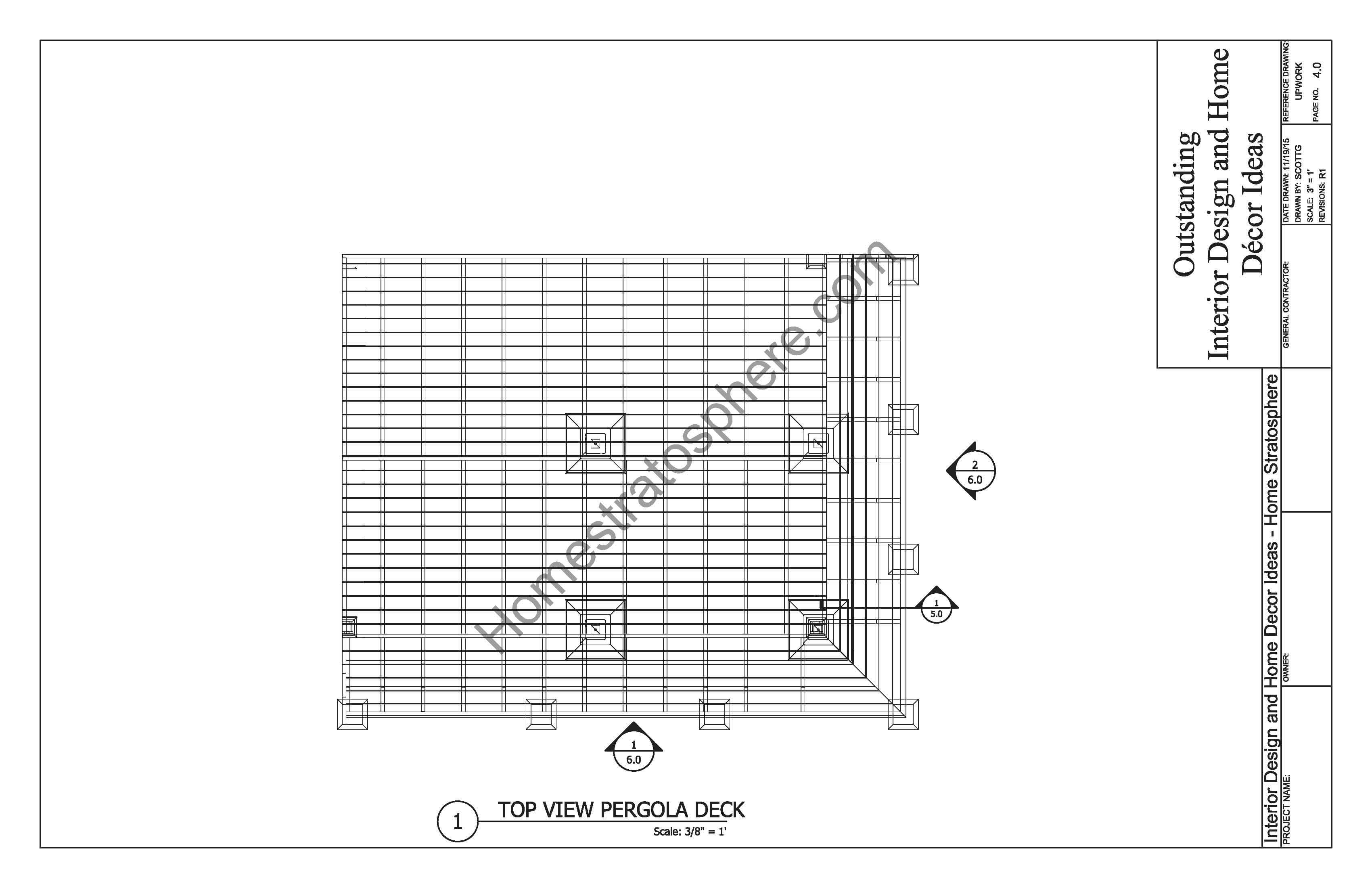

Top View of Pergola

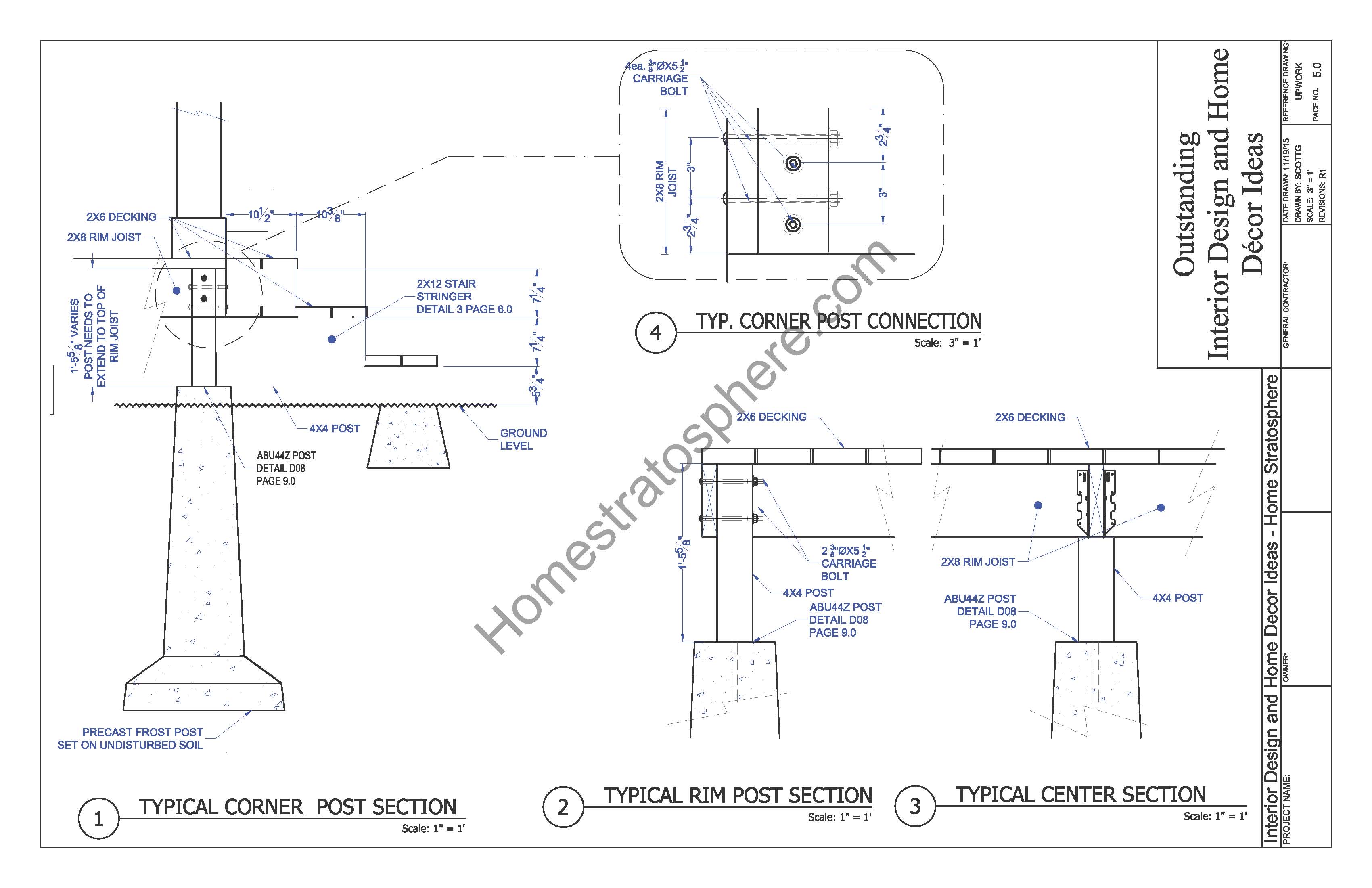

Support Posts

Support Posts Blueprint

Click to enlarge.

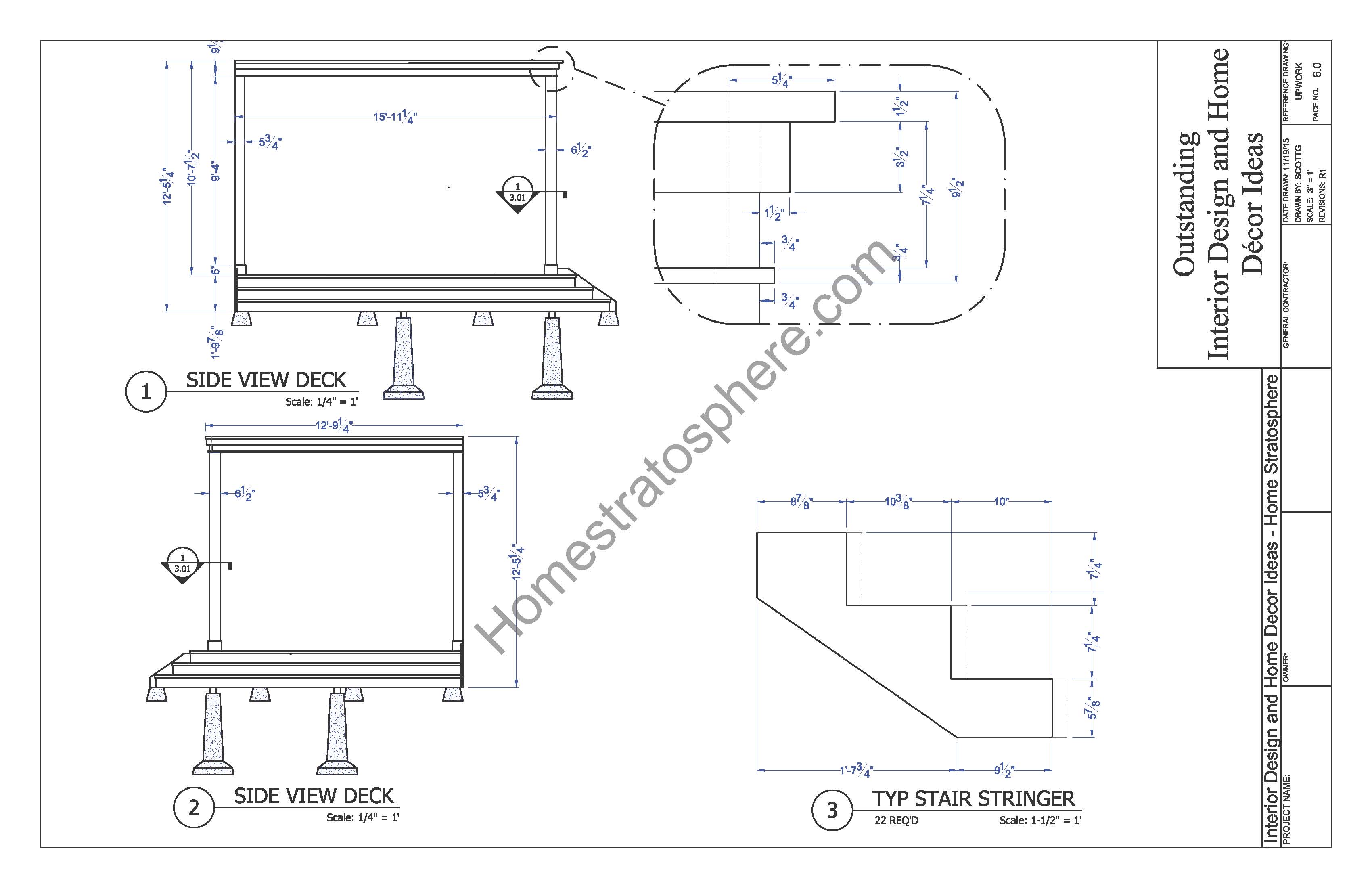

Stairs from Deck

Stairs from Deck

Click to enlarge.

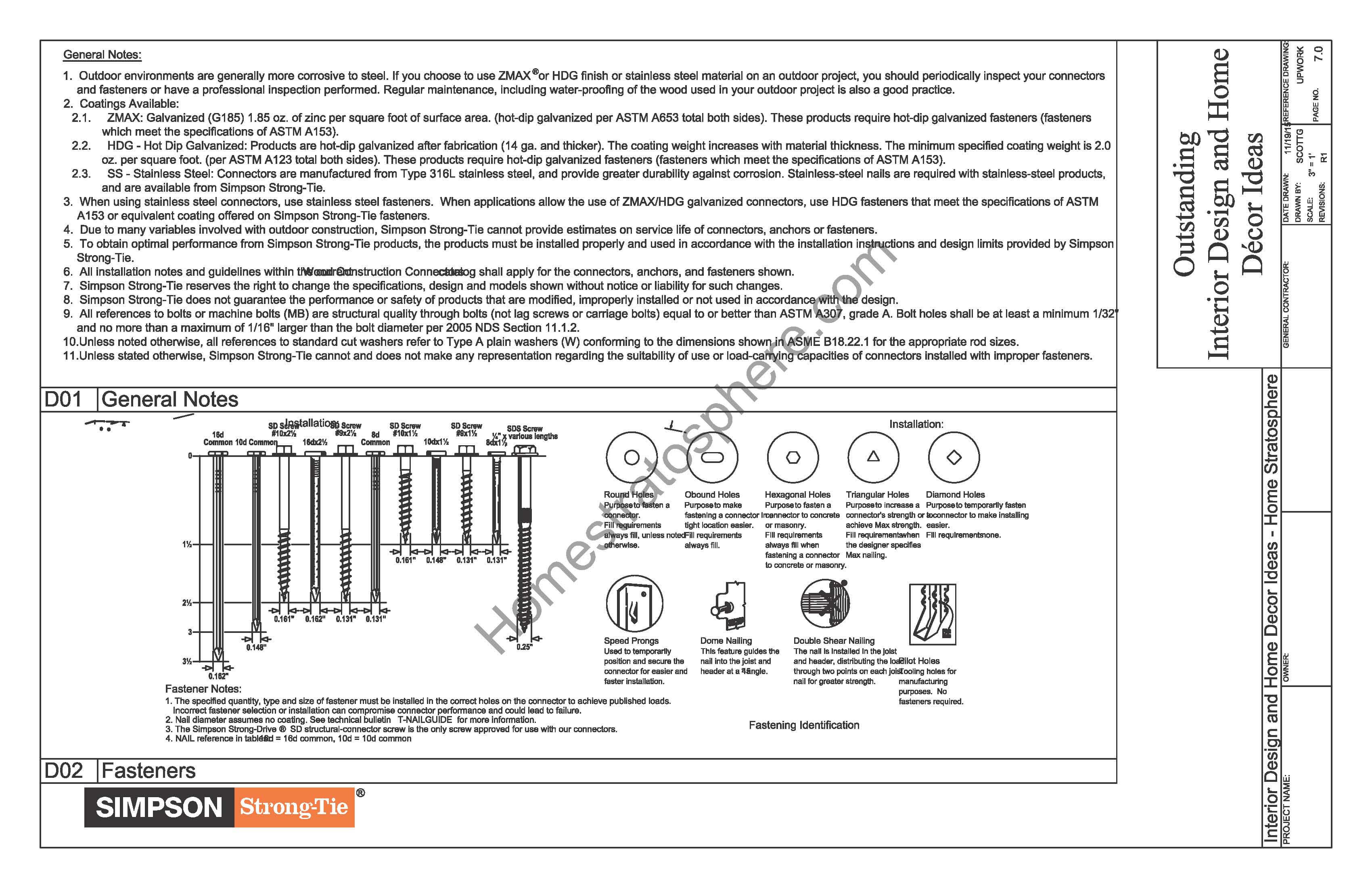

Deck Design with Pergola_Page_08

Click to enlarge.

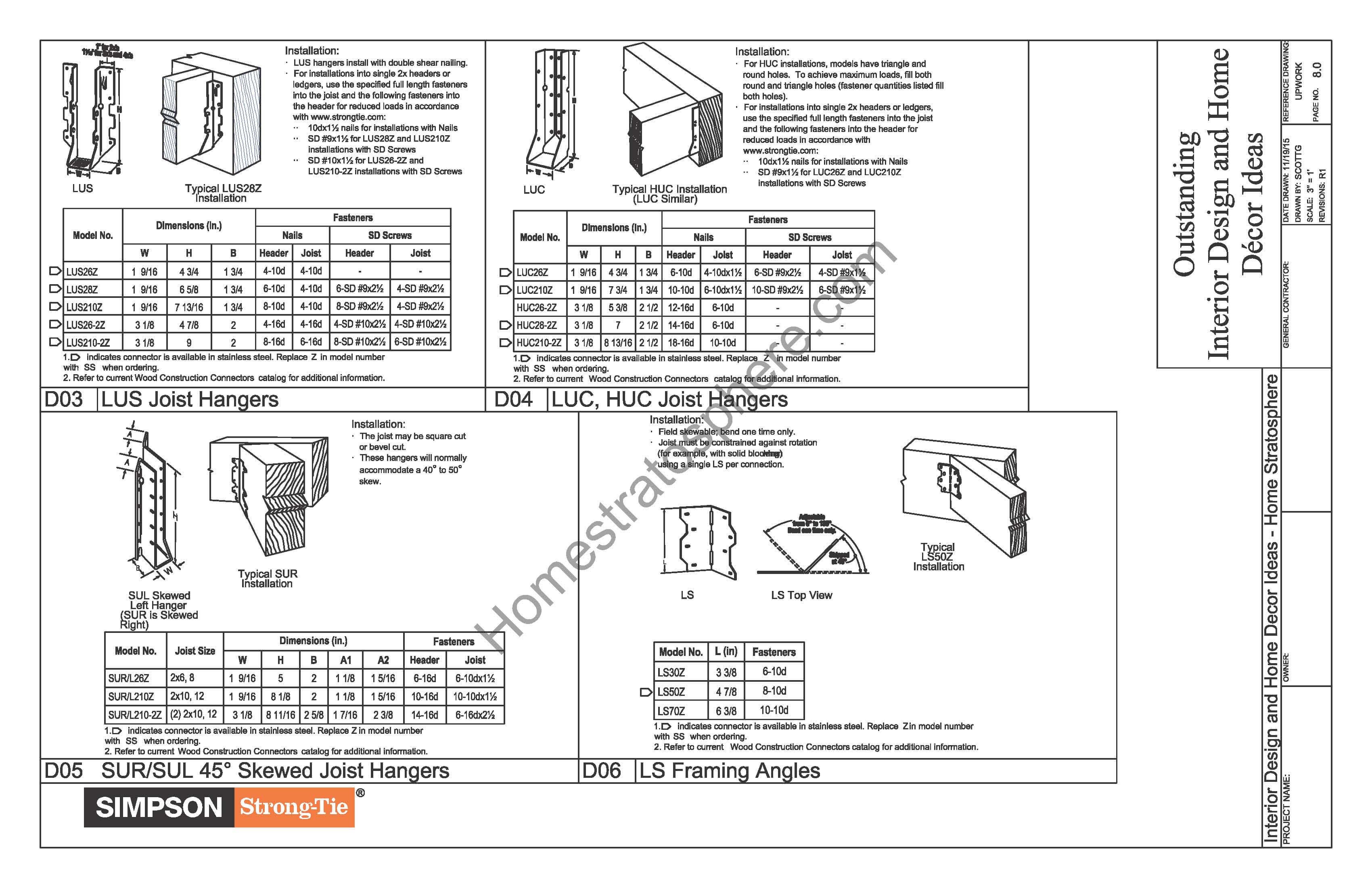

Deck Design with Pergola_Page_09

Click to enlarge.

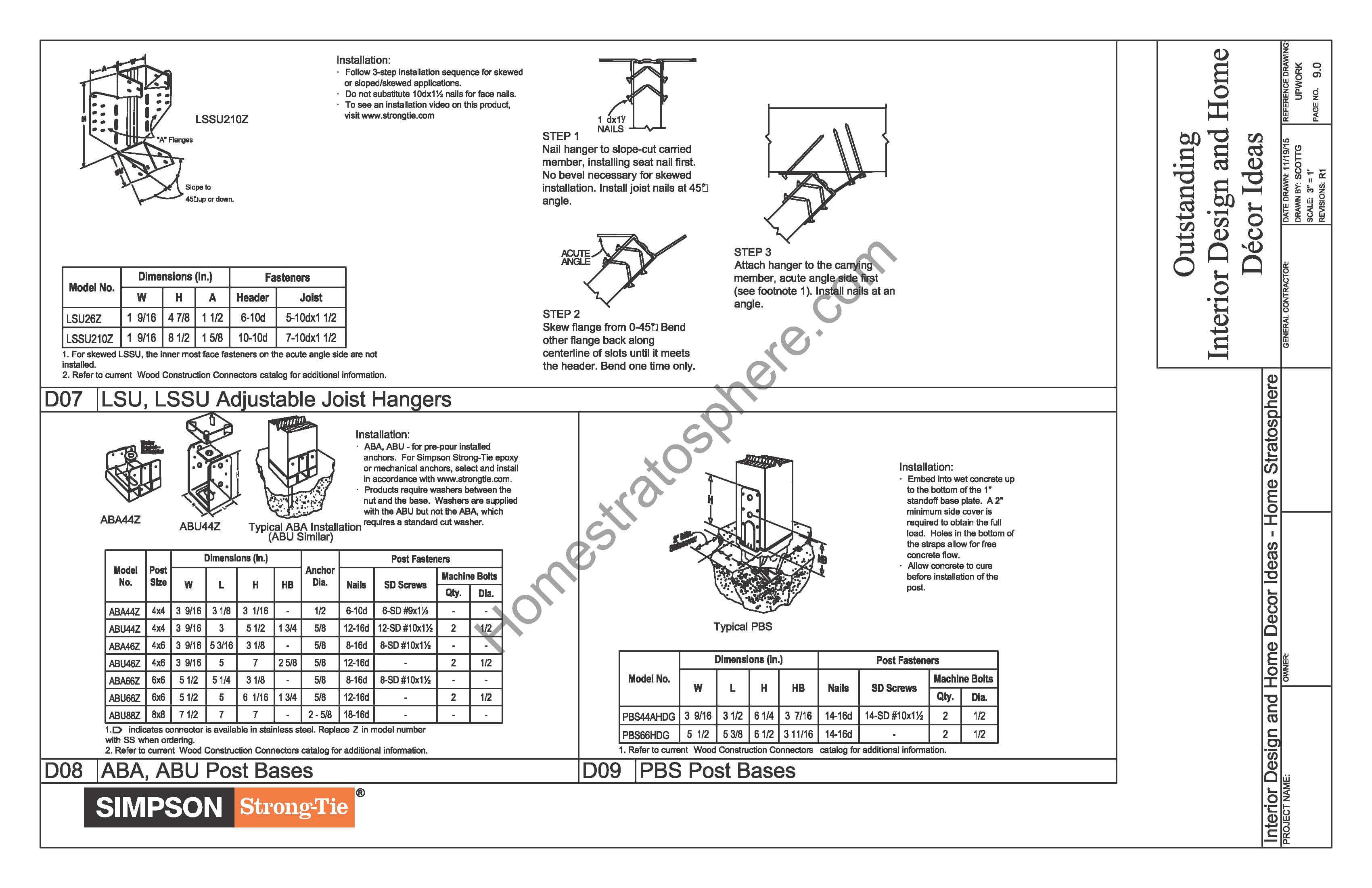

Deck Design with Pergola_Page_10

Click to enlarge.

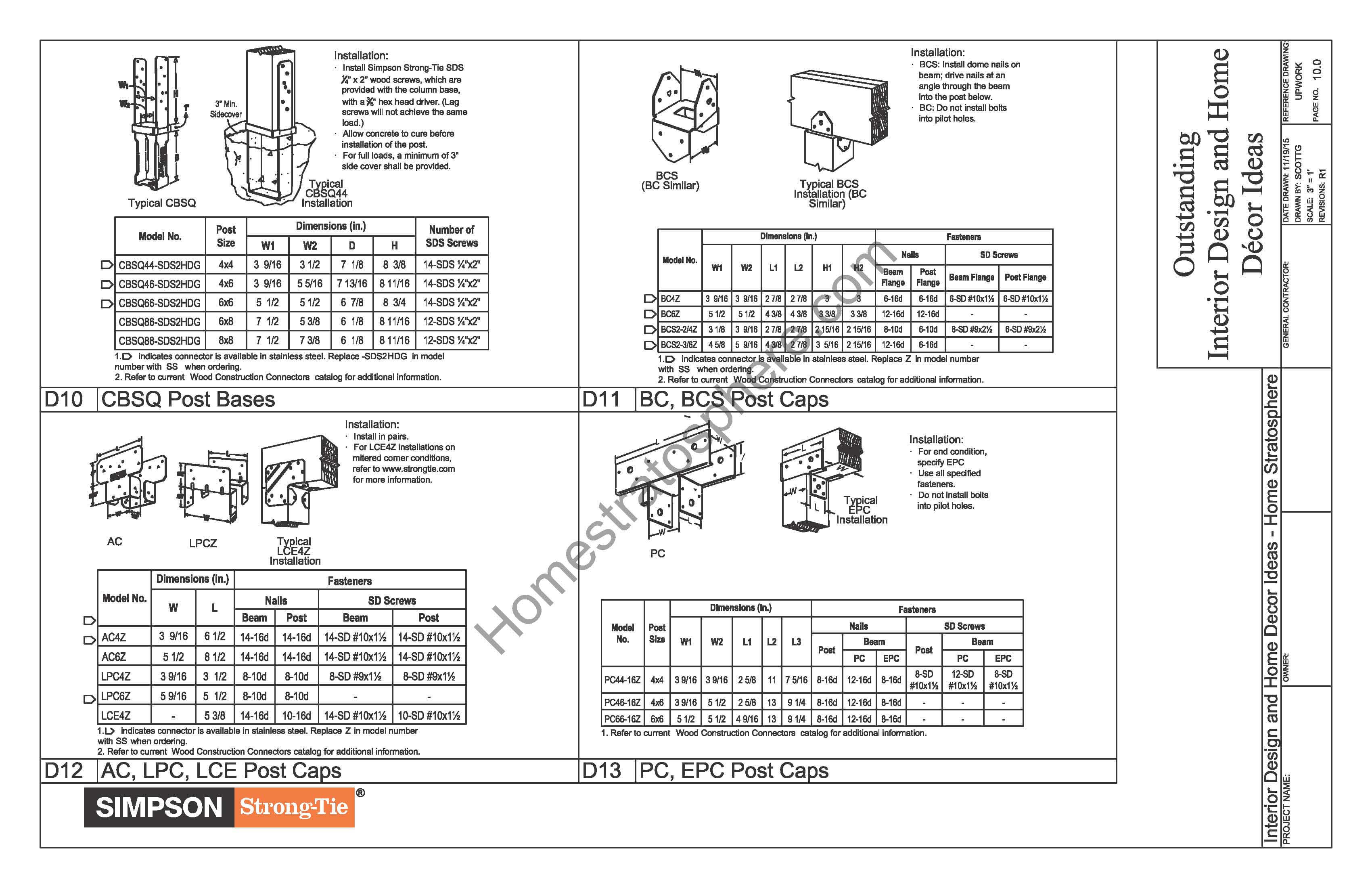

Deck Design with Pergola_Page_11

Click to enlarge.

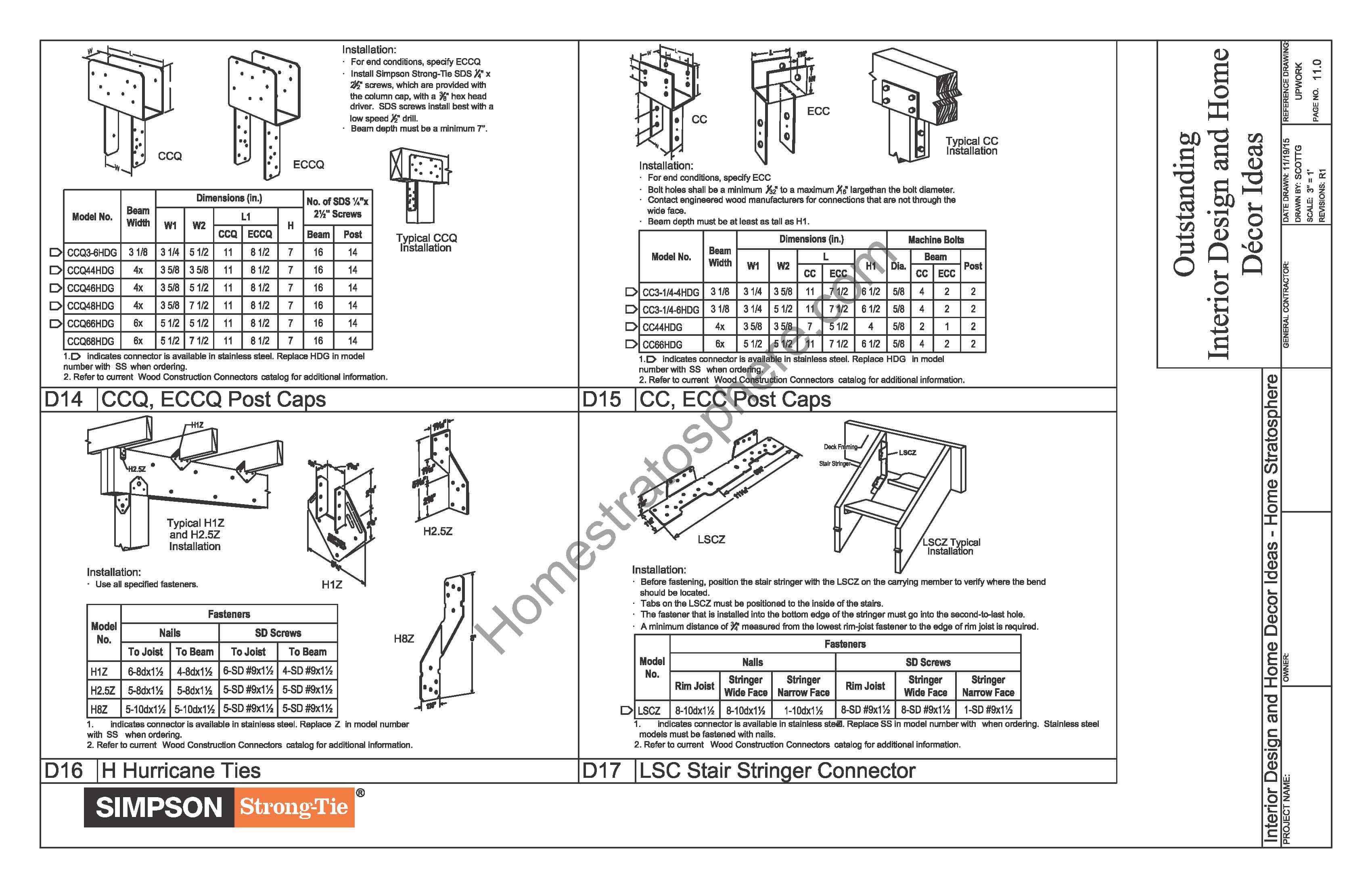

Deck Design with Pergola_Page_12

Click to enlarge.

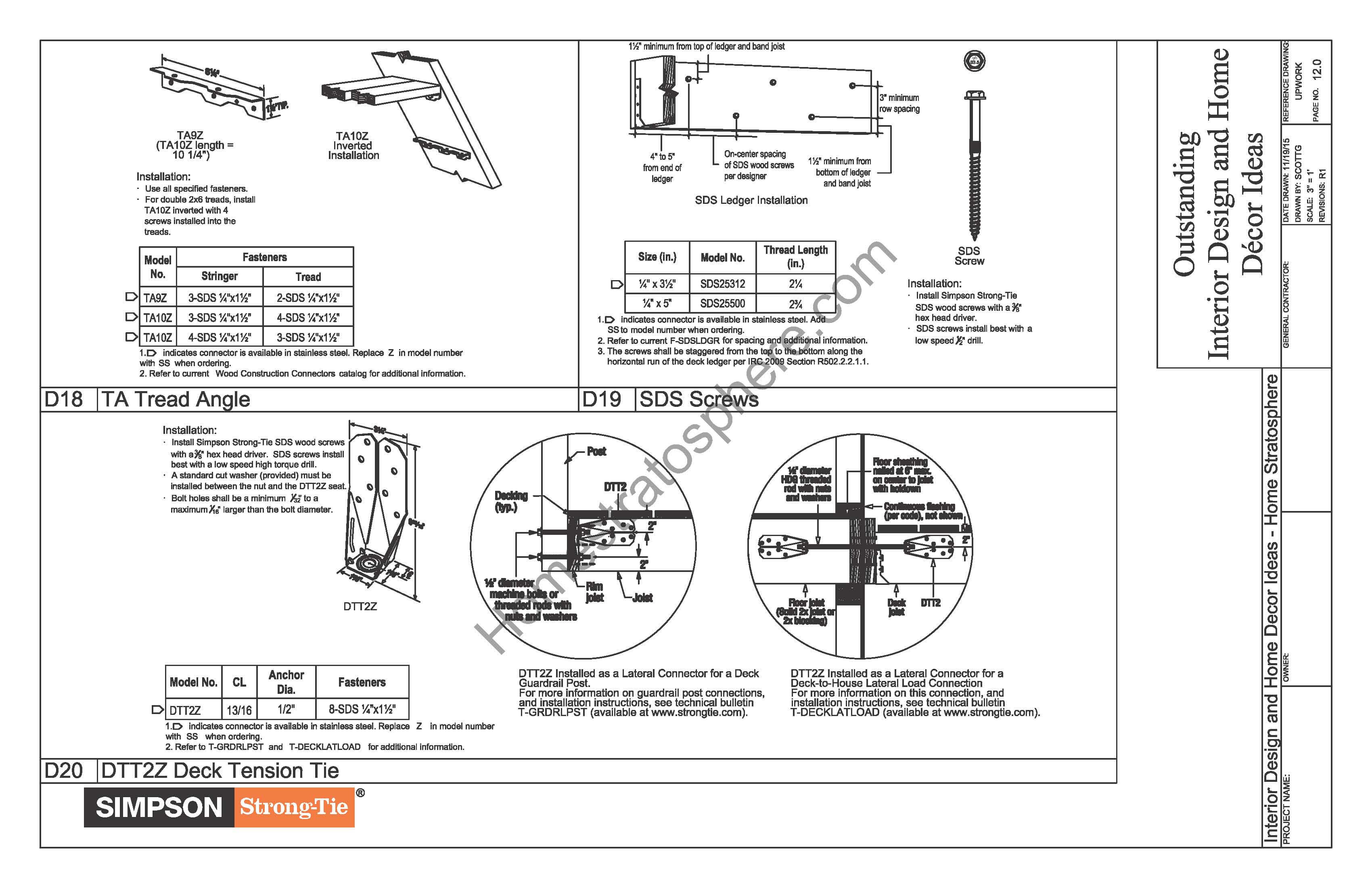

Deck Design with Pergola_Page_13

Click to enlarge.

Tools and Materials

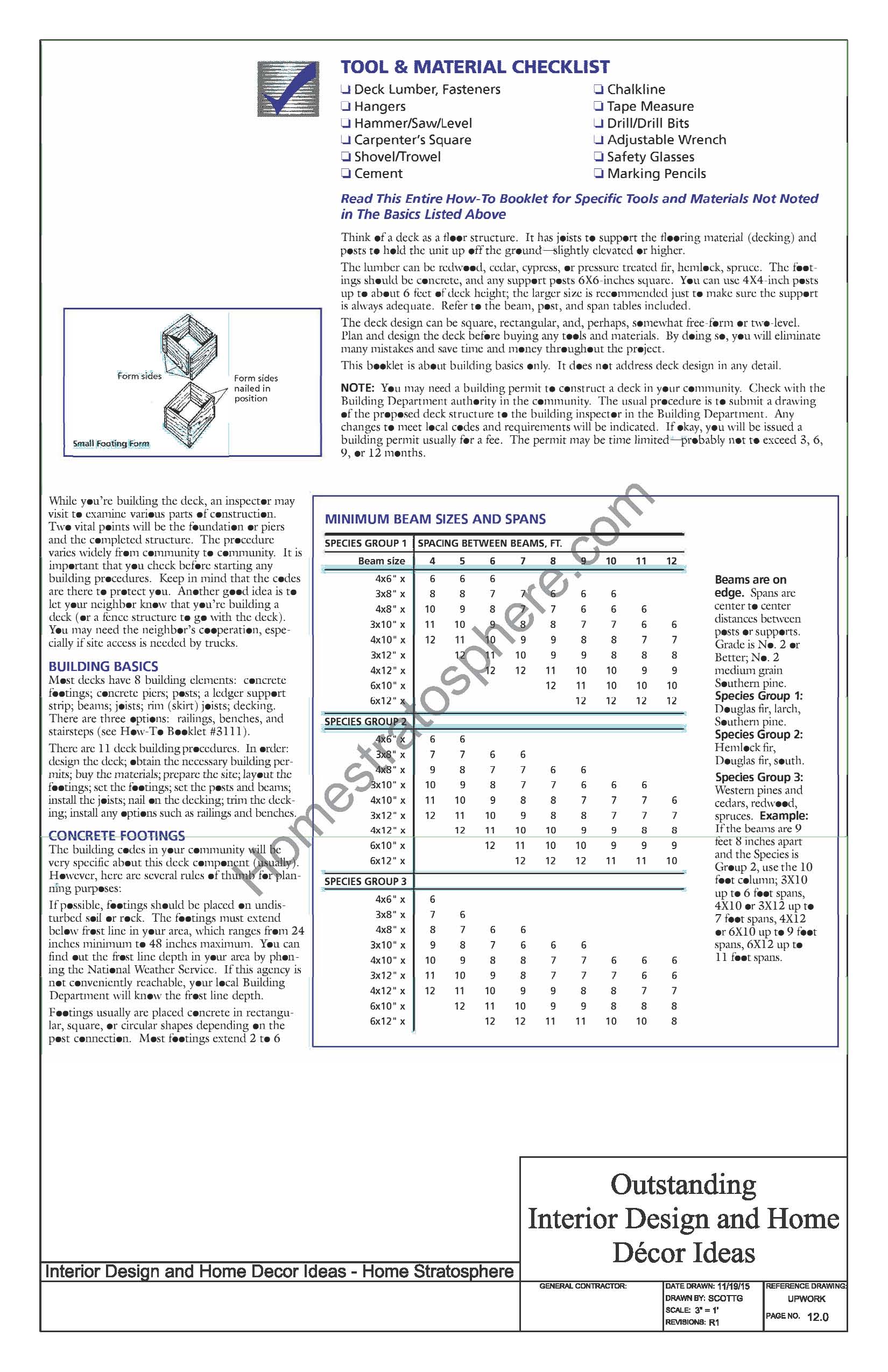

Pergola Deck Tools and Materials List

Click to enlarge.

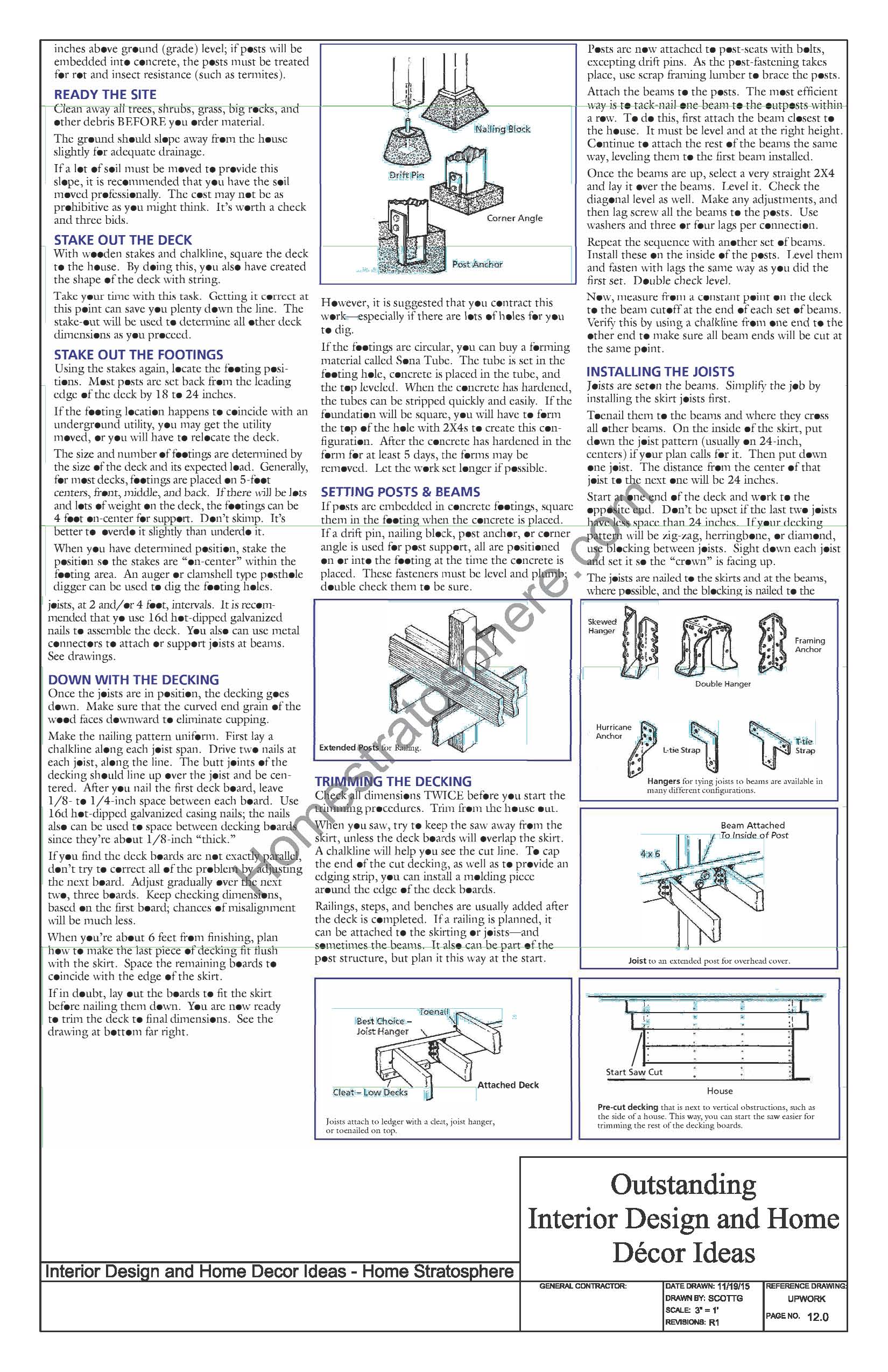

Pergola Deck Tools and Materials (Continued)

Click to enlarge.

=> Click here to download the PDF version of this deck design.

=> Click here to see all of our free deck plans here.
