Specifications:
- Sq. Ft.: 3,073
- Bedrooms: 5
- Bathrooms: 3
- Stories: 1
- Garages: 3
Welcome to photos and footprint for a 5-bedroom single-story Northwest ranch. Here’s the floor plan:
Buy this plan

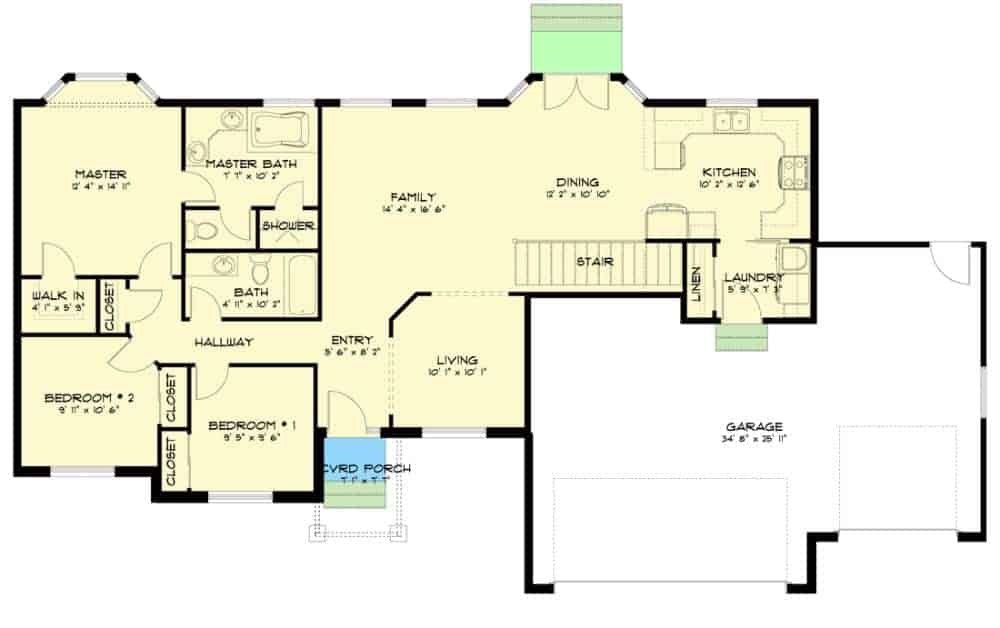

Main level floor plan

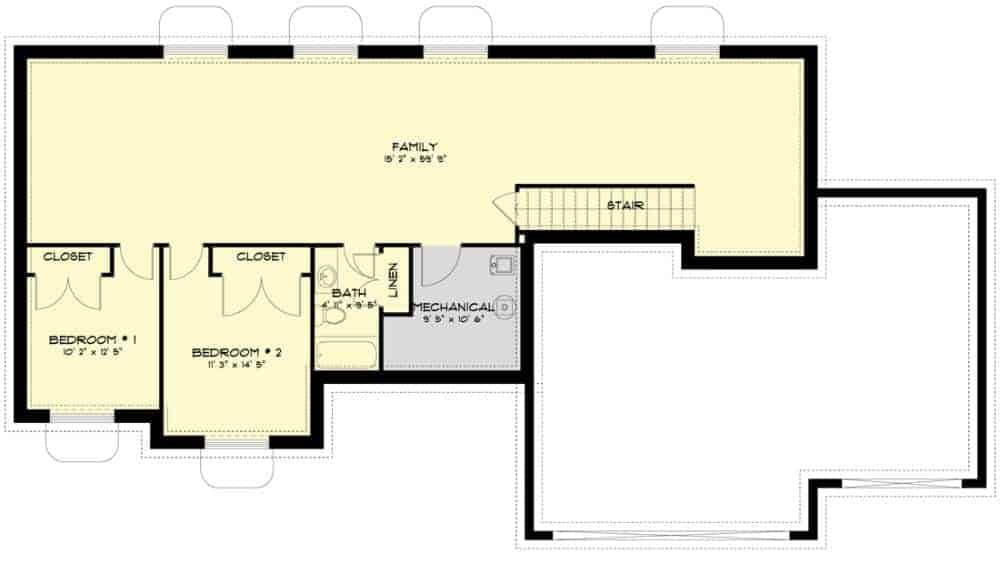

Lower level floor plan

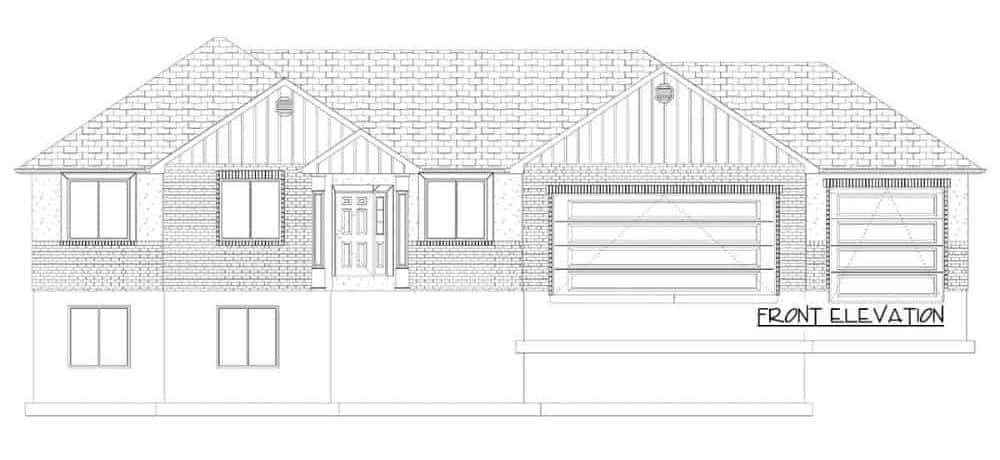

Front elevation sketch of the 5-bedroom single-story Northwest ranch.

Right elevation sketch of the 5-bedroom single-story Northwest ranch.

Left elevation sketch of the 5-bedroom single-story Northwest ranch.

Rear elevation sketch of the 5-bedroom single-story Northwest ranch.

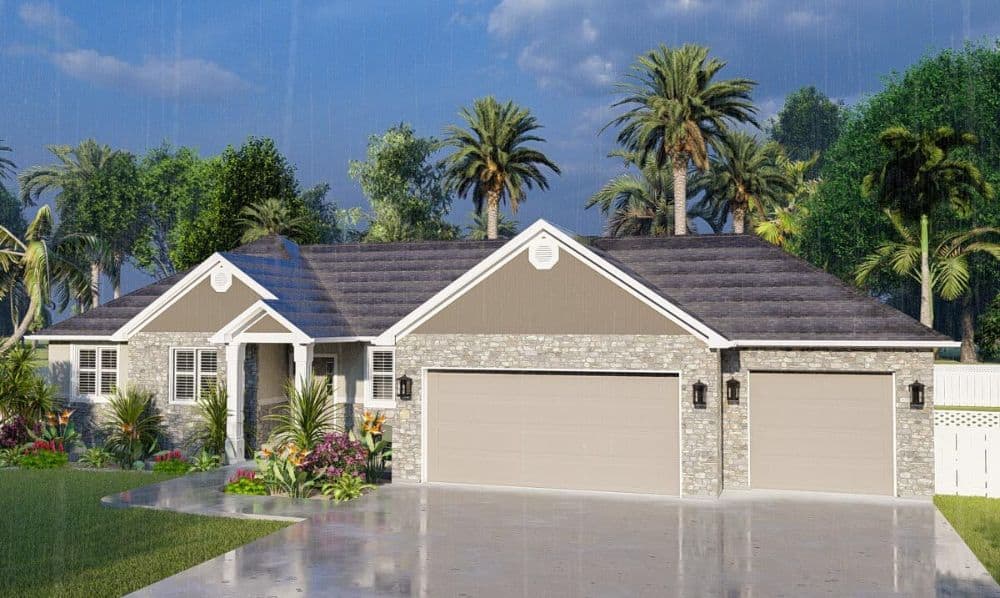

- Front rendering of the 5-bedroom single-story Northwest ranch.

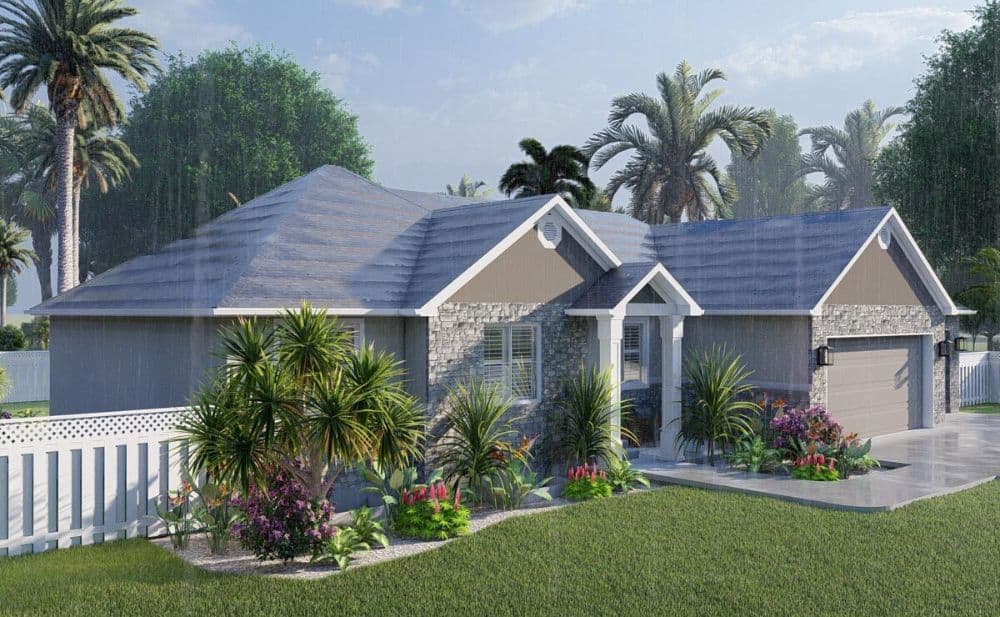

- Front-right rendering of the 5-bedroom single-story Northwest ranch.

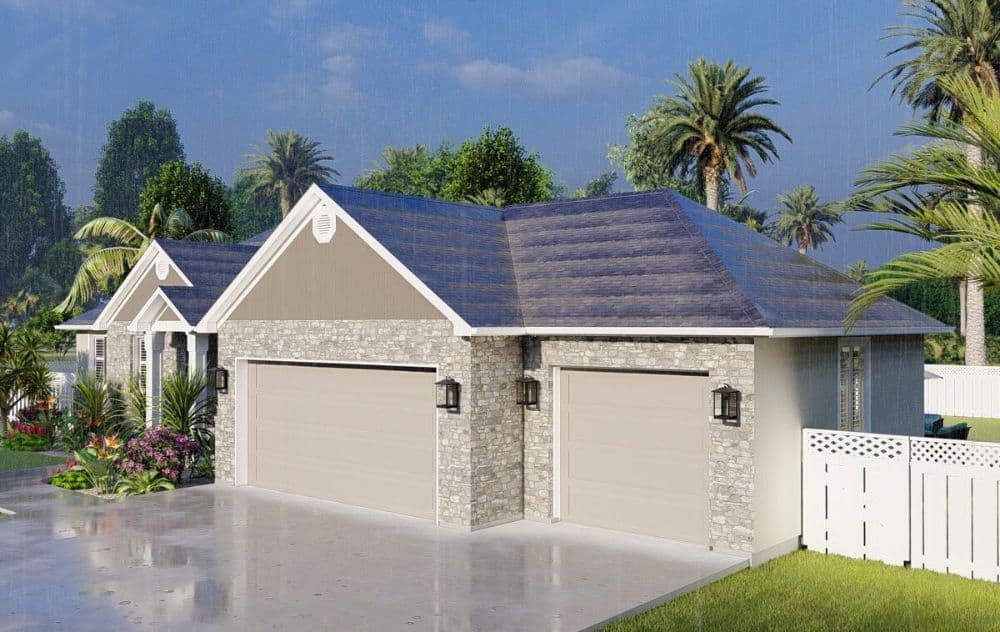

- Front-left rendering of the 5-bedroom single-story Northwest ranch.

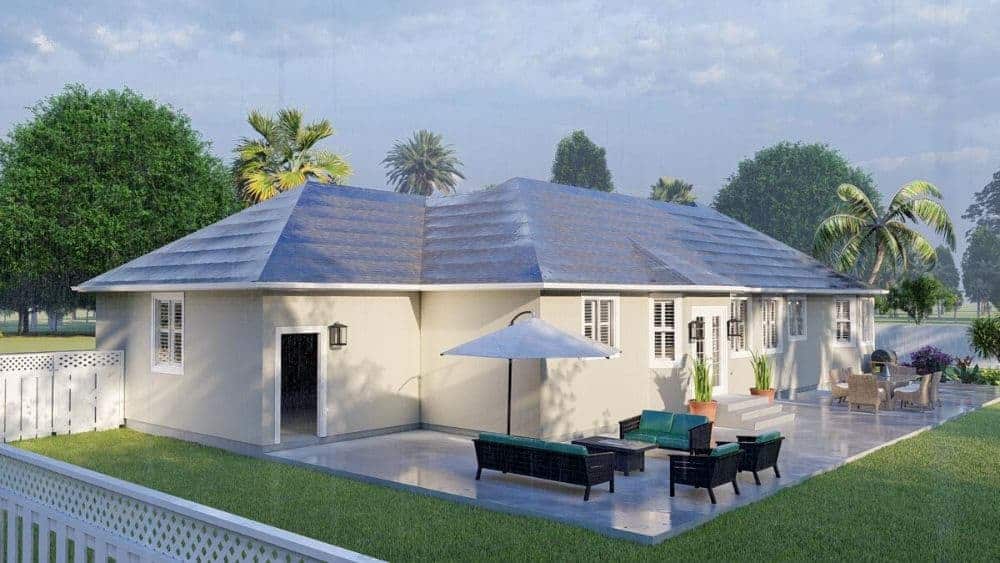

- Rear-left rendering of the 5-bedroom single-story Northwest ranch.
- Rear-right rendering of the 5-bedroom single-story Northwest ranch.

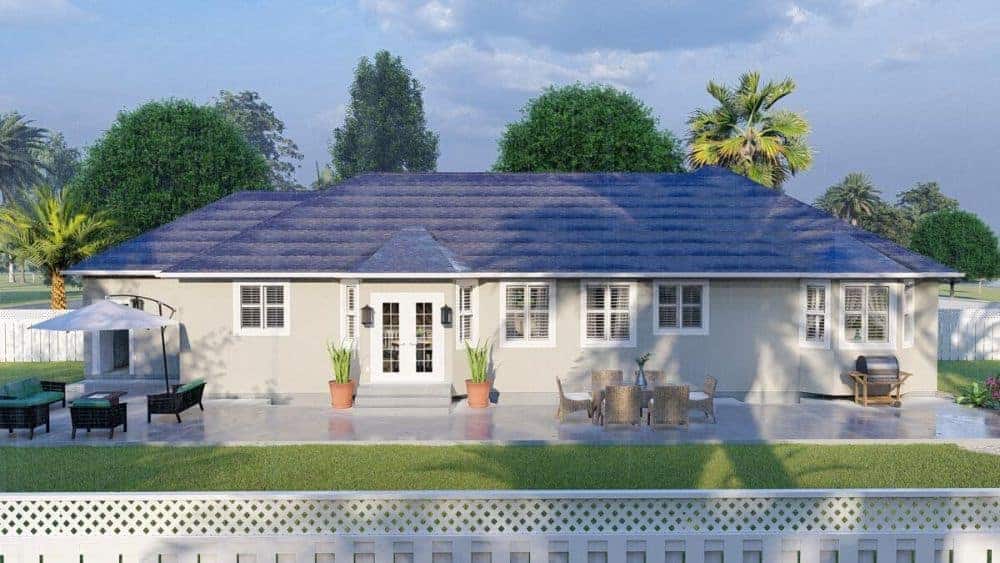

- Rear rendering of the 5-bedroom single-story Northwest ranch.
- Foyer with a gray front door and a wooden console table topped with a decorative vase and a sunburst mirror.

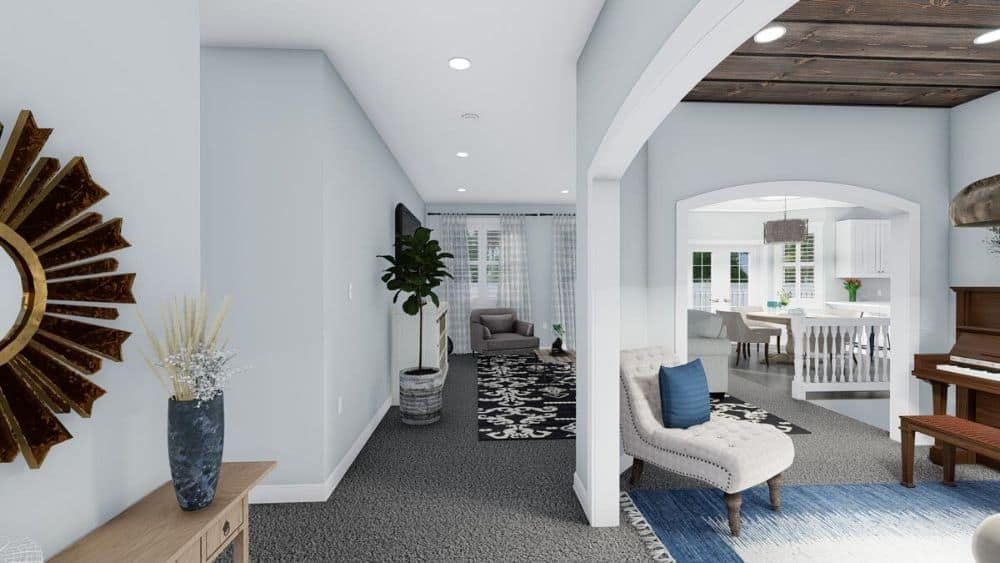

- The foyer opens up into the living room, kitchen, and dining area.

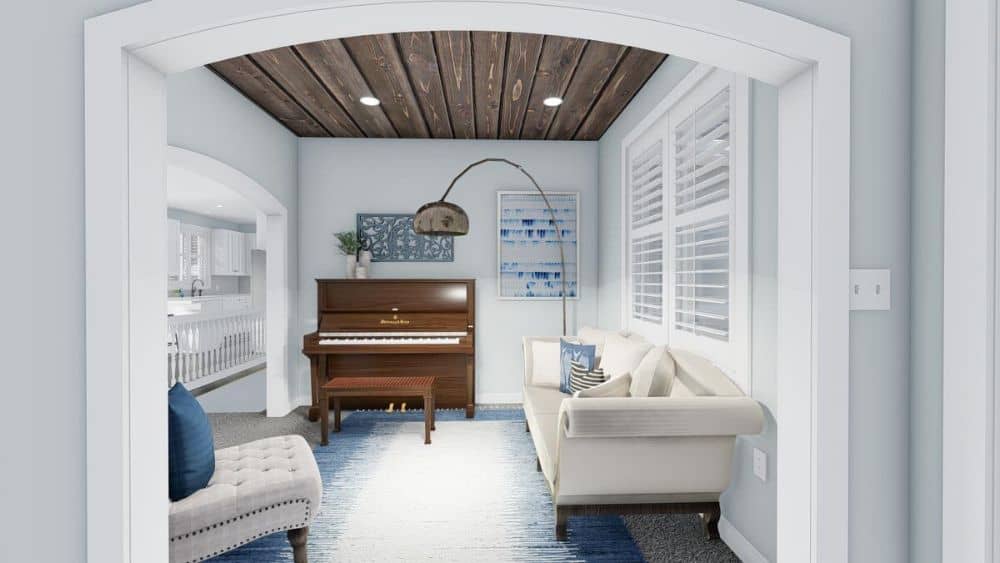

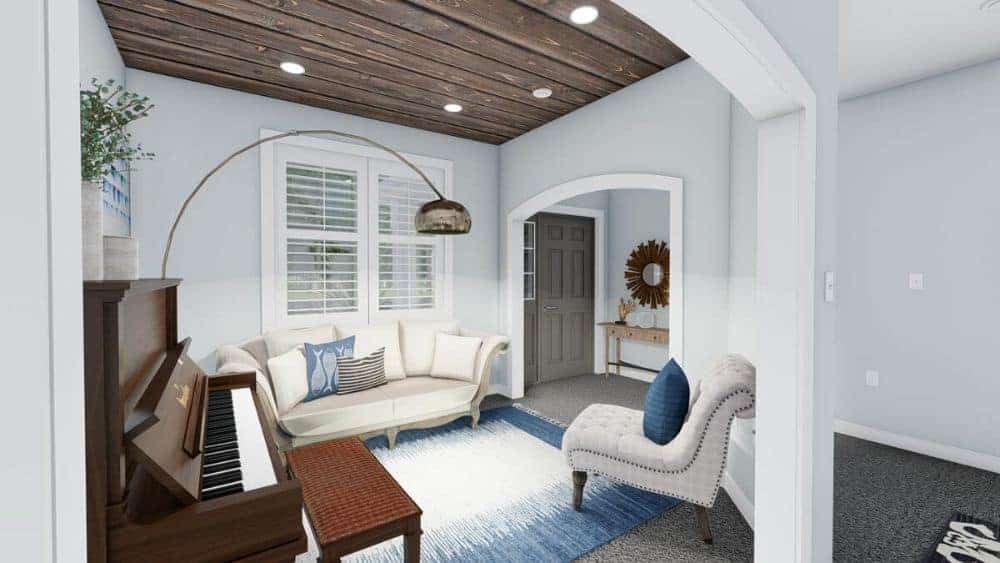

- Living room with open archways, wood plank ceiling, beige seats, and an upright piano.
- The living room is brightened by recessed ceiling lights, an arched floor lamp, and natural light from the louvered window.

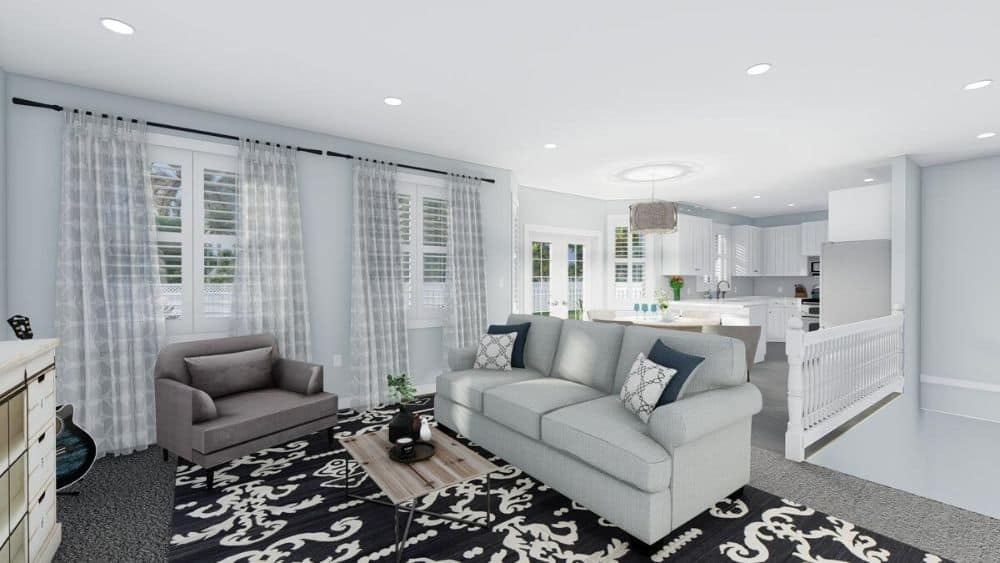

- Family room with gray seats, wooden tables, a black patterned area rug, and a couple of windows dressed in sheer curtains.

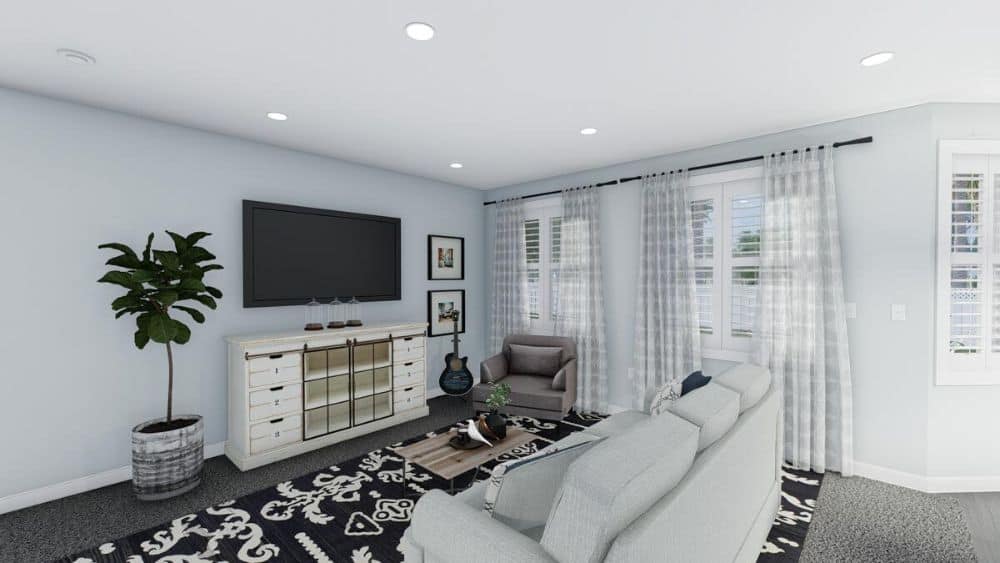

- A wall-mounted TV fixed above the light wood cabinet completes the family room.
- The family room is decorated with a fresh potted plant and framed artworks adorning the gray walls.

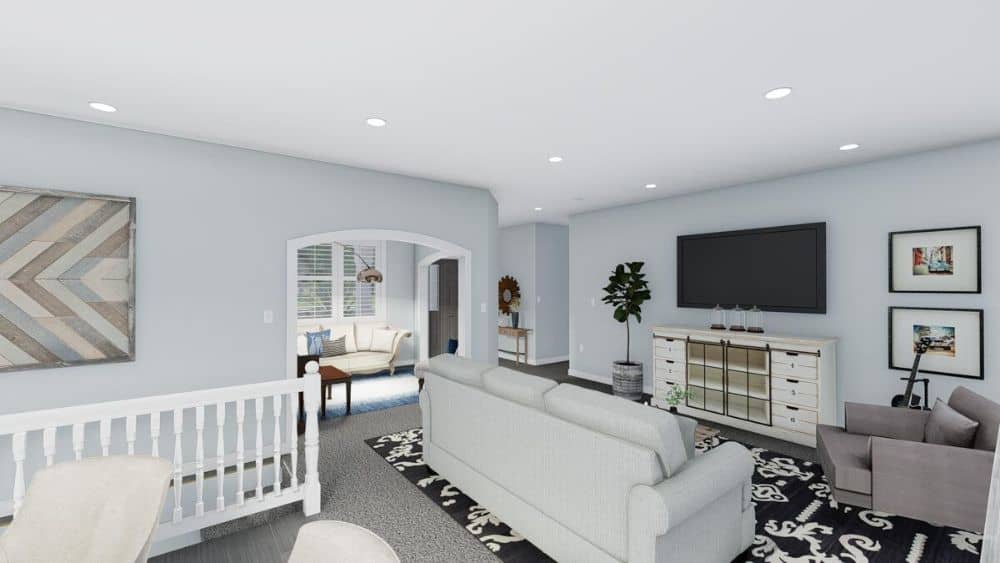

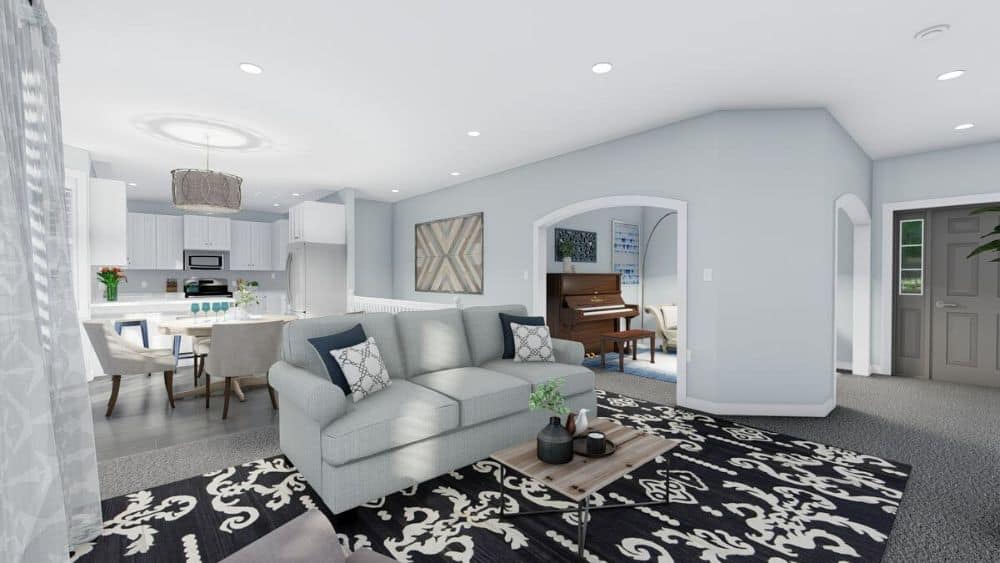

- An open layout view showing the living area, family room, dining area, and kitchen.

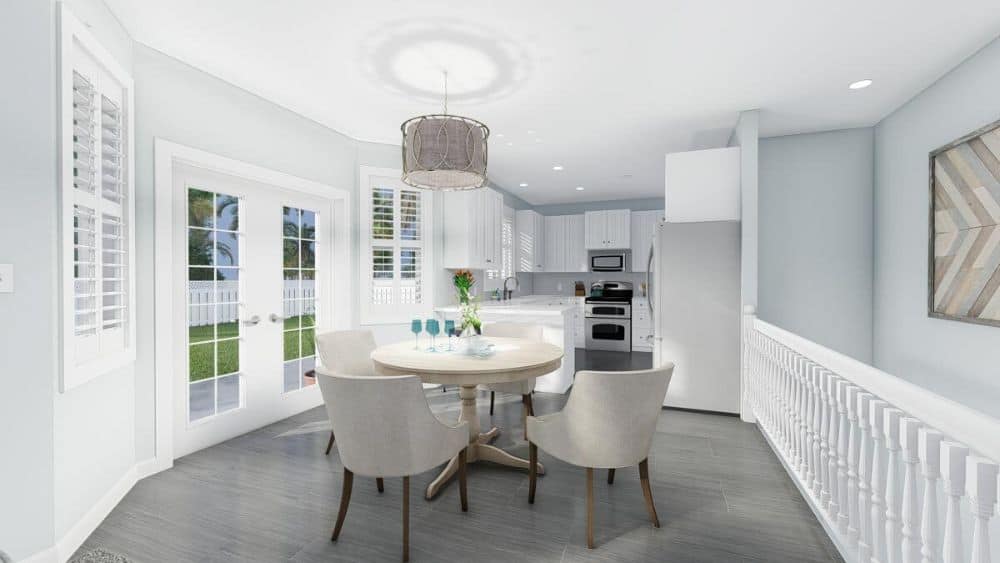

- The dining area offers a round dining table, beige upholstered chairs, and a fancy drum chandelier.

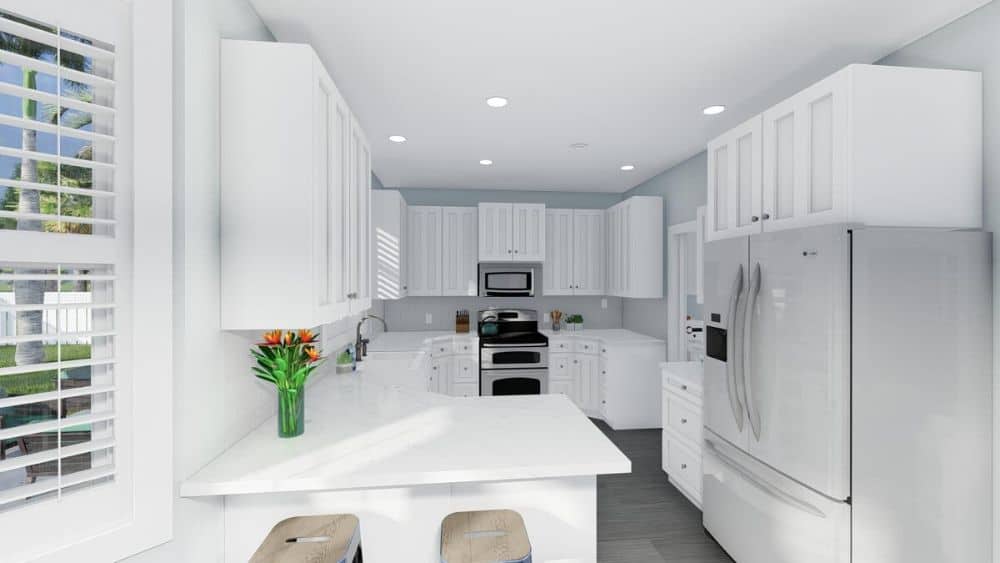

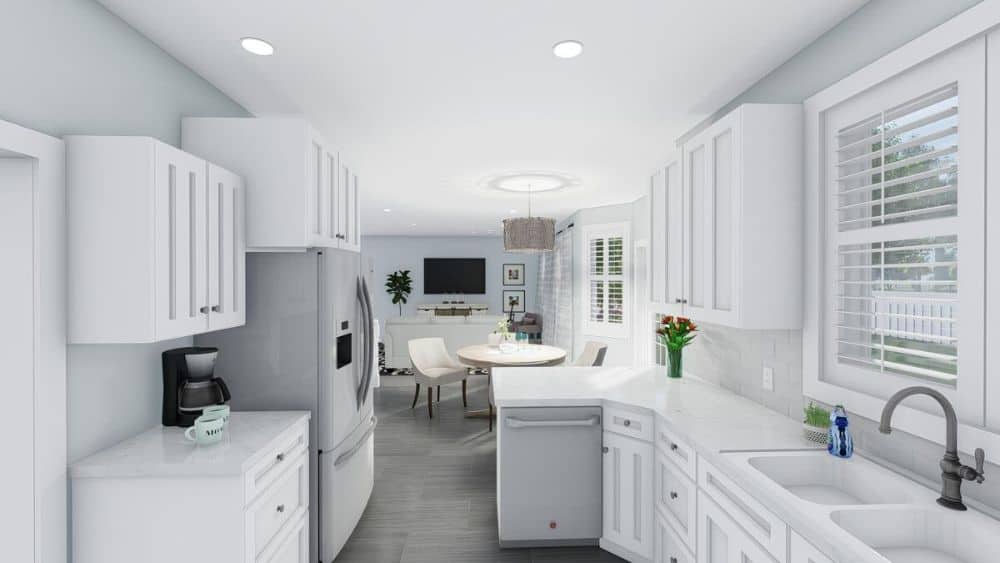

- Kitchen with white cabinetry, slate appliances, marble countertops, and a peninsula bar.
- The kitchen includes a double bowl sink paired with a gooseneck faucet.
- A louvered window above the sink floods the kitchen with natural light.
- A louvered window above the sink floods the kitchen with natural light.

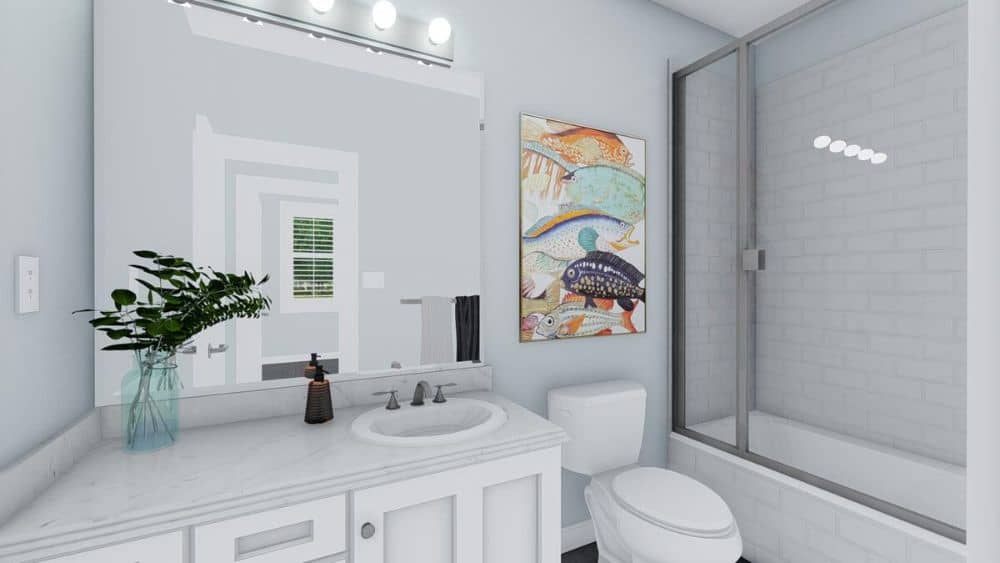

- This bathroom offers a sink vanity, a toilet, and a tub and shower combo enclosed in sliding glass doors.

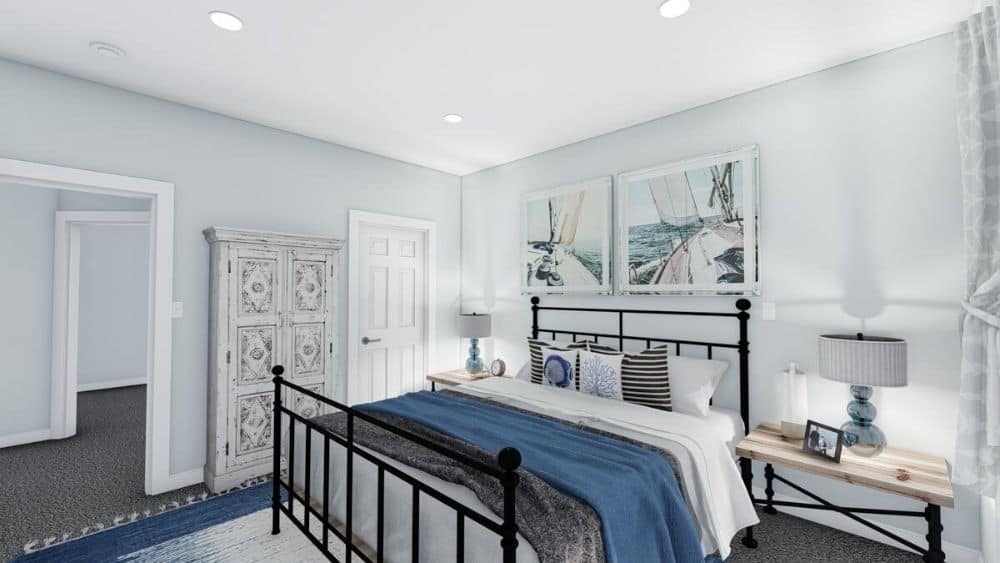

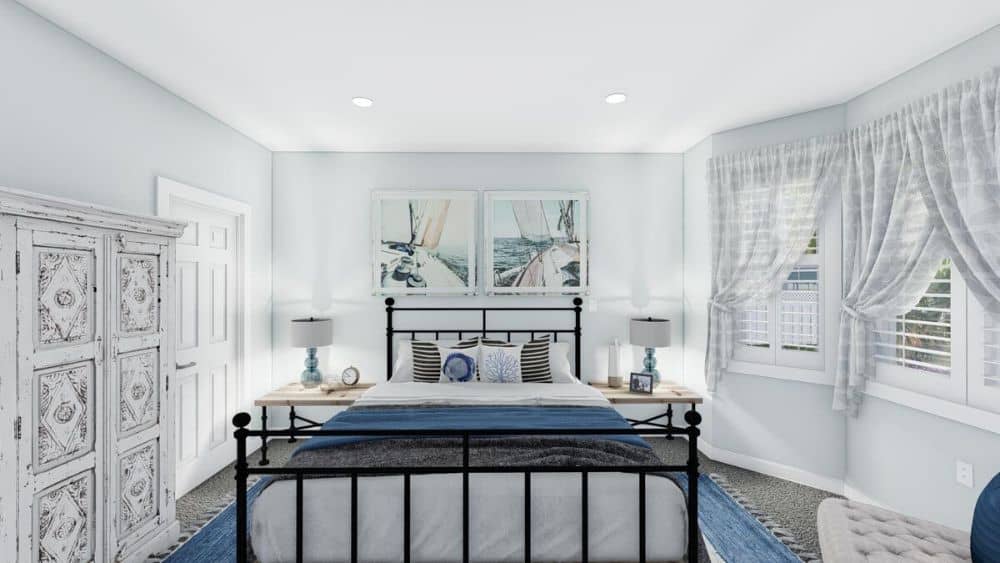

- Primary bedroom with a metal bed, a tufted chair, and a bay window dressed in patterned curtains.
- The primary bedroom includes a distressed white cabinet inlaid with intricate carvings.
- The white door across the bed leads to the walk-in closet.
- A private ensuite completes the primary bedroom.

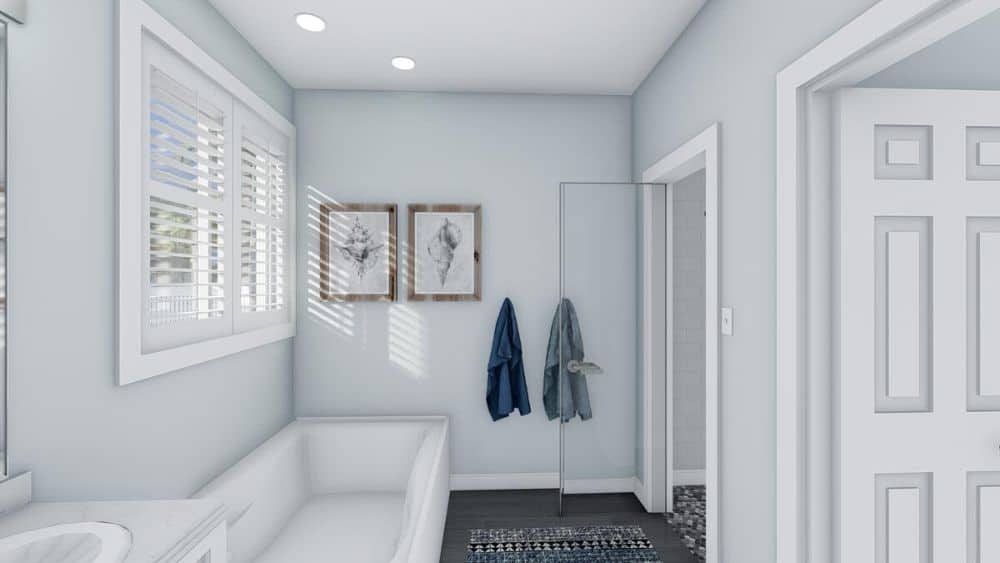

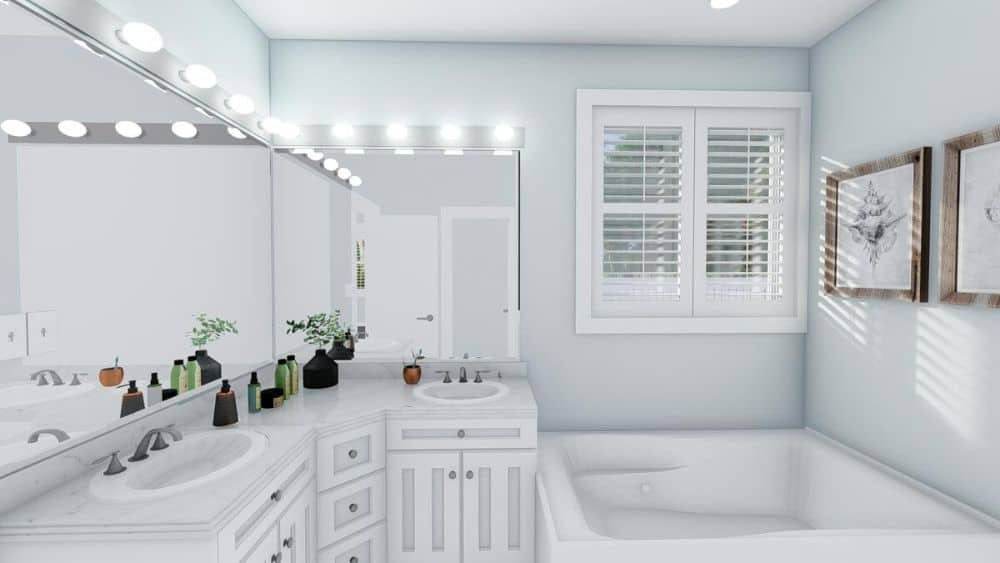

- Primary bathroom with a deep soaking tub and a dual sink vanity paired with a frameless mirror.
- A glass hinged door off the bathtub reveals the walk-in shower.

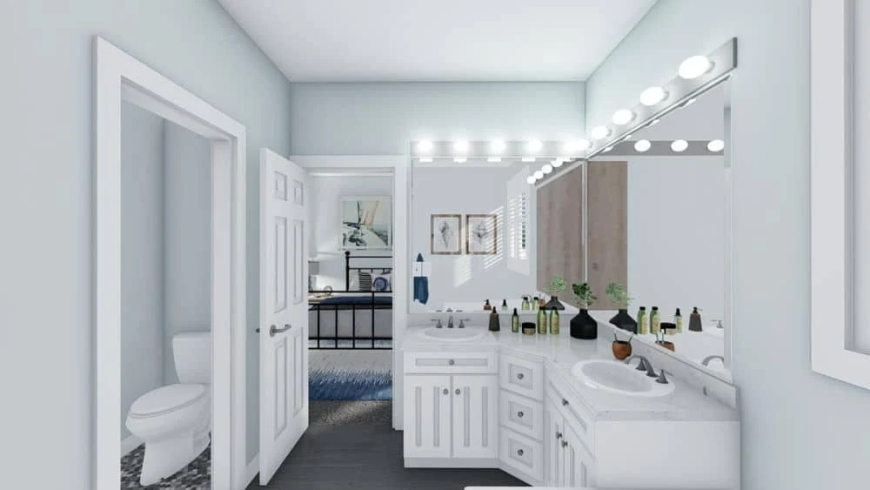

- The primary bathroom includes a toilet room situated across the vanity.

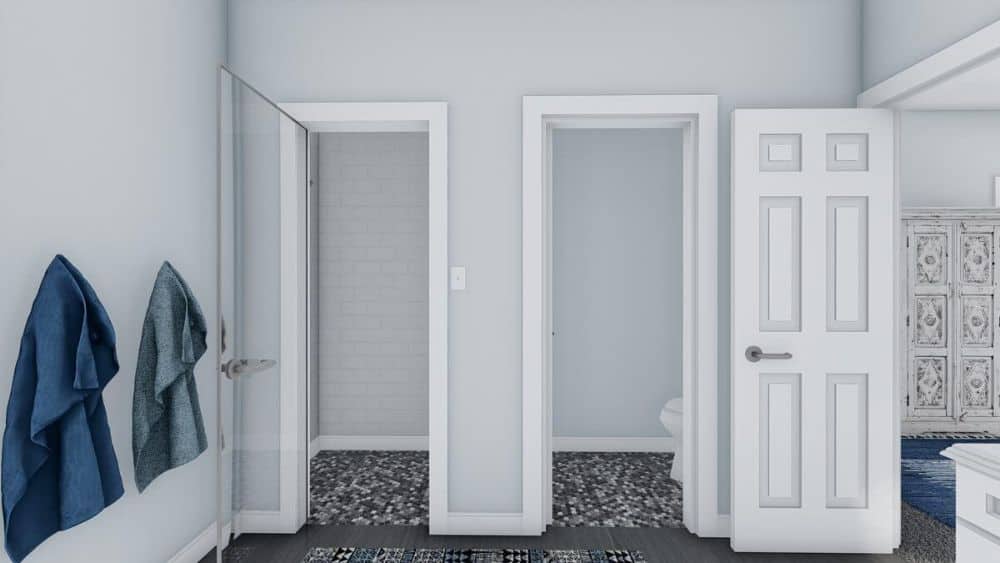

- Both walk-in shower and toilet room have mosaic-tiled floors.
Multiple gables in varying heights along with a beautiful stone exterior add striking character to this 5-bedroom Northwest ranch.
Inside, formal living and family rooms provide family and friends with multiple entertaining spaces. The family room opens right into the kitchen and dining area and a french door at the back grants access to the backyard. The kitchen features wraparound cabinets forming a square layout. A nearby pocket door reveals the laundry room.
Three bedrooms including the primary suite are clustered on the left-wing. Two bedrooms share a hall bath while the primary suite enjoys a 5-fixture ensuite, a walk-in closet, and a lovely bay window that invites ample natural light in.
Downstairs, two more bedrooms reside. They are joined by an elongated family room and a full bathroom equipped with a single sink, a toilet, tub and shower combo, and a linen closet.
Plan 61378UT
