Specifications
- Sq. Ft.: 8,596
- Units: 3
- Width: 66′ 0″
- Depth: 57′ 0″

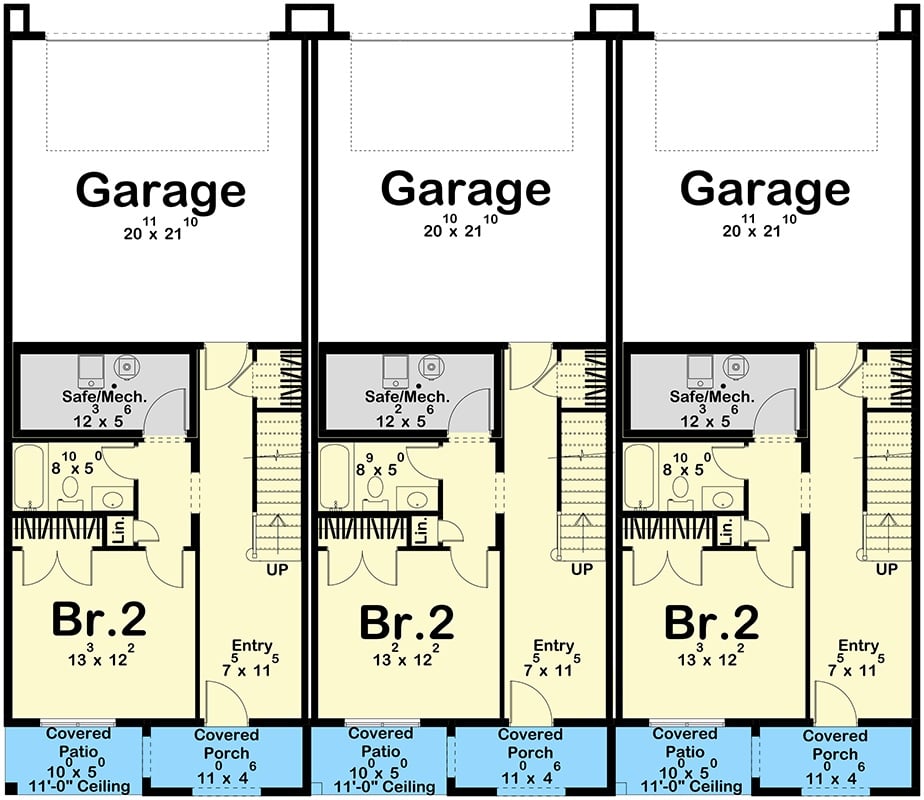

Main Level Floor Plan

Second Level Floor Plan

🔥 Create Your Own Magical Home and Room Makeover
Upload a photo and generate before & after designs instantly.
ZERO designs skills needed. 61,700 happy users!
👉 Try the AI design tool here

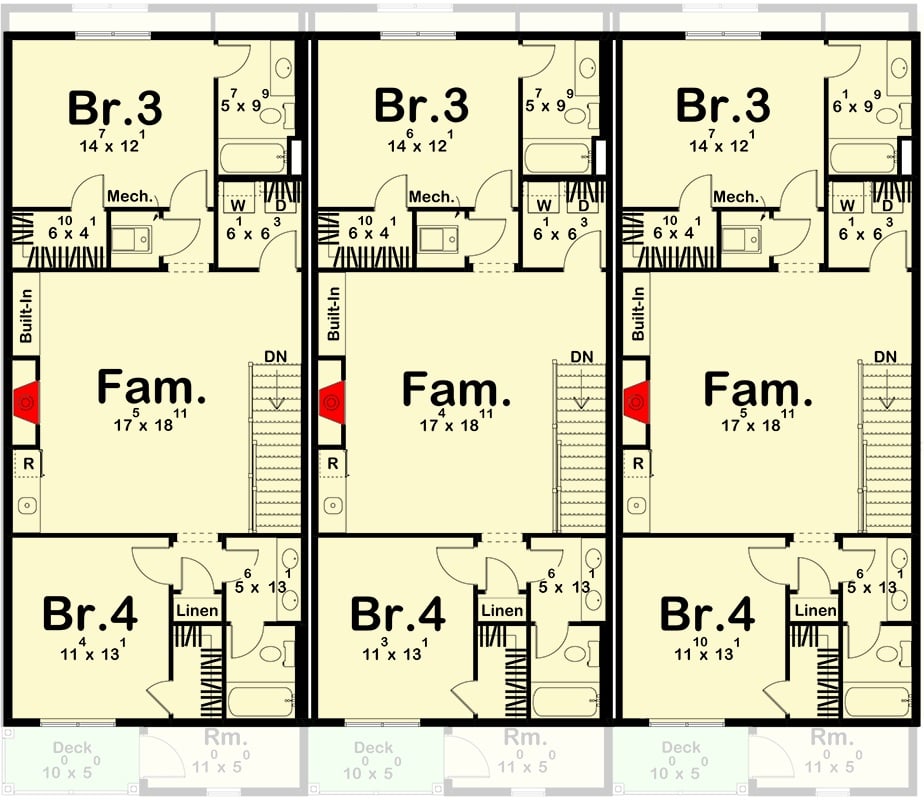

Third Level Floor Plan

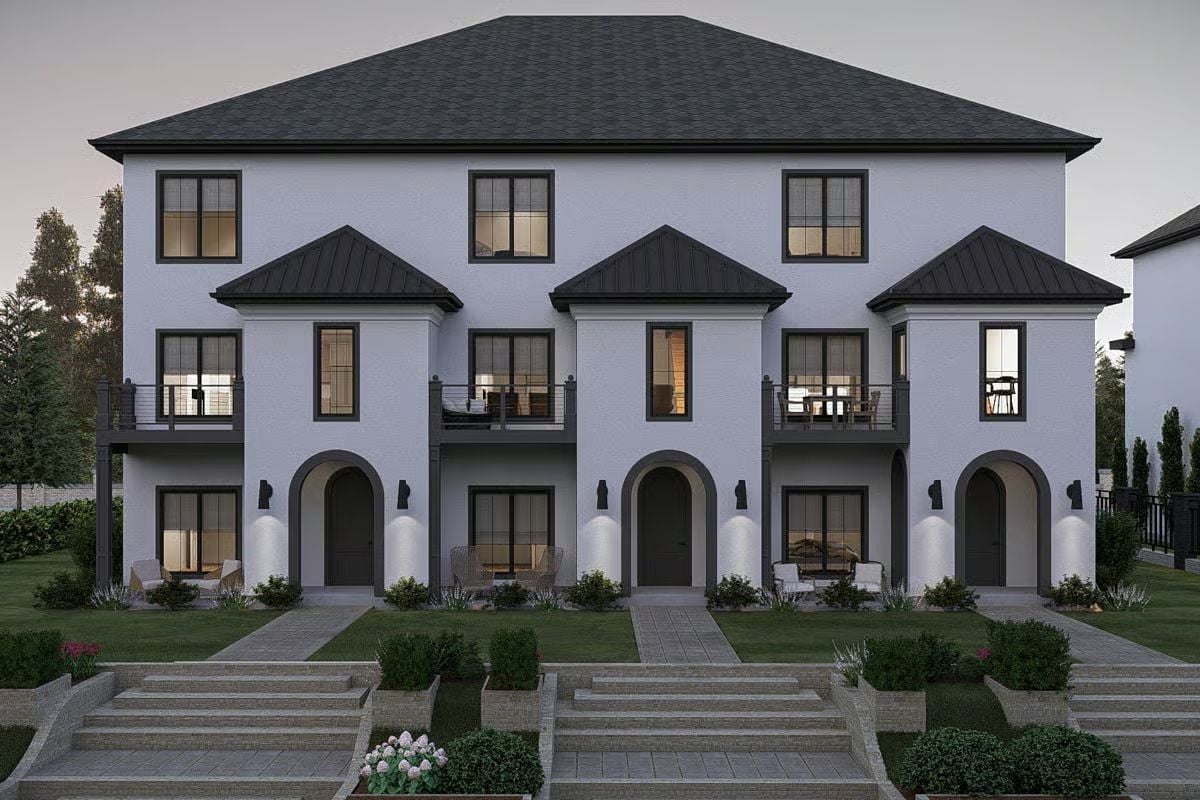

Front View

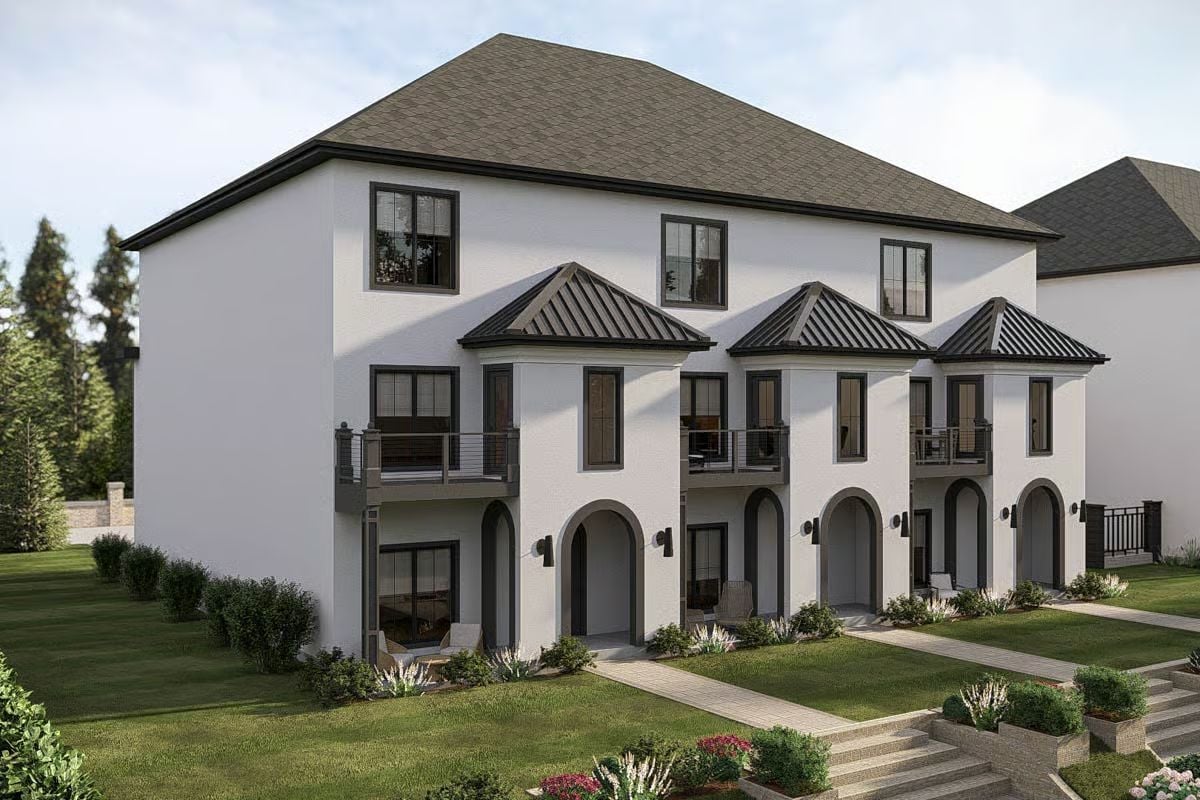

Front-Left View

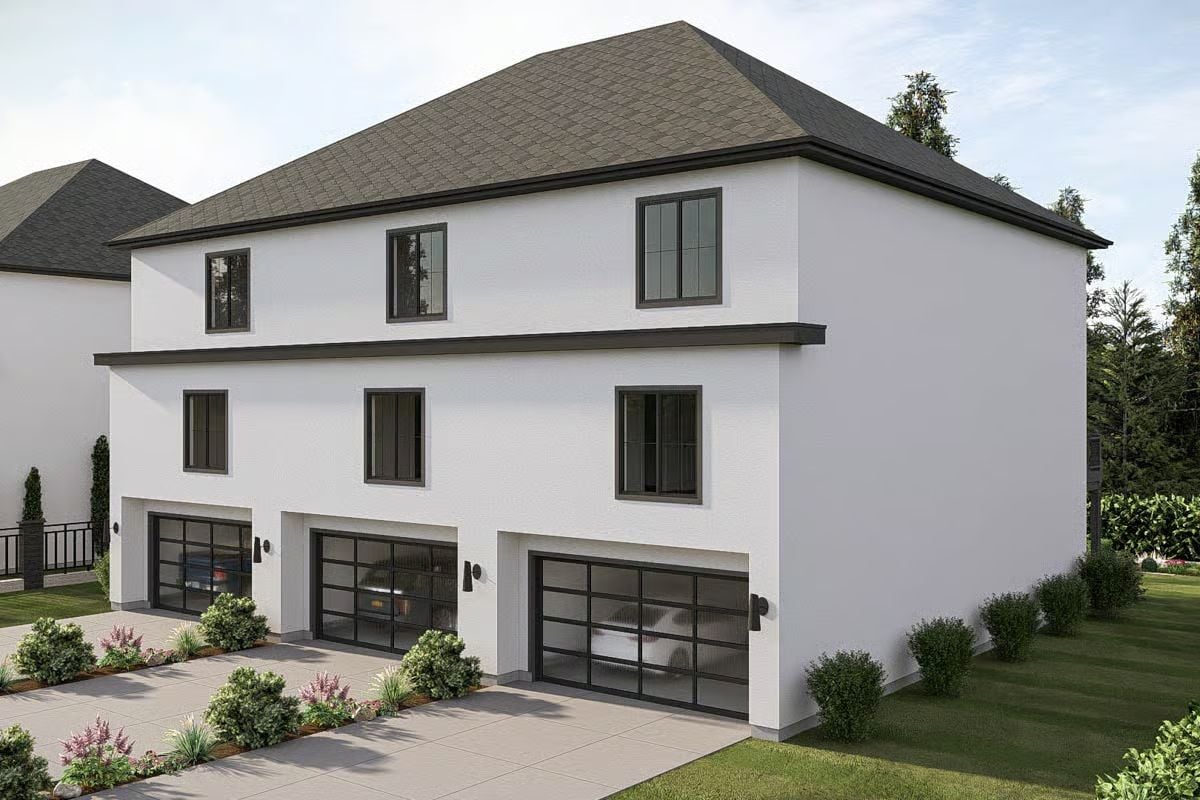

Rear-Left View

Would you like to save this?

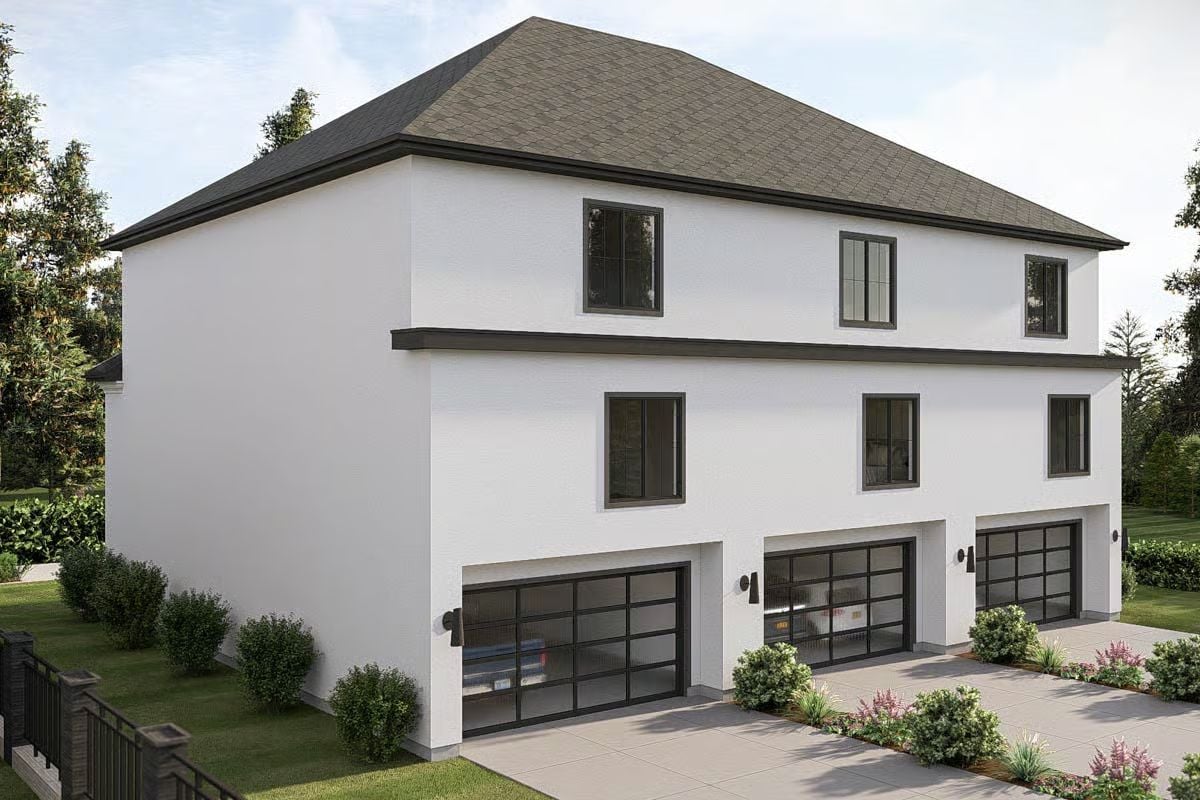

Rear-Right View

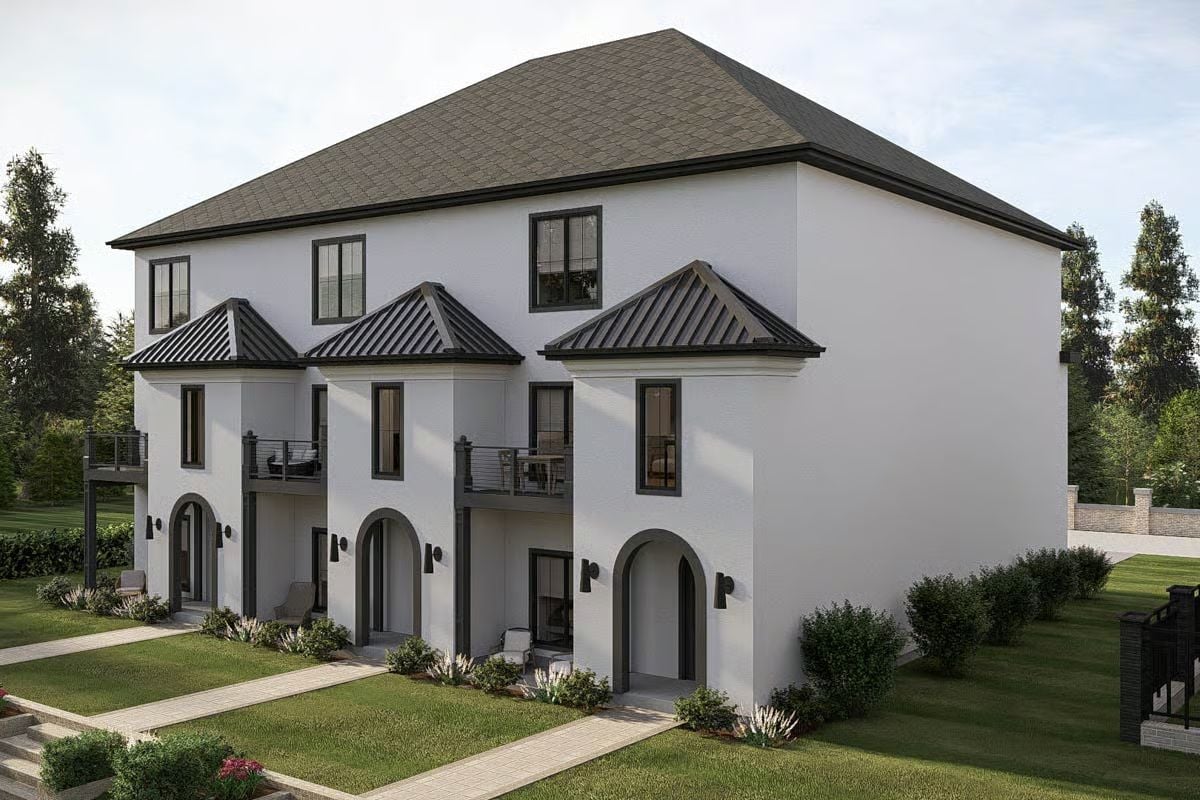

Front-Right View

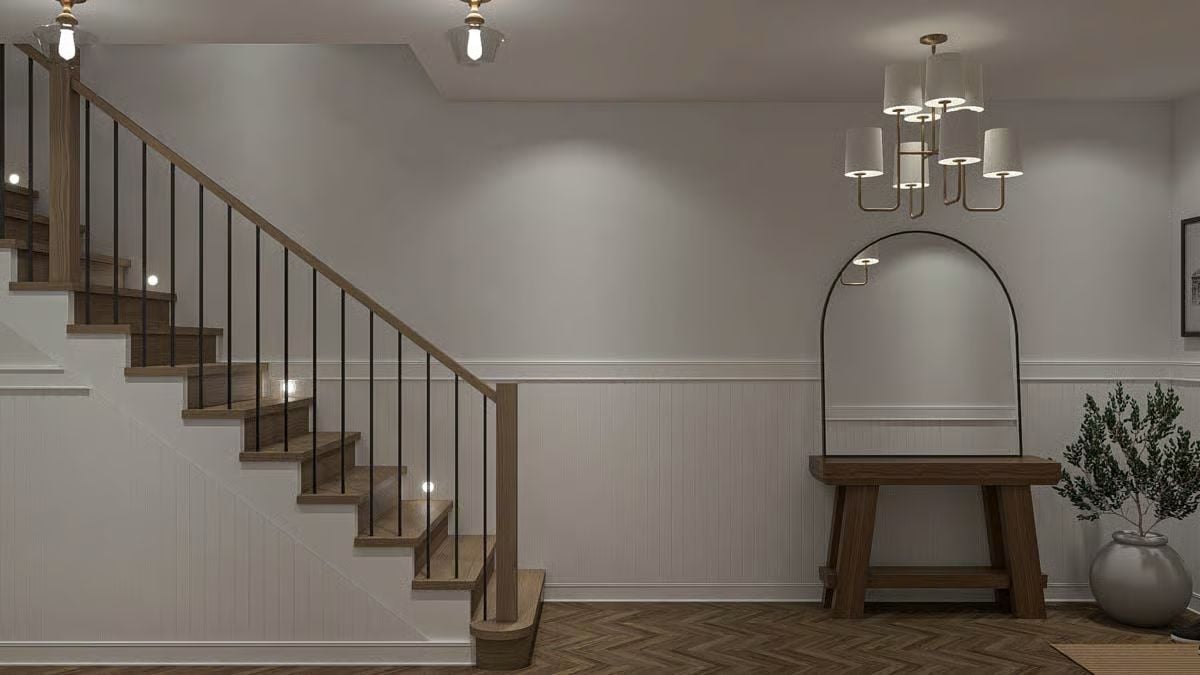

Entry Hall

Entry Hall

Great Room

Great Room

Great Room

Kitchen

🔥 Create Your Own Magical Home and Room Makeover
Upload a photo and generate before & after designs instantly.
ZERO designs skills needed. 61,700 happy users!
👉 Try the AI design tool here
Primary Bedroom

Primary Bedroom

Primary Bathroom

Details
This contemporary Mediterranean home features a clean stucco exterior with arched ground-level entries and simple metal balcony railings that give each residence a distinct yet cohesive appearance. The symmetrical façade and repeated architectural elements create a strong, orderly presence, while private entrances and upper-level balconies add definition and separation between units.
The main level is designed for private use and utility, with a bedroom, bathroom, entry area, and direct access to the garage. This level works well for guests, a flexible sleeping space, or a quiet retreat separated from the primary living areas above.
The second level serves as the main living floor and is anchored by an open great room that connects directly to the kitchen and dining area. The kitchen includes a pantry and island workspace and remains visually connected to the great room for easy everyday use.
A rear sitting room extends the living space and provides access to a private outdoor area. The primary bedroom is also located on this level and includes an en suite bath and a walk-in closet.
The third level is dedicated to additional living and sleeping space, featuring a family room suitable for gathering or media use. Two additional bedrooms are positioned on this level with nearby bathroom access, along with laundry and mechanical areas that are efficiently integrated. The vertical layout clearly separates private, shared, and service spaces while maintaining a logical and functional flow throughout the home.
Pin It!

Architectural Designs Plan 623590DJ
