Specifications
- Sq. Ft.: 4,948
- Units: 4
- Width: 96′ 8″
- Depth: 26′ 0″

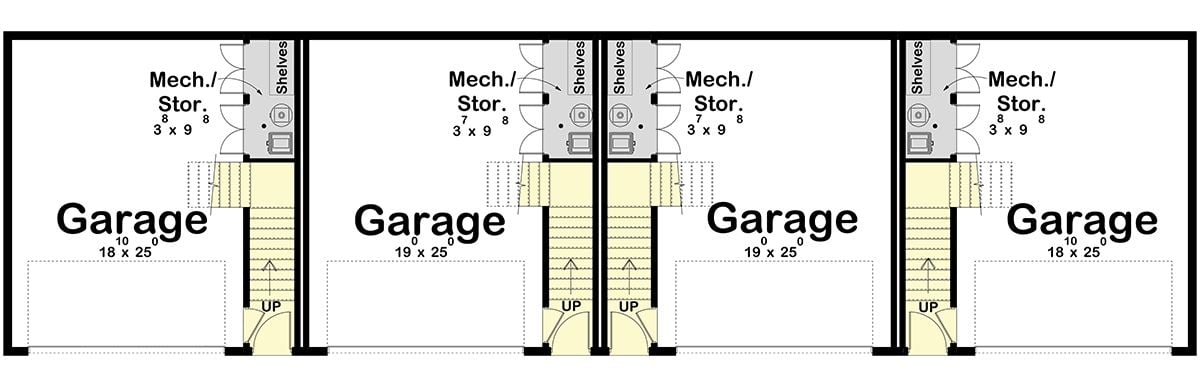

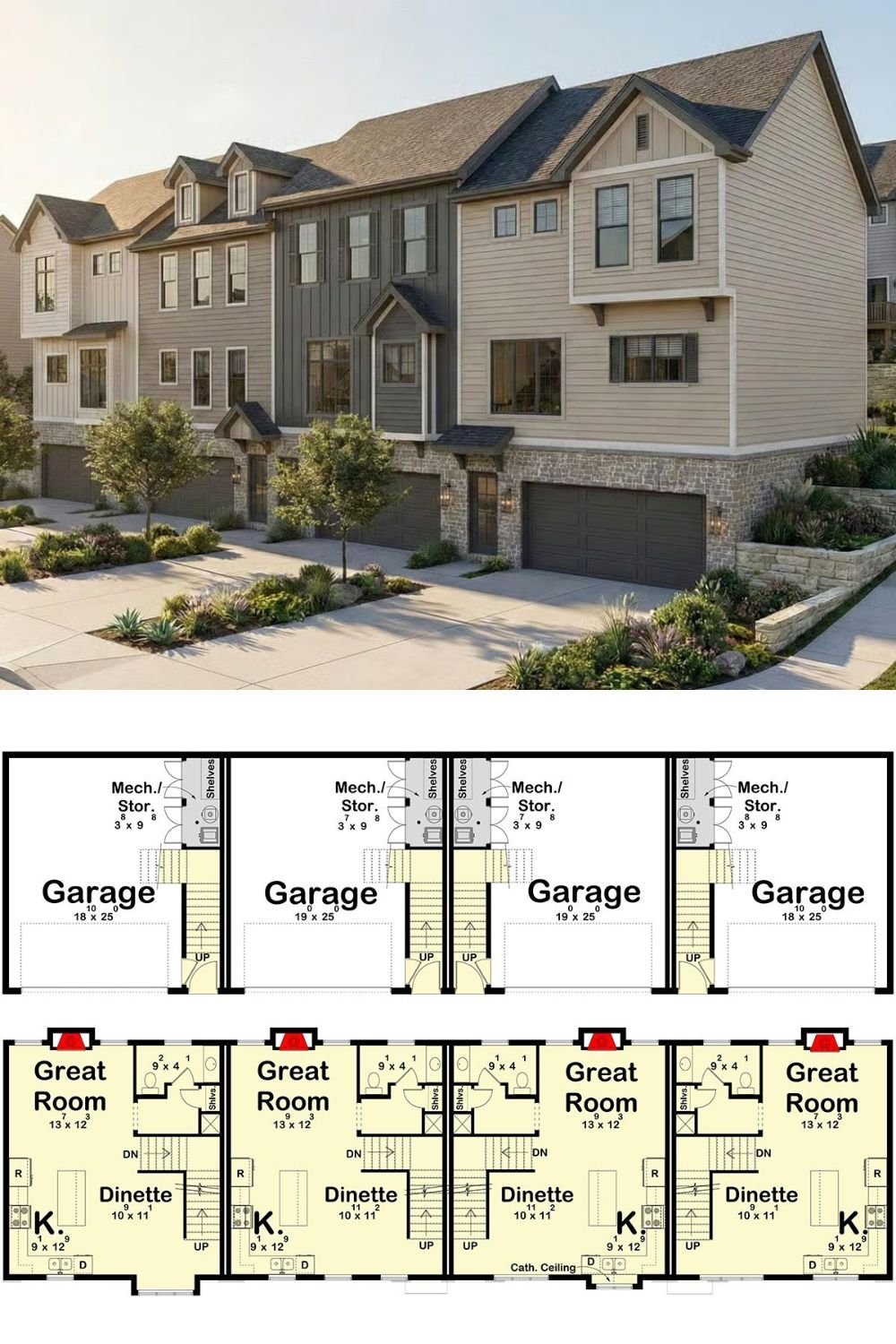

Main Level Floor Plan

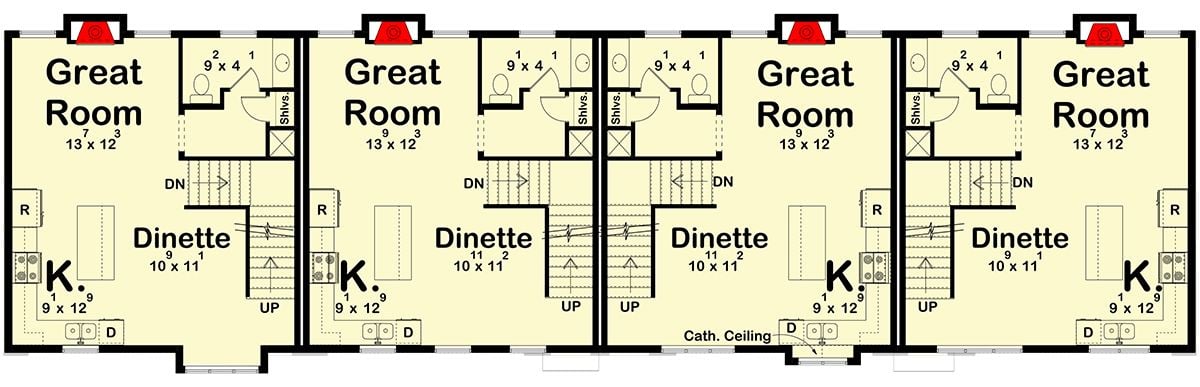

Second Level Floor Plan
🔥 Create Your Own Magical Home and Room Makeover
Upload a photo and generate before & after designs instantly.
ZERO designs skills needed. 61,700 happy users!
👉 Try the AI design tool here

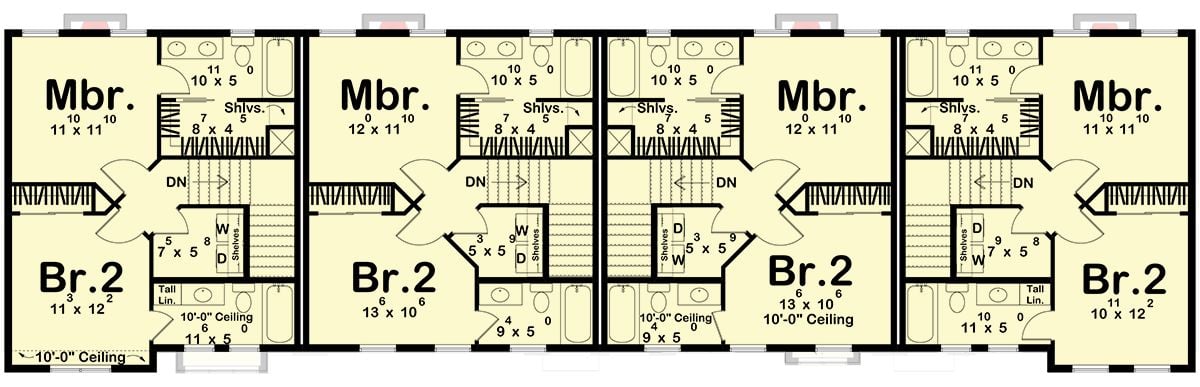

Third Level Floor Plan

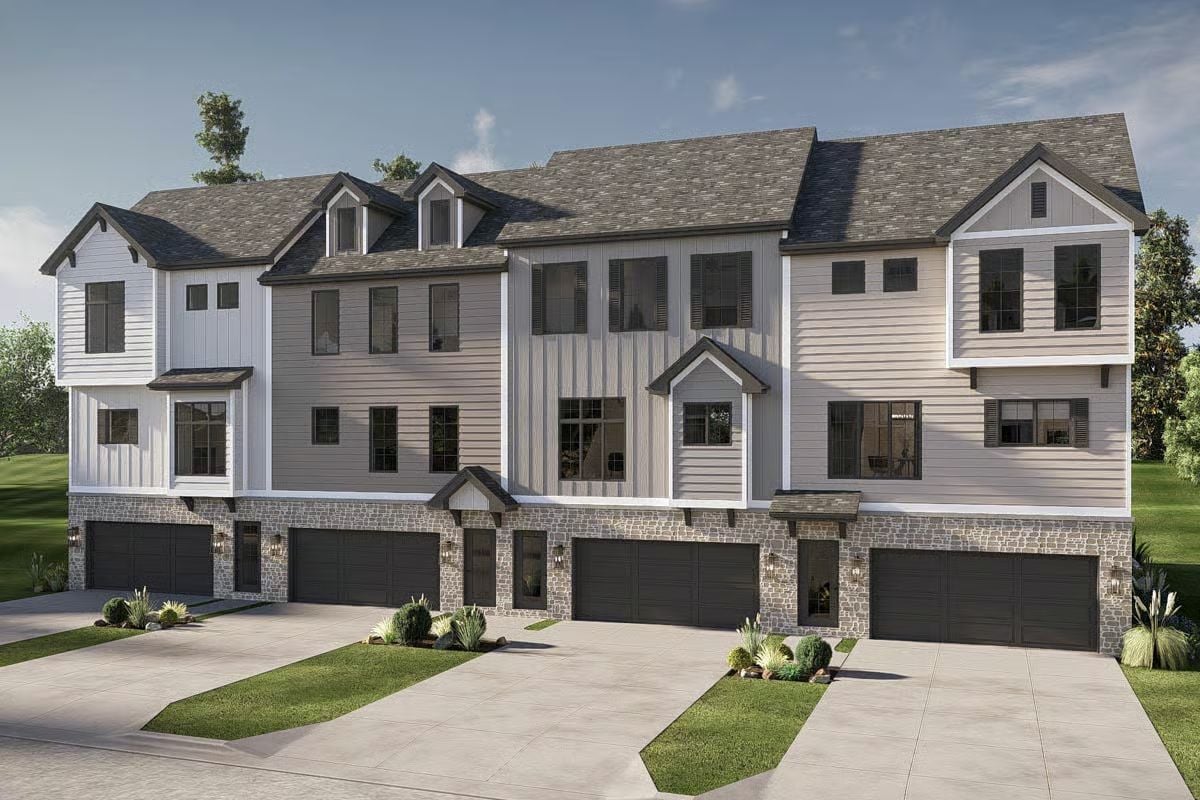

Front-Right View

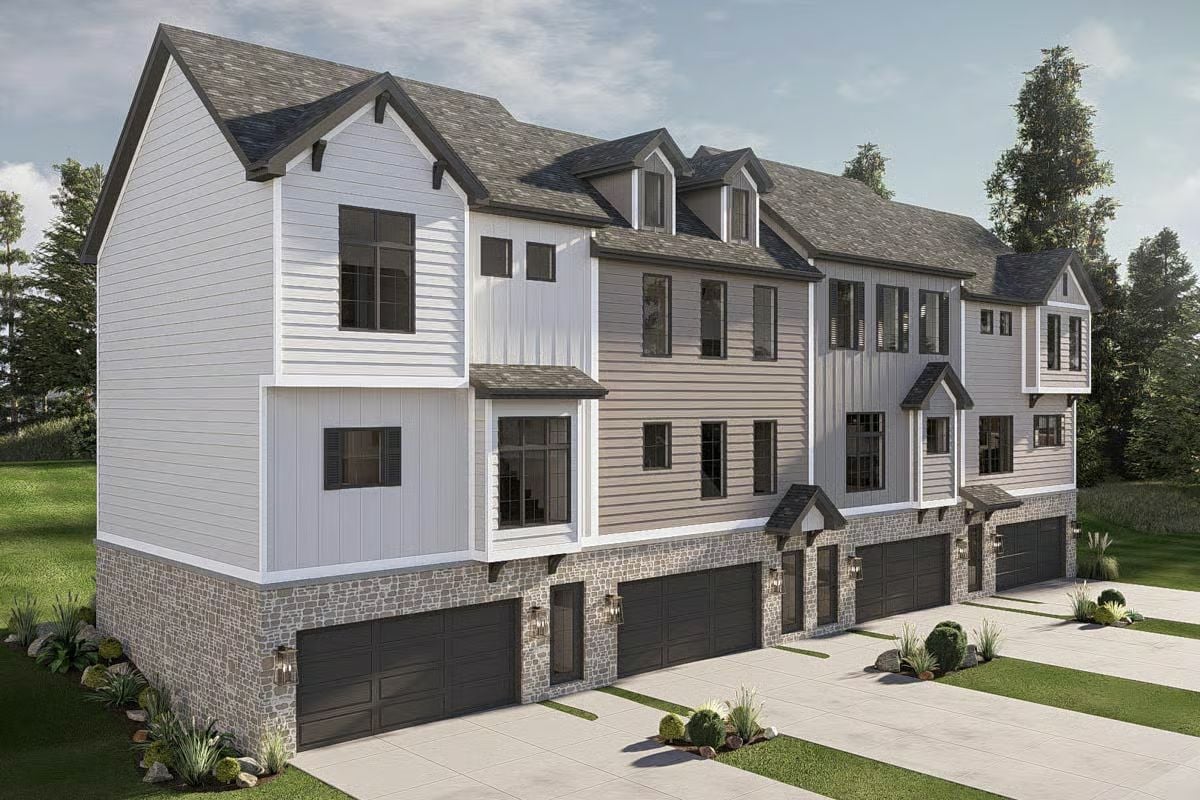

Front-Left View
Rear-Left View
Would you like to save this?
We'll email this post to you, so you can come back to it later!

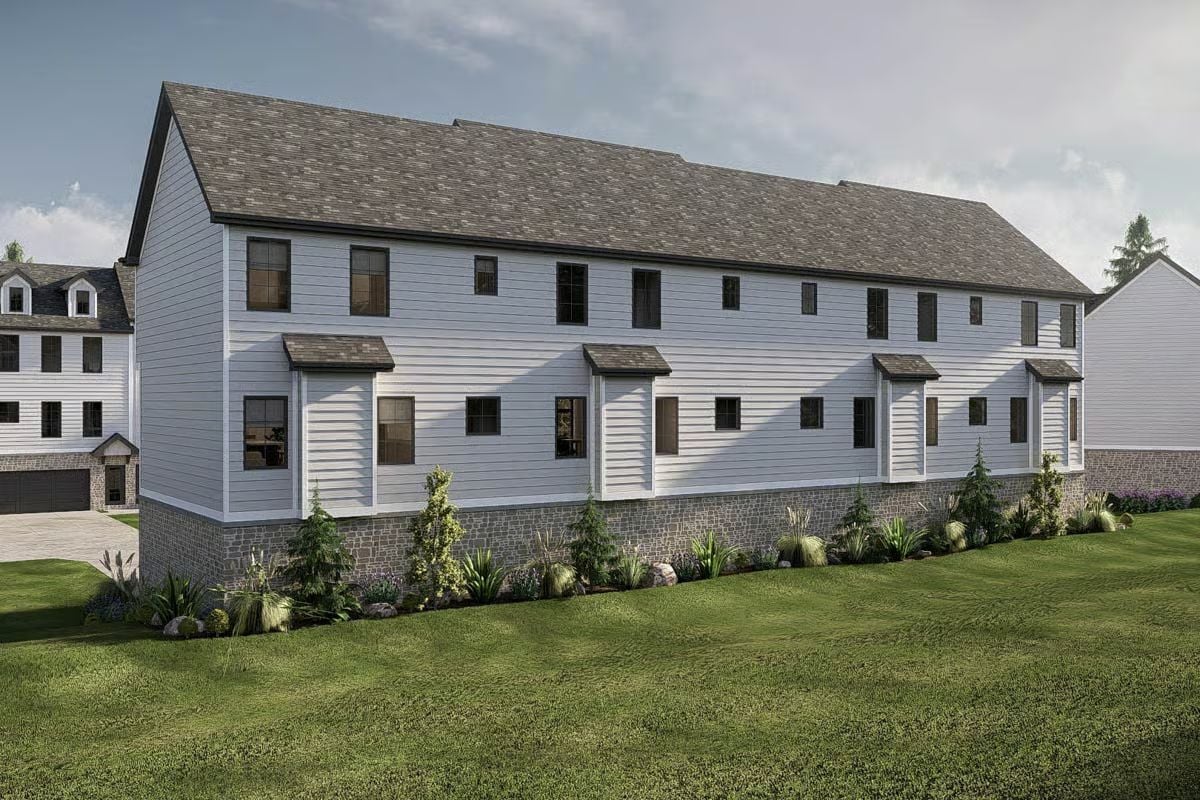

Rear-Right View

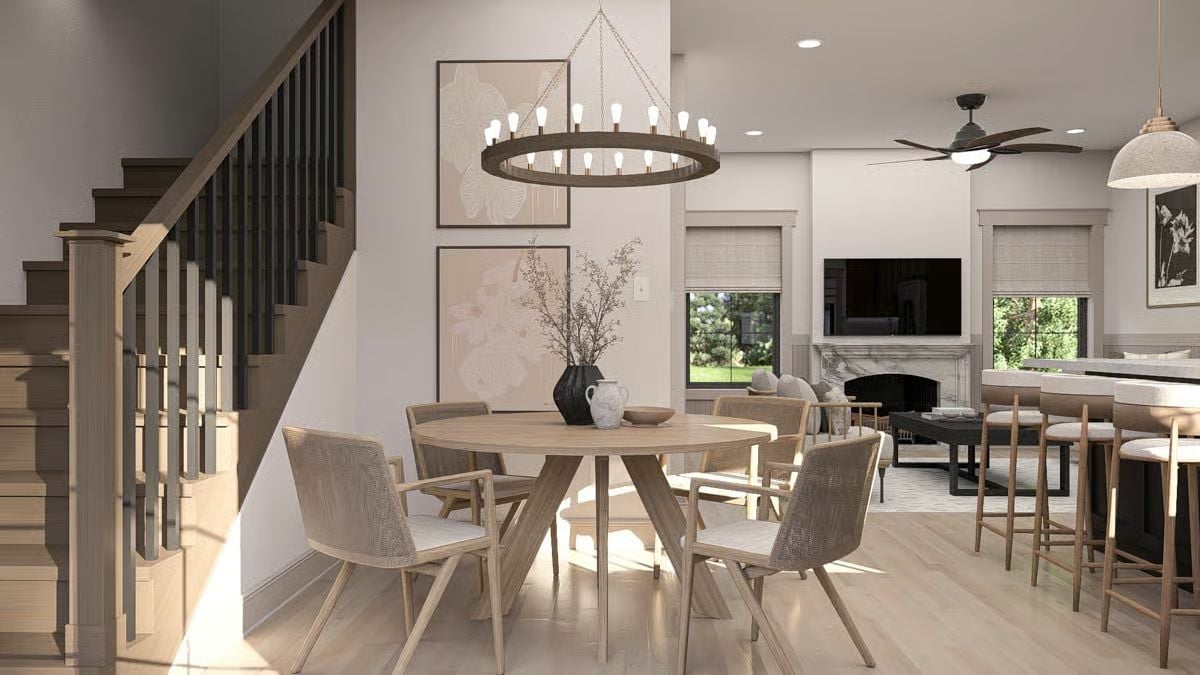

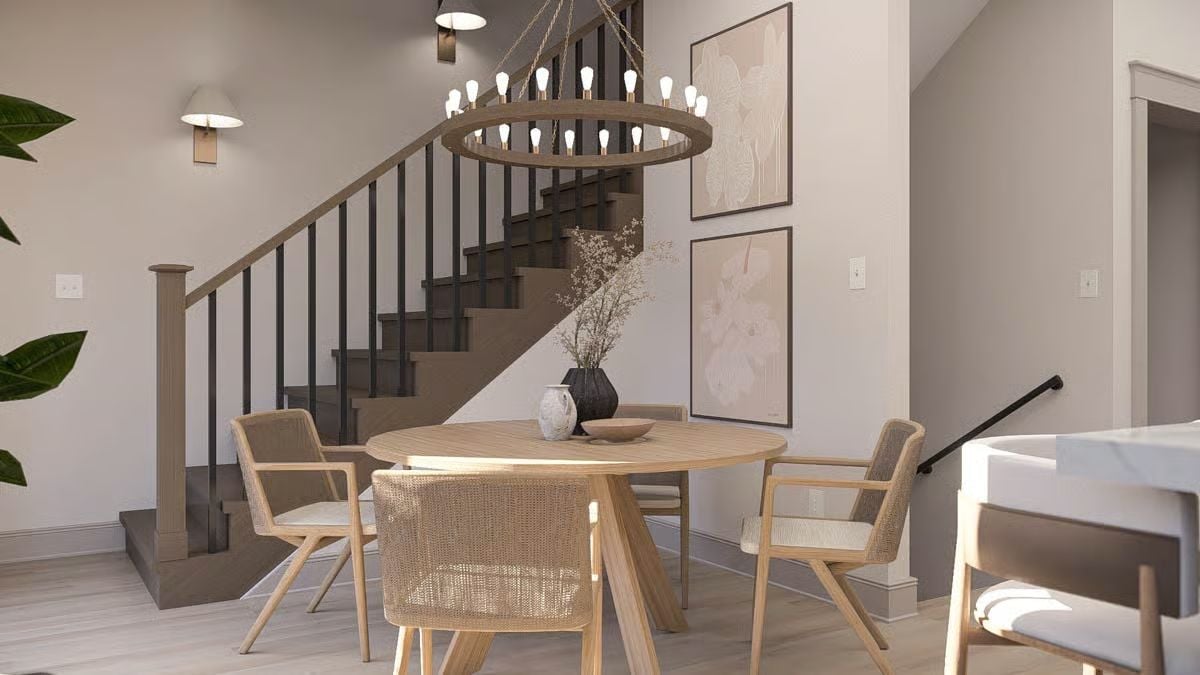

Dinette
Dinette

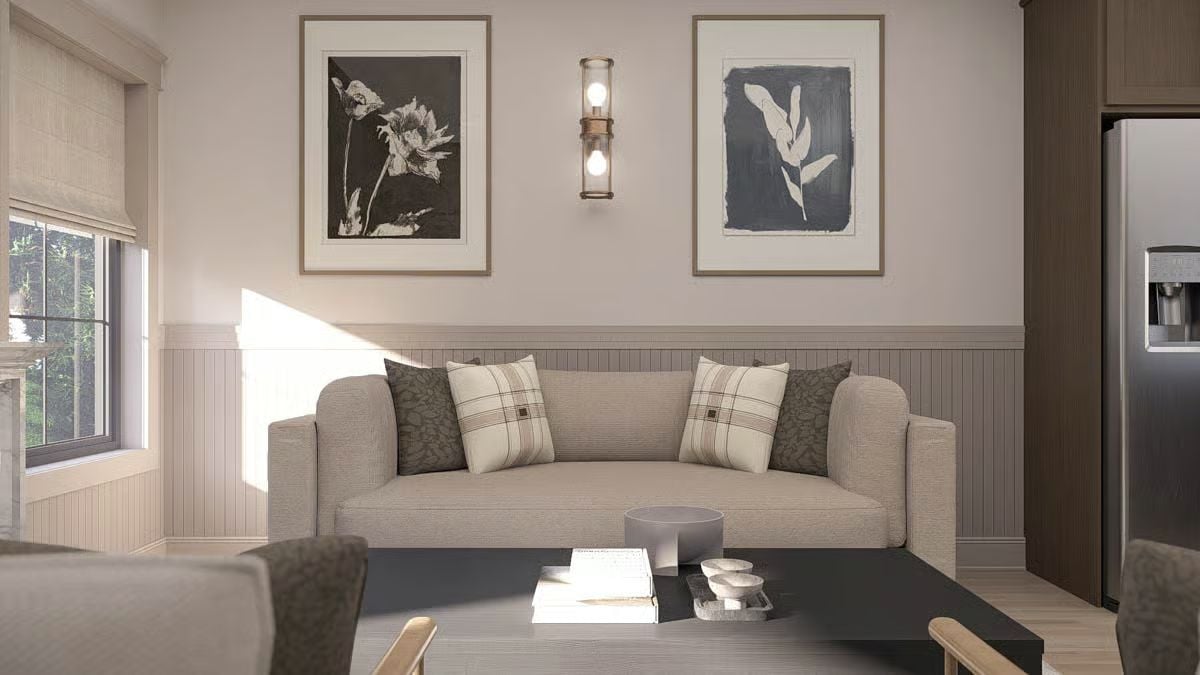

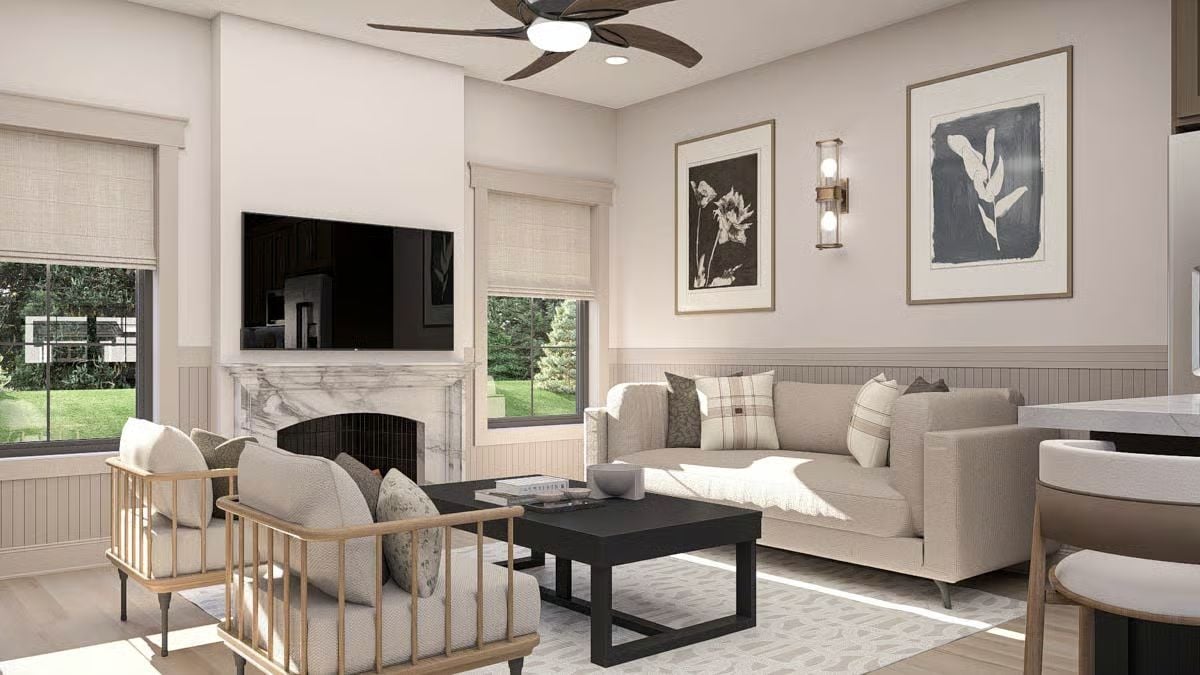

Great Room
Great Room

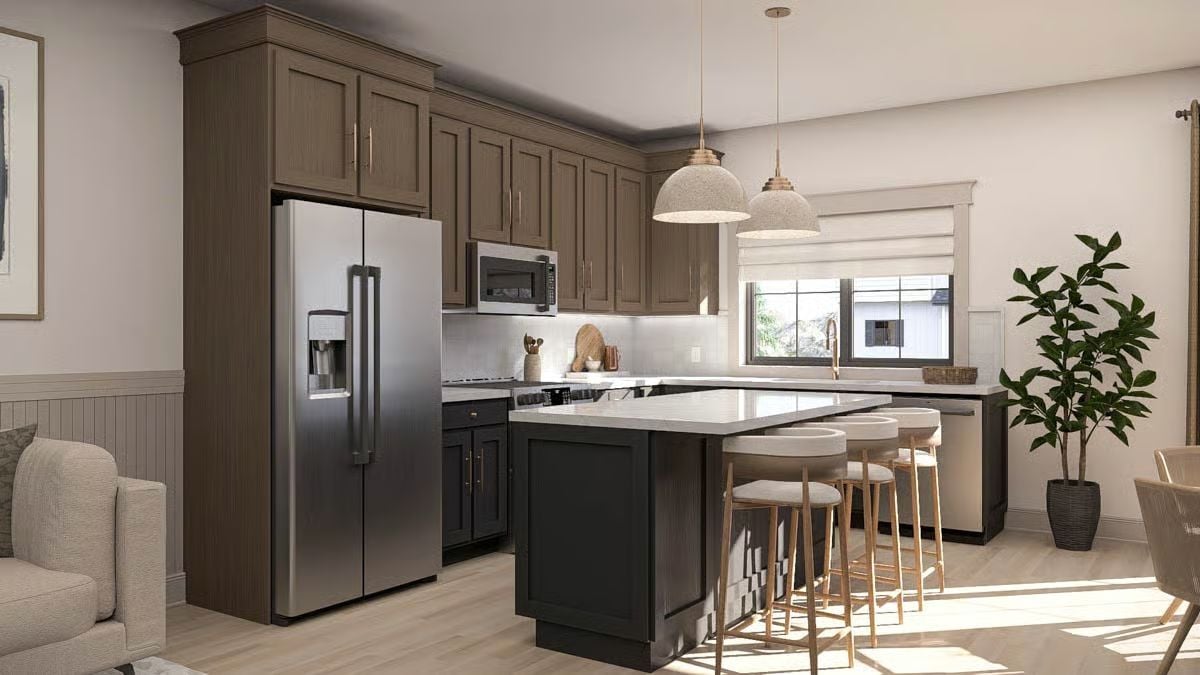

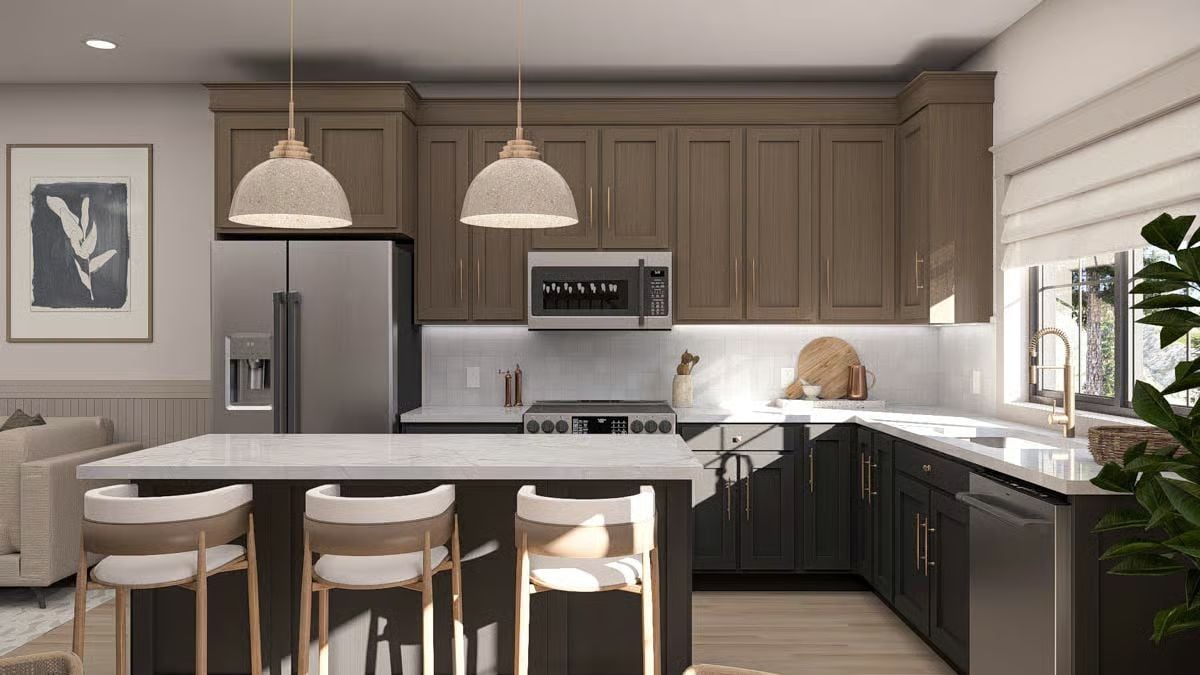

Kitchen
Kitchen

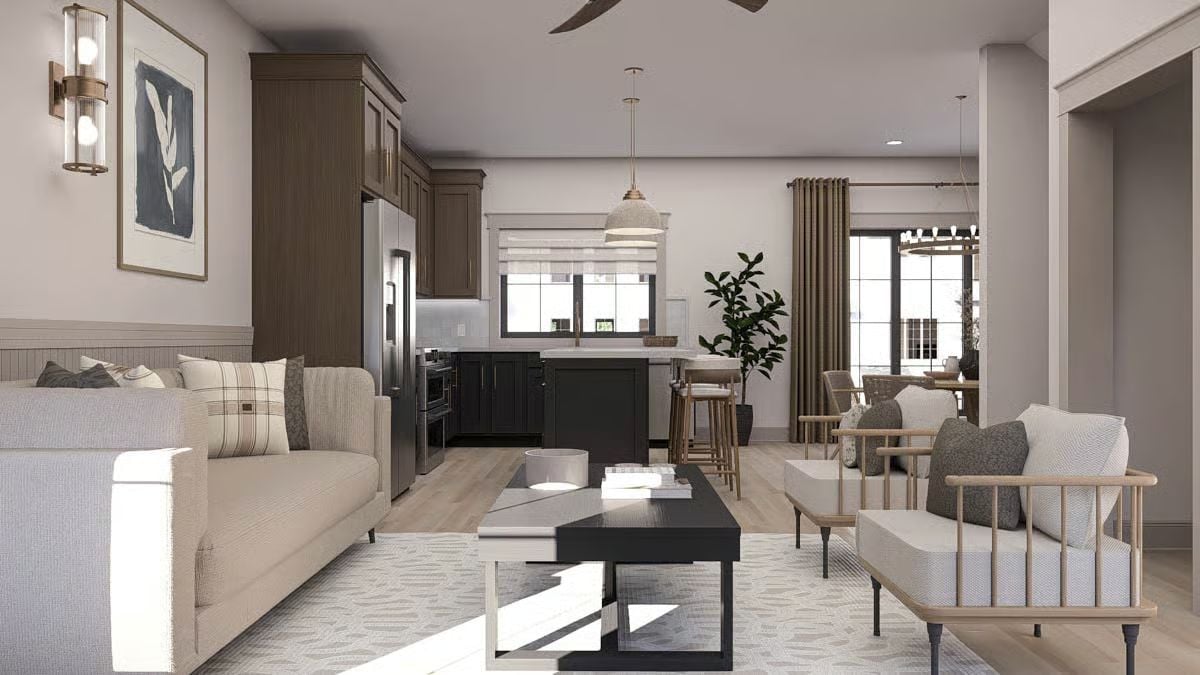

Great Room
🔥 Create Your Own Magical Home and Room Makeover
Upload a photo and generate before & after designs instantly.
ZERO designs skills needed. 61,700 happy users!
👉 Try the AI design tool here

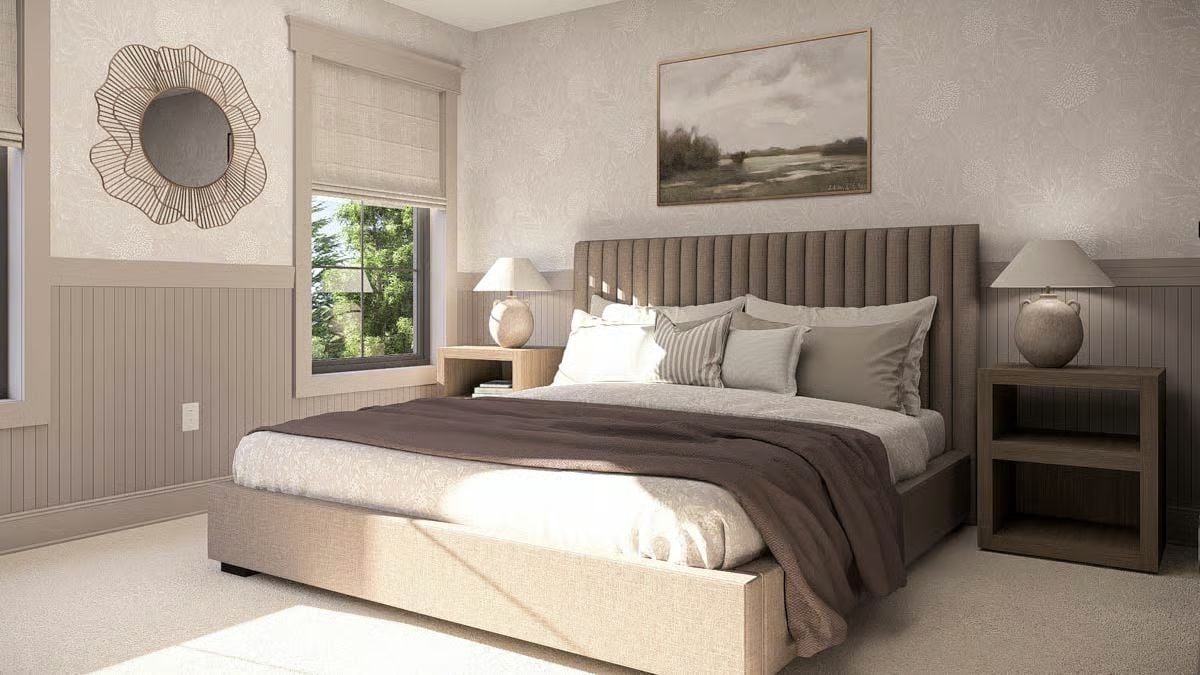

Primary Bedroom

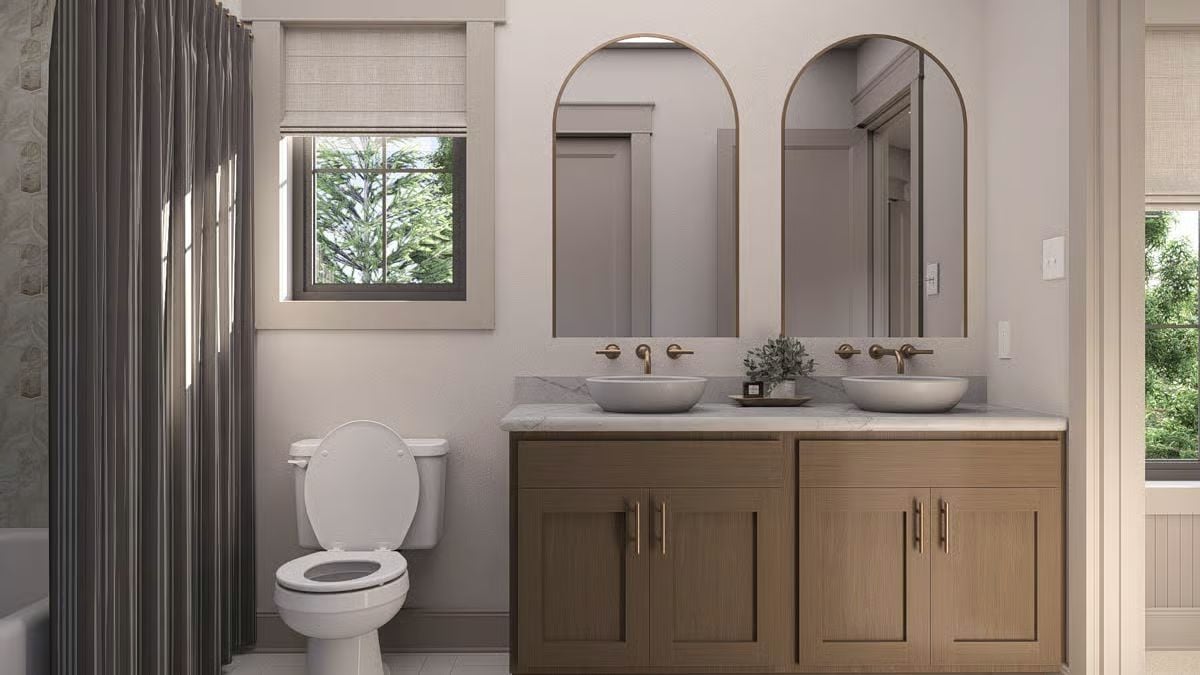

Primary Bathroom
Details

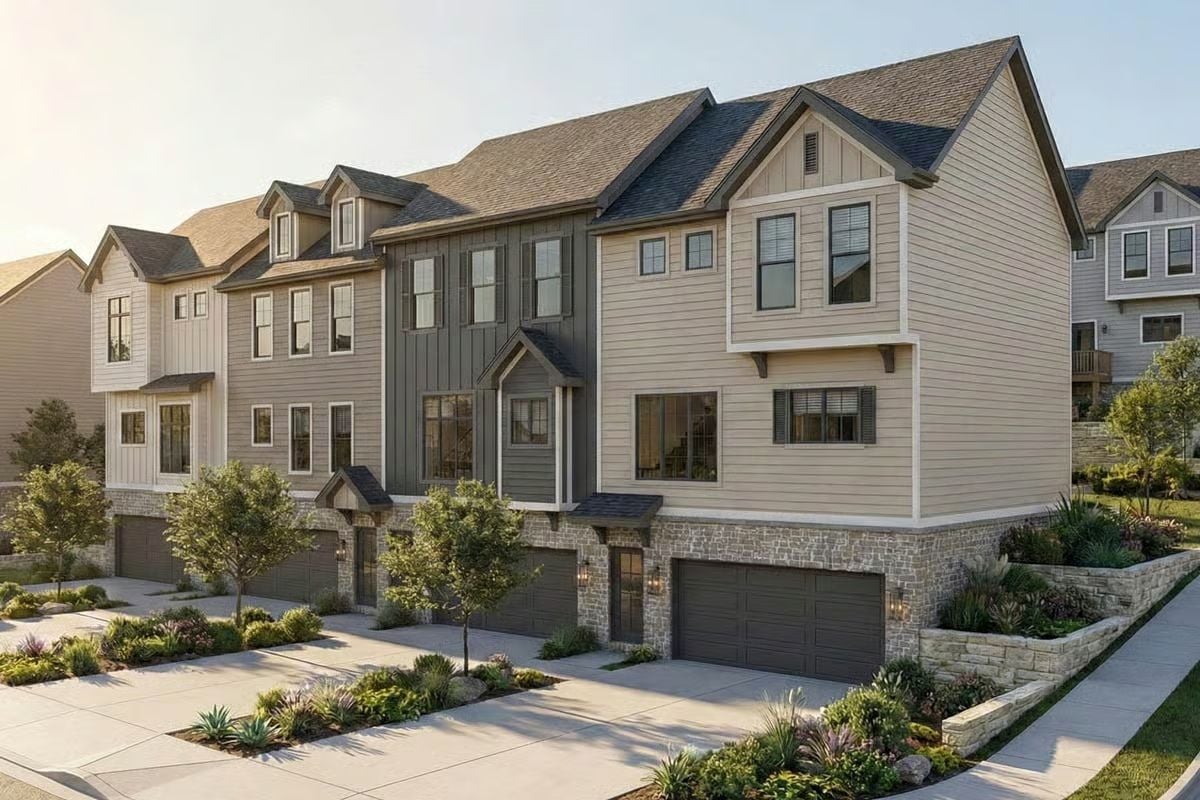

This modern Craftsman townhome design delivers a clean, upscale look with a mix of horizontal siding, board-and-batten accents, and a strong roofline that gives the exterior depth and character. The front-facing garage keeps the streetscape tidy and practical, while the tall windows bring in natural light and help the home feel open across all three levels.
The entry level is built around the attached garage and a dedicated mechanical/storage area, giving the home a secure everyday arrival point with room for seasonal items, gear, and bulk storage. Stairs lead directly up from the garage level, so coming and going feels simple and direct.
On the main living level, the open-concept layout keeps the kitchen, dinette, and great room connected for easy daily living and entertaining. The kitchen is positioned to stay part of the action, with a central island that adds prep space and casual seating.
The dinette sits nearby for everyday meals, and the great room anchors the back of the floor with plenty of room for a full seating setup. A powder bath on this level adds convenience for guests without interrupting the main living areas.
The top level is dedicated to private spaces, with a primary suite that includes its own bath and closet storage. A second bedroom sits on the same floor with access to a full bath, creating a comfortable setup for a roommate, guest room, or home office. The laundry is also placed on this level, keeping it close to the bedrooms where it’s needed most.
Pin It!
Architectural Designs Plan 623595DJ
