Specifications
- Sq. Ft.: 2,994
- Units: 2
- Width: 59′ 0″
- Depth: 60′ 0″

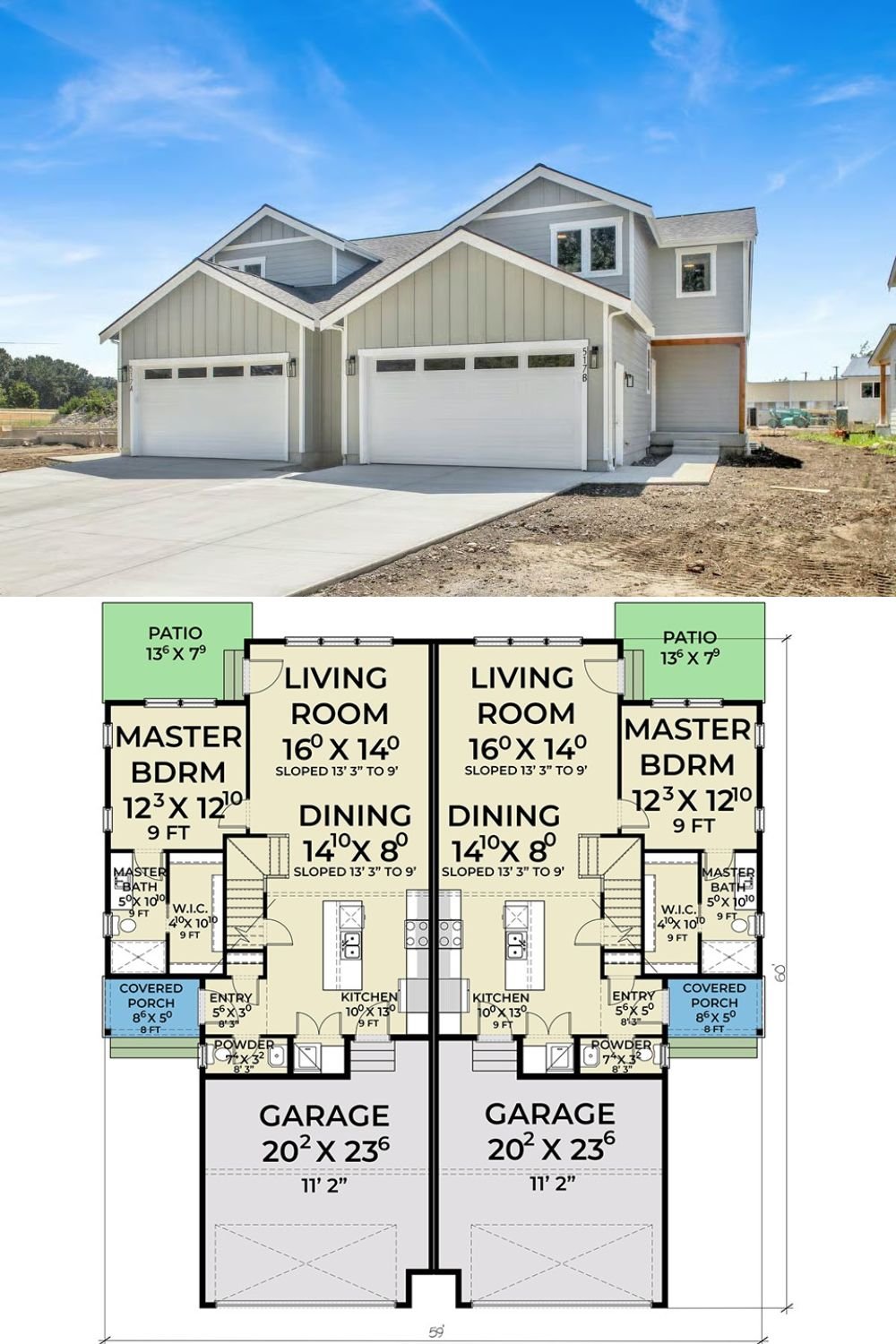

Main Level Floor Plan

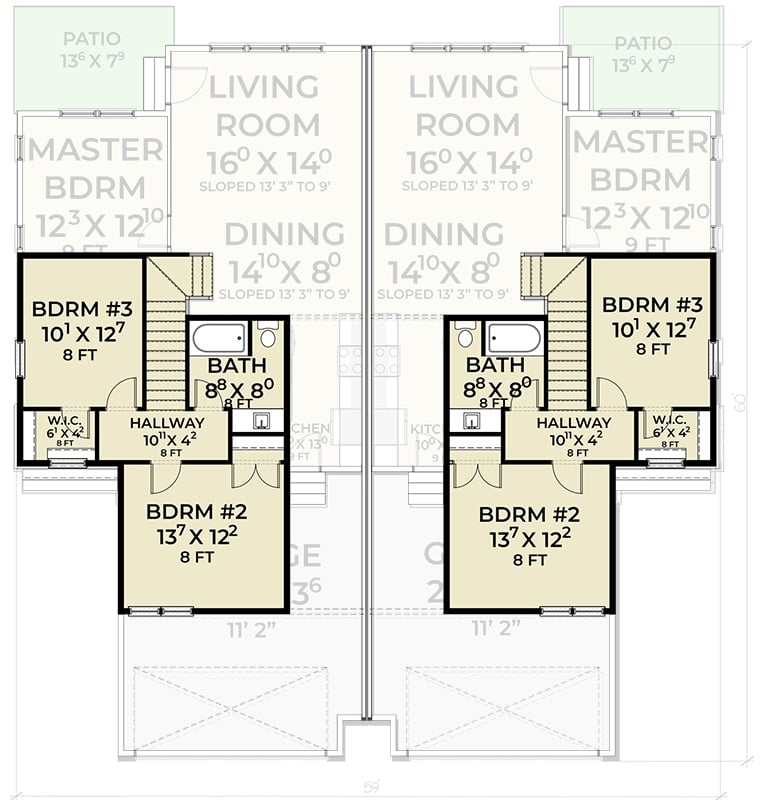

Second Level Floor Plan

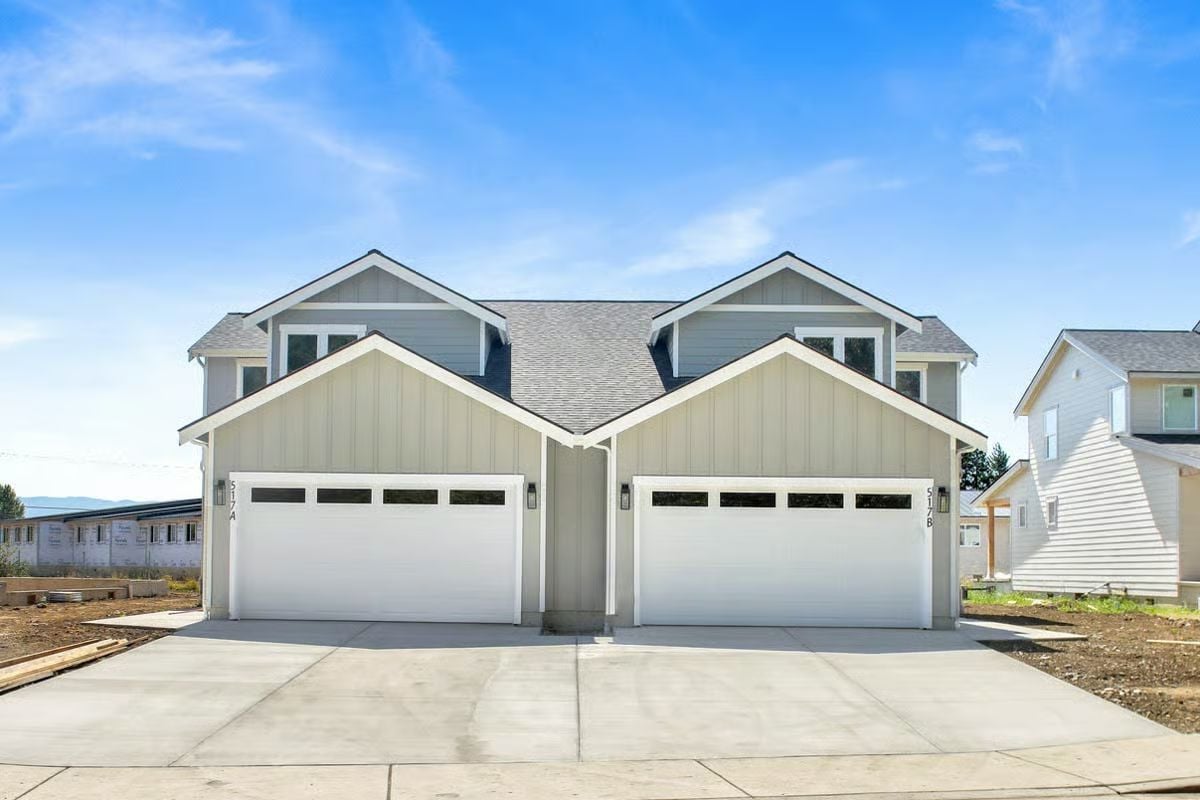

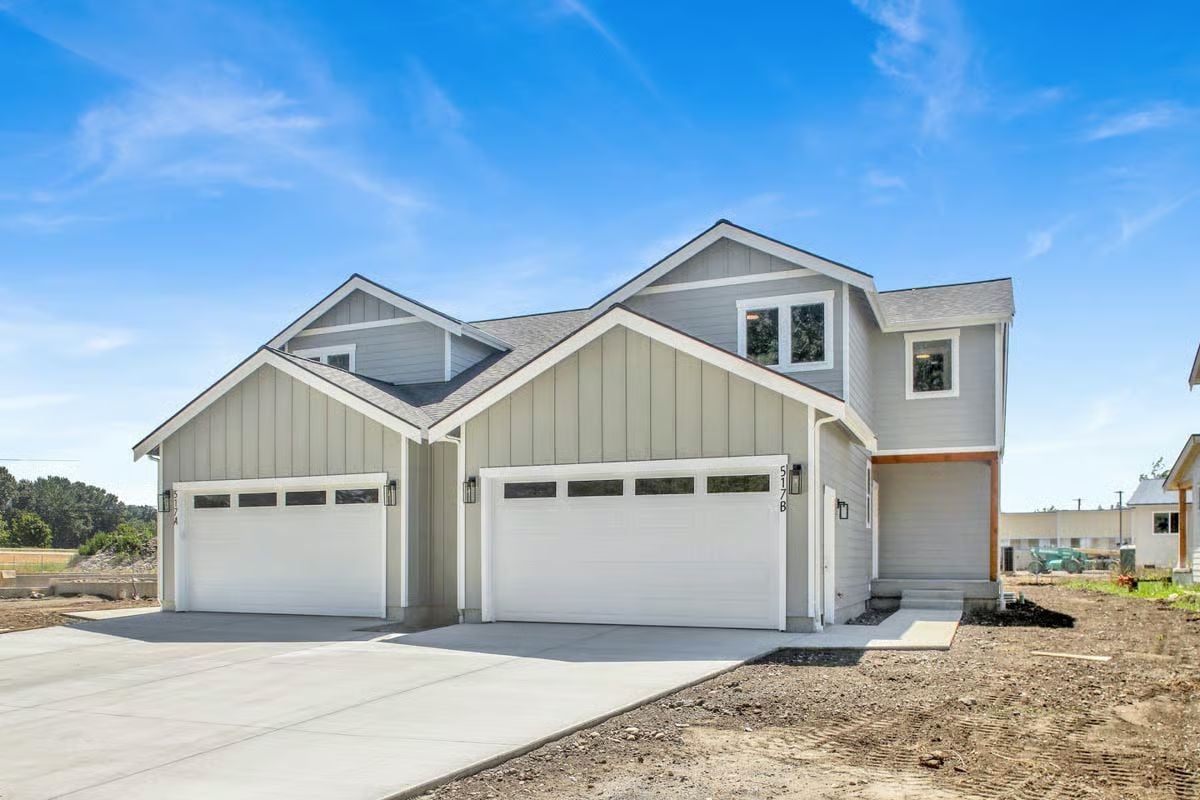

Front View

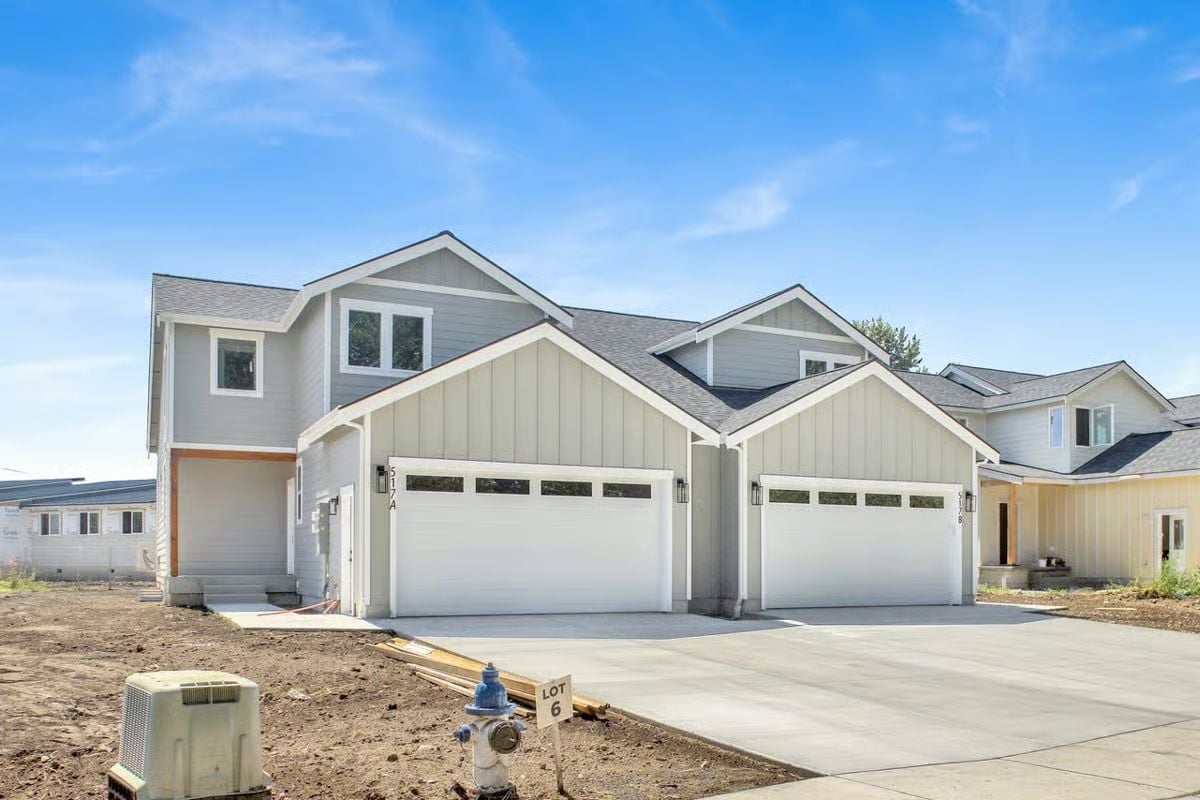

Front-Left View

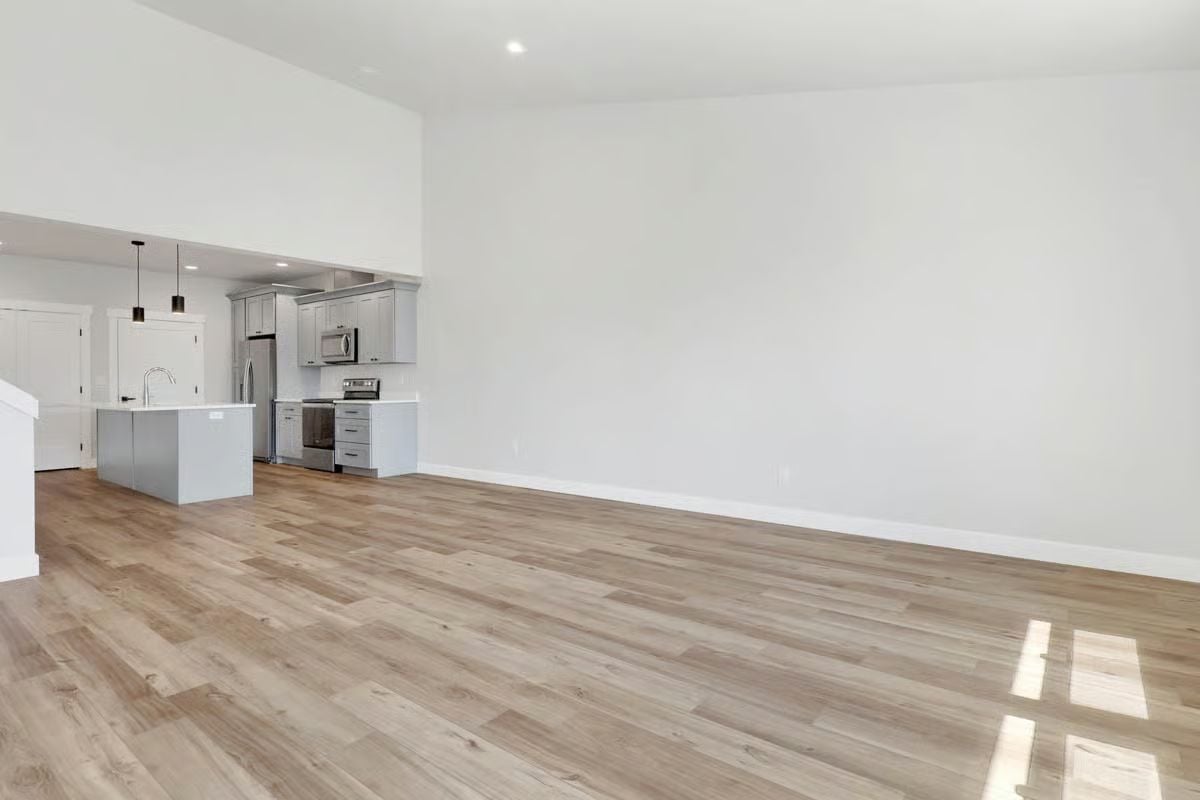

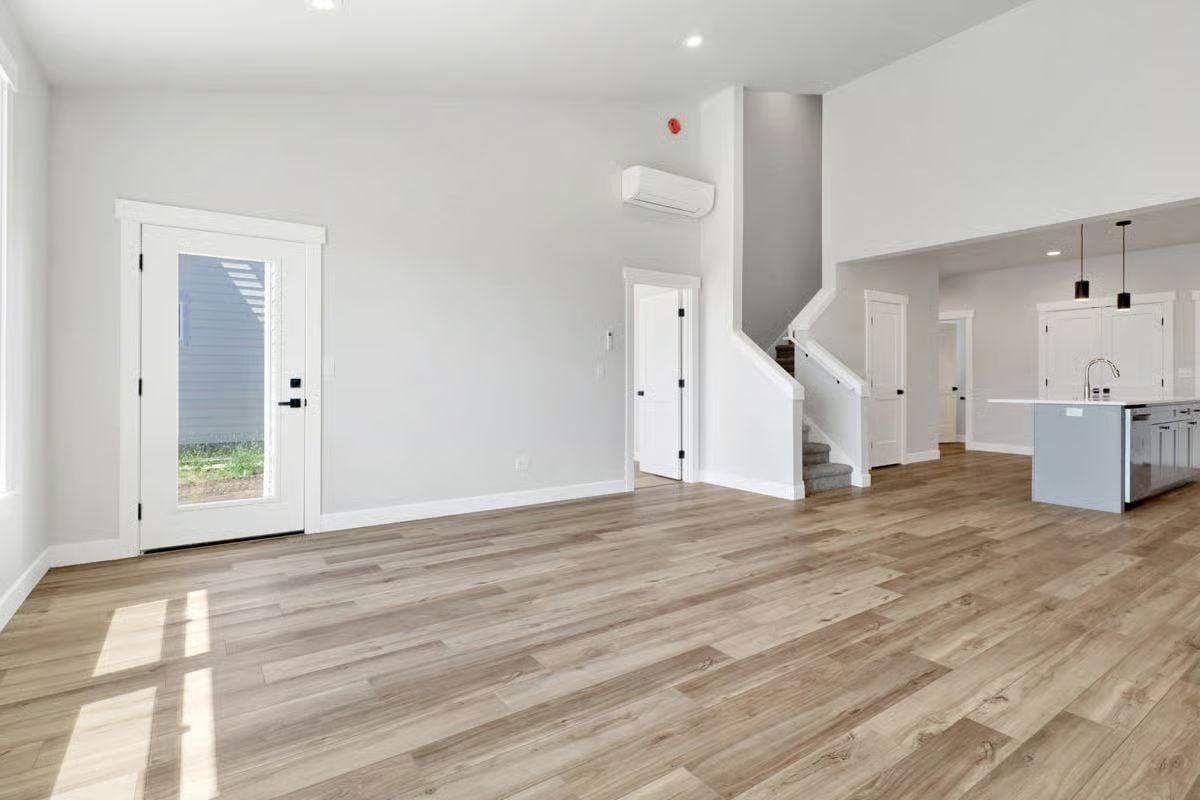

Living Room
Living Room

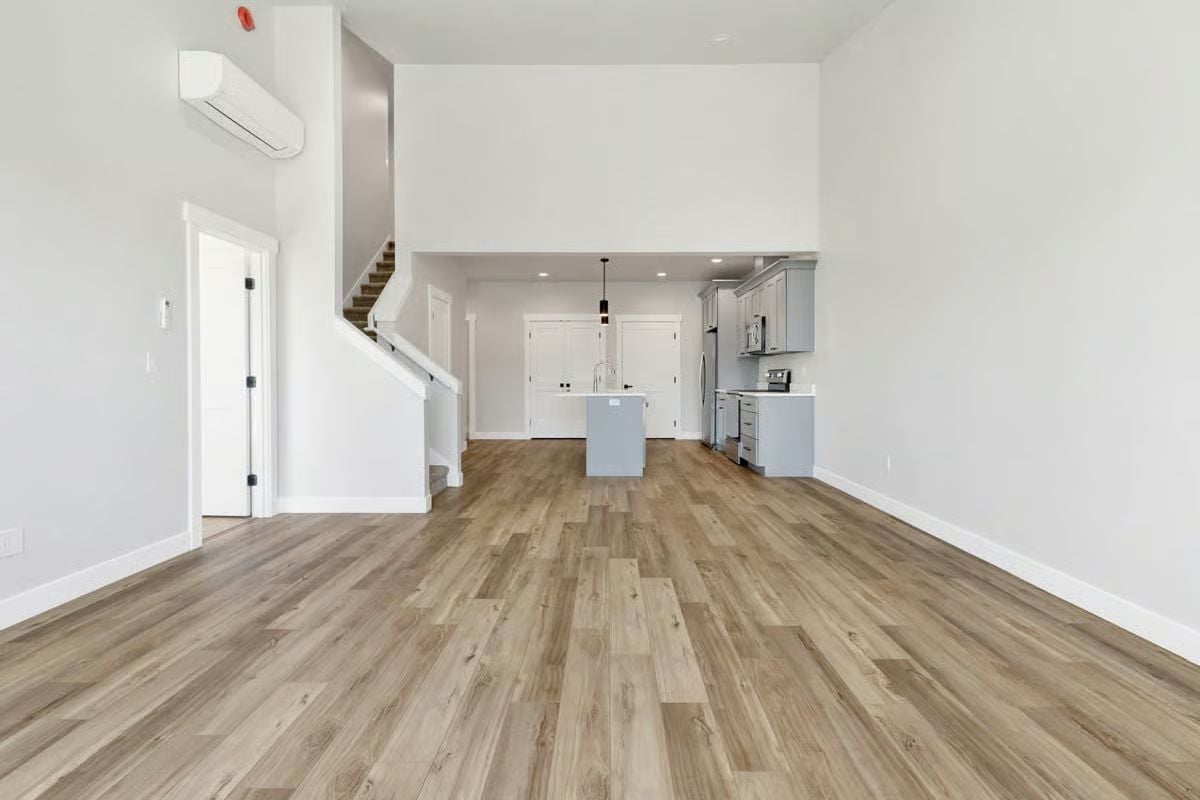

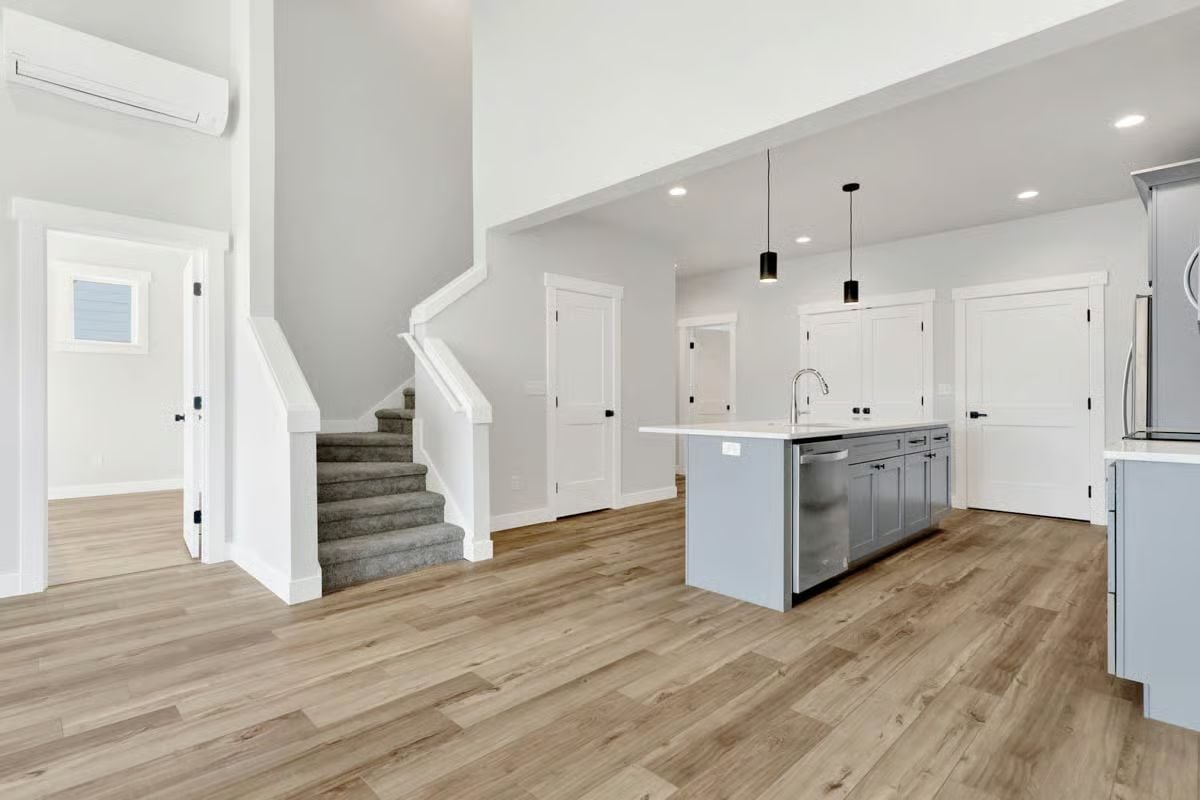

Open-Concept Living
Open-Concept Living

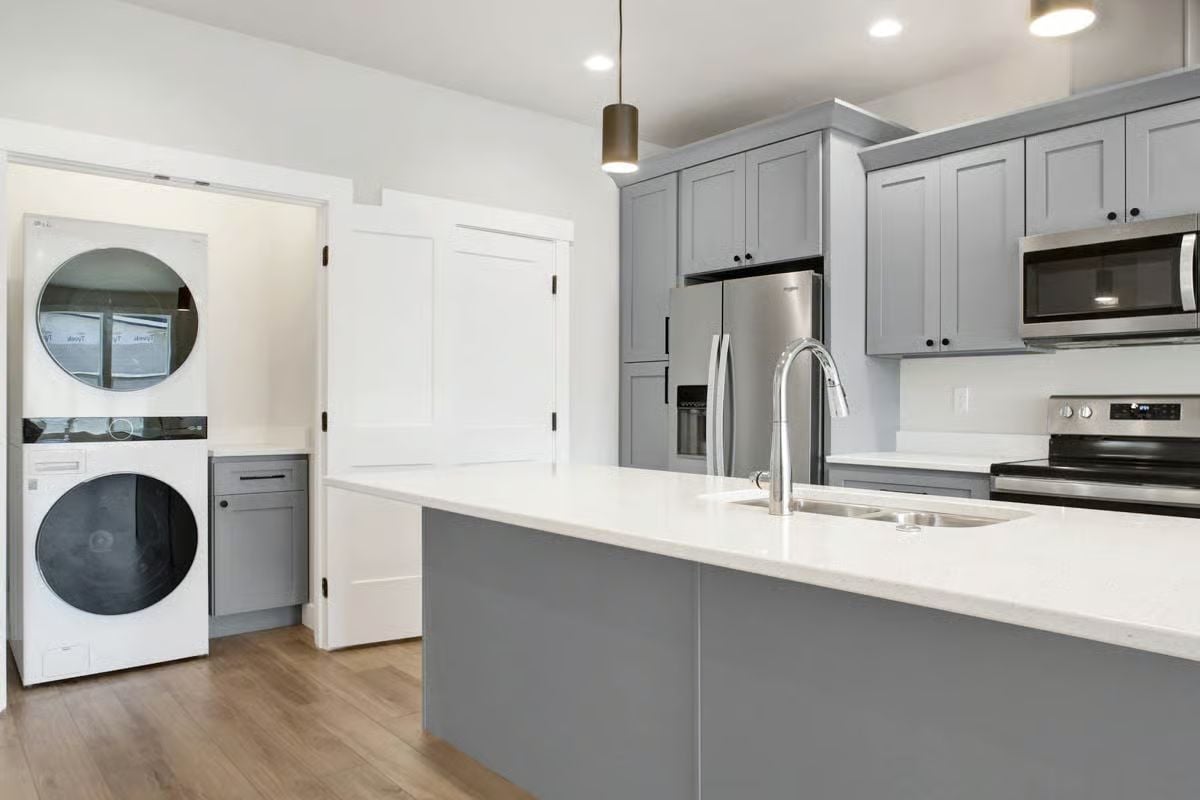

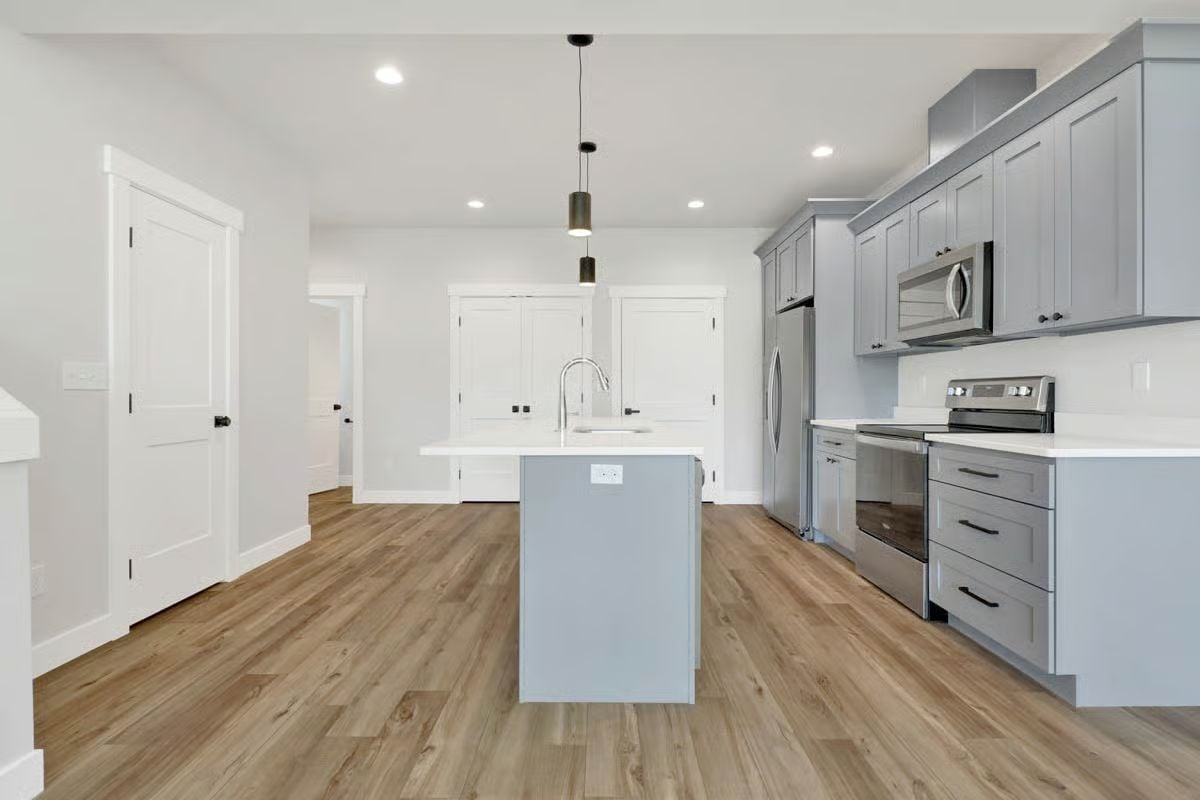

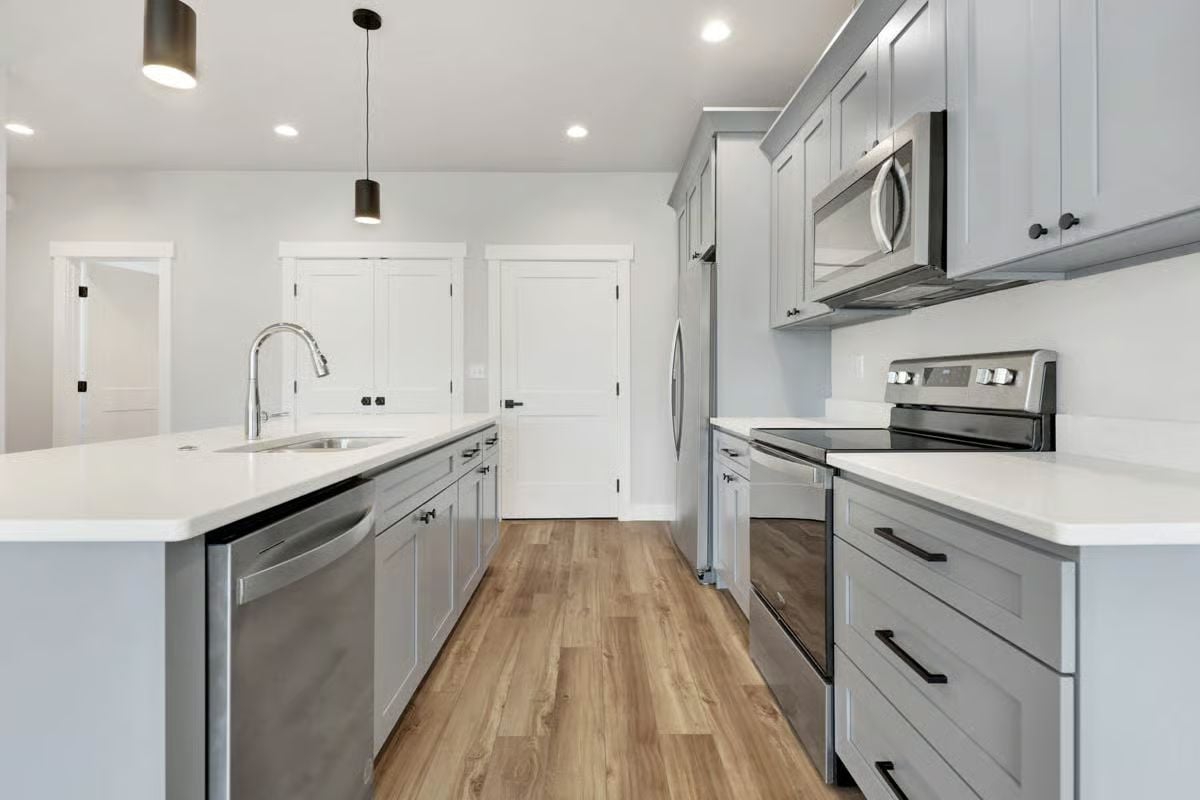

Kitchen
Kitchen
Kitchen

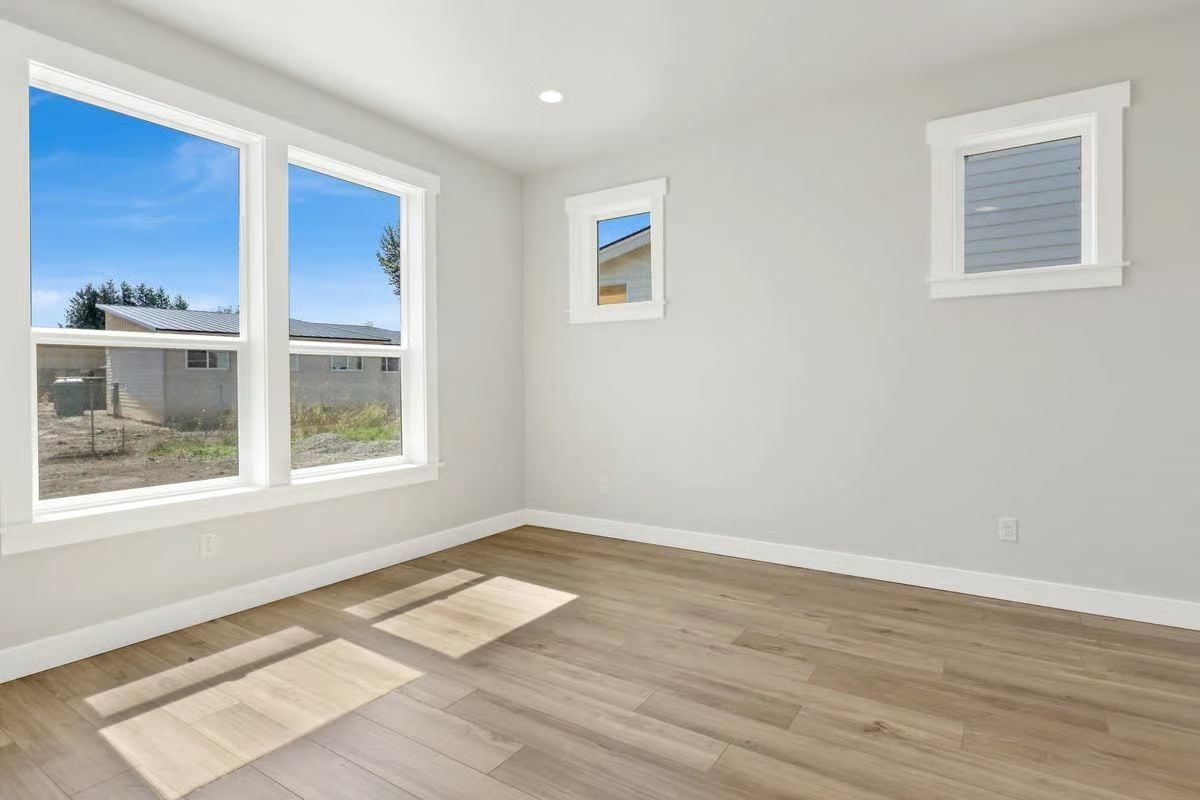

Primary Bedroom

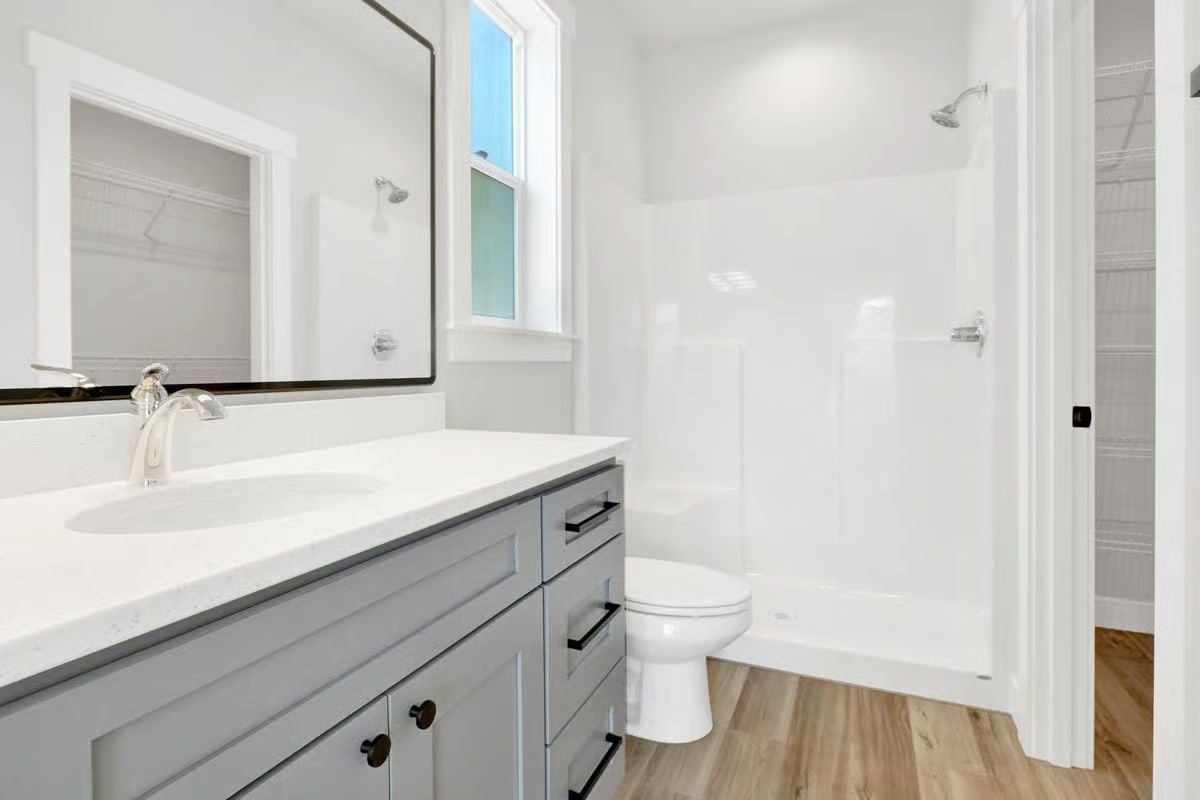

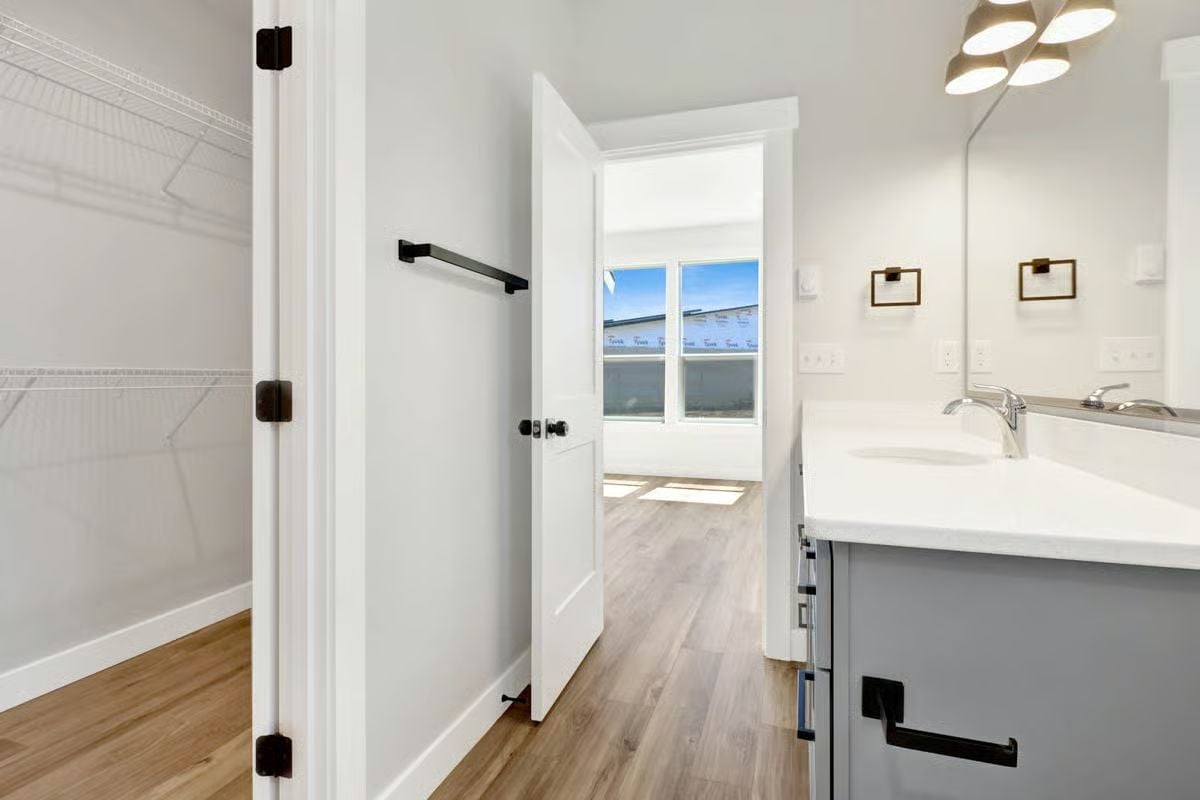

Primary Bathroom
Primary Bathroom

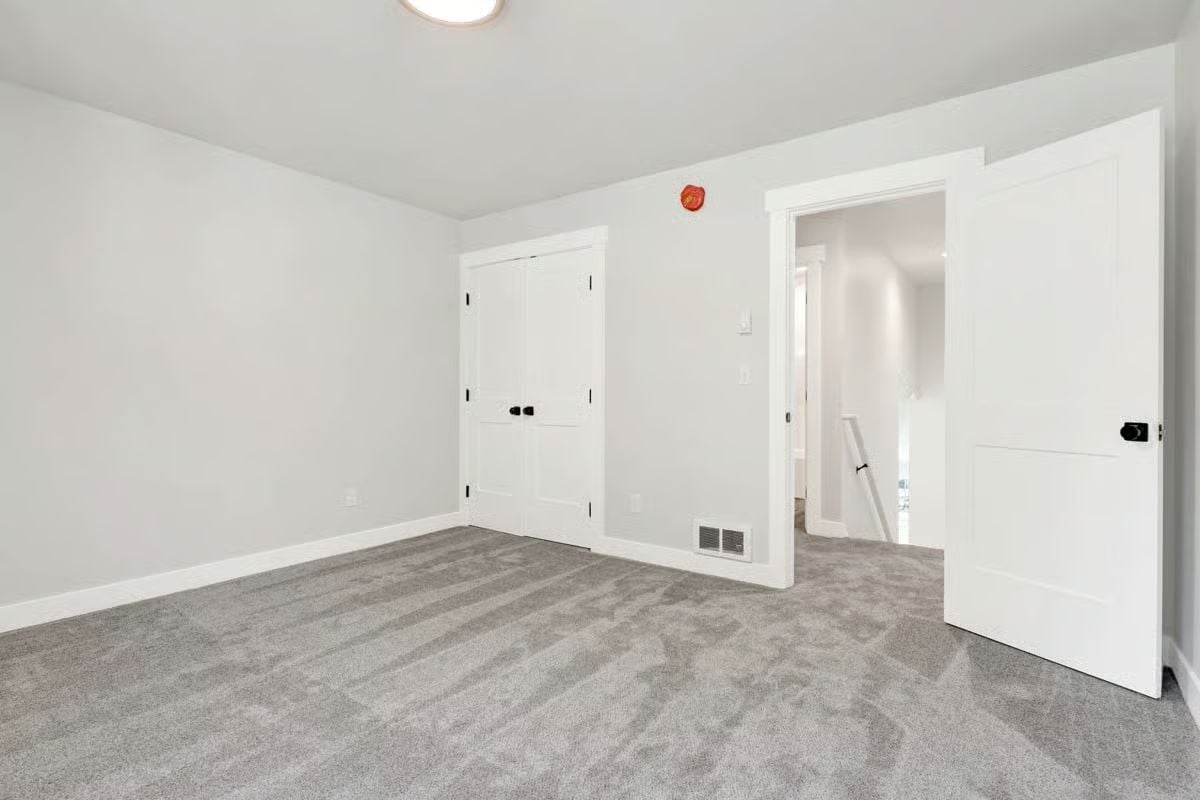

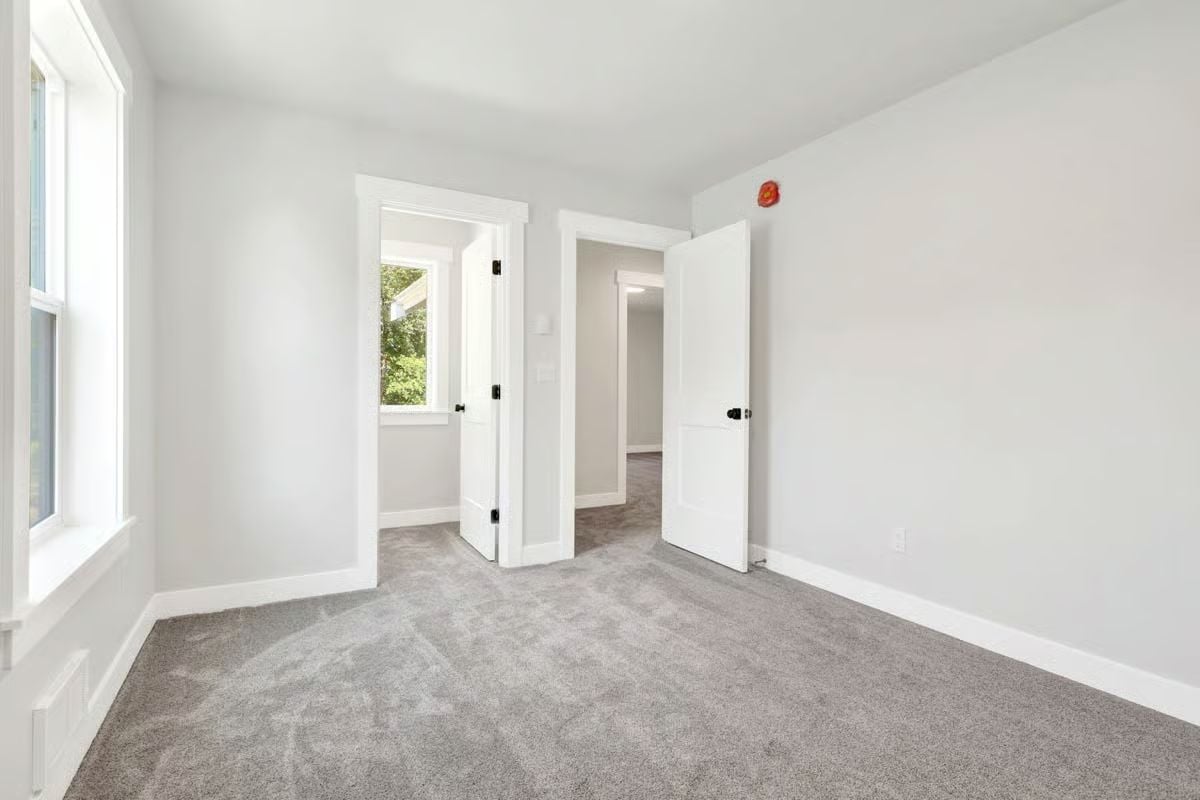

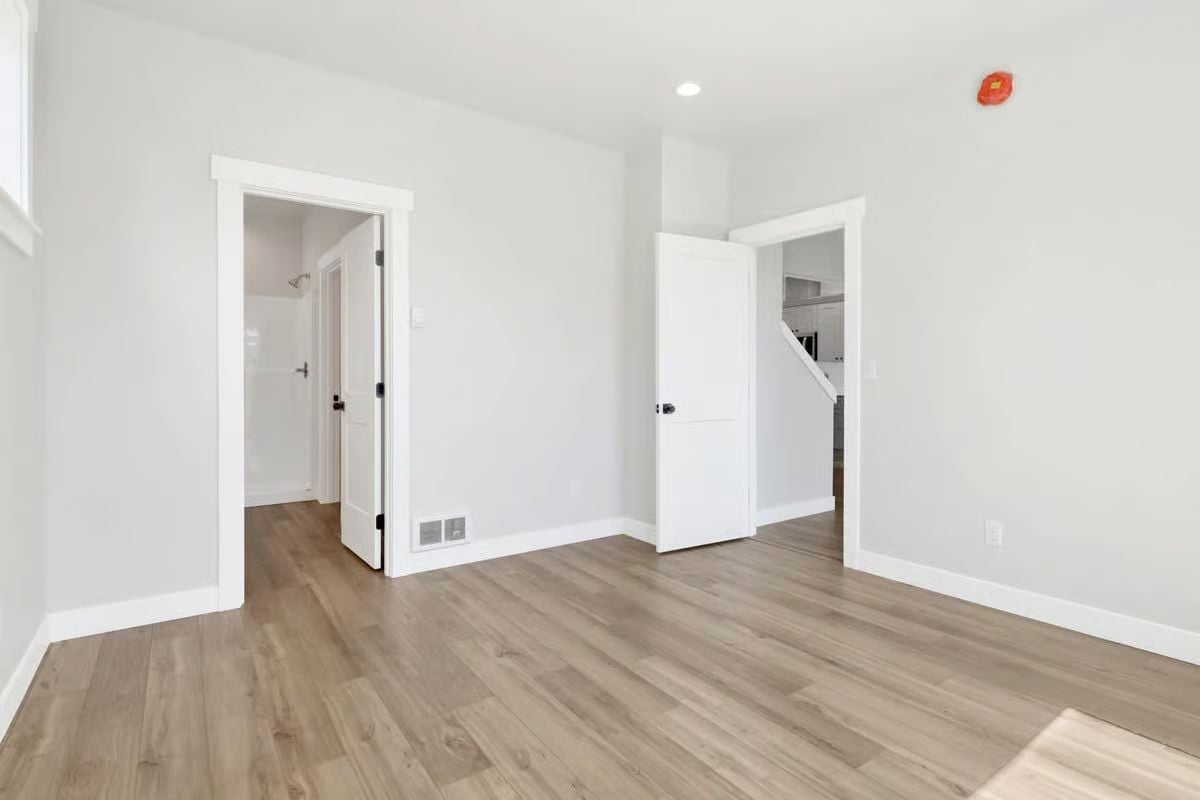

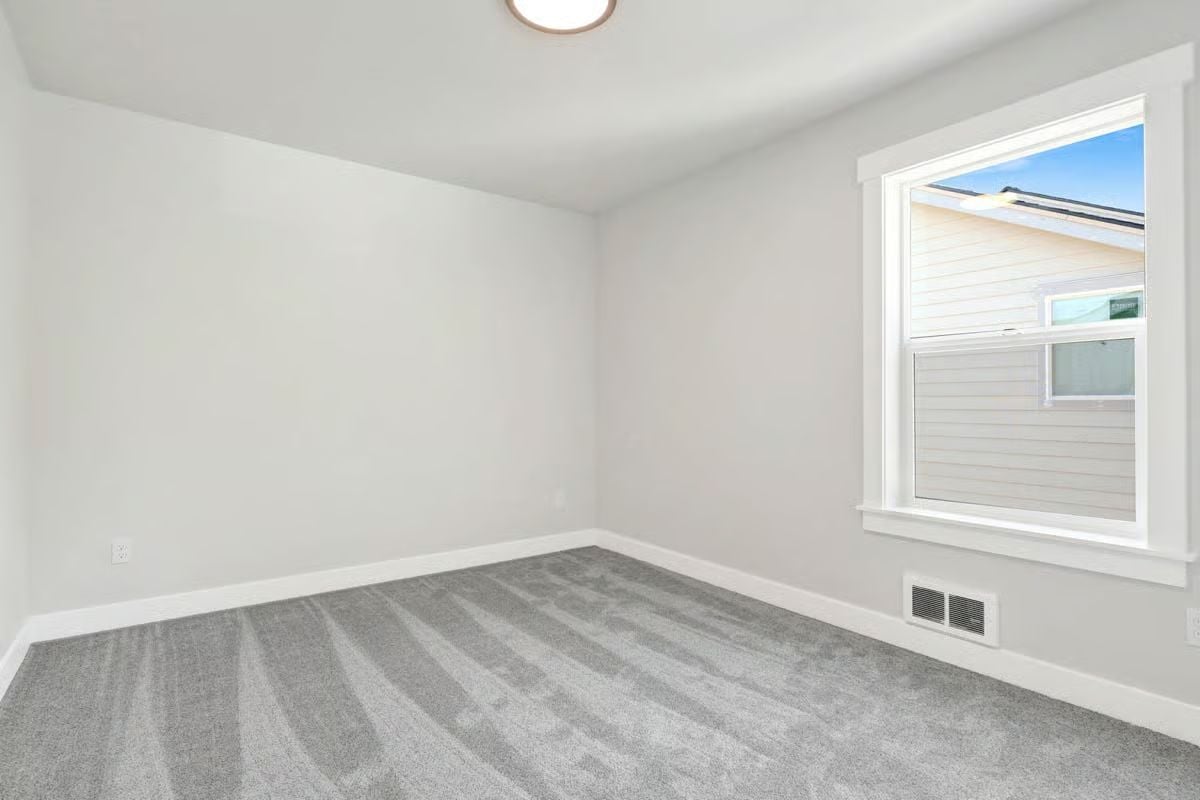

Bedroom
Bedroom
Bedroom
Bedroom

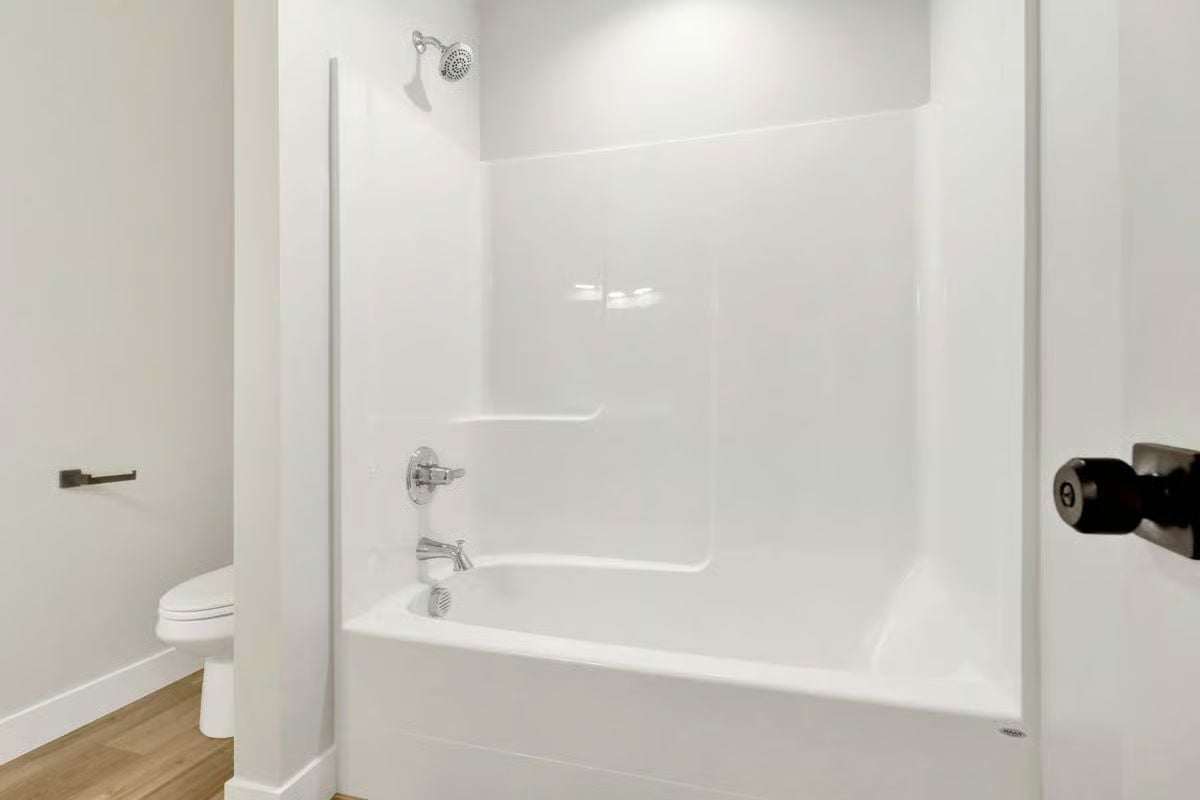

Bathroom

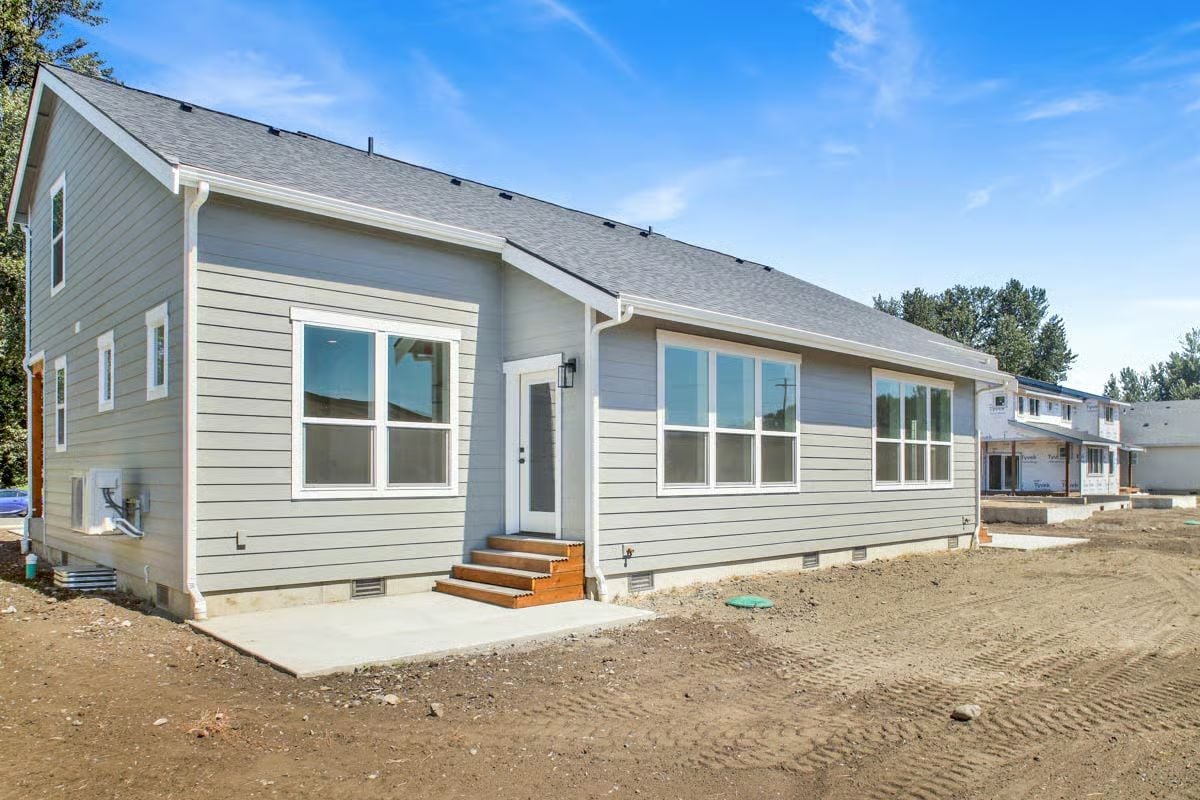

Rear View
Details
This duplex features a modern craftsman design with clean gable lines, vertical siding, and simple trim details that give each unit a distinct but unified presence. Matching garage doors and balanced rooflines create symmetry across the façade, while covered front entries provide clear, sheltered access for both residences.
Each main level is laid out with an open living and dining area that connects directly to the kitchen, creating a practical and efficient living space. Sloped ceilings add volume without complicating the layout, and doors off the living area lead to private rear patios for outdoor use. The kitchen is positioned centrally with clear sightlines into the living space, making it functional for daily use.
A main-level primary bedroom includes its own bathroom and walk-in closet, offering privacy and convenience. A powder room and entry area sit between the garage and kitchen, supporting everyday flow.
The upper level adds two additional bedrooms per unit, arranged off a central hallway for privacy. These bedrooms share a full bathroom and include nearby storage and closet space. The separation between levels allows the main floor to function as a primary living zone, while the upper level is reserved for secondary bedrooms or flexible use, making each unit well-suited for long-term living or rental use.
Pin It!
Architectural Designs Plan 280257JWD
