Specifications
- Sq. Ft.: 3,264
- Units: 2
- Width: 34′ 0″
- Depth: 49′ 0″
[su_spacer]
In order to come up with the very specific design ideas, we create most designs with the assistance of state-of-the-art AI interior design software. Also, assume links that take you off the site are affiliate links such as links to Amazon. this means we may earn a commission if you buy something.

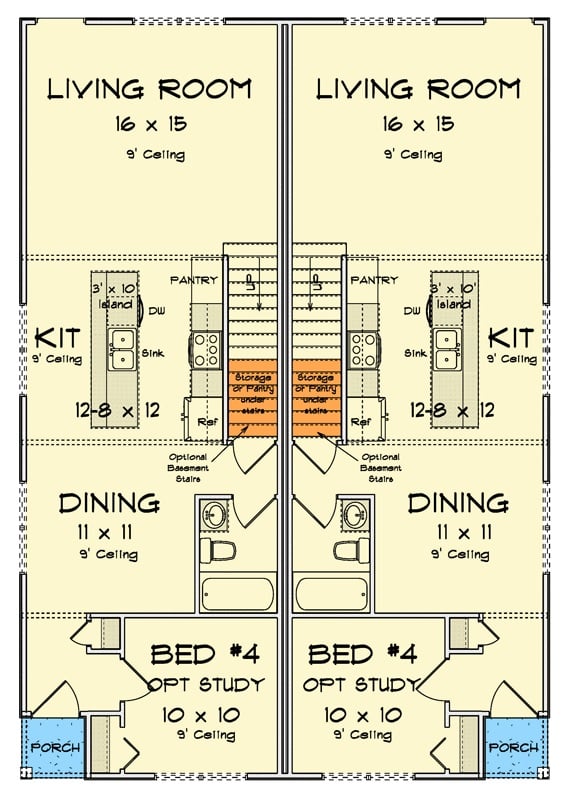

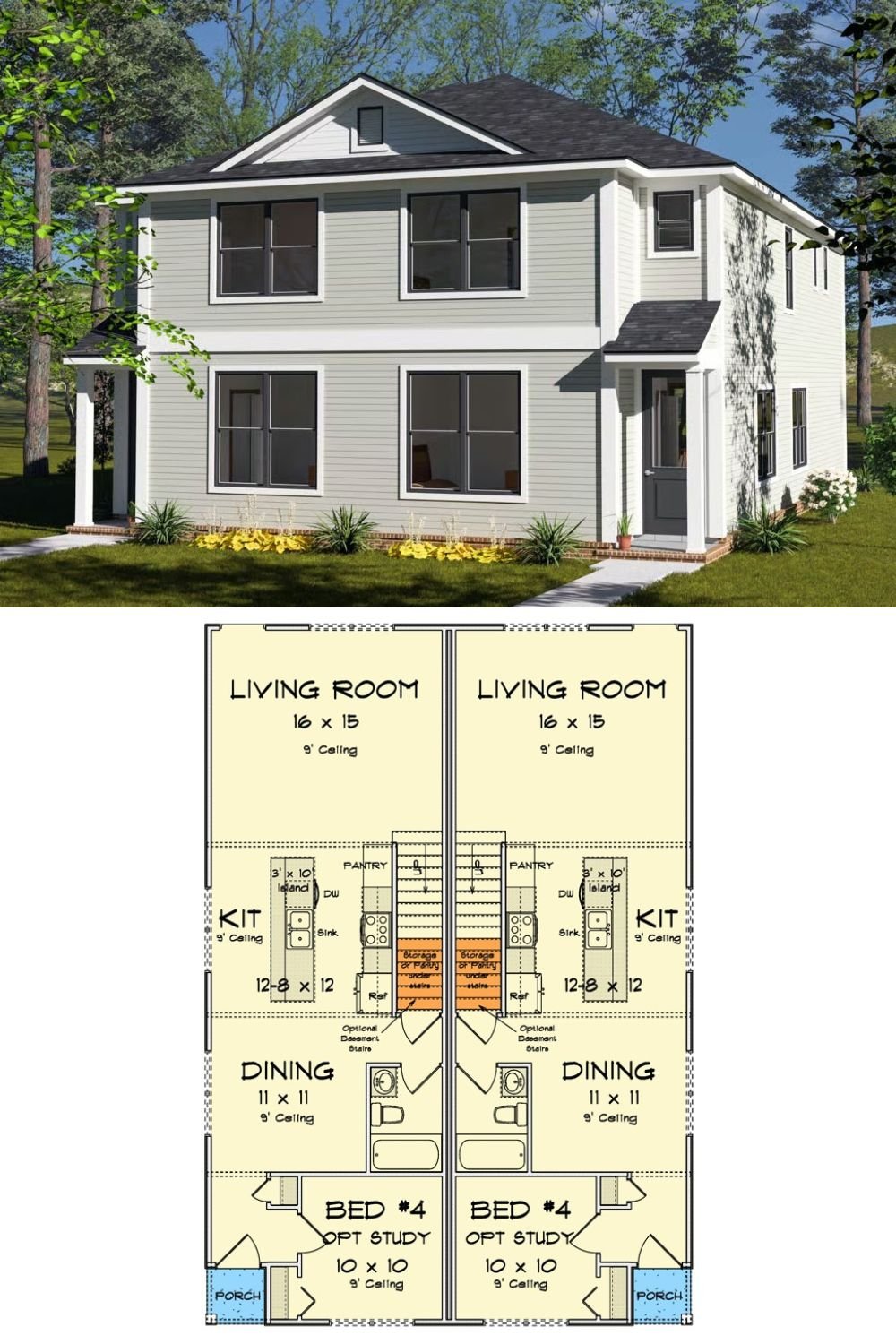

Main Level Floor Plan

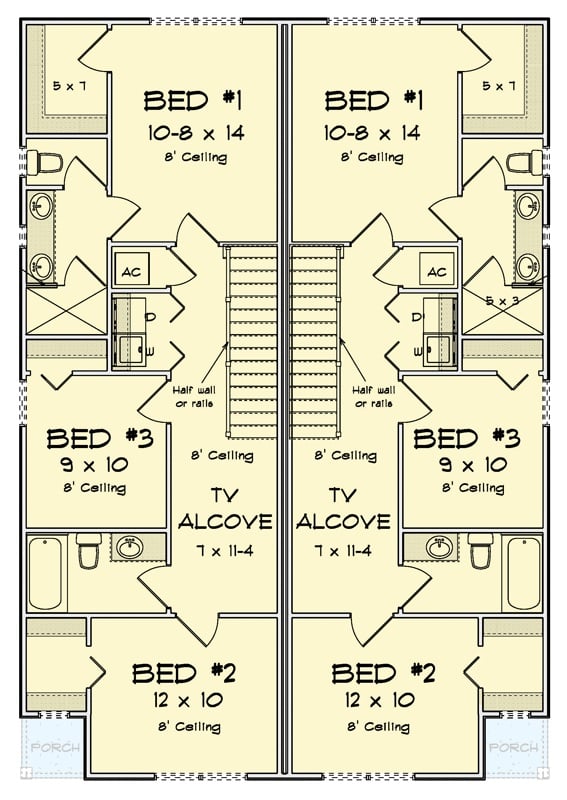

Second Level Floor Plan
[su_spacer]

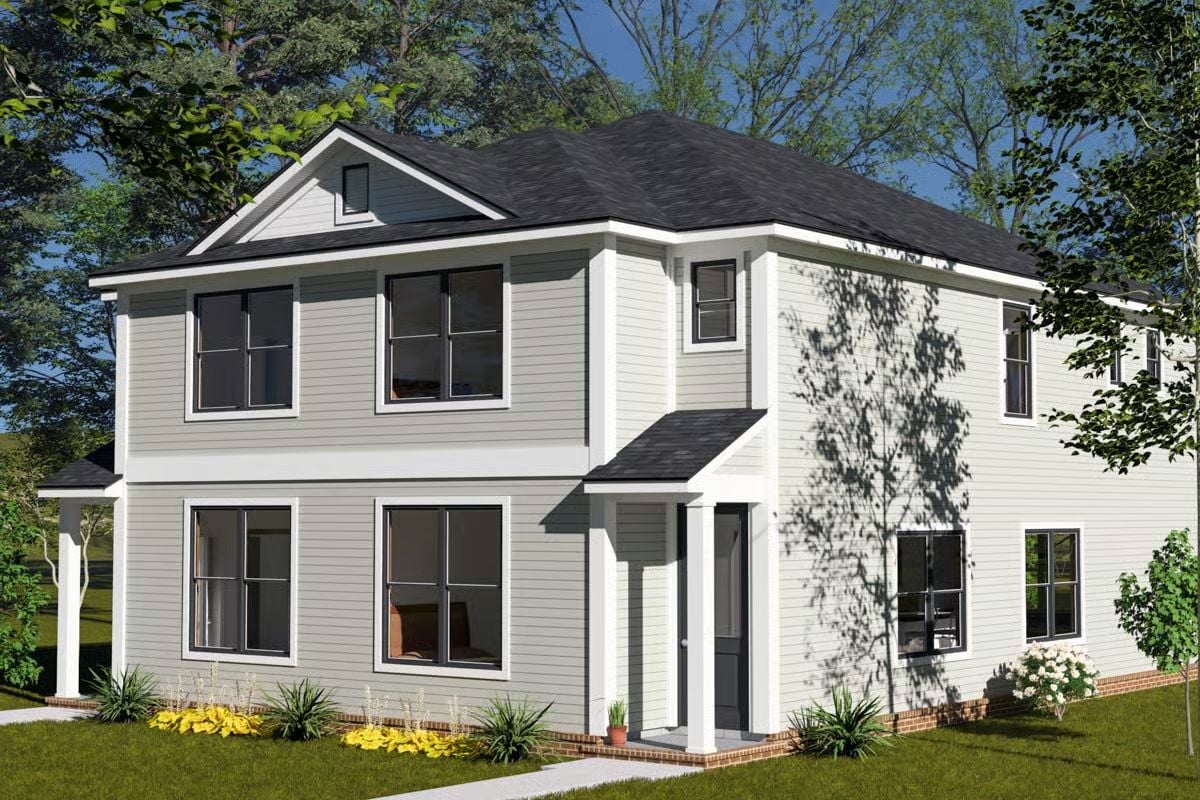

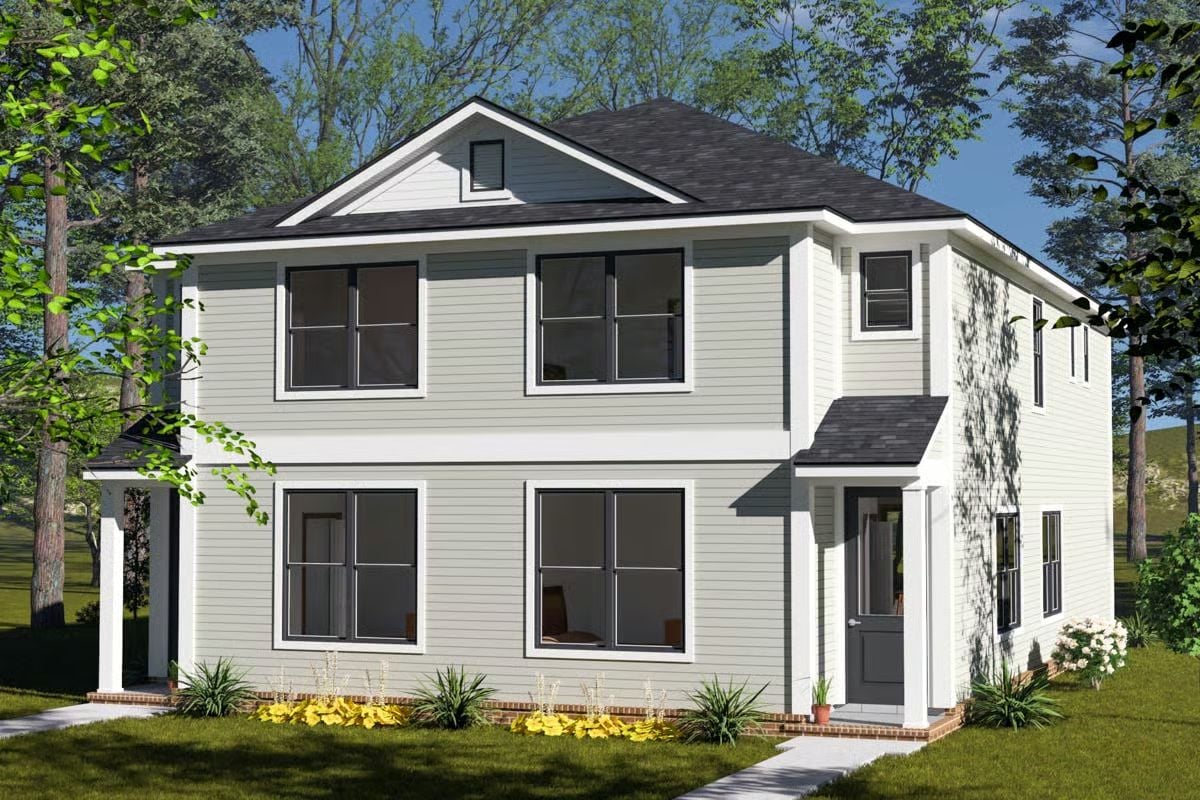

Front View

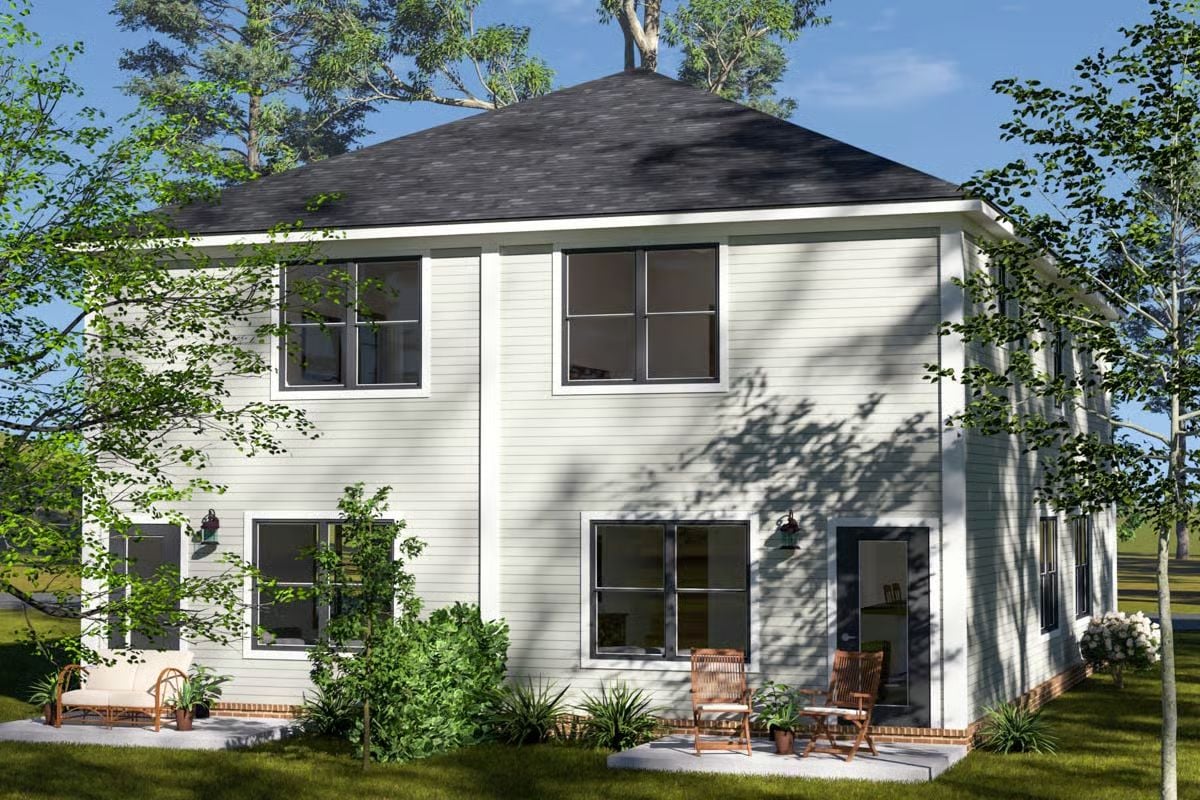

Rear-Left View
Rear-Right View

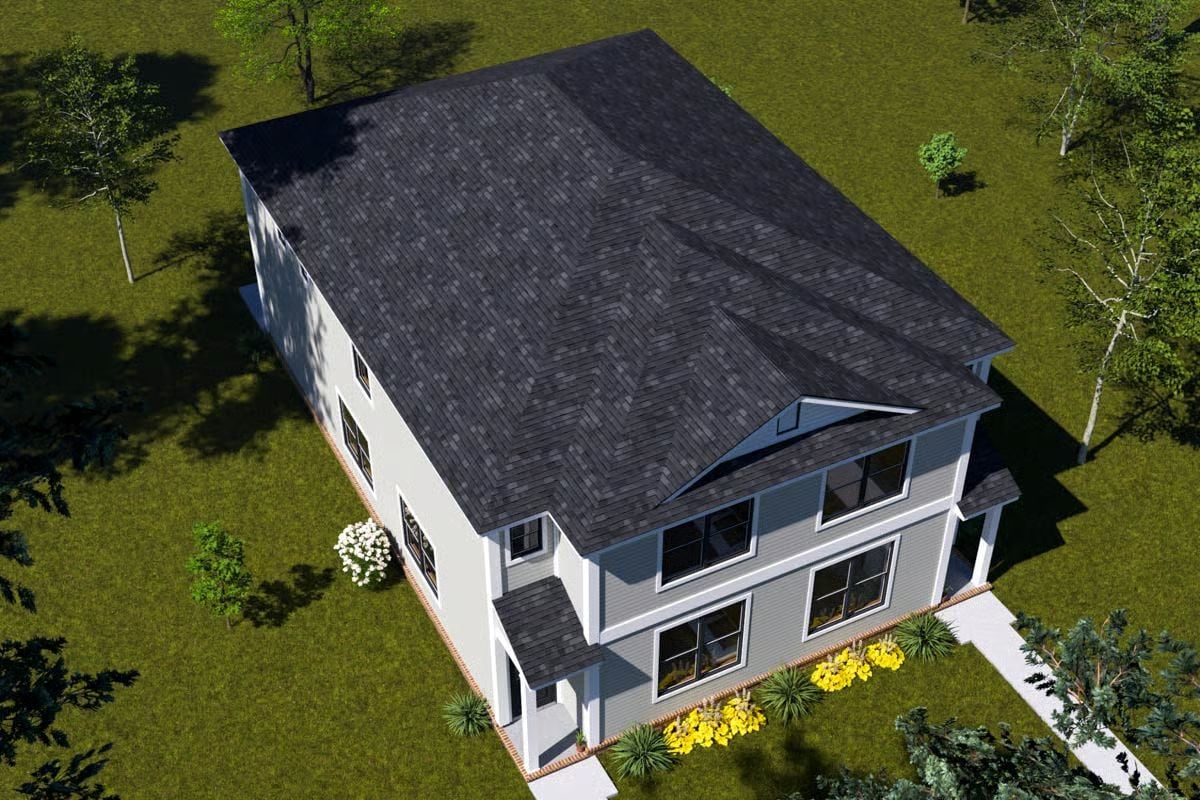

Aerial View

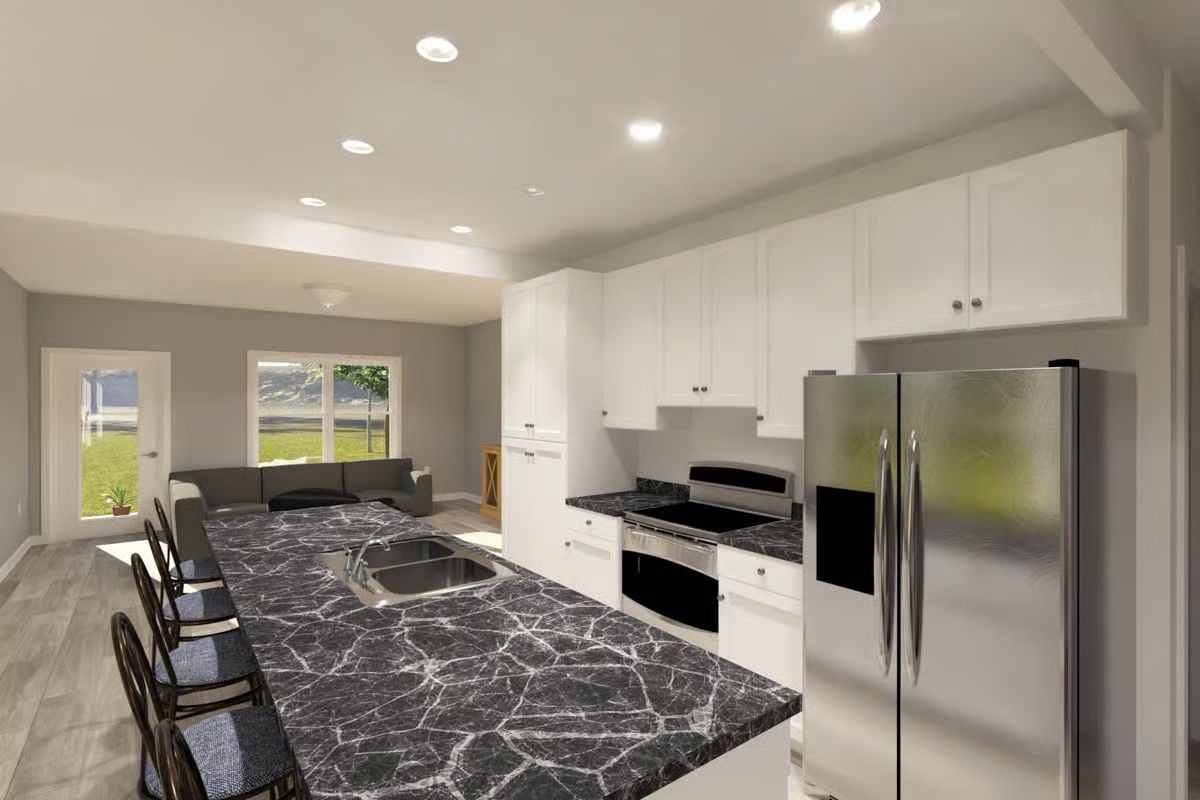

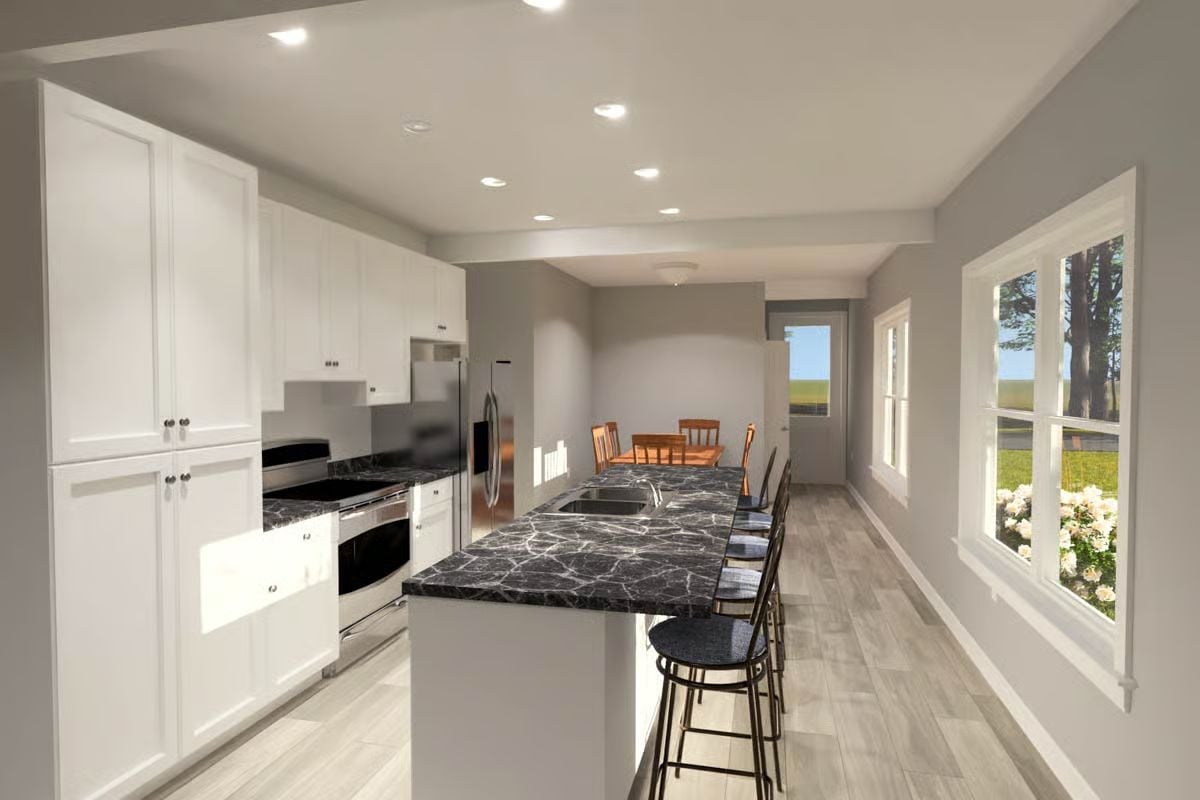

Kitchen
Kitchen

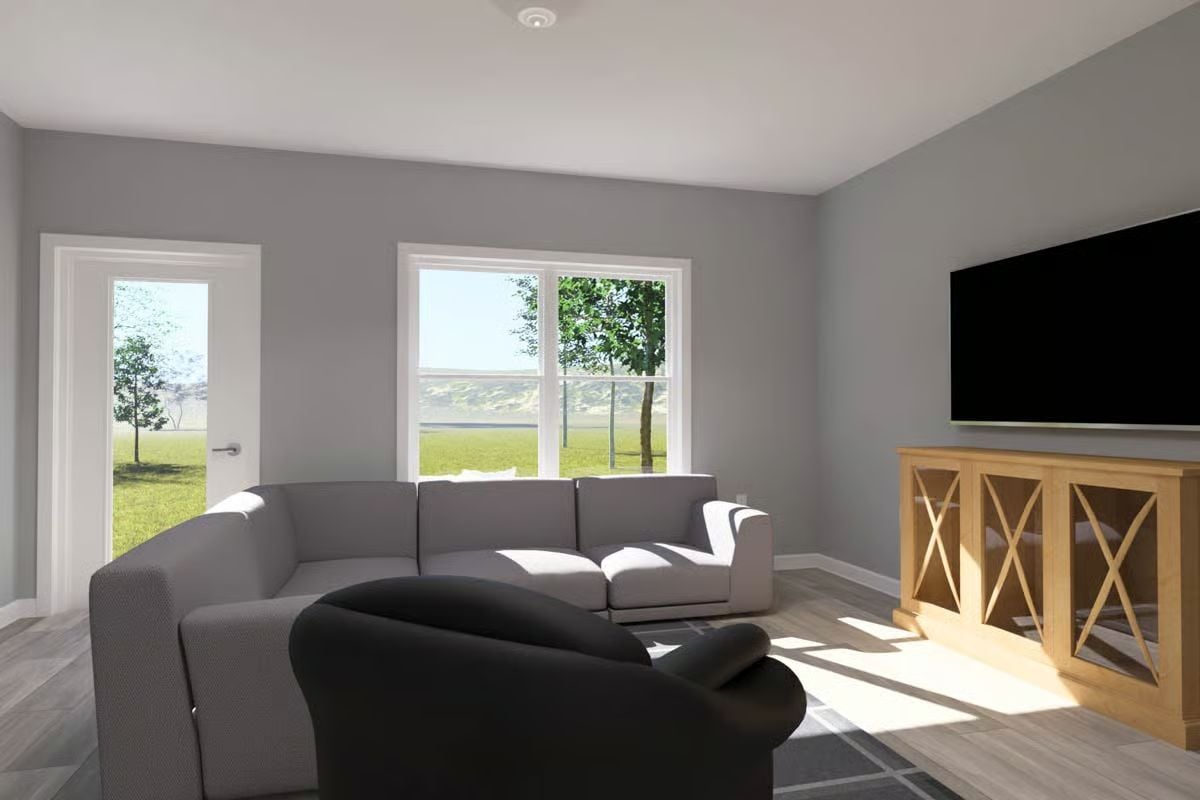

Living Room

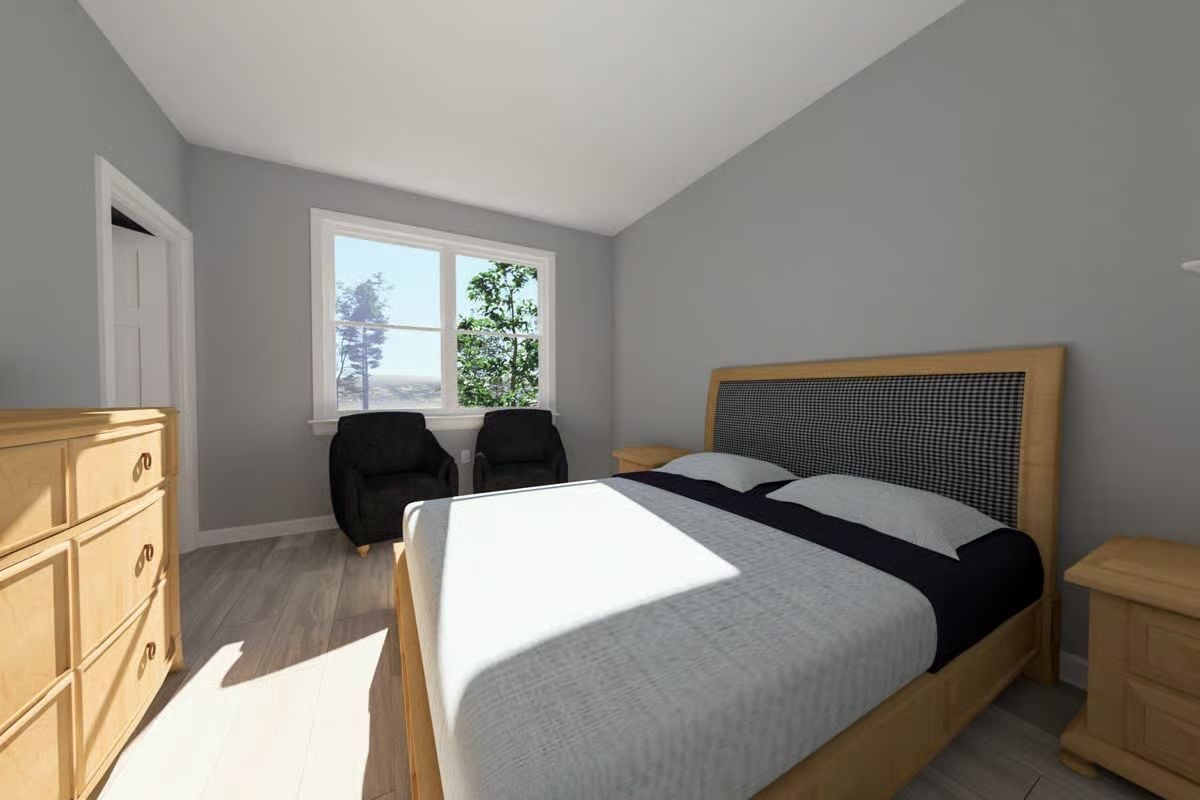

Primary Bedroom

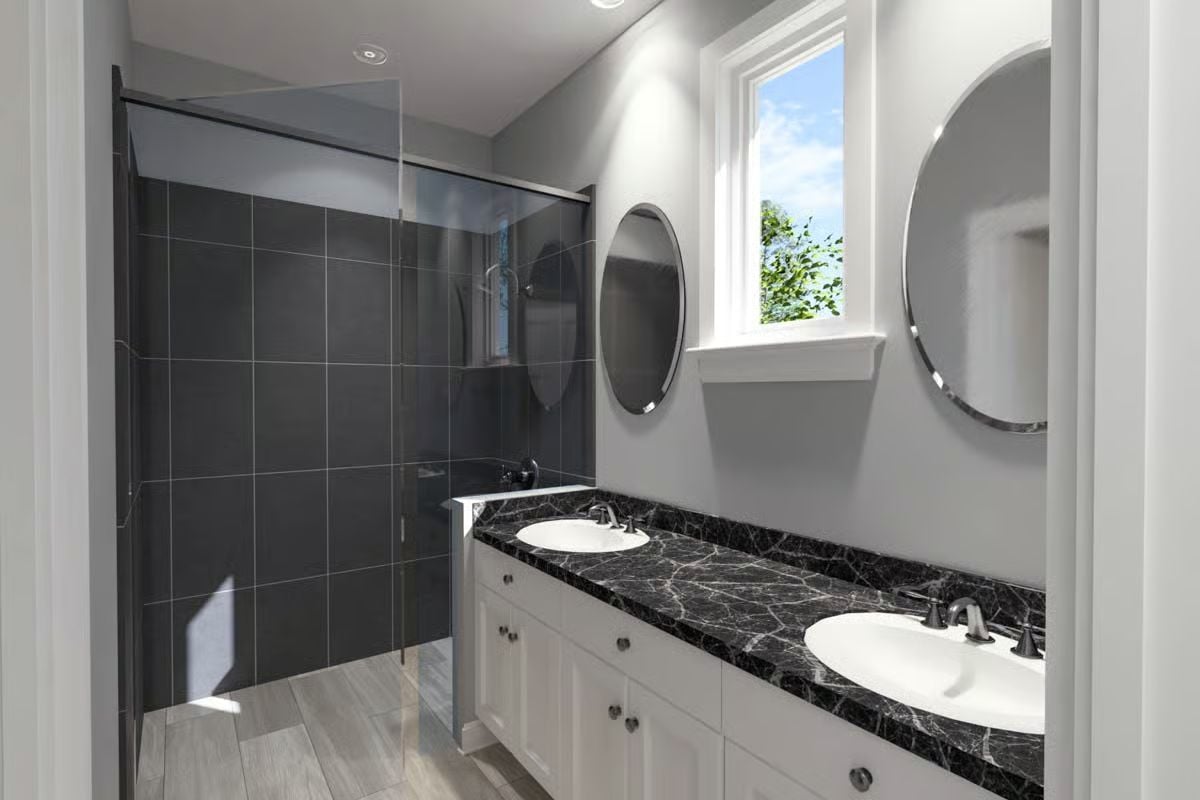

Primary Bathroom
Primary Bathroom
[su_spacer]
Details
This traditional duplex presents a clean, balanced exterior with simple rooflines, horizontal siding, and evenly spaced windows that give the façade a cohesive, residential feel. The two-story design maintains a straightforward, approachable appearance, with mirrored entries and subtle trim details that reinforce symmetry without feeling repetitive.
Each unit on the main level is arranged with a clear separation between shared living spaces and private rooms. The living room sits at the front, offering generous space and natural light, while the kitchen and dining areas are positioned centrally for efficient flow.
The kitchen includes an island and pantry, providing practical workspace and storage without overcrowding the layout. A main-level bedroom or optional study near the entry adds flexibility, allowing the space to adapt to different household needs.
The upper level is dedicated entirely to private living, with three bedrooms arranged around a central stair and a small TV alcove. The primary bedroom is slightly larger and positioned for privacy, while secondary bedrooms are efficiently sized and served by full baths.
The mirrored layout ensures consistency between units, making the design ideal for multi-generational living, rental use, or paired residences that prioritize comfort, balance, and functional separation of spaces.
Pin It!
Architectural Designs Plan 52511WM
