Deck Plan with Built-In Benches for Seating and Storage

Wooden Deck with Built-In Bench for Sitting and Storage

Welcome to another free deck plan/blueprint.  This one features a wooden deck design with built-in benches for seating and storage.  The original source of this deck is found at Zillow DigsTM.

The benefits of adding built-in benches with a back to any deck are clear.  You gain a great deal of seating plus storage – both of which are valuable for any deck design.

The bench backs also serve as a protective fence around the deck to prevent inadvertently sliding a chair leg over the edge or little kids running off the deck edge.

The downside is the benches do take up some space so if you build a deck with built-ins of any sort, you want to make it fairly large so you have plenty of room for your other deck purposes.

The entire plans and blueprints for this design is below.

You can click each image to enlarge them.

PDF Download: Click here to download the PDF version which contains all the documents for the plan.

Overview of deck design with built-in benches

Deck Plans with Built-In Benches_Page_01

Click to enlarge.

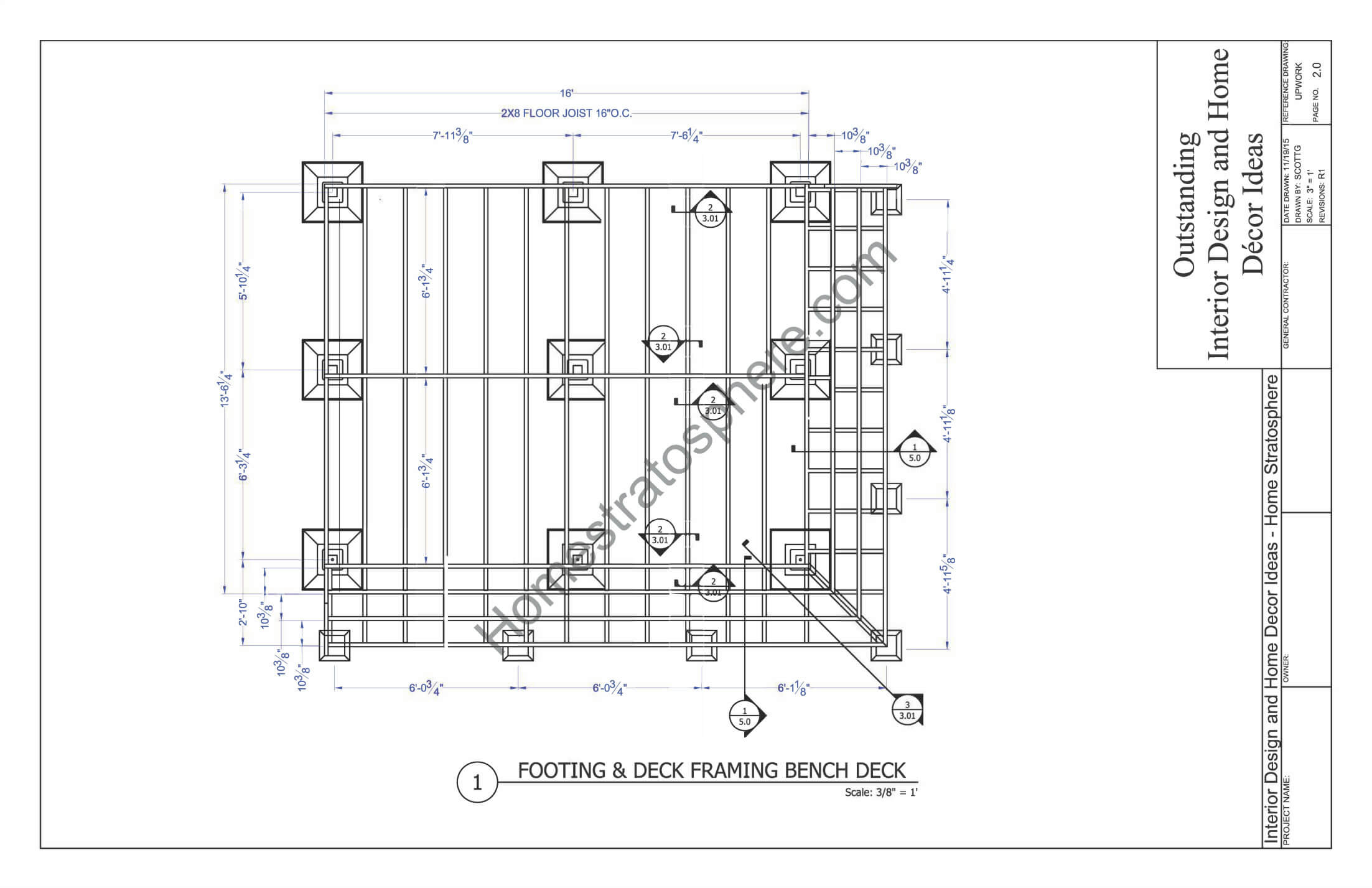

Footing and Deck Framing

Deck Plans with Built-In Benches_Page_02

Click to enlarge.

Bench Framing for Deck Built-In Benches

Bench Framing for Deck Built-In Benches

Click to enlarge.

Stair Plans for Deck

Stair Plans for Deck

Click to enlarge.

Top View of Deck with Built-In Benches

Top View of Deck with Built-In Benches

Click to enlarge.

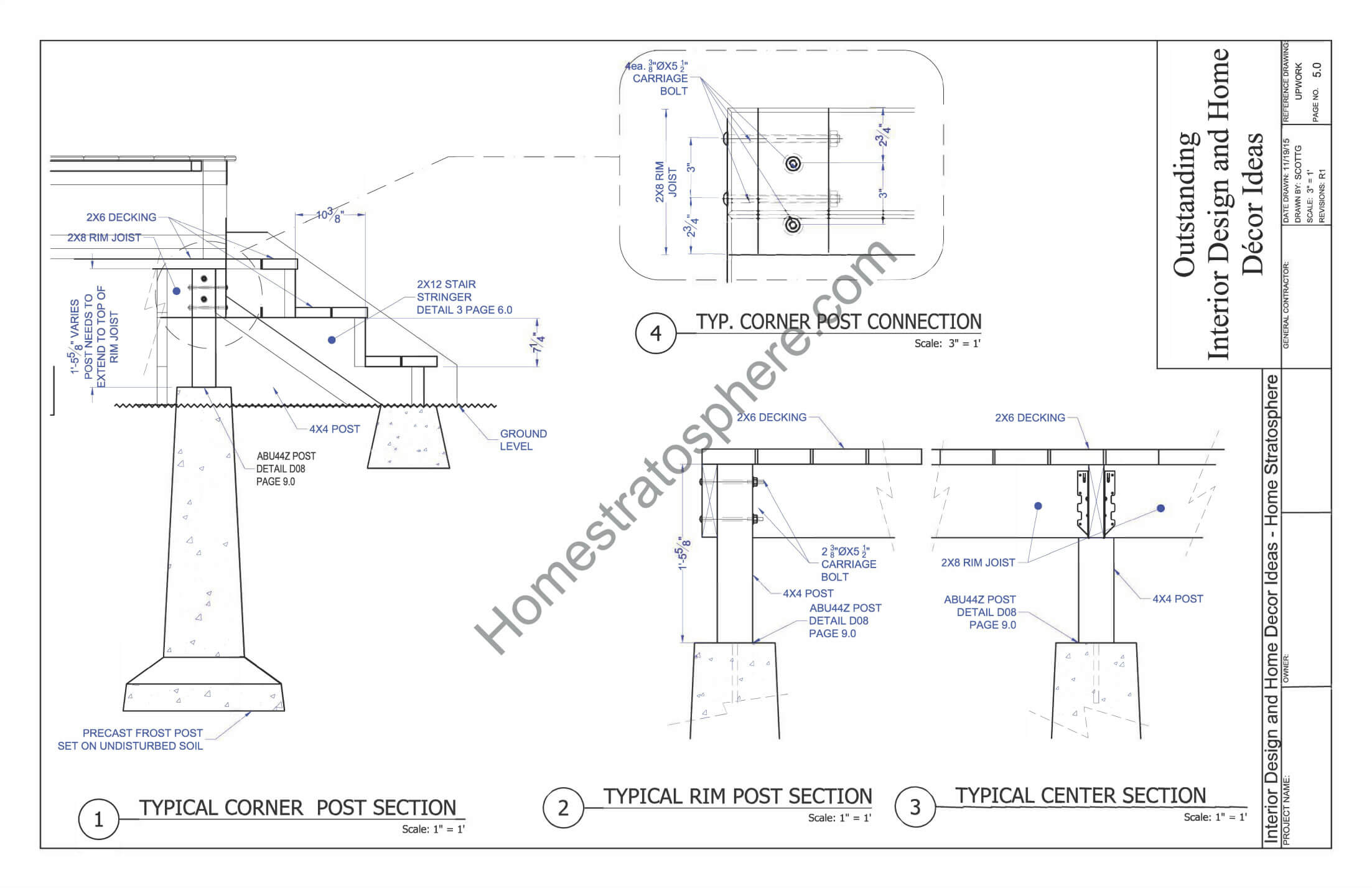

Corner Deck Post Blueprints

Corner Deck Post Blueprints

Click to enlarge.

Bench Blueprint

Bench Blueprint

Click to enlarge.

General Notes, Materials and Checklists for Deck Design

General Notes, Materials and Checklists for Deck Design 1

Click to enlarge.

General Notes, Materials and Checklists for Deck Design 2

Click to enlarge.

General Notes, Materials and Checklists for Deck Design 3

Click to enlarge.

General Notes, Materials and Checklists for Deck Design 4

Click to enlarge.

General Notes, Materials and Checklists for Deck Design 5

Click to enlarge.

General Notes, Materials and Checklists for Deck Design 6

Click to enlarge.

General Notes, Materials and Checklists for Deck Design 7

Click to enlarge.

General Notes, Materials and Checklists for Deck Design

Click to enlarge.
