3-Bedroom Single-Story Craftsman Cottage with Elevator and Wet Bar (Floor Plan)

3-Bedroom Single-Story Craftsman Cottage with Angled Garage and a Wet Bar


  • Sq. Ft.: 2,574
  • Bedrooms: 3
  • Bathrooms: 2
  • Stories: 1
  • Garages: 2

Welcome to photos and footprint for a 3-bedroom single-story craftsman cottage. Here’s the floor plan:

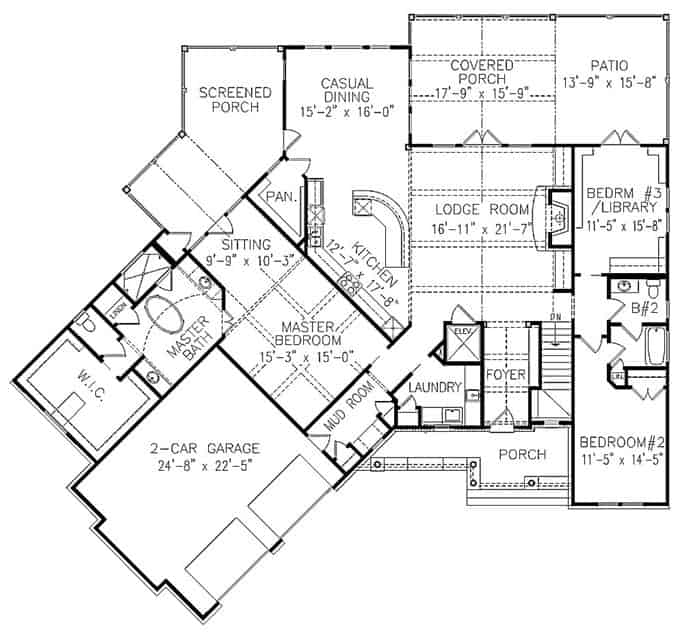

Main level floor plan of a 3-bedroom Single-story craftsman cottage with front and rear porches, foyer, lodge room, kitchen, casual dining, and a mudroom leading to the angled garage.
Main level floor plan

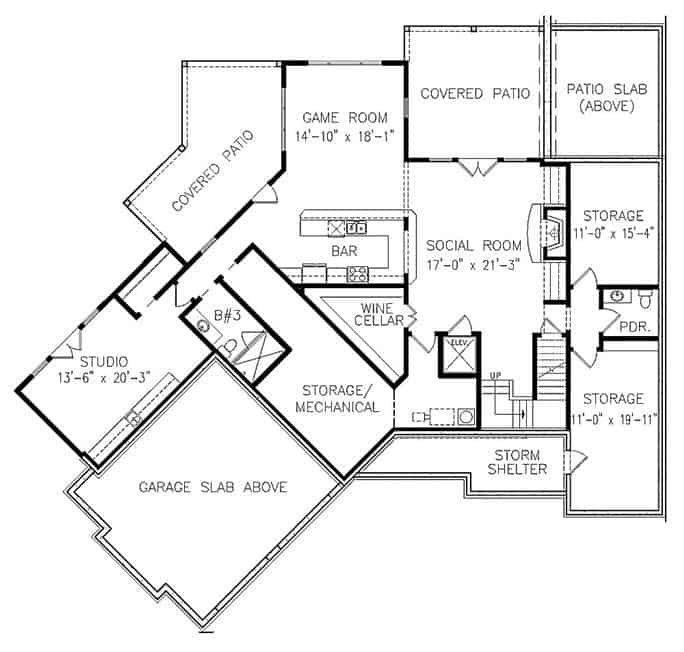

Lower level floor plan with social room, wine cellar, studio, and plenty of storage rooms.
Lower level floor plan

Cedar shake siding, decorative wood trims, graceful gables, and stone accents lend a craftsman influence to this single-story cottage. An angled garage topped with a large dormer adds to the home appeal.

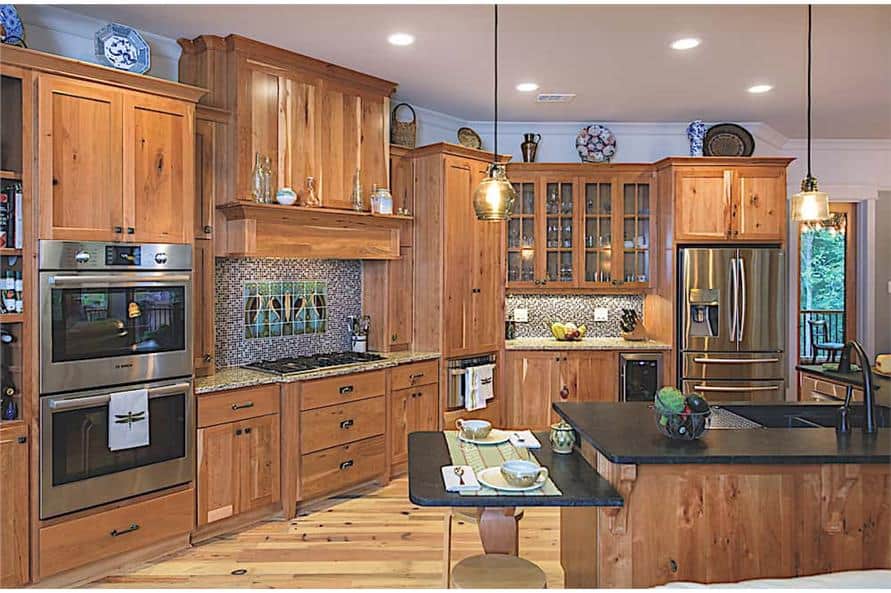

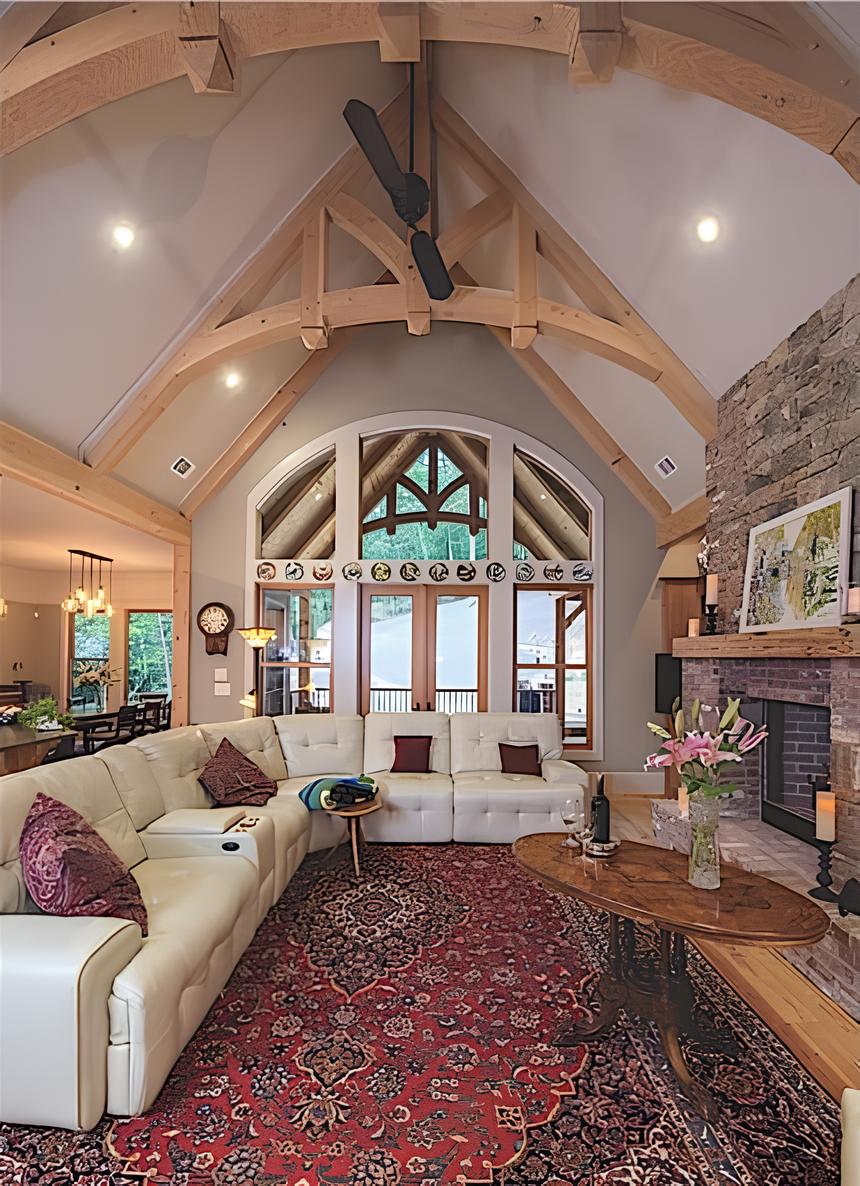

The charm continues inside boasting a large fireplace and a cathedral ceiling that spans from the foyer through the great room and onto the rear porch. A unified space combining the great room, kitchen, and dining area gather the family. Both the great room and dining area extend onto the covered and screened porches. The kitchen features a roomy pantry and a curved island with a snack bar perfect for casual meals.

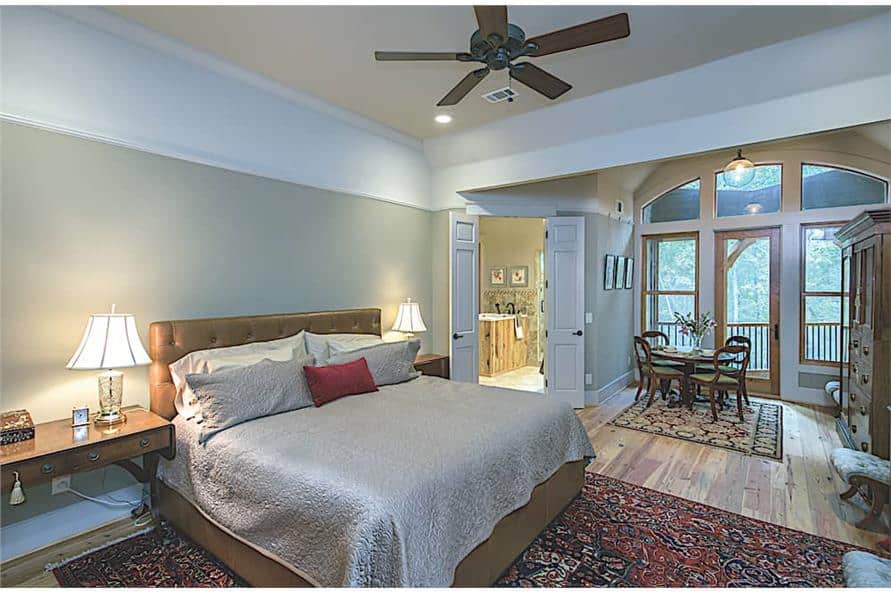

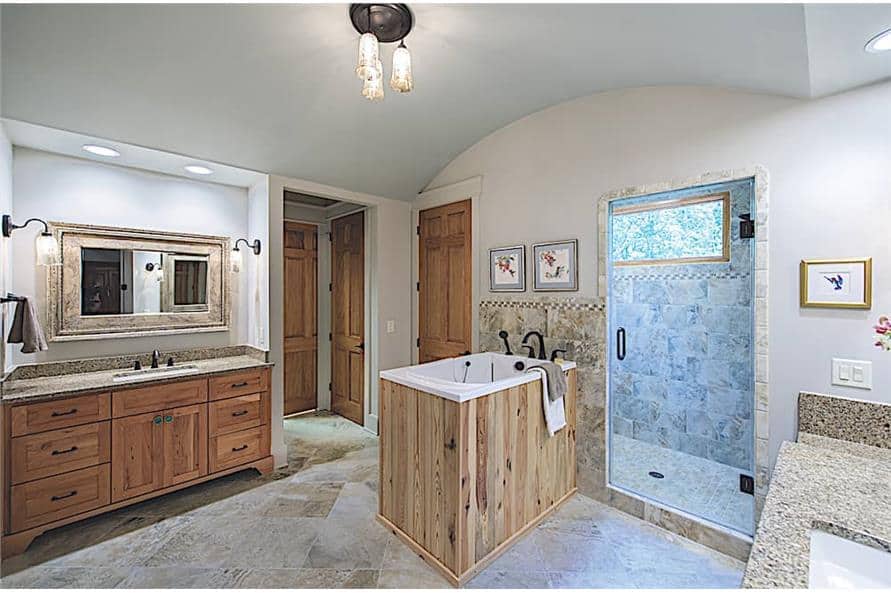

The bedrooms are in a split layout providing you with privacy. The primary bedroom offers a luxury retreat boasting a 5-fixture ensuite, a walk-in closet, and a spacious sitting area with porch access. Two family bedrooms line the right-wing and share a hall bath. The third bedroom can be utilized as a library and opens onto the rear patio.

A handy elevator takes you down the basement. Finish this level and gain an additional living room, wine cellar, game room with wet bar, studio, and plenty of storage spaces.

Plan # 198-1079
