Architect: Chử Ngọc Anh Architects
Architect group: Chử Ngọc Anh, Nguyen Huy Cường
Lead Architect: Chử Ngọc Anh
Email address: kts.chungocanh@gmail.com
Tel number: 090.3238699
Location: Dong Hoang – Dong Hung – Thai Binh – Viet Nam
Completion year: 2020
Total area: 600m2
First floor building area: 125m2
Construction unit: local workers
Photos taken by: Hoang Le
In order to come up with the very specific design ideas, we create most designs with the assistance of state-of-the-art AI interior design software.
🔥 Would you like to save this?
We'll email this post to you, so you can come back to it later!

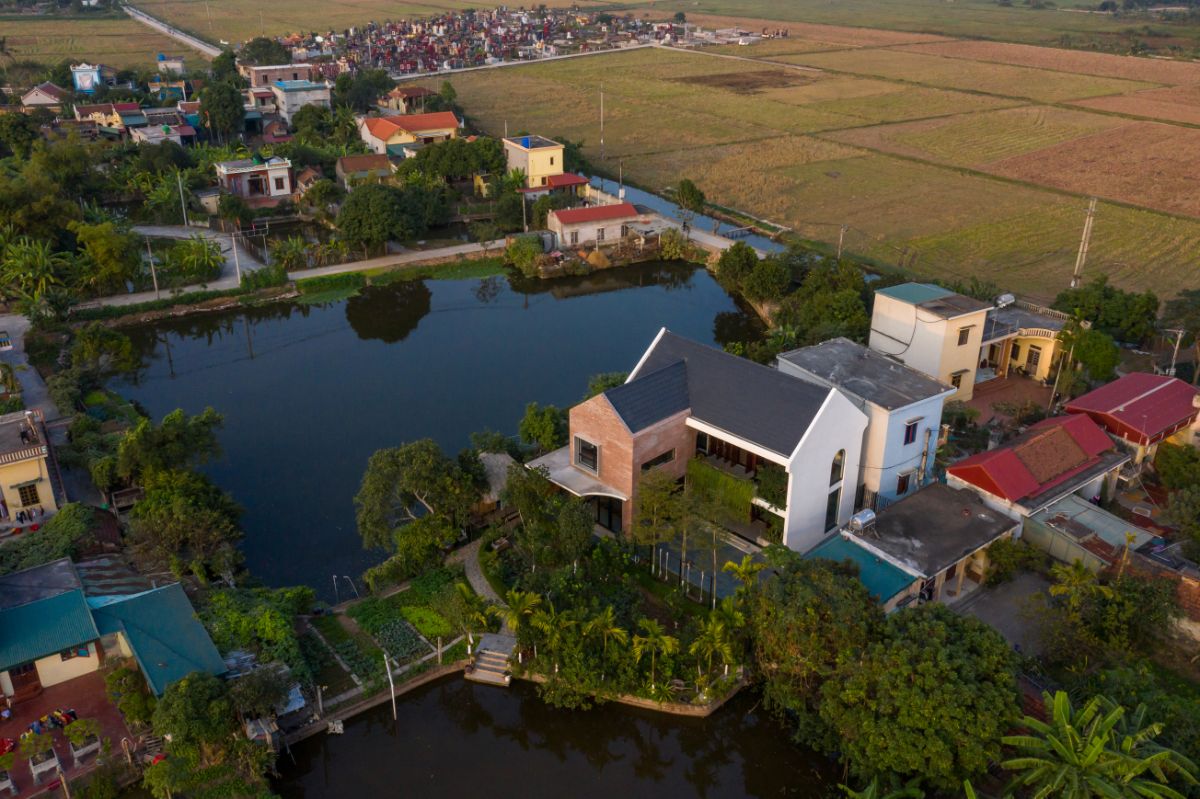

The project is located in the rice-growing countryside adjacent to Thai Binh city. Most of the population here is engaged in agriculture and rice cultivation. The current architecture in the village is mainly 1- to 2-storey houses and very few traditional single-story rural houses with sloping roofs are left.

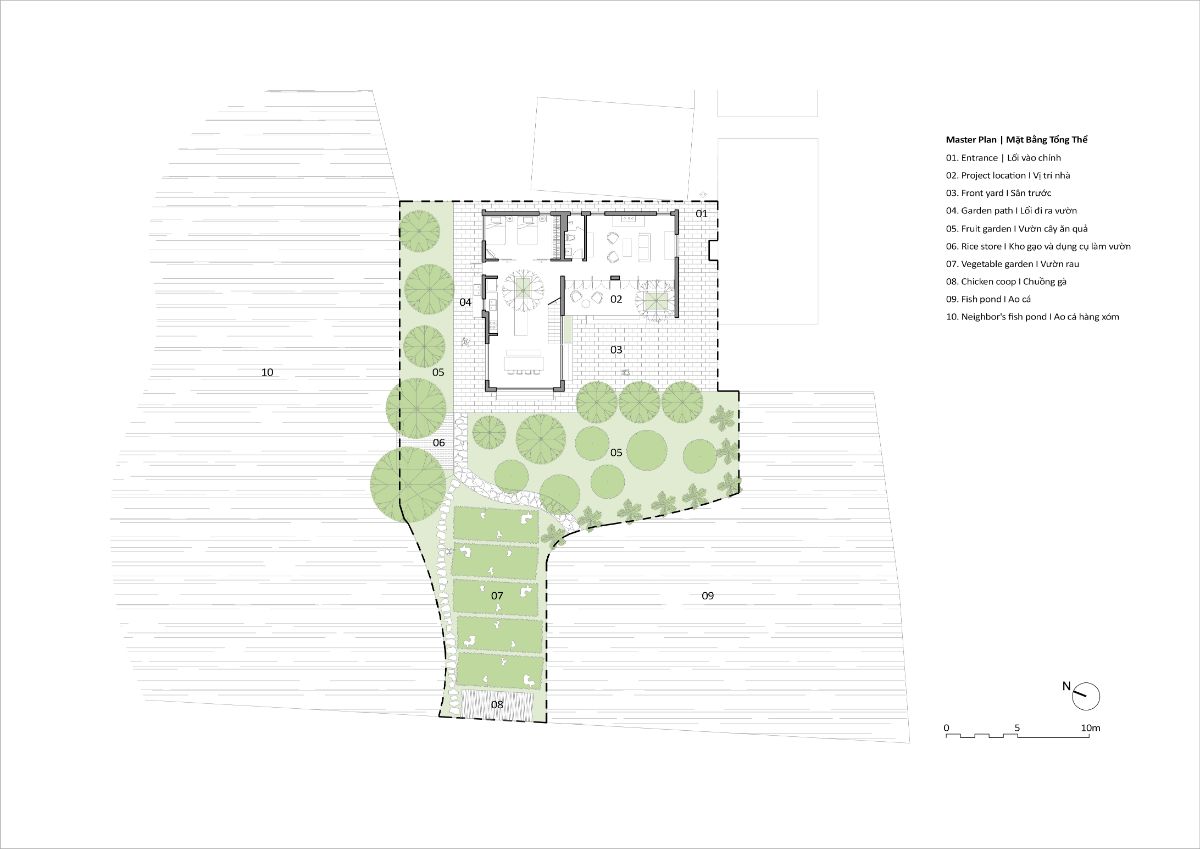

The house is where grandparents live and their grandchildren come to visit every weekend. The current land is being cultivated by grandparents with the model of “subsistence agriculture” consisting of vegetable and fruit orchards, fish ponds, chicken farms and a combination of rice cultivation in the field.
Therefore, the design plan revolves around the most important criterion that is suitable for their lifestyle and daily living habits. Other criteria are natural ventilation, good lighting, reduced energy consumption, and utilization and reuse of rainwater for daily life. The advantage of the house’s location when it has 3 open sides are wide views to the garden and pond and receiving good South winds. The main house facade faces the west.
With a design spirit that brings closeness and familiarity with the elderly (who do not desire any change), the architect team chose the shape and language of the house in the direction of a “traditional Northern house”, but with a modern touch. The main white block is located on the same place as the old house (the house has deteriorated over the years).

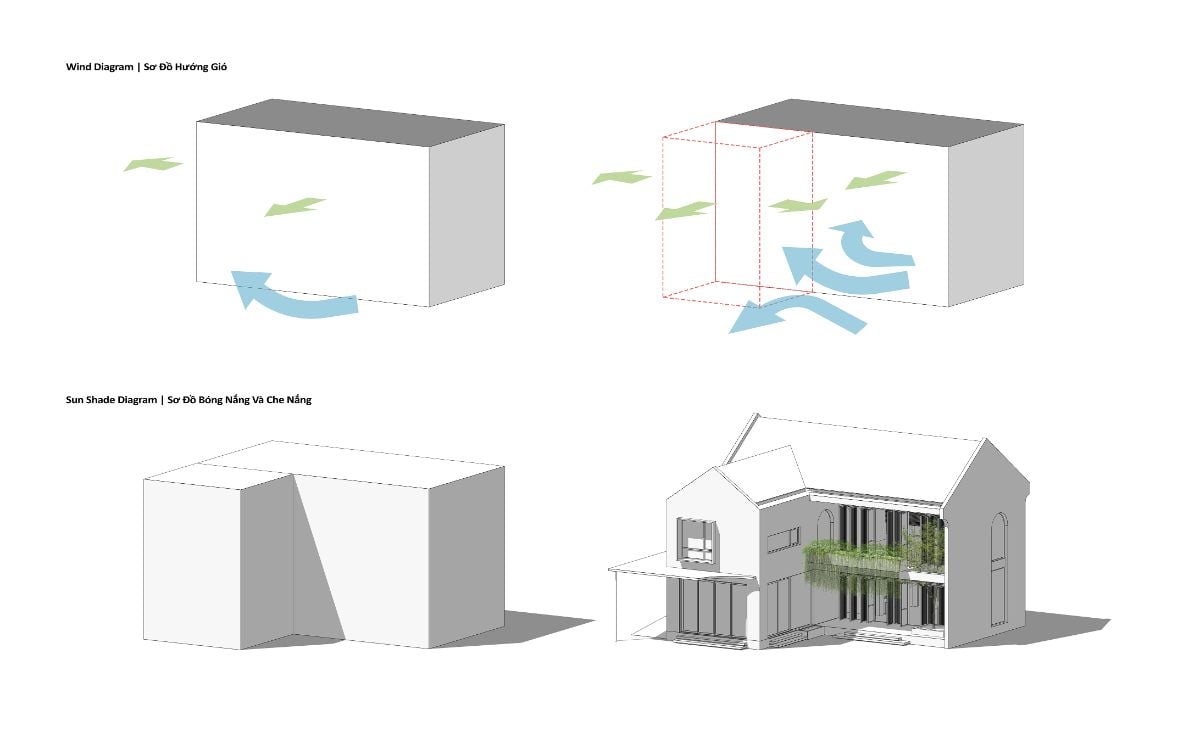

The red brick block is unique with vertical rotation. By applying block rotation at the main face, the house receives winds; the view to the garden and pond is increased. It also creates the impression of the contrast of shapes and architectural materials between the two blocks.
Most people in the countryside have to plant, harvest and dry rice therefore a large multi-purpose yard is an indispensable feature for rural houses. The paddy drying yard is converted into a playground for the children or a place to gather for celebrations and boiling sticky rice cakes during Tet holidays.

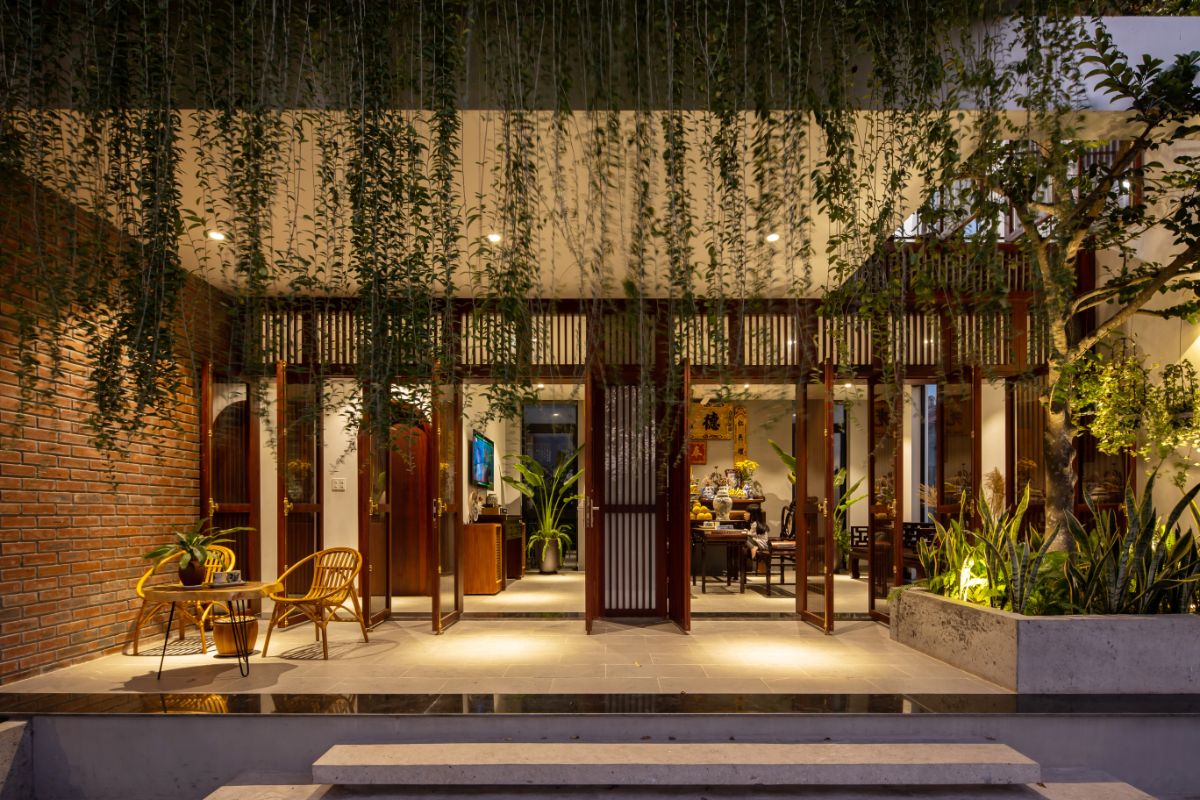

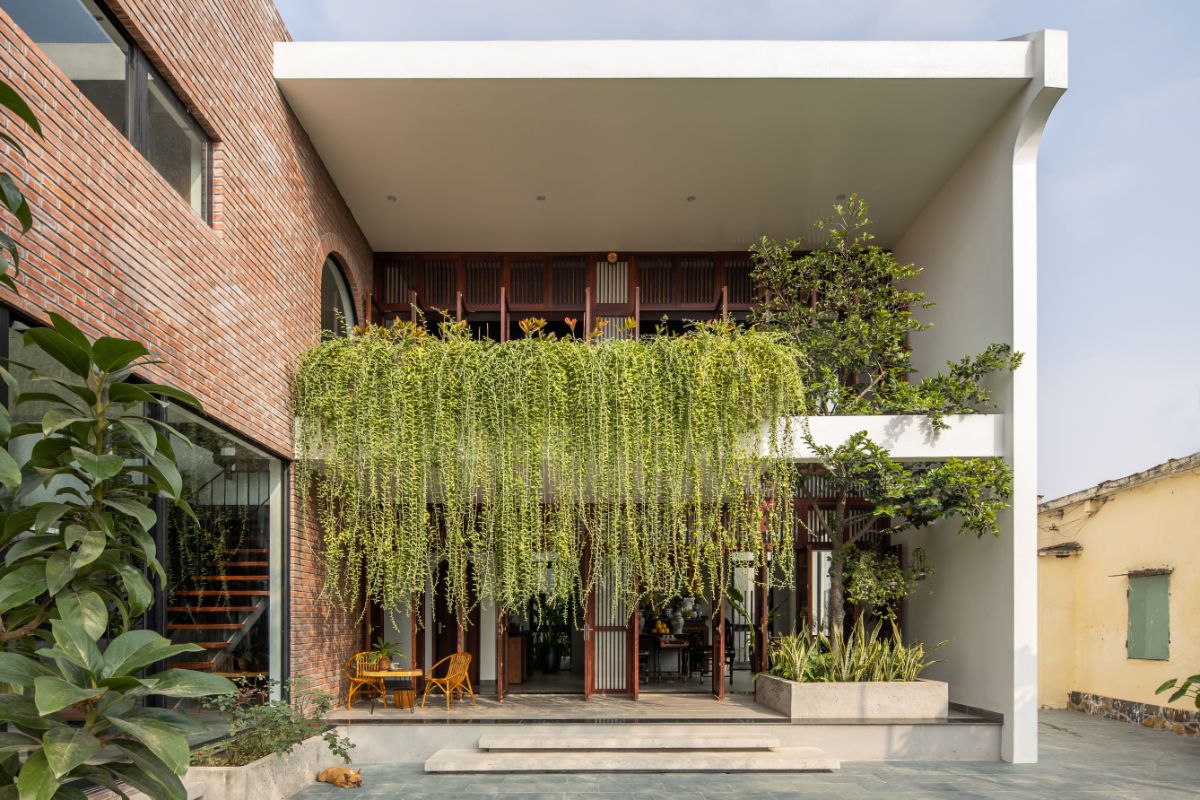

This is a space that connects people with nature and their family with villages and local communities. Because the front of the house is near West, the architect team have arranged the veranda to act as a transitional buffer space between the inside and the outside of the house, and at the same time a space to reduce heat for the living room with shade trees.
The use of “tree blinds” to block the sun and radiation helps to better regulate the temperature while still ensuring ventilation, visibility and also softens the architectural space, helping people to connect closely with nature.

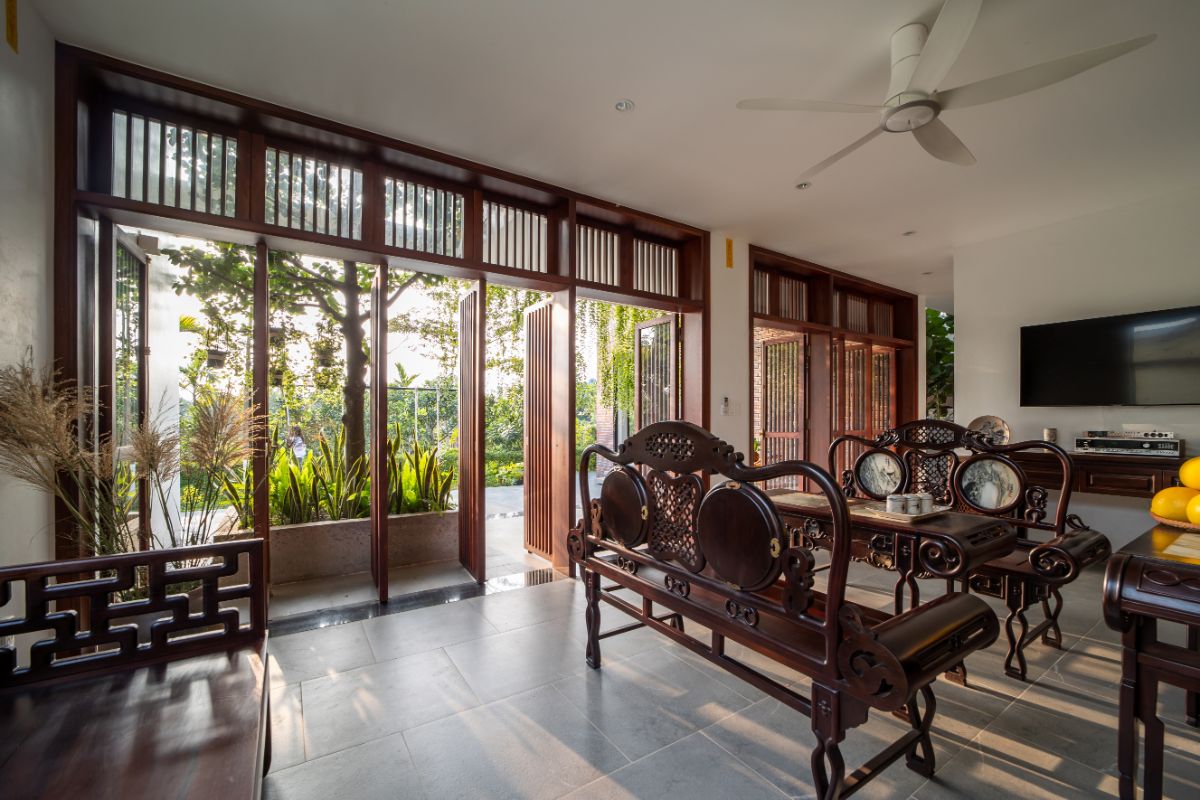

The need to connect the house with a large patio and yard while still ensuring a wide view, so the architect team used a rotating wooden door system that simulates the image of a traditional “table door” with maximum opening capacity for. all doors. The door with vertical wooden rails helps to regulate light and reduce sunlight for the living room better.

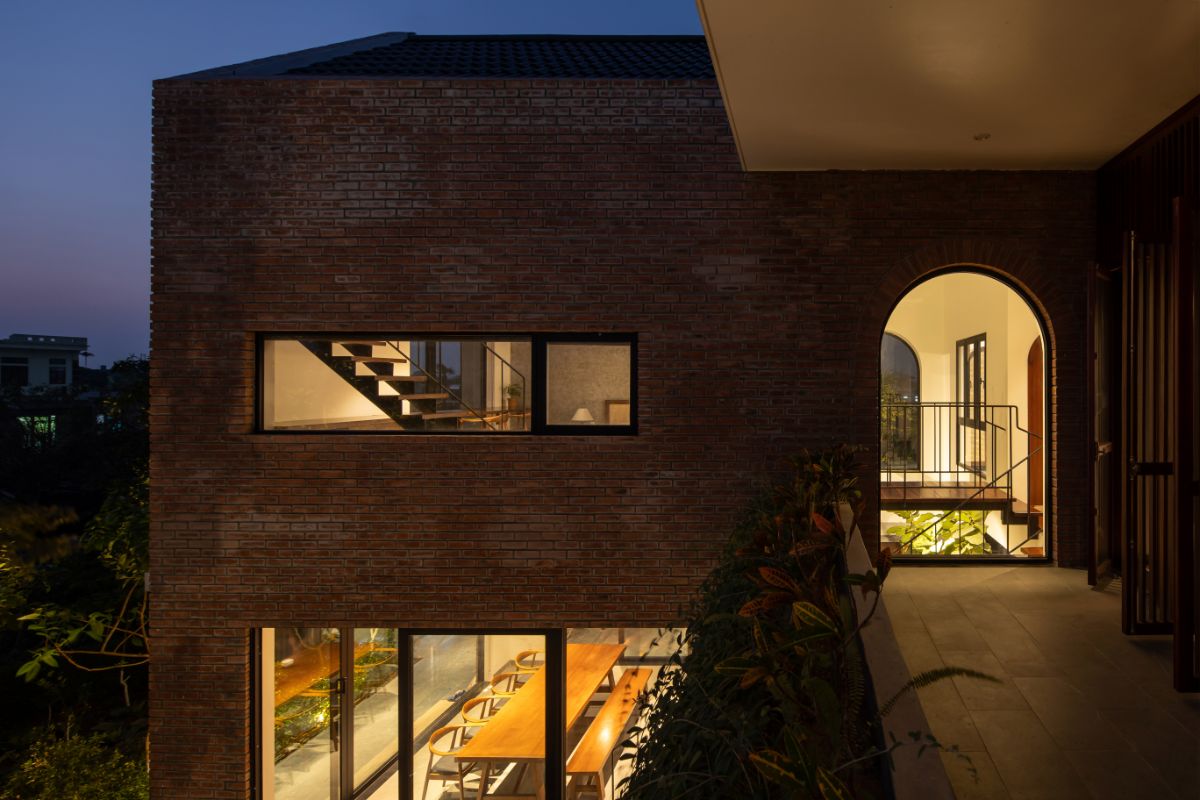

The door system opens and closes easily to change the state, connecting more easily with the porch and creating a strong material array for the main facade. The red brick block is subjected directly to the strongest sun’s rays. Therefore, it should be strengthened against heat with the use of double-layer bricks (110mm wall) for the covering walls.
Between the 2 layers of brick is an air gap of 50mm wide that helps air circulate to slow down the heat transfer process. The outside of the walls is covered with an additional layer of red solid bricks to help prevent mold, heat and increase the durability of the walls.

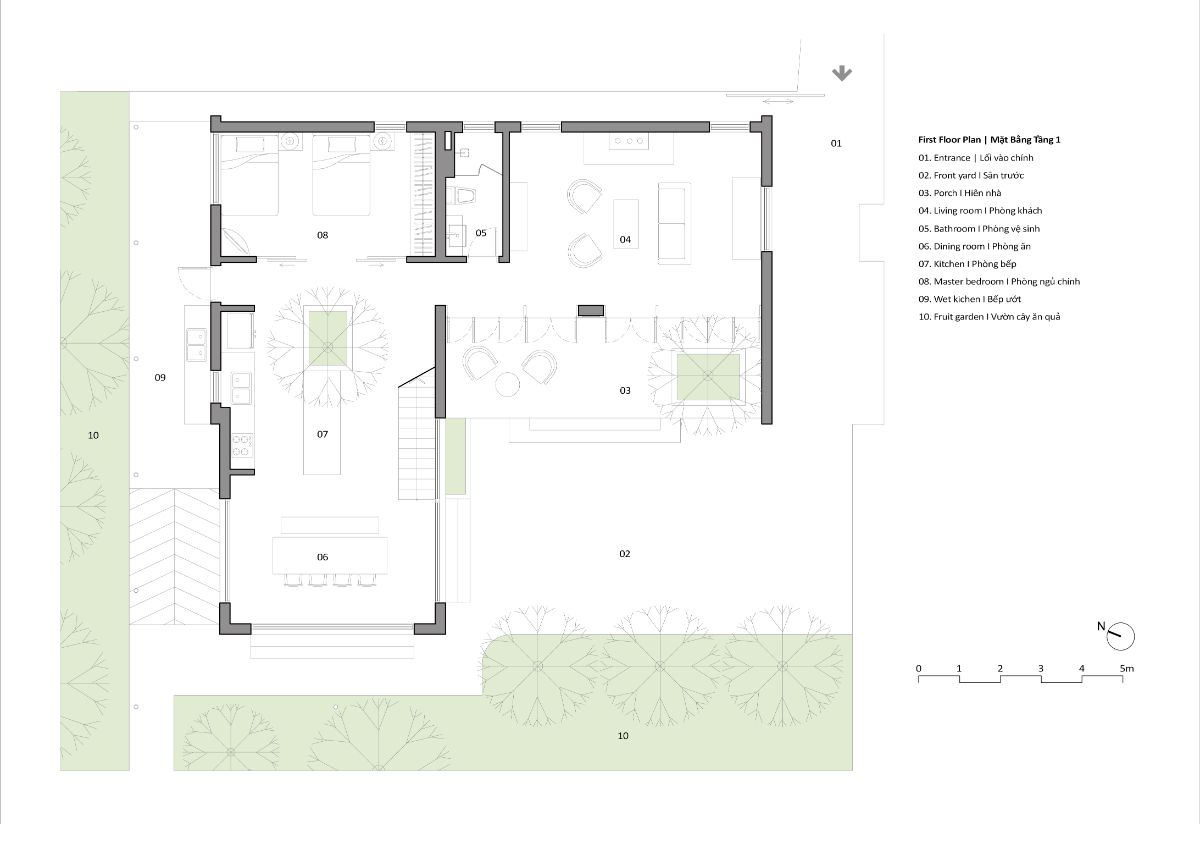

Sharing the same layout to that of traditional houses in the North (houses with 3 compartments and 2 wings), a main axis is set up from the yard through the veranda and into the living room and then the worshiping area. The auxiliary function axis located next to it that serves as the “wing” consists of the dining room, kitchen, master bedroom and toilet.
To ensure convenient access to the garden without affecting other spaces, a separate walkway for the grandparents with a roof is placed on the side of the house. Preliminary tables are also arranged along the path. After having picked vegetables in the garden, the grandparents will prepare them here before bringing them into the house.

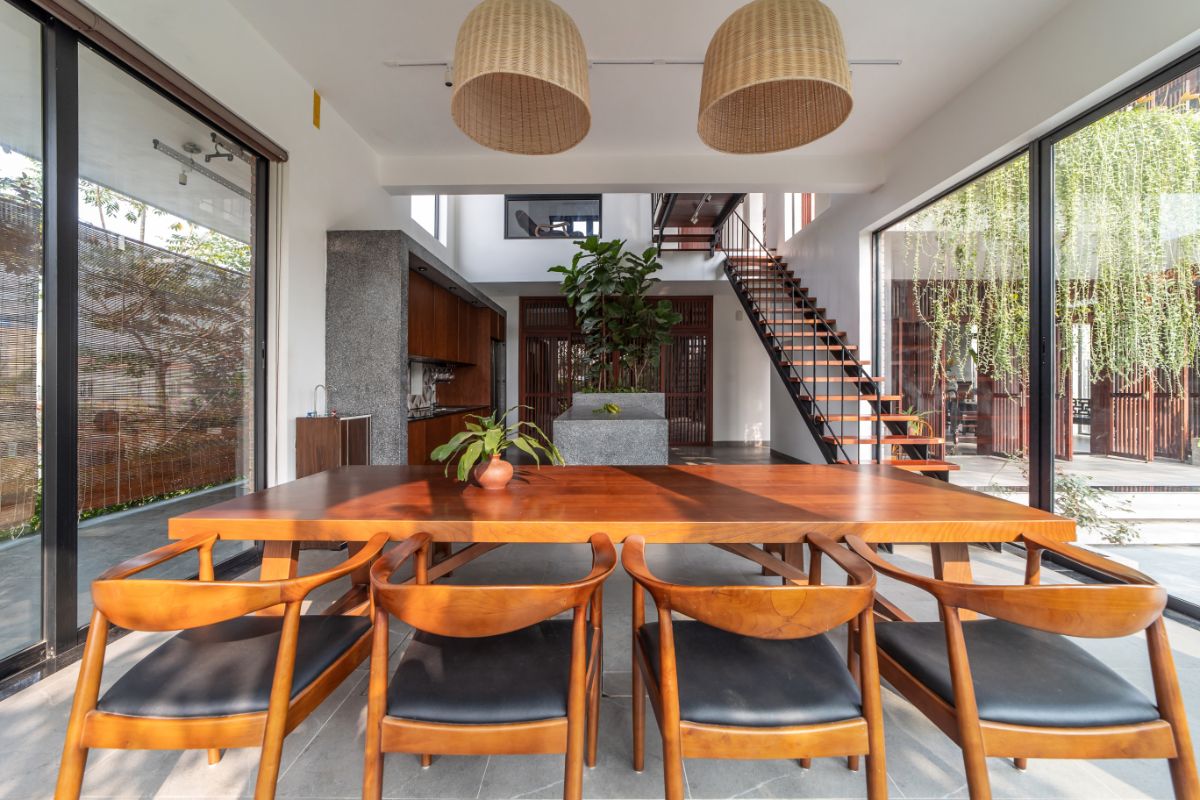

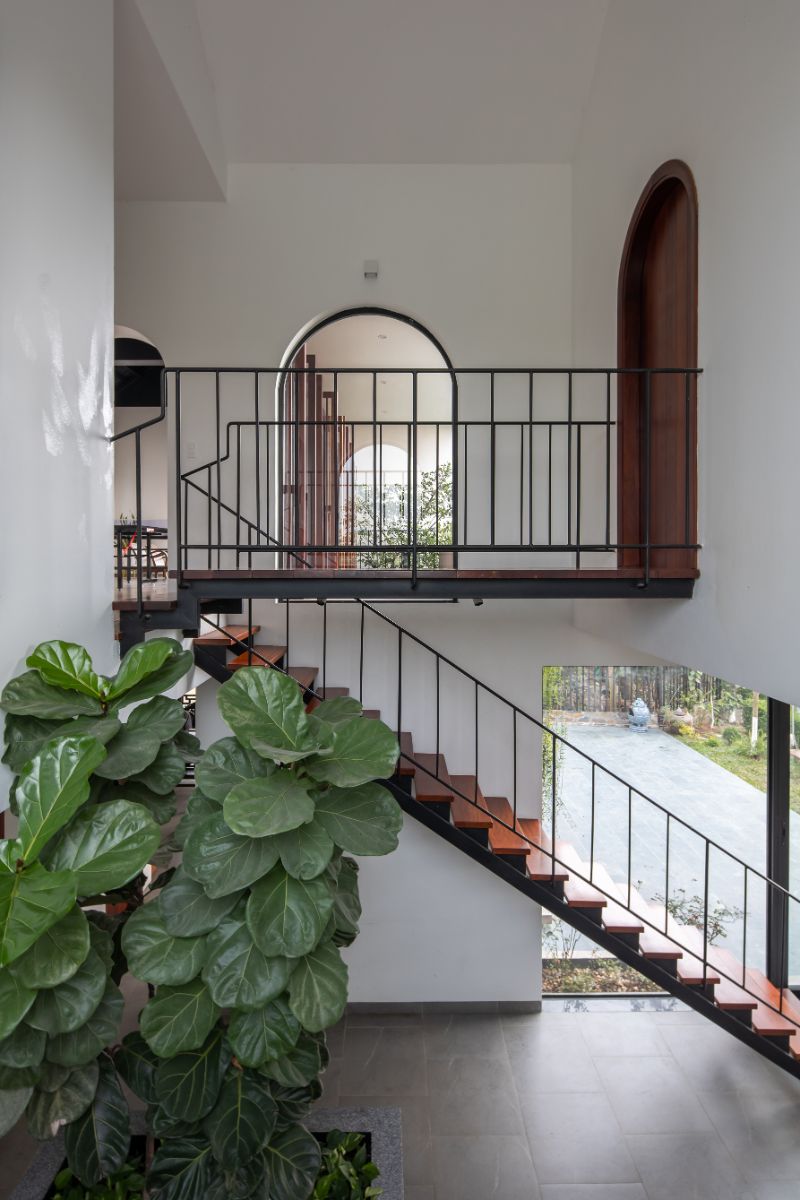

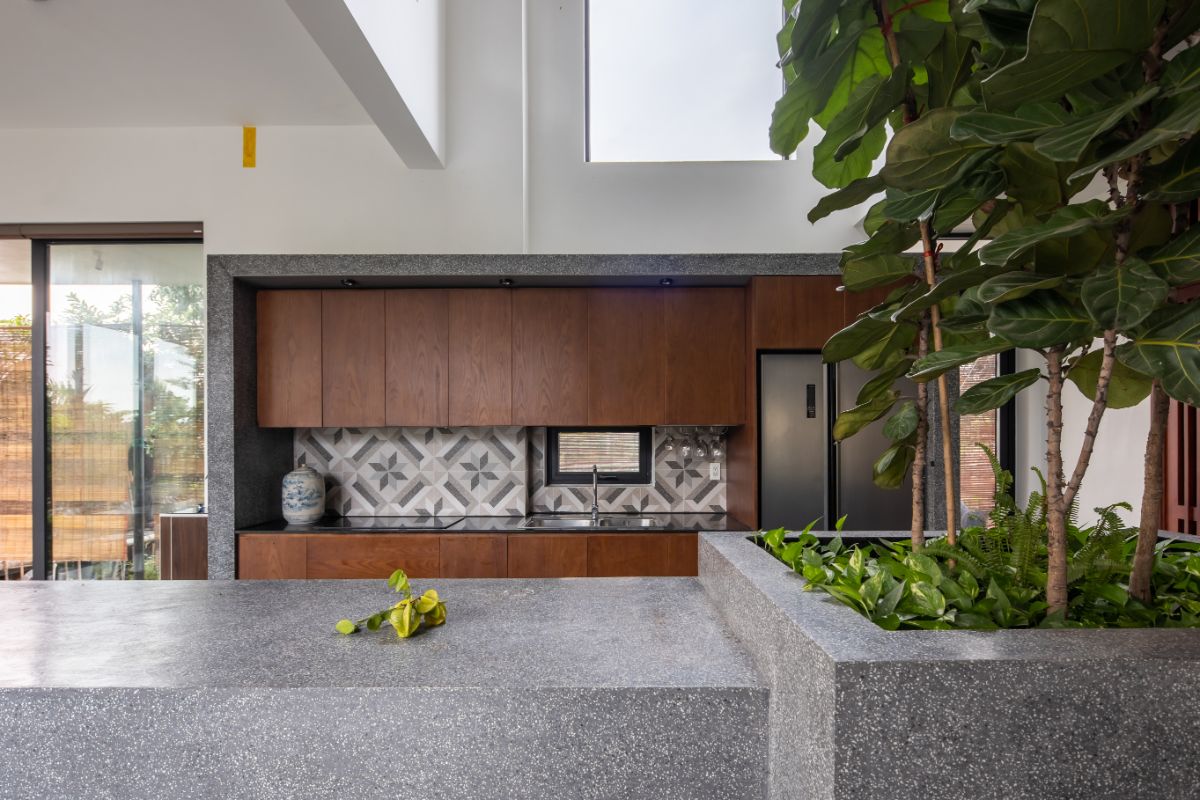

To increase the connection and interaction between family members, the kitchen area and the group of trees are put in the center of the secondary function axis. Incorporating the kitchen into the atrium also creates a vertical connection with the 2 bedrooms upstairs.

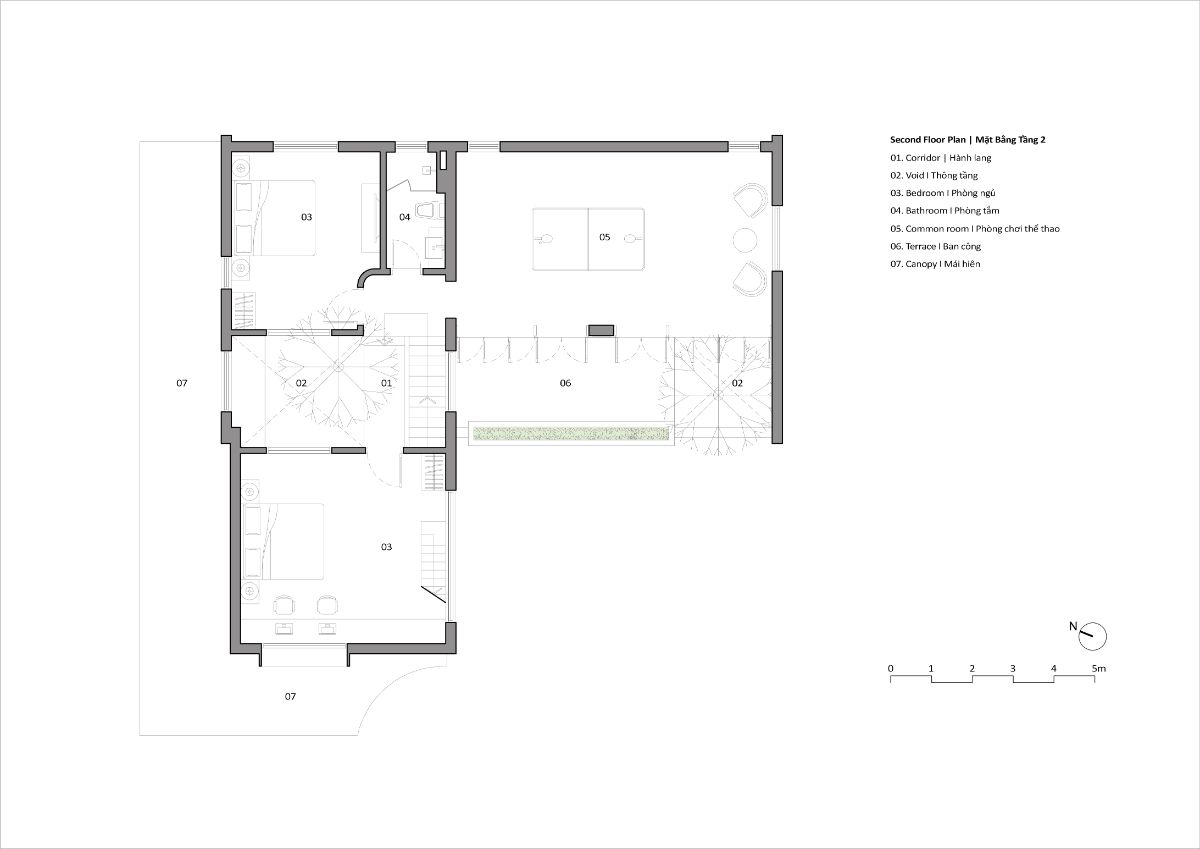

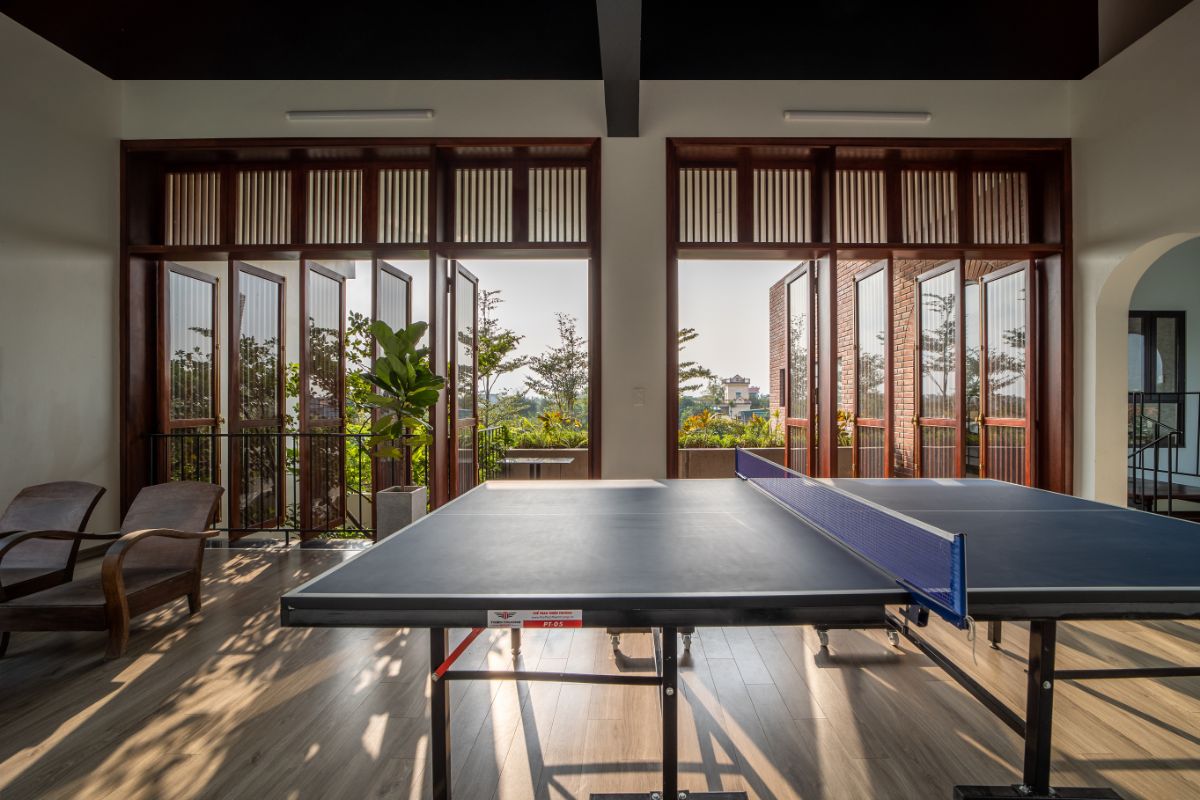

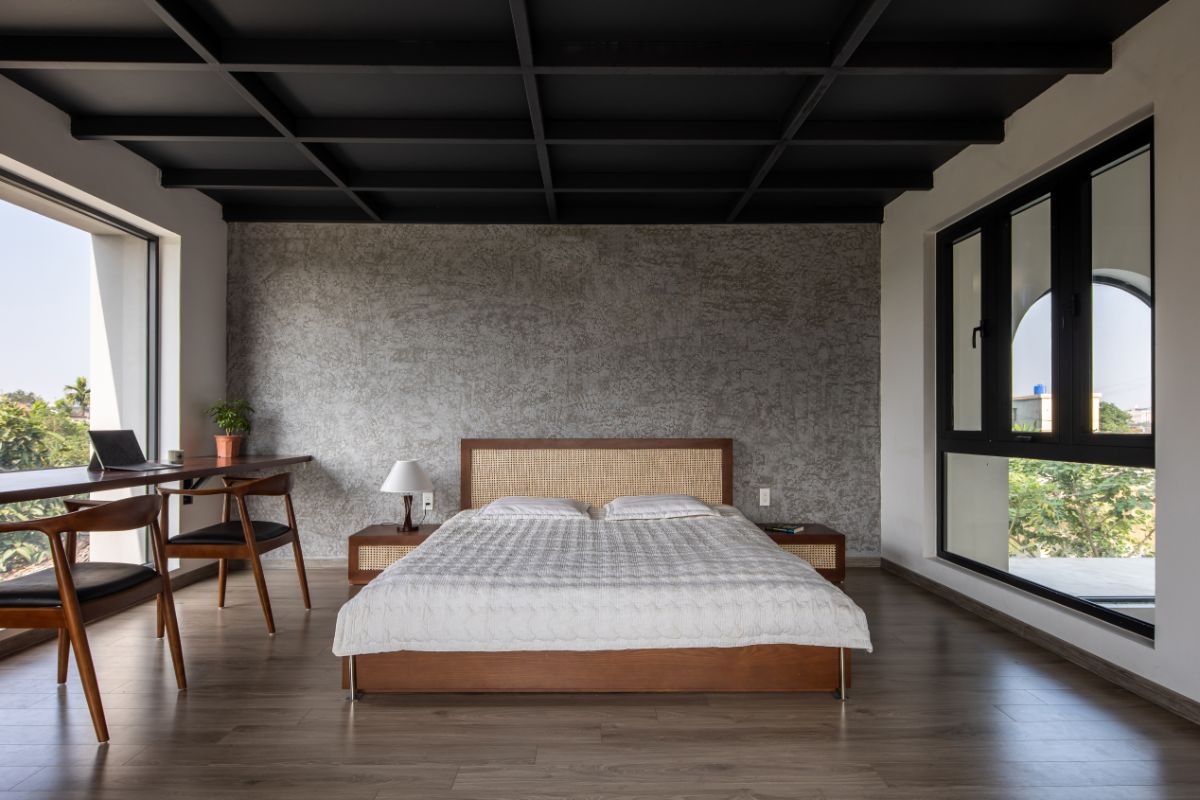

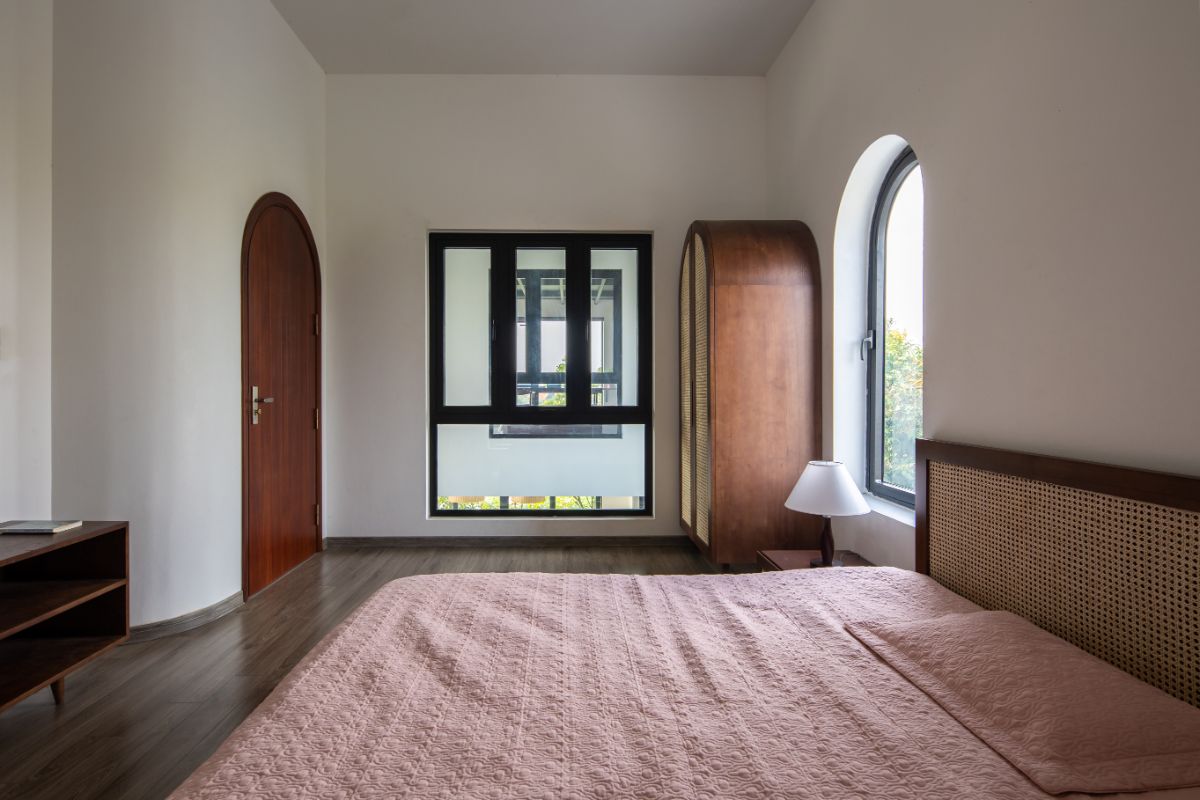

The 2nd floor is where the bedroom of the 2 sons come to play every weekend, and a table tennis room for the whole family. We took advantage of the sloping roof space to make a small attic room, suitable for bedrooms and or playing areas for children. This small bedroom is located in the parent’s bedroom, so it is easy for parents to manage and interact with their children.
The roof tile has a large slope, so it is easy to collect rainwater for reuse. Rainwater is collected into a storage tank and a part is used for bathing and washing, the rest is used to support garden irrigation.
The house carries the spirit of contemporary rural architecture but retains traditional spaces and culture. We hope that the project will contribute to creating an identity for modern rural house architecture.
