Studio: SOA architekti
Author: Ondřej Píhrt
Pavel Směták
Social media: Instagram
Facebook
Project location: Dědina, Prague 6
Project country: Czech Republic
Completion year: 2021
Built-up Area: 177 m²
Gross Floor Area: 440 m²
Usable Floor Area: 356 m²
Photographer: Alex Shoots Buildings, www.alexshootsbuildings.com
Collaborator: Statics: Aleš Pražák
Garden architect: Atelier D.V.A.
Construction company: Klimava
Built-in furniture: Sekula
In order to come up with the very specific design ideas, we create most designs with the assistance of state-of-the-art AI interior design software. Also, assume links that take you off the site are affiliate links such as links to Amazon. this means we may earn a commission if you buy something.
About the studio
Working from Wenceslas Square at the heart of Prague’s New Town, SOA architekti was established in 2015 by Stefan Sulek, Ondrej Pihrt and Ondrej Laciga. Their name, SOA, is an acronym standing for Sons of Architecture.
SOA originally focused on interior and residential projects, before branching out. Recently, they have been developing a specialism in school and educational structures.
🔥 Would you like to save this?
We'll email this post to you, so you can come back to it later!
🔥 Would you like to save this?
We'll email this post to you, so you can come back to it later!
The reconstruction of a terrace house for the needs and comfortable urban living with the current standards for a family. The same terrace house design repeats in a few streets, using pseudo-mansard roofs, partial prefabrication, and materials from the early 1990s.
The terrain difference was used to the advantage in the original design. The street-level floor with small windows disappeared into the terrain. The entrance part of the house reminded a poorly lit basement.
Fortunately, the end position of the terraced housing has a small garden with mature trees. The garden was difficult to access from the house due to the height difference.
In addition, the main rooms were oriented in the direction of the sun but facing the street. The internal layout corresponded to the division of the house into separate apartments on each floor with a common entrance. Low clear height in the interior (2,5 m) defined its atmosphere.

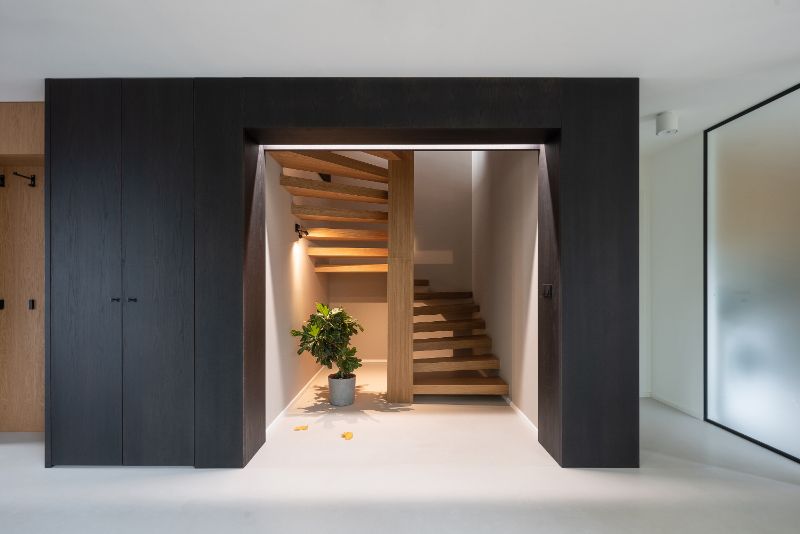

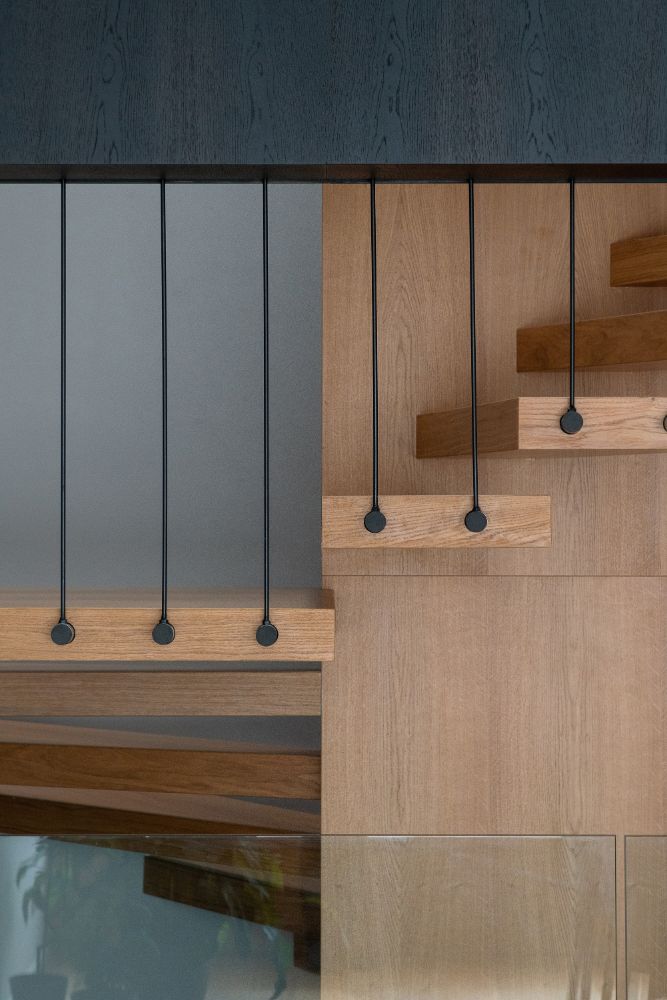

The adaptation, therefore, required the unification of the house into a whole for the needs of one family. The staircase became the center of the layout.

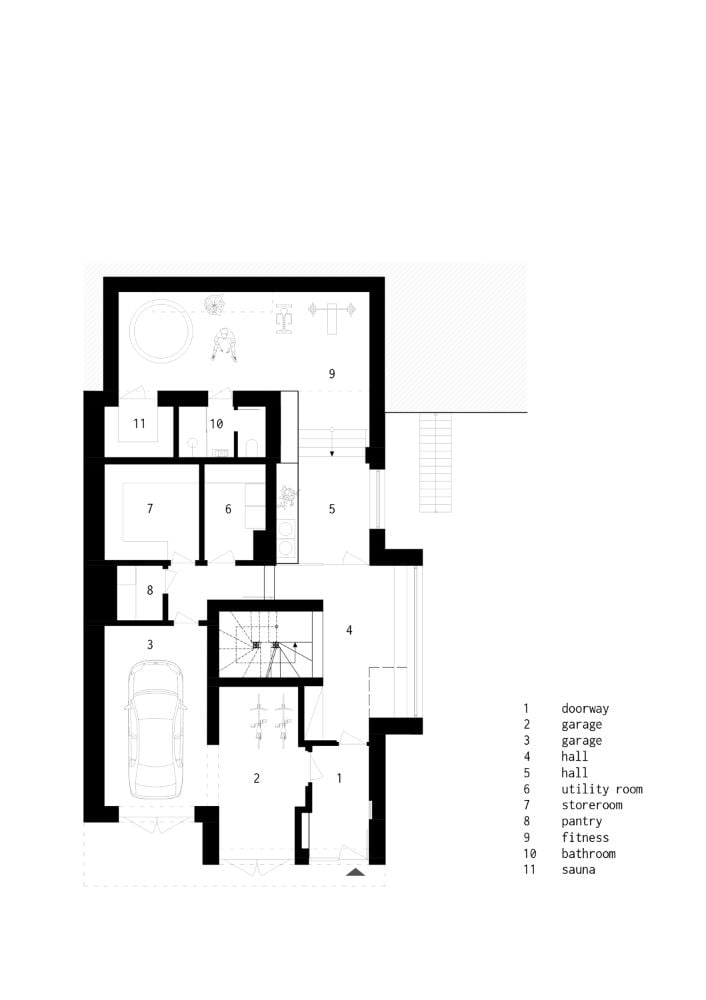

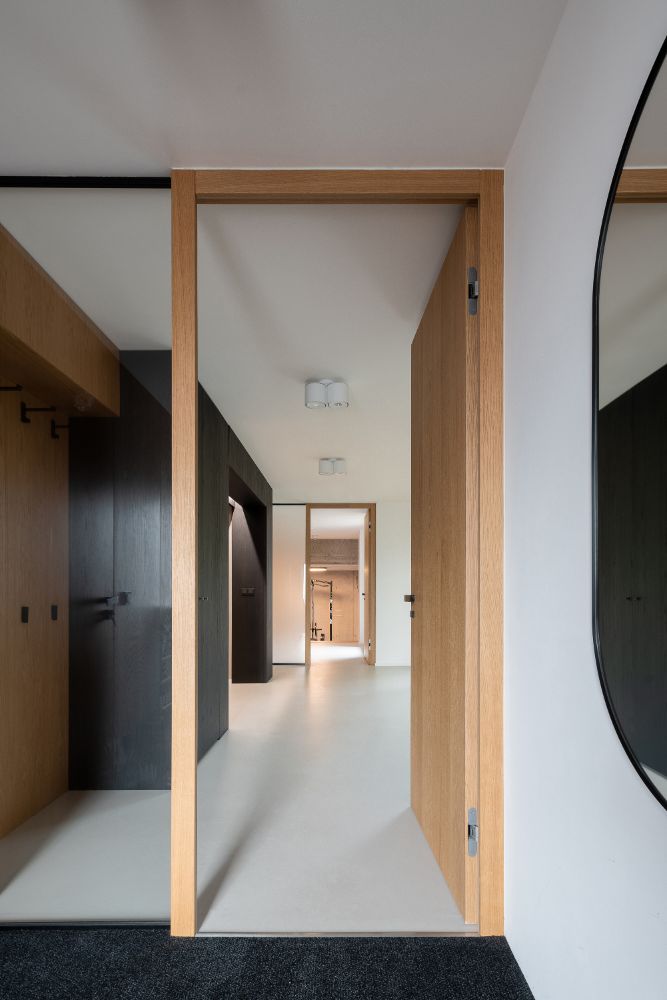

The service function of the ground floor remained unchanged. It transforms into a proper ground floor with maximum daylight. The newly added window into the entrance hall allows a view even from the staircase.

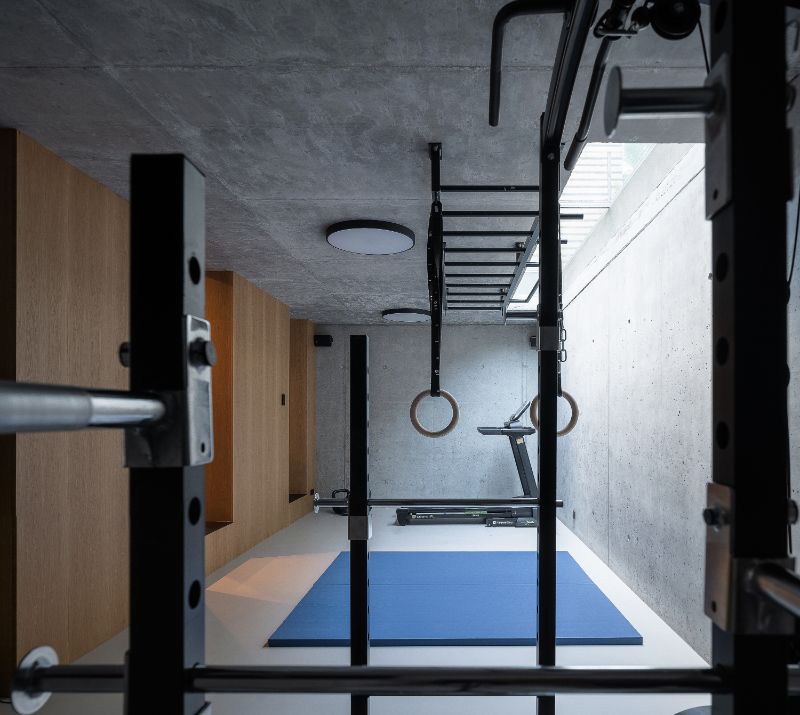

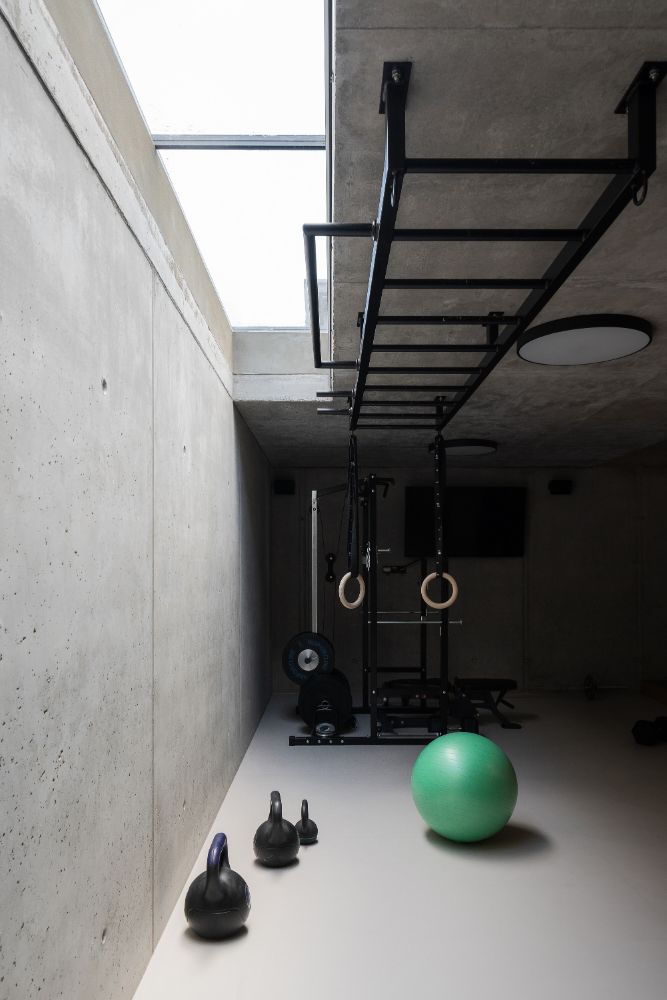

The extension of the house runs deeper under the terrain and at the level of the garden, it is covered by a terrace. It hosts a home fitness. The use of different construction is showcased in exposed concrete.

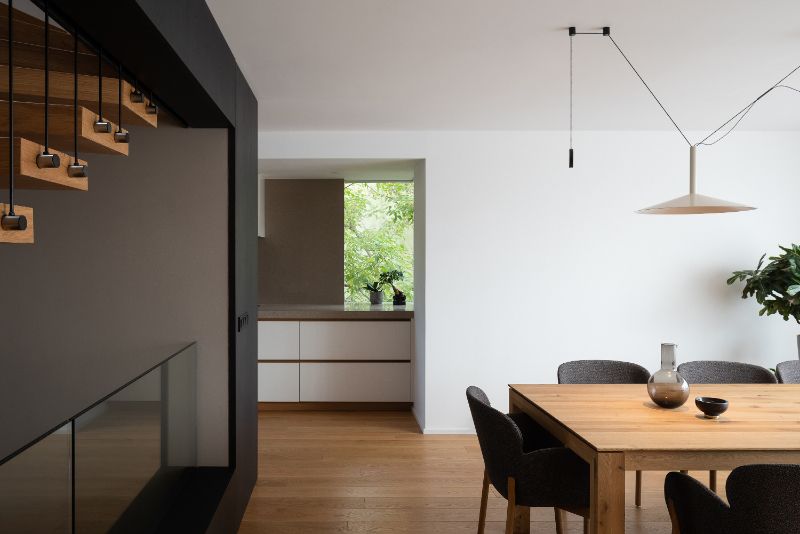

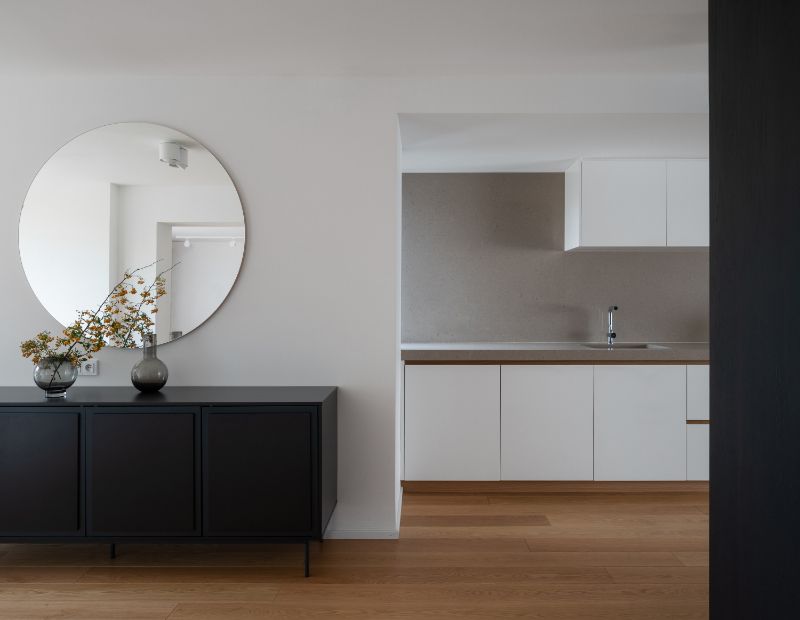

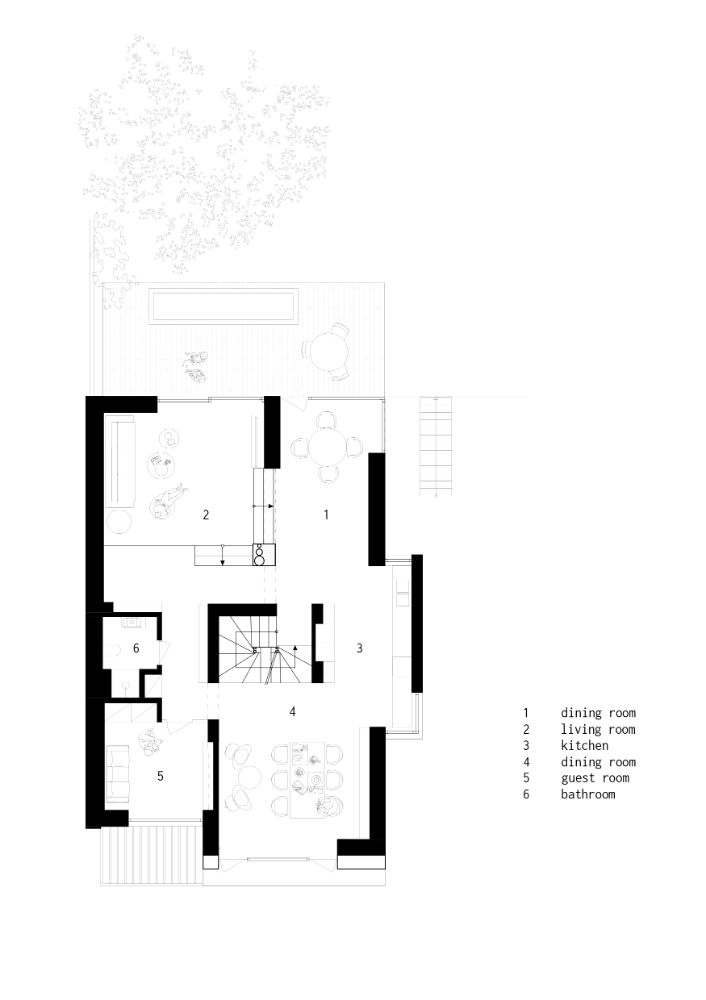

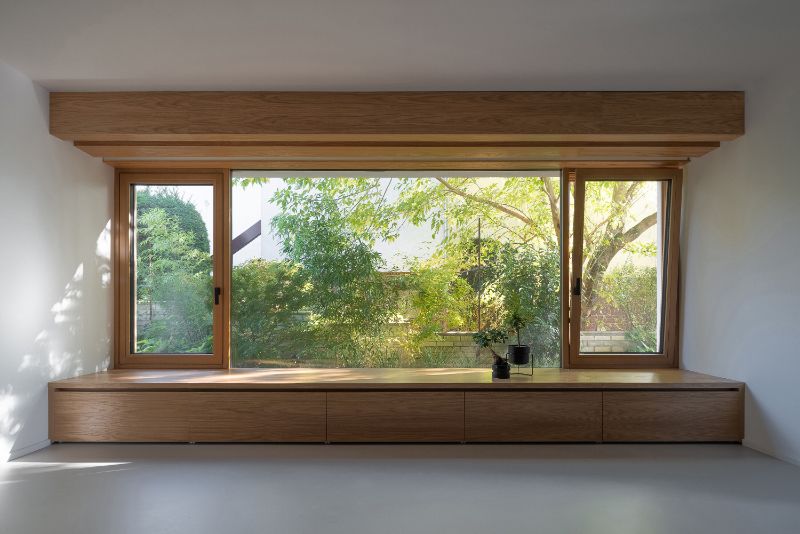

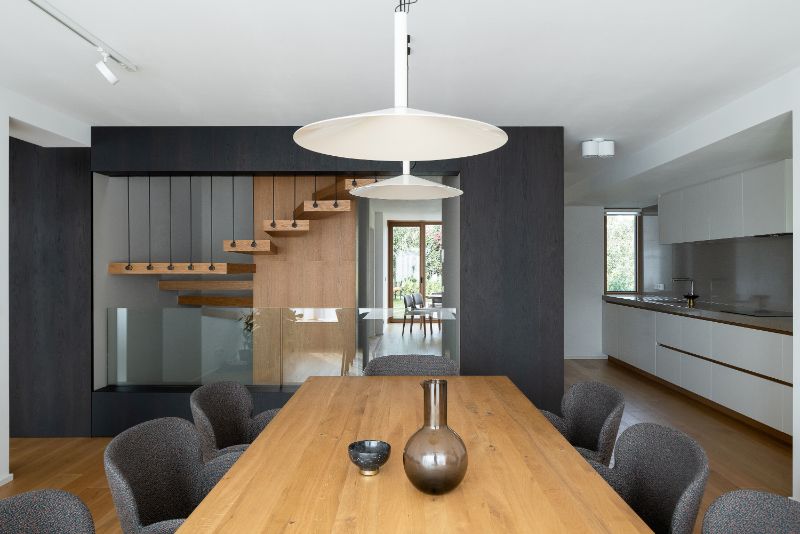

On the first floor, the individual rooms surround the central staircase creating an interconnected space. The visual connections and the views to the garden became an important element of the design.

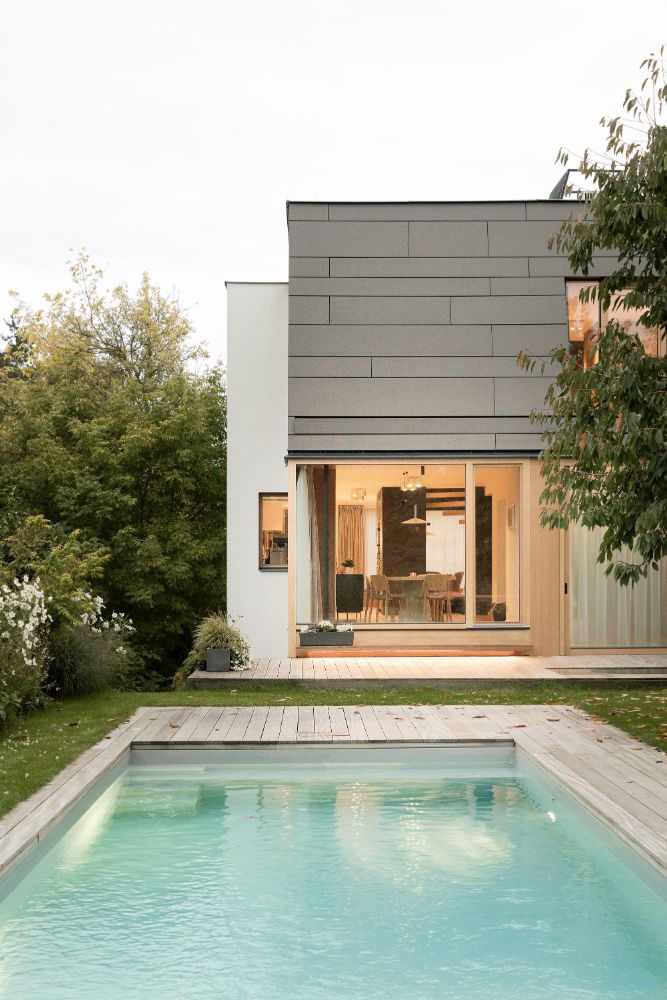

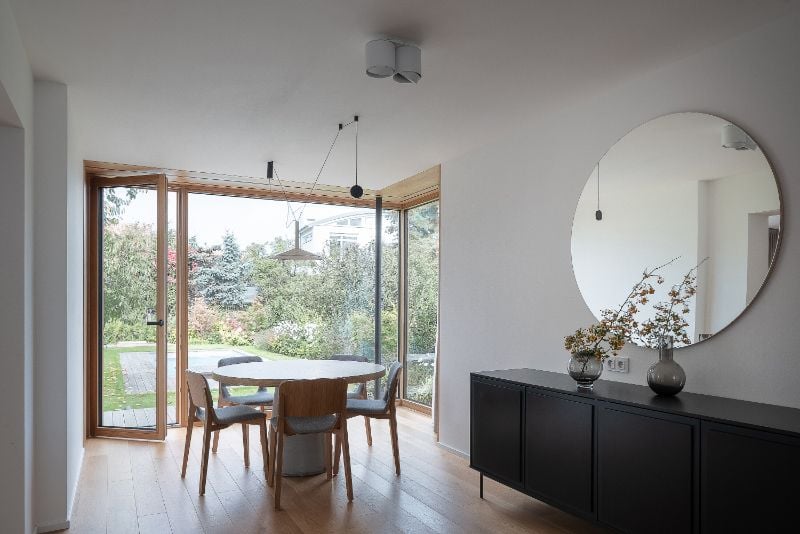

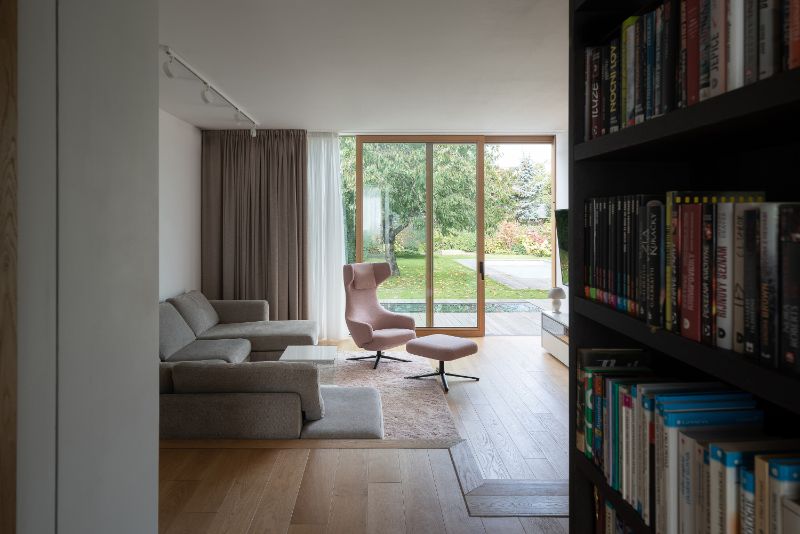

A large sliding door connects the living room with the garden. Clearance and height change of the floor helped the direct connection to the terrain level of the garden. Due to the increased height of the room, the entire floor became more dynamic.

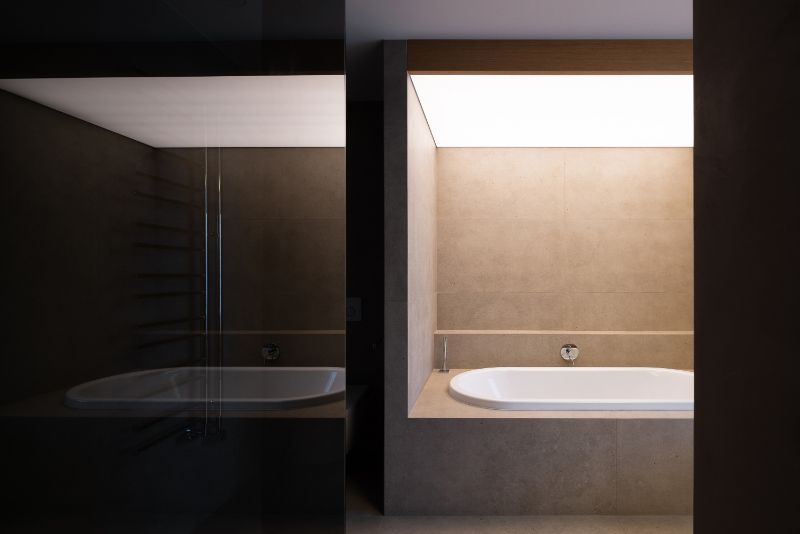

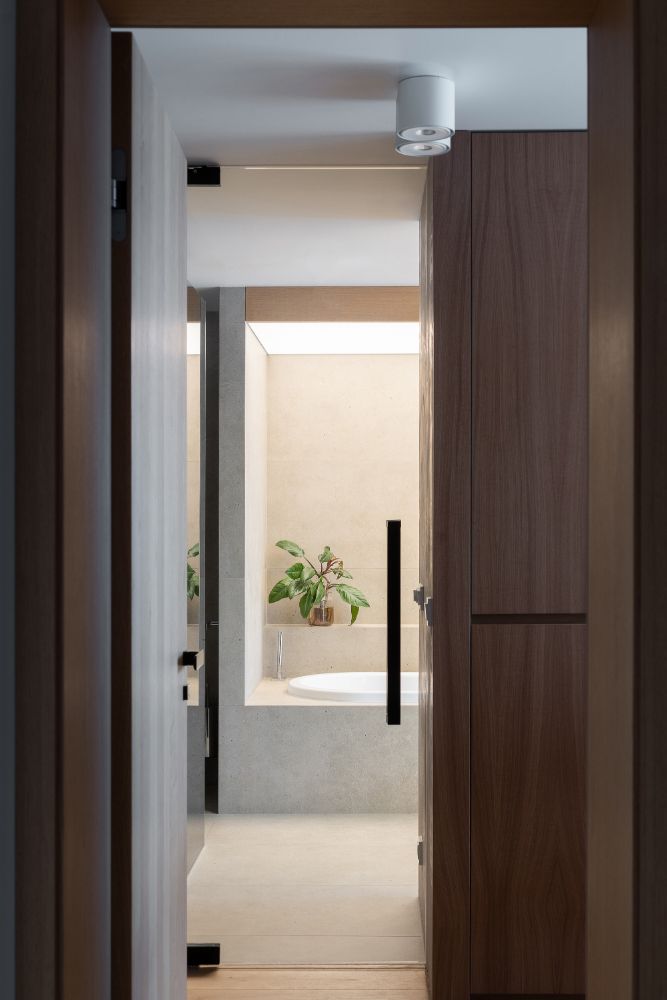

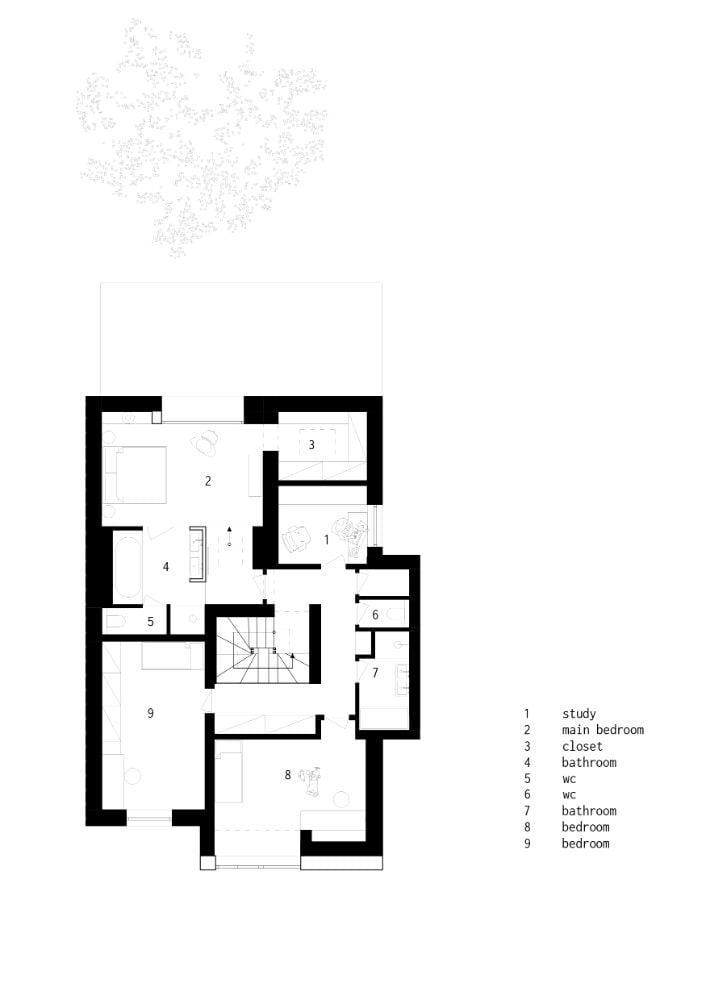

The top floor accommodates bedrooms accessible from a small walkway around the staircase. The master bedroom has a private dressing room and bathroom. The previously planned study room changed during the construction into an additional bedroom.

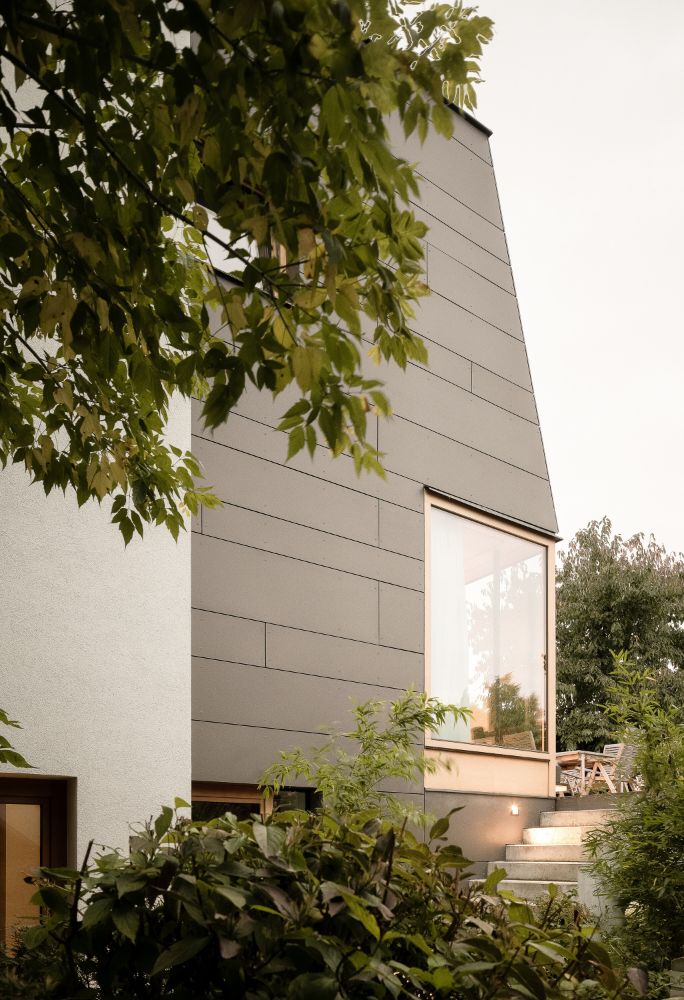

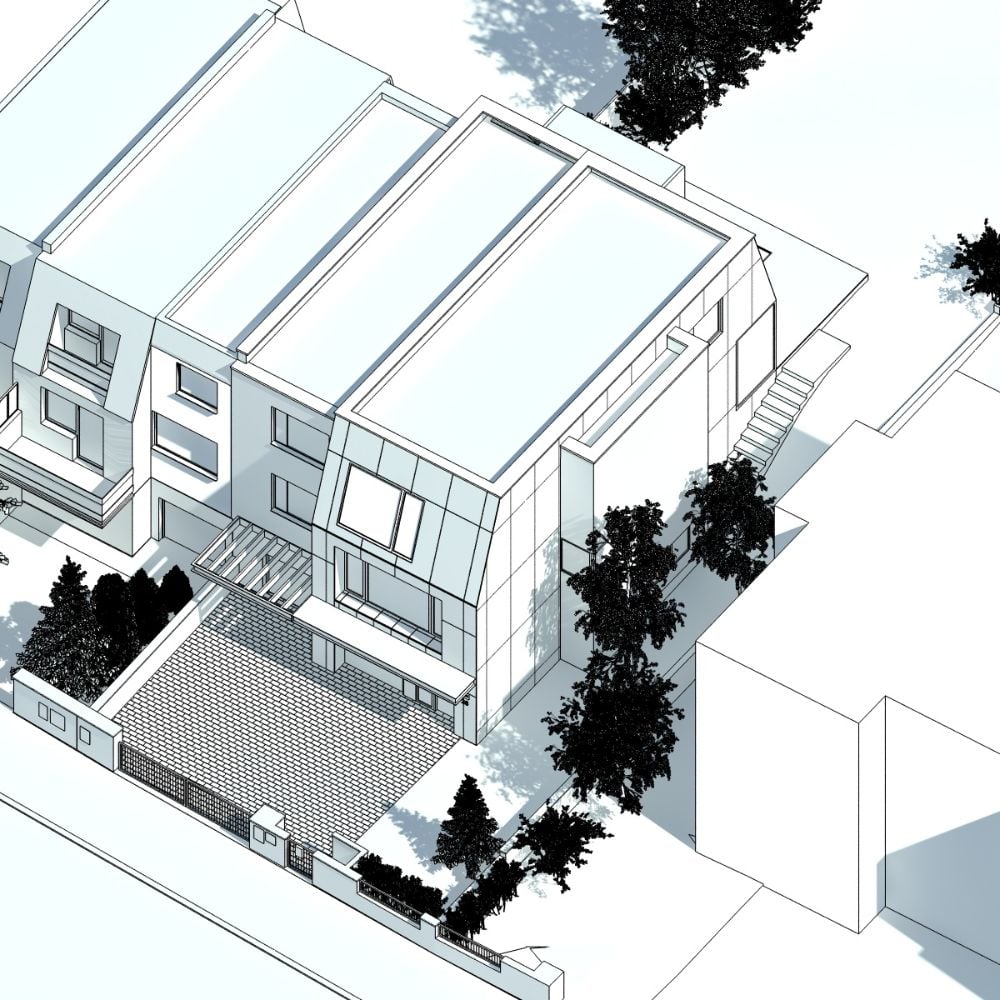

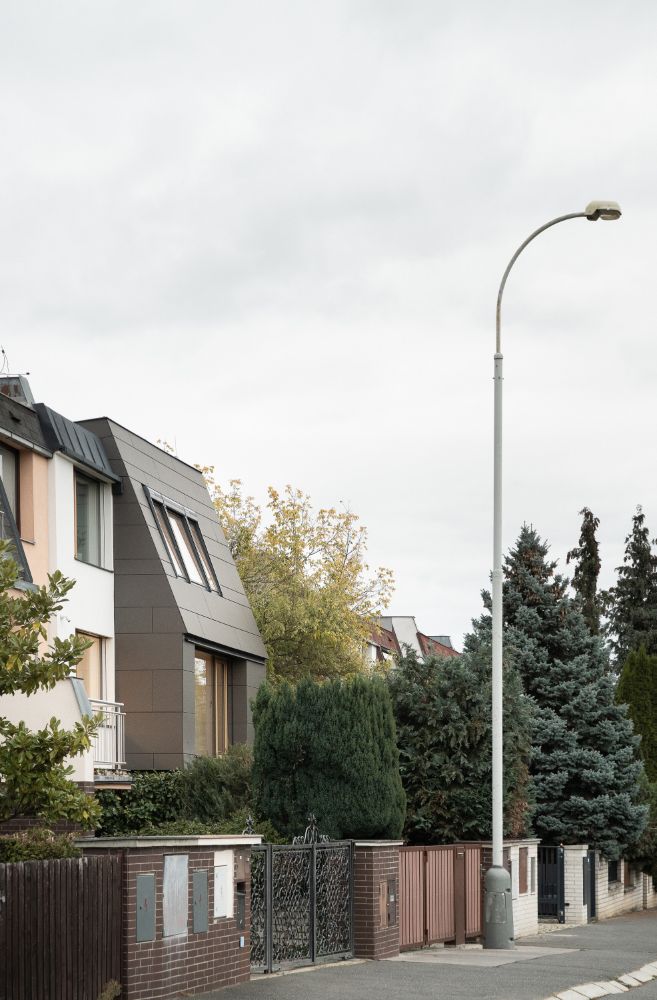

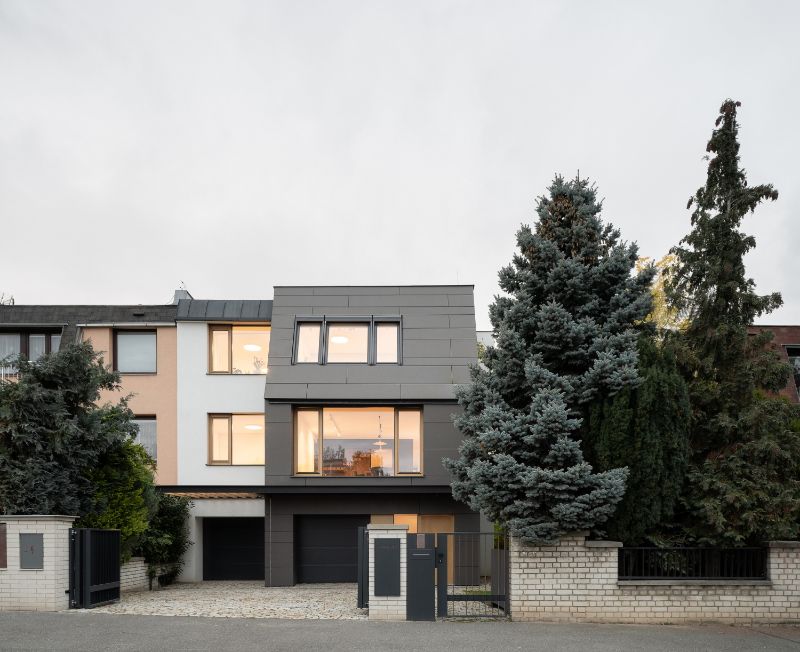

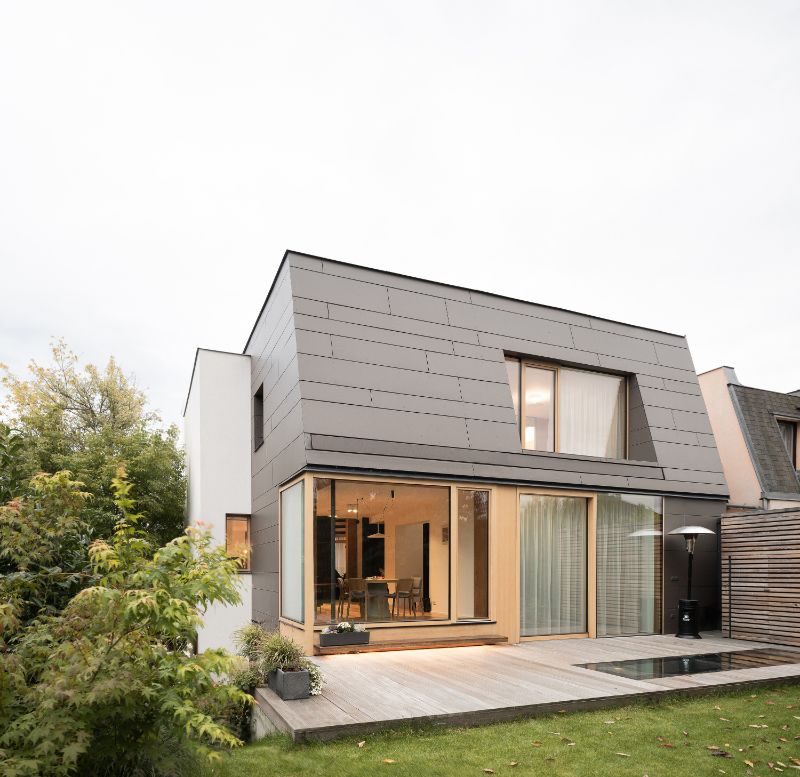

The exterior division of the house is based on the uniform shape of the original mansard. The facade cladding made of fiber-cement boards transitions to the roof. Oak windows with frameless glazing are optically connected with the edge of the roof.
The roof cladding integrates a retractable sunblind that covers the entire terrace area in the garden.

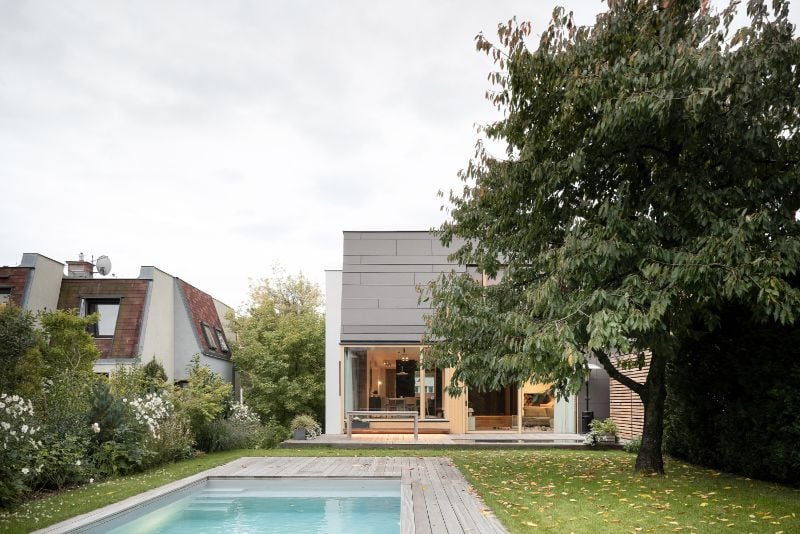

The small garden was enough to satisfy all the requirements for the current use. The interior views define its composition. Despite demanding changes in the garden, the old cherry tree remained its dominant feature.
A few weeks after moving in, the whole family harvested cherries.
