Craftsman Style Two-Story 6-Unit Multiplex Home with 3-Bed Units and a Loft (Floor Plan)

Specifications

Sq. Ft.: 11,768
Units: 6
Width: 156′4″
Depth: 49′ 6″
Garage: 8

The Floor Plan

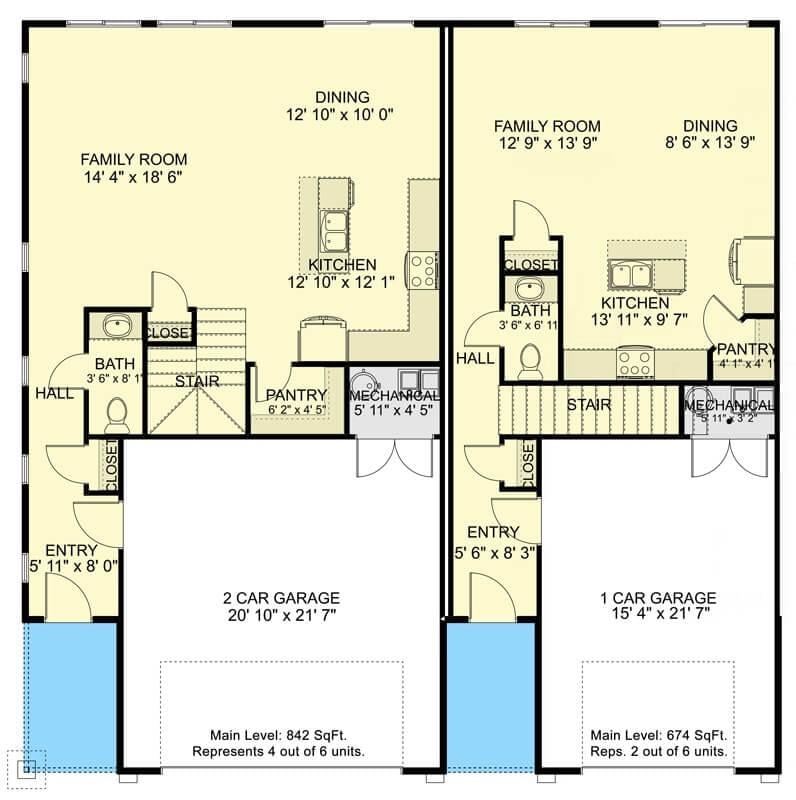

Main level floor plan of a craftsman style two-story 6-unit multiplex home with foyer, family room, dining area, kitchen, and double garage. — Main level floor plan

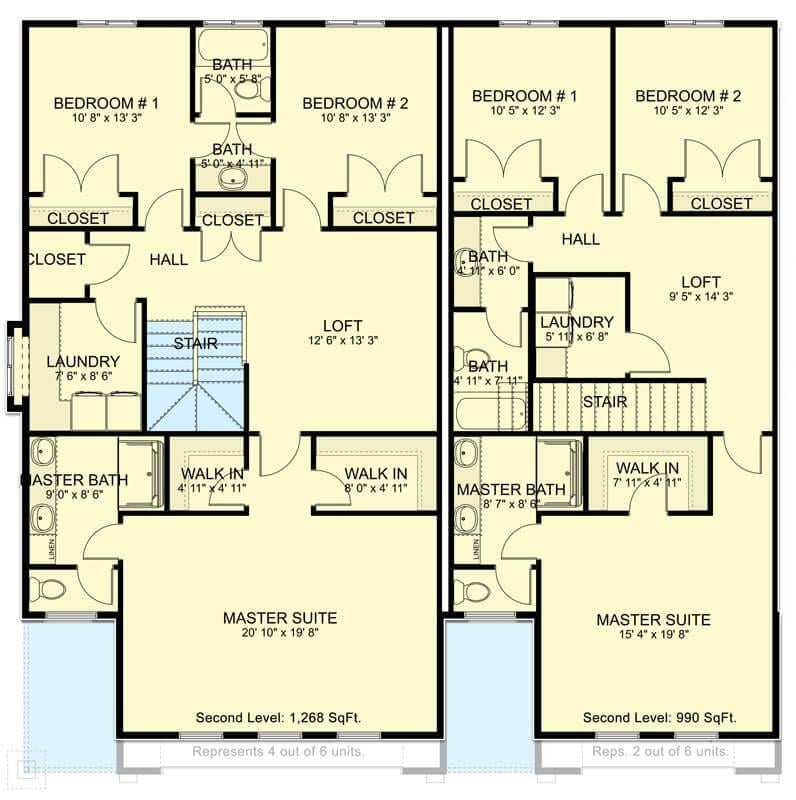

Second level floor plan with loft, three bedrooms, and a laundry room. — Second level floor plan

Main level (All-unit view)

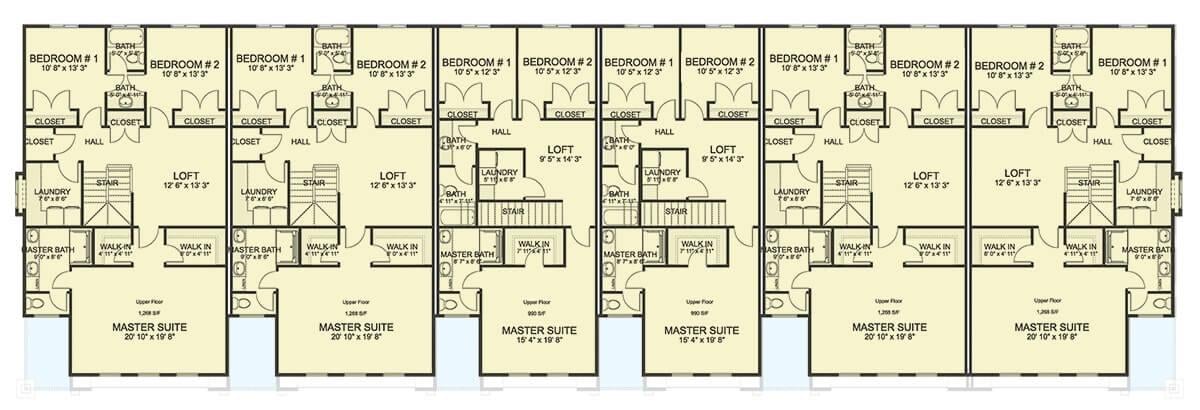

Second level (All-unit view)

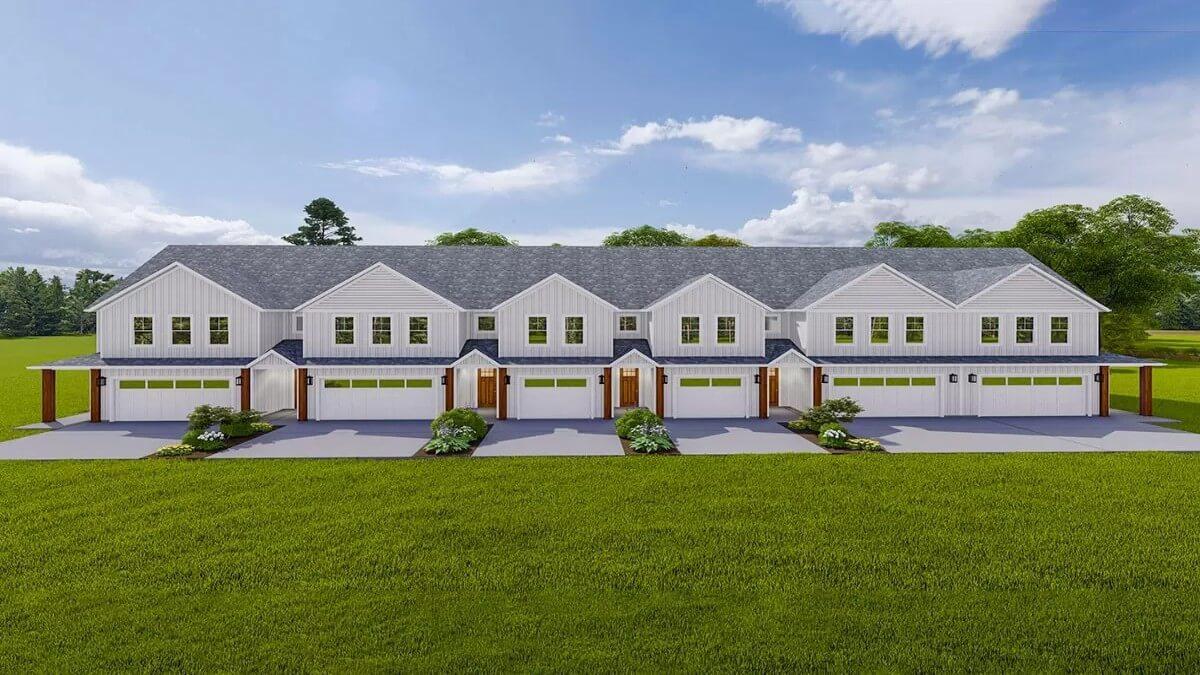

Front elevation sketch of the craftsman style two-story 6-unit multiplex home.

Right elevation sketch of the craftsman style two-story 6-unit multiplex home.

Left elevation sketch of the craftsman style two-story 6-unit multiplex home.

Rear elevation sketch of the craftsman style two-story 6-unit multiplex home.

Photos

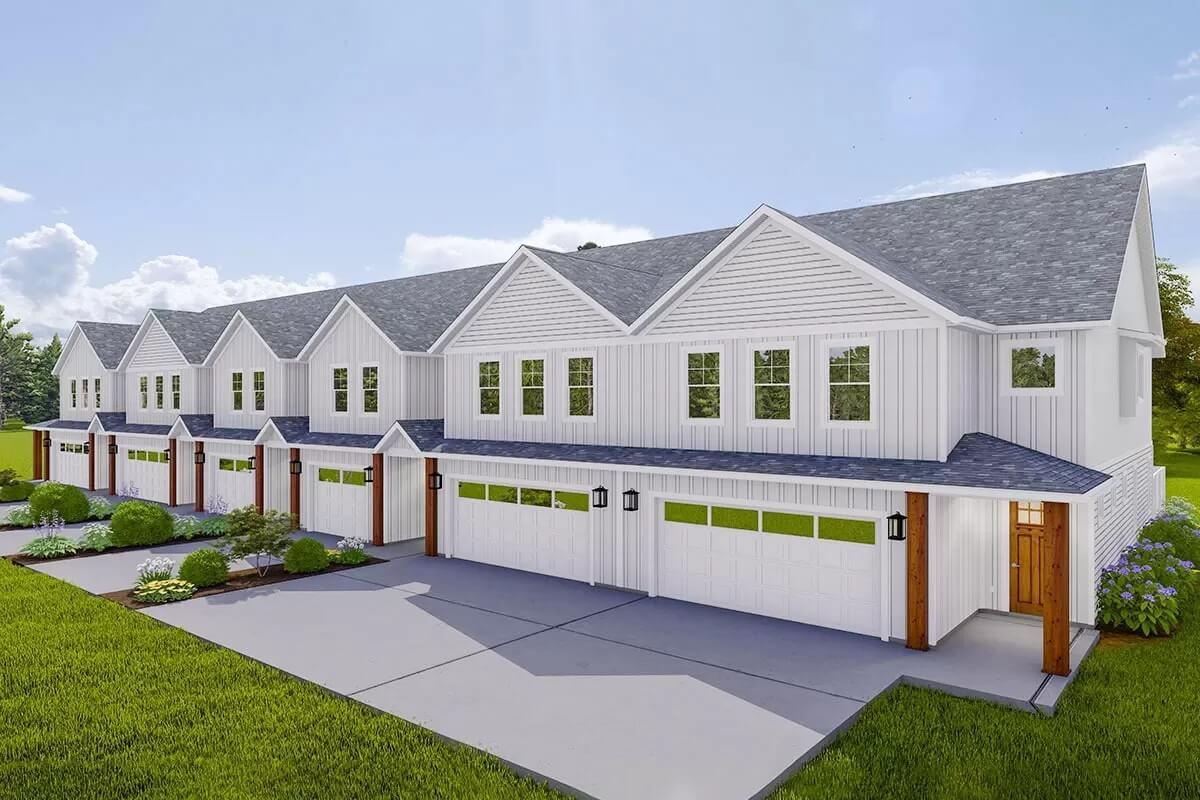

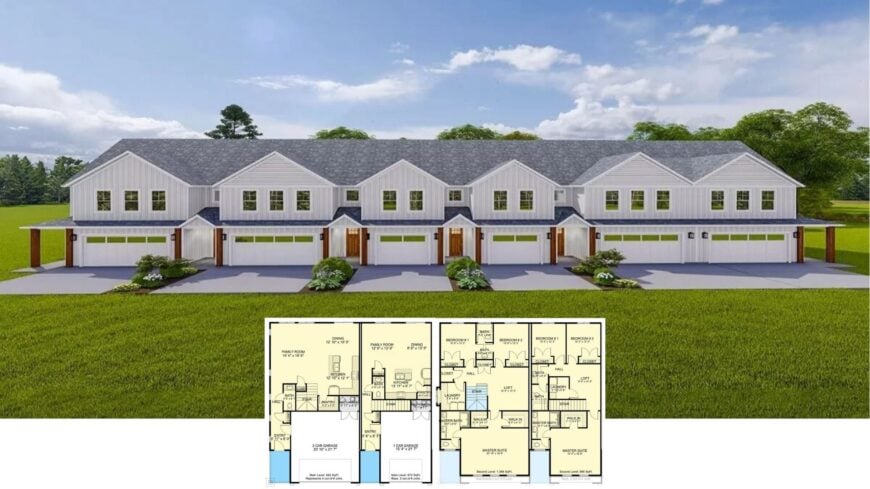

Front-right view with covered entries and garages. — Front-right view

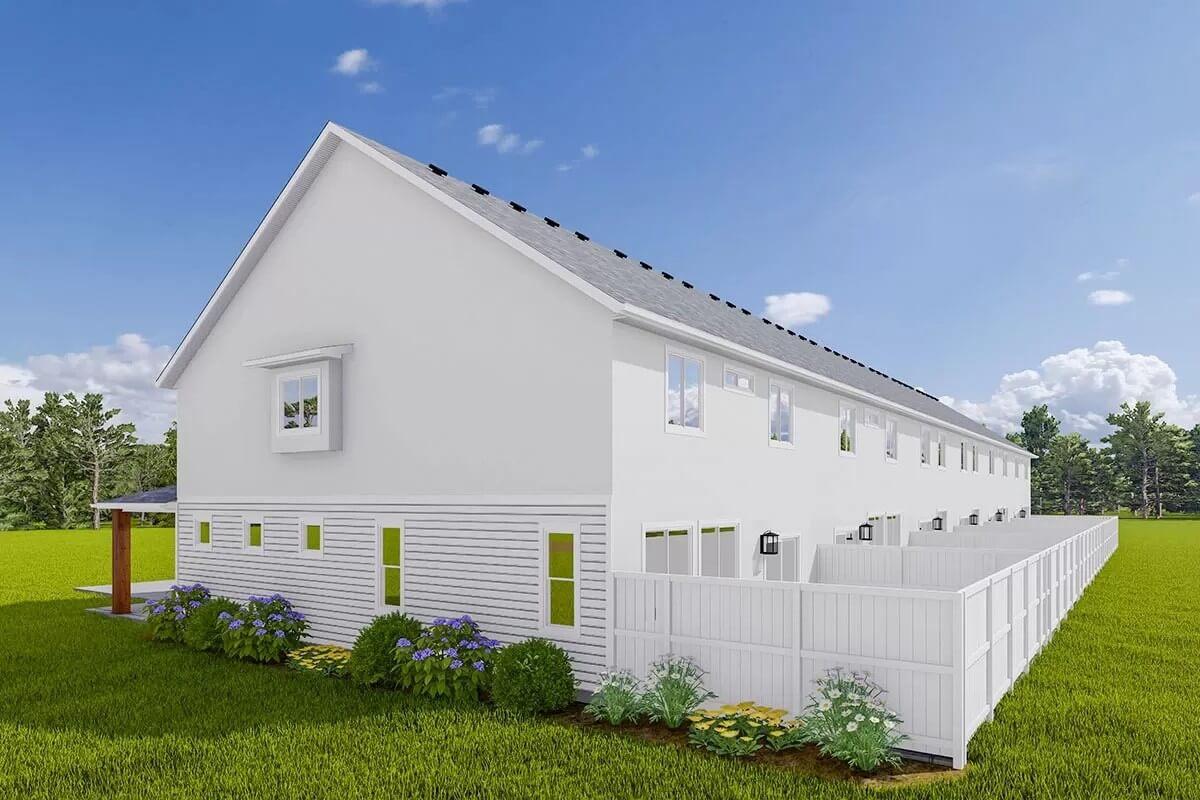

Right-rear view with a gable roof and open patios. — Right-rear view

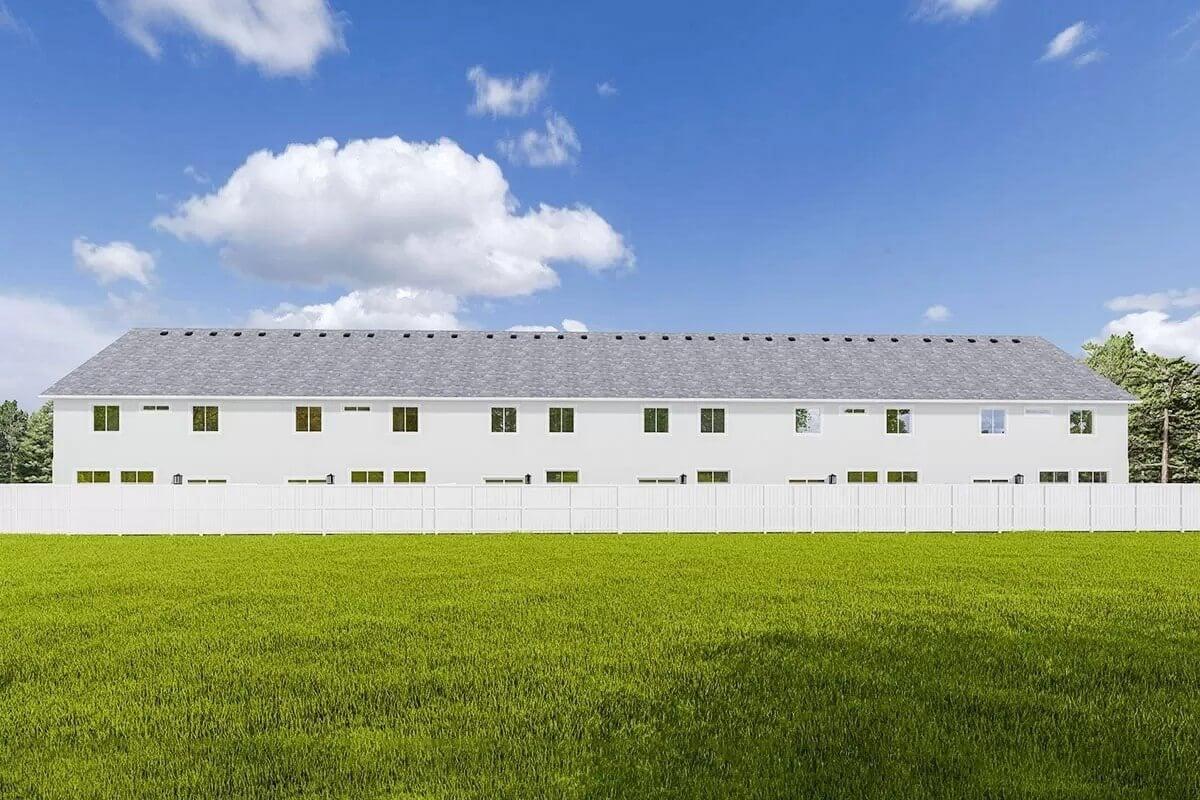

Rear view of the house with plenty of windows and open patios. — Rear view

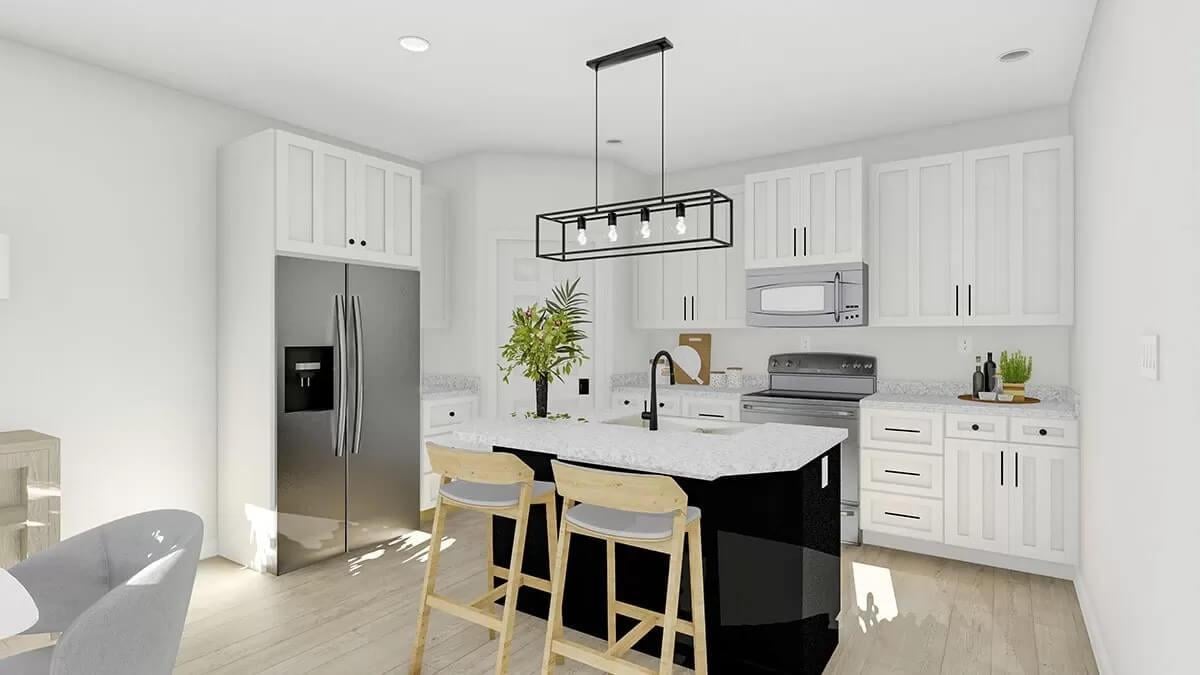

Kitchen with white cabinets and a contrasting island. — Kitchen

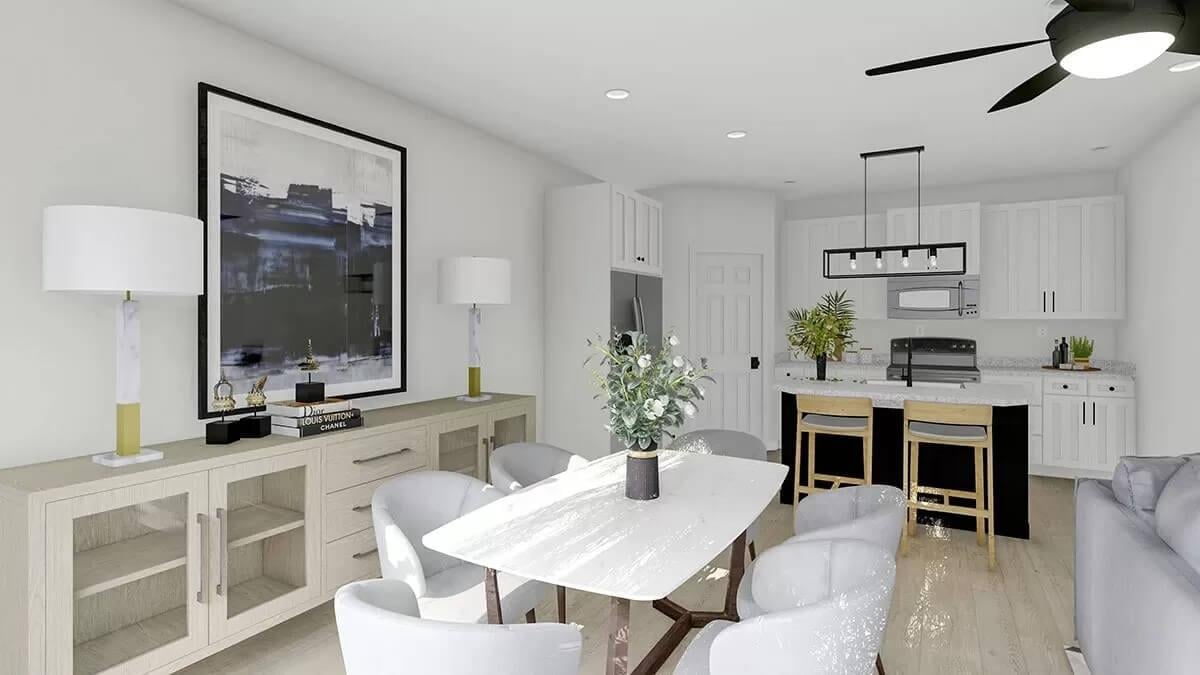

Dining area with a marble-top table surrounded by round back chairs. — Dining area

Dining area with a rectangular dining set and a buffet table topped with table lamps. — Dining area

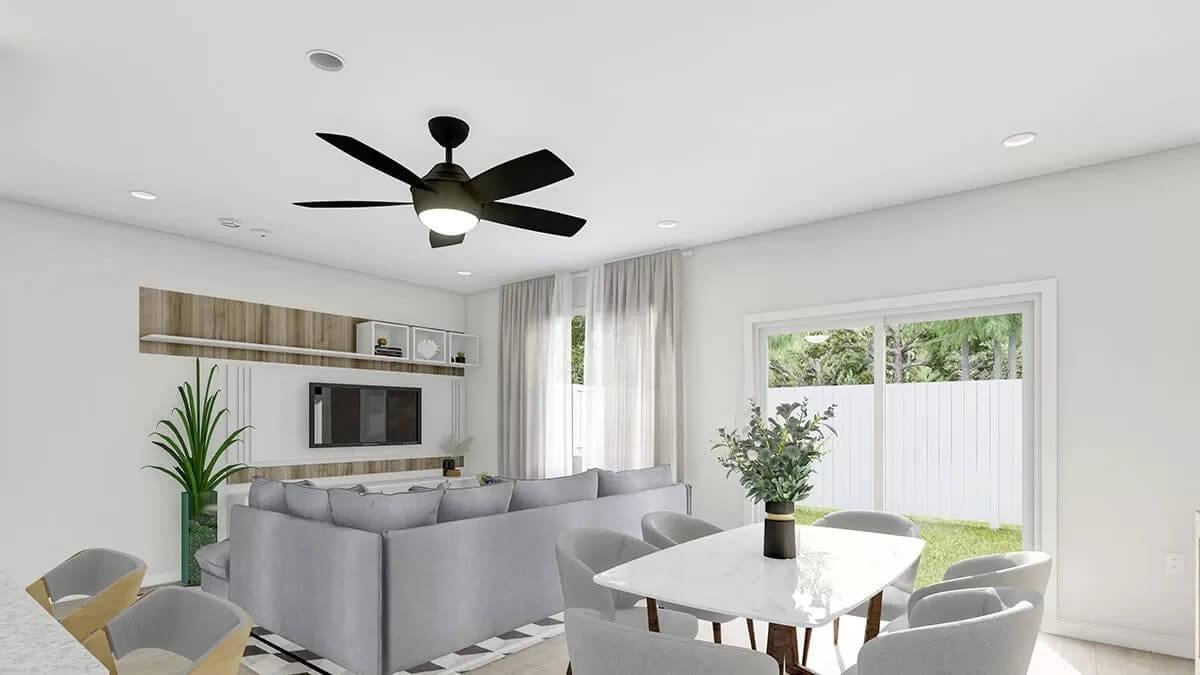

Dining area and great room under a regular white ceiling. — Dining area and great room

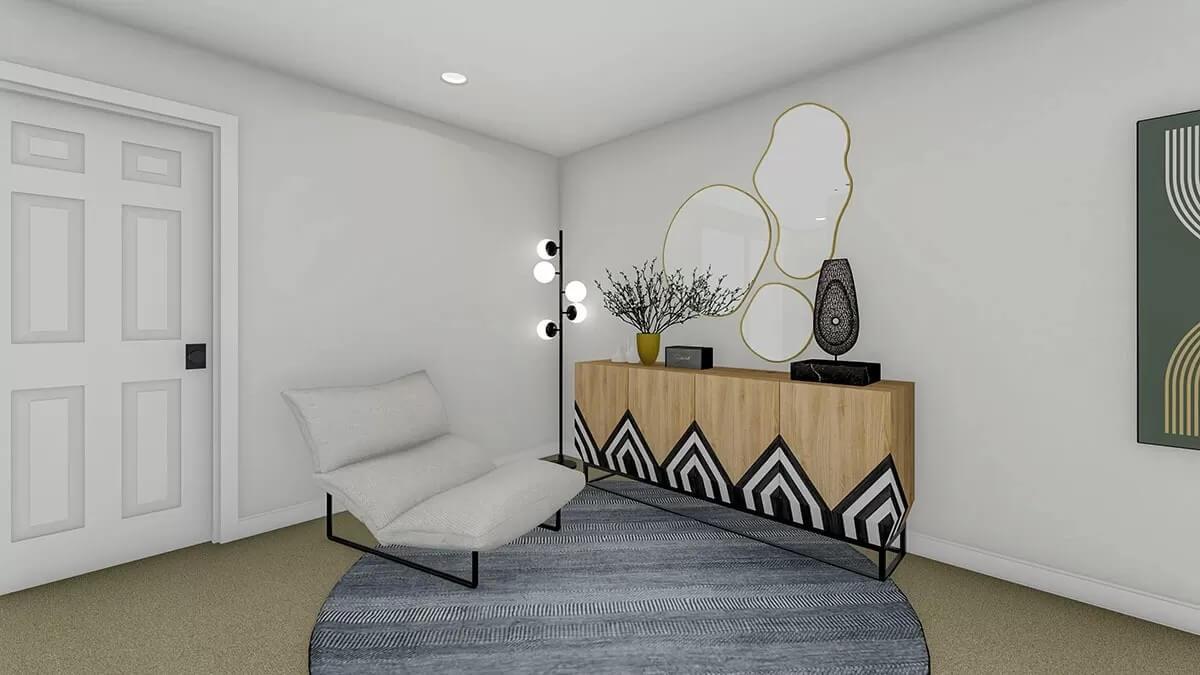

Foyer with a cushioned chair and a wooden console table adorned by decorative mirrors. — Foyer

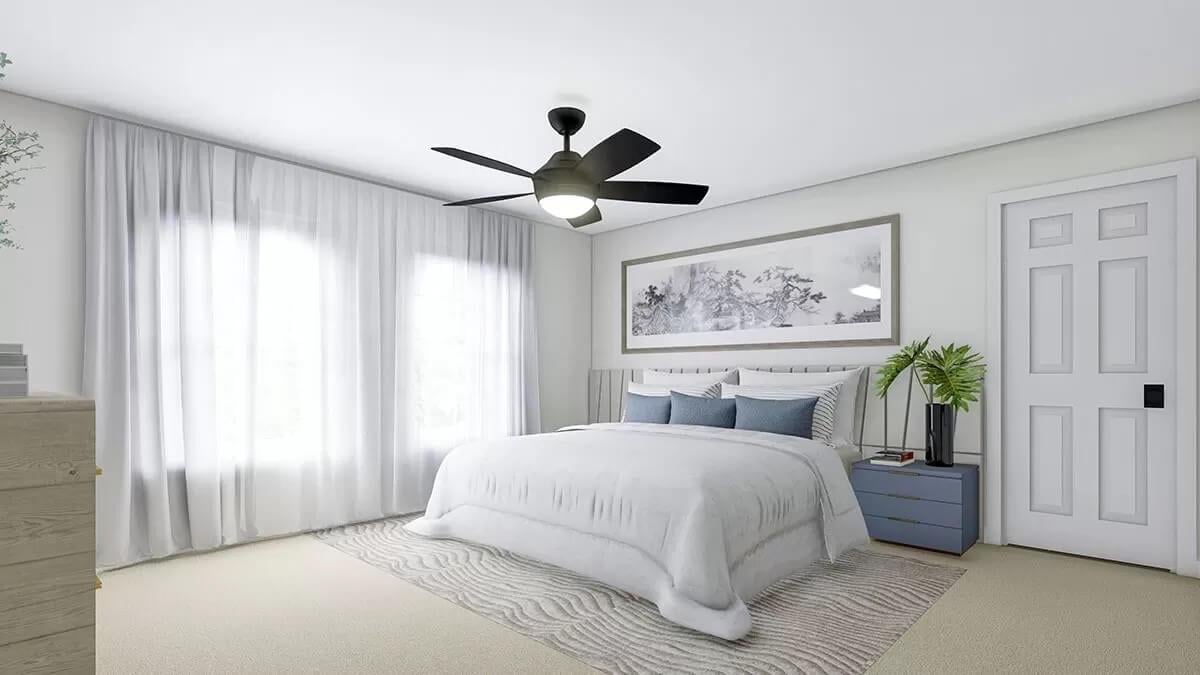

Primary bedroom with a carpeted floor and large windows dressed in sheer curtains. — Primary bedroom

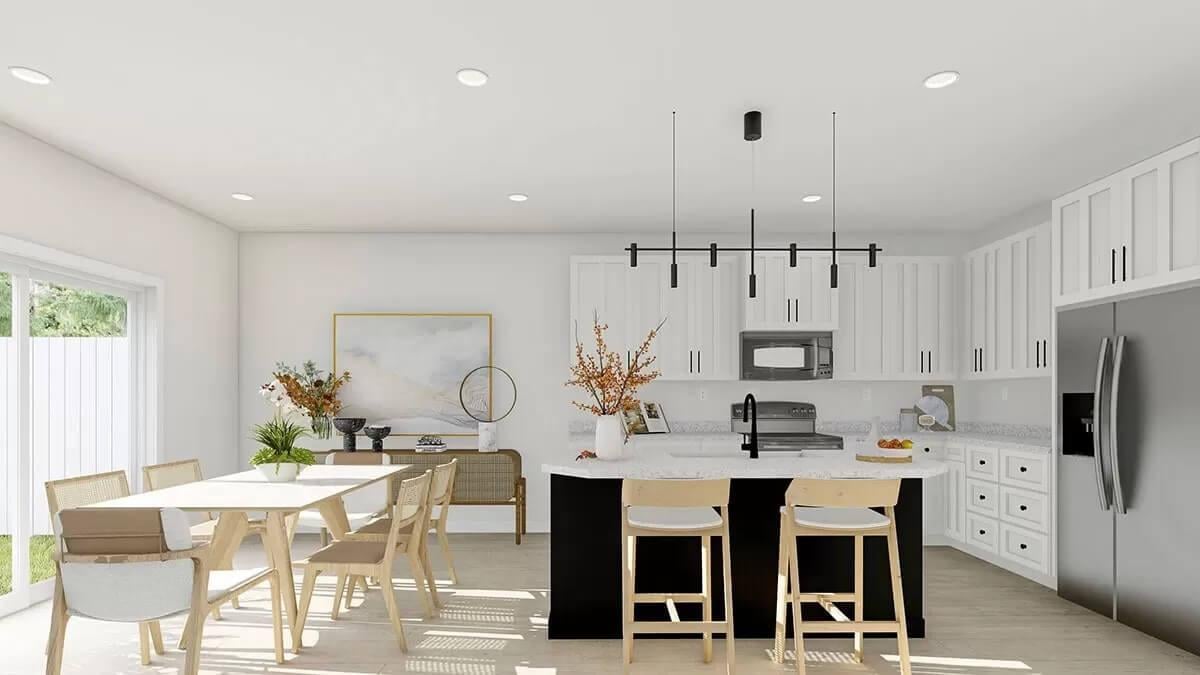

Kitchen and dining area with white cabinets, a breakfast island, and a rectangular dining set. — Kitchen and dining area

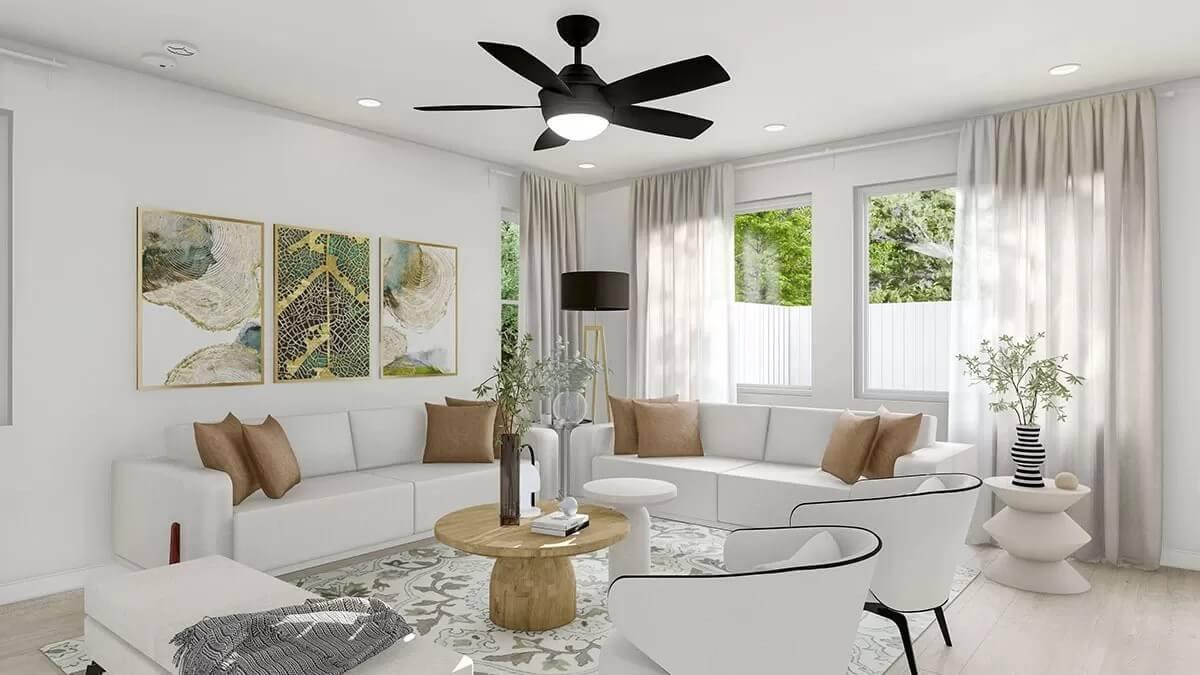

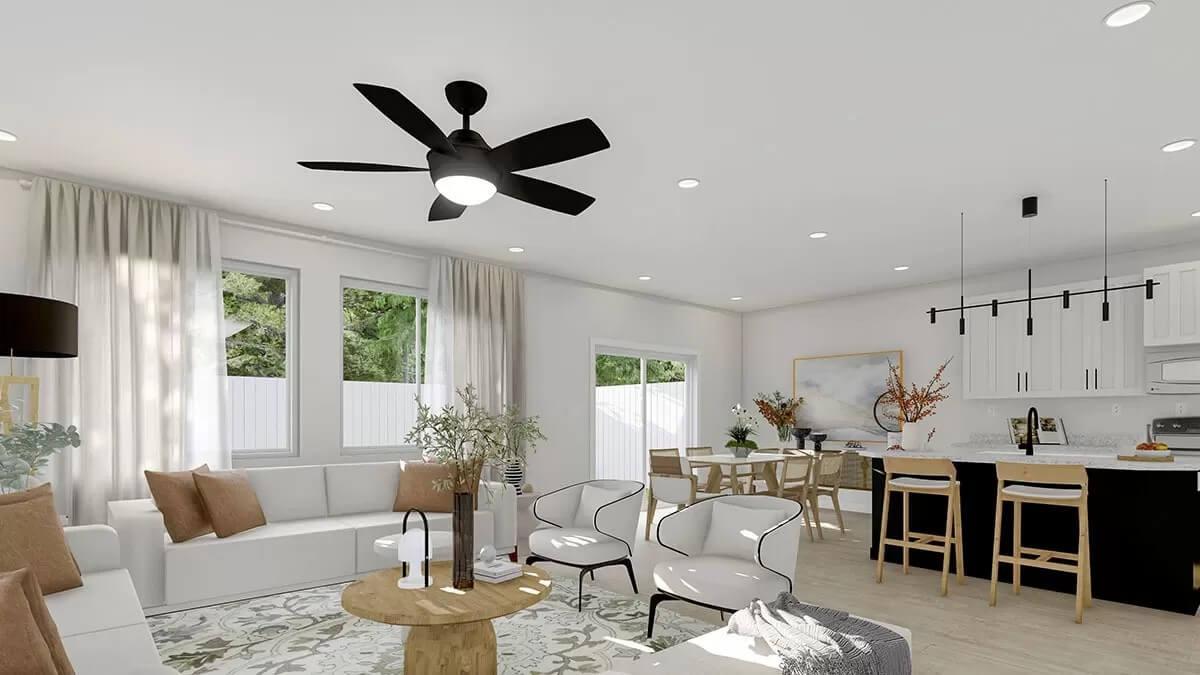

Great room with white sofas, round back chairs, and wooden coffee table over the area rug. — Great room

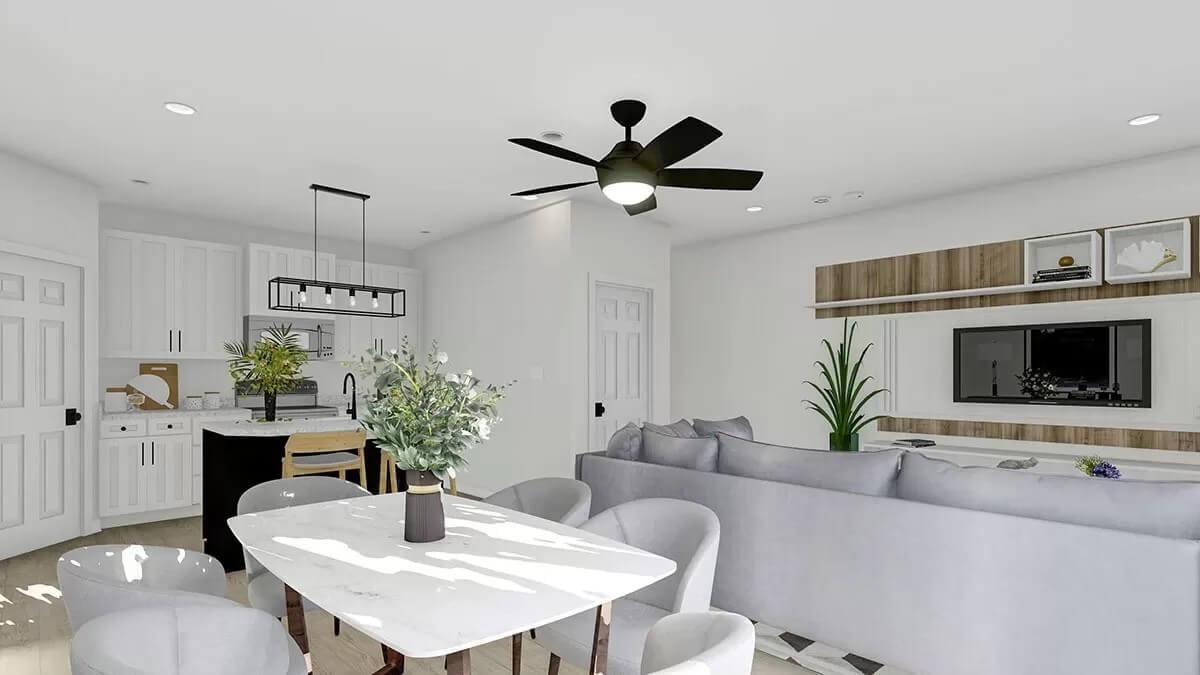

An open layout view of the great room, dining area, and kitchen. — Open-concept living

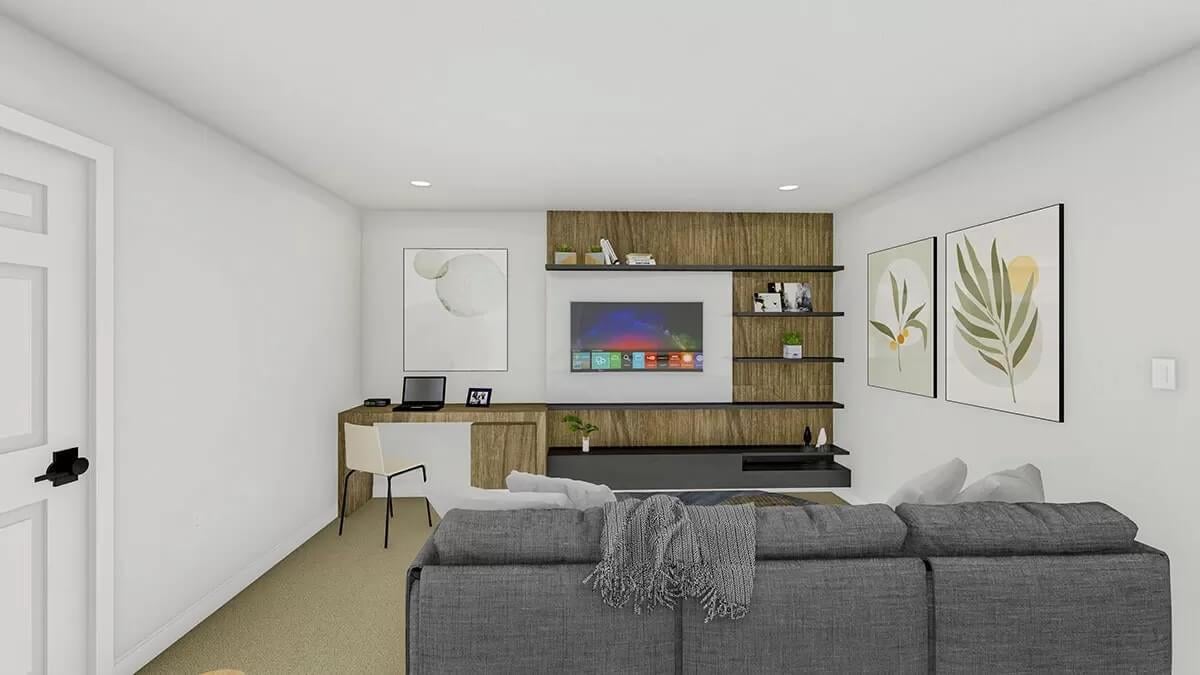

Loft with a sectional sofa, a wall-mounted TV, and a built-in desk. — Loft

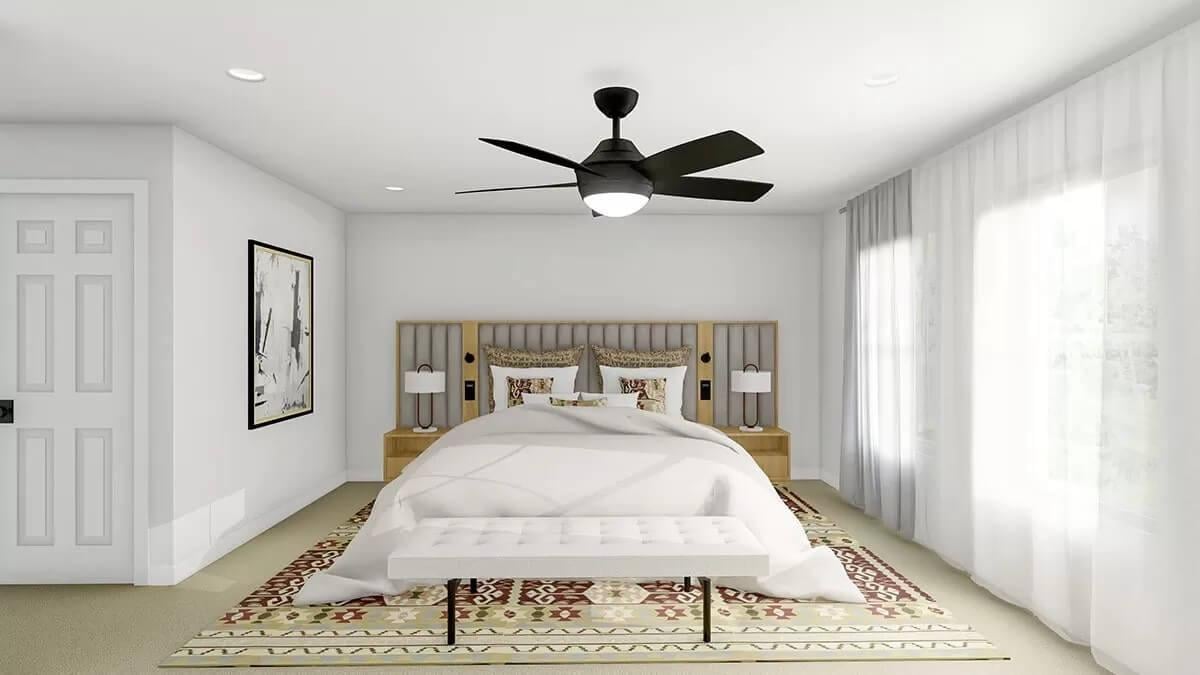

Primary bedroom with a platform bed and a tufted bench over the large area rug. — Primary bedroom

Details

Board and batten siding, gable rooflines, and warm wood accents grace this craftsman style 6-unit multiplex home. Each unit comes with 3 bedrooms, 2.5 baths, and a loft.

Two units on the ends are larger and have a 2-car garage. The inner two units on the other hand have a single garage.

The main level is comprised of an open-concept living where the family room, dining area, and kitchen unite. They are joined by a powder room and a foyer that opens to the garage.

Upstairs, you’ll find all three bedrooms surrounding the loft. A laundry room adds convenience to this level.

Pin It!

Architectural Designs Plan 61392UT
