4-Bedroom Two-Story The Retreat at Waters Edge (Mansion Floor Plan)

Specifications:

Sq. Ft.: 9,820
Bedrooms: 4
Bathrooms: 6.2
Garage: 4

Welcome to photos and footprint for a 4-bedroom two-story The Retreat at Waters Edge. Here’s the floor plan:

Click Here for Pricing

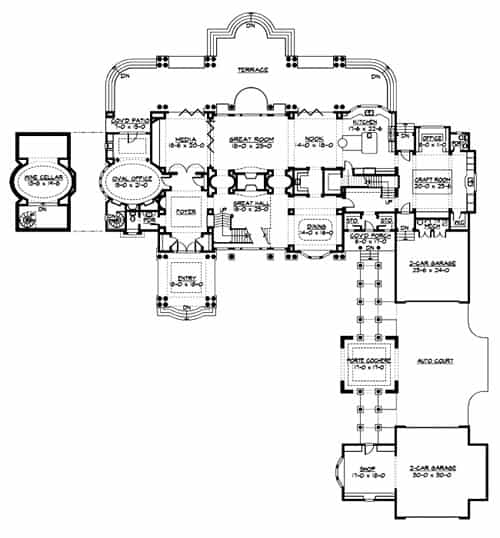

Main level floor plan

Second level floor plan

Front elevation sketch of the two-story The Retreat at Waters Edge.

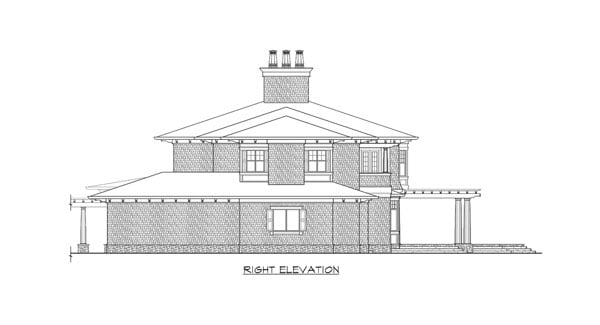

Right elevation sketch of the two-story The Retreat at Waters Edge.

Left elevation sketch of the two-story The Retreat at Waters Edge.

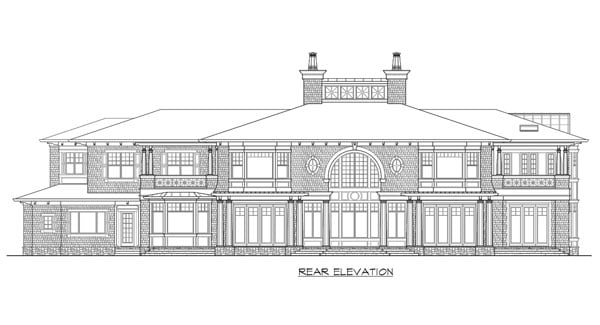

Rear elevation sketch of the two-story The Retreat at Waters Edge.

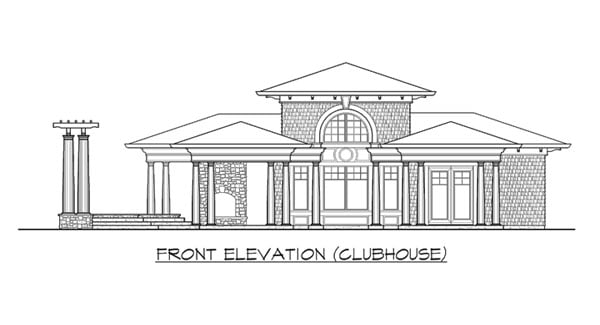

Front elevation sketch of the clubhouse of two-story The Retreat at Waters Edge.

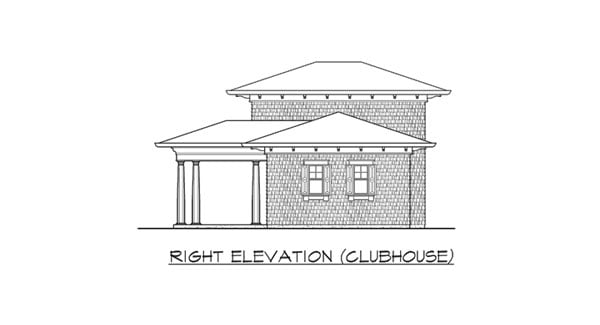

Right elevation sketch of the clubhouse of two-story The Retreat at Waters Edge.

Left elevation sketch of the clubhouse of two-story The Retreat at Waters Edge.

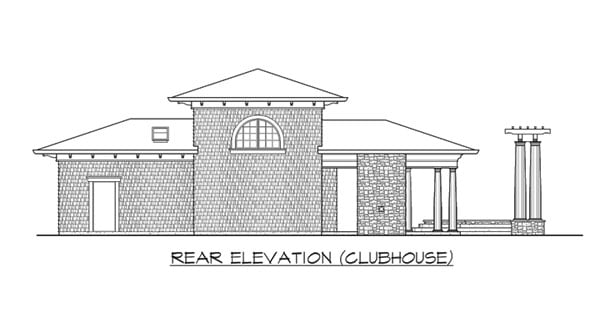

Rear elevation sketch of the clubhouse of two-story The Retreat at Waters Edge.

Click Here for Pricing

: Home’s facade with stone brick cladding, white-framed windows, and a front porch supported by white exterior columns.

: A farther view shows the covered pergola and the main gate with an open archway.

: Outdoor space at the back with a sparkling pool, white pergola, and a clubhouse.

: A closer look at the clubhouse shows the front porches flanking the arched window.

: The main gate is surrounded by open archways and clad in bricks with mounted sconces.

: Rear exterior view shows the massive arched window and pergolas filled with multiple seats.

: A closer look shows the wicker seats by the pool deck topped with beige cushions and earthy pillows.

: View of the house from the backyard and during night shows the expansive terrace and massive windows brimming in ambient lighting and are reflected in the stunning pool.

: The rear terrace is framed with decorative columns that add curb appeal to the house.

: The outdoor living is filled with gray seats and a stone fireplace that matches the walls.

: Front porch with tall potted plants and a double entry door illuminated by warm sconces and a matching pendant.

: The french door opens to the media room with wood-paneled walls and brown recliners paired with a dark wood center table.

: The media room has folding glass doors that open to the terrace and onto the swimming pool.

: Home office with a wooden desk and a sitting area by the glass-paneled windows.

: Opposite side view of the office shows the fireplace and a TV mounted on the wood-paneled pillar.

: Bar with glass front cabinets and a wooden counter surrounded by brick walls.

: Game room in front of the white cellar with a round tray ceiling and brick walls mounted with TVs.

: The wine cellar has column shelves and an ornate counter matching with the glass sconces on the entrance.

: Open layout view showing the great room and kitchen with coffered ceiling.

: The groin vault ceiling has an oval medallion with a hanging chandelier illuminating the area.

: Eat-in kitchen with white cabinets and a wooden dining set under the wrought iron chandelier.

: A closer look shows the marble top island attached with an eating counter for casual dining.

: Small glass pendants hanging from the coffered ceiling provide the kitchen with ambient lighting.

: This view shows the undermount sink and glass-paneled windows dressed in striped valances.

: The kitchen’s cooking range is paired with a bespoke vent hood flanked by glass front cabinets.

: Crafts room with built-in shelves and lots of counter spaces complemented by striped cushioned chairs.

: The home office across the crafts room is filled with built-in cabinets, shelves, and a desk fixed under the white-framed windows.

: The breakfast nook is sitting next to the dining room which is defined by the open archways.

: A closer look at the breakfast nook shows the round dining set and a dark wood buffet by the inset wall topped with table lamps.

: A soaring coffered ceiling fitted with decorative skylights and recessed lights.

: The great hall framed with arches and columns that are mounted with glass sconces.

: The primary bedroom has a brown tray ceiling and a sitting area by the bay window.

: Primary bathroom with classy vanity, a freestanding tub, and a french door that leads out to the rear deck.

: Exercise room with a tray ceiling and beige walls adorned by an ornate artwork.

: This bedroom showcases a french door and a metal canopy bed dressed in brown patterned bedding.

: Family room with a TV, dark wood desk, and striped armchairs paired with a round coffee table.

: The outdoor living with multiple seats. accessible via the sliding glass doors.

: Living room with a high ceiling, marble tiled flooring and a bar on the side.

: A closer view of the bar shows the two-tier granite countertops and a sink paired with a gooseneck faucet.

Click Here for Pricing

This mansion is truly a retreat with its enormous amount of outdoor living space plus a clubhouse that doubles as a guesthouse. It includes a great floor plan with lots of amenities that fit homeowners with active lifestyles.

The front porch ushers guests to the towering foyer with a great hall and a grand staircase. Across is an eye-catching central skylight that floods the home with natural light.

The left-wing is occupied by an oval office with a spiral staircase concealed by the bookcase which leads to the wine cellar below. Next to it is a media room with sliding glass doors that open to the pool terrace and great room for extended entertainment. The great room seamlessly flows into the breakfast nook and the kitchen. A formal dining room and an organized crafts room with plenty of storage and counter space complete the main floor.

Upstairs are the laundry room, a versatile bonus room, and four bedrooms including the primary suite. The primary suite offers a private deck that is both accessible through the room and luxury bath. It also has his and her closets and an exercise room to improve health and fitness.

THD-3236
