3-Bedroom Two-Story Tudor Home (Floor Plan)

Specifications:

Sq. Ft.: 3,359
Bedrooms: 3
Bathrooms: 4.5
Stories: 2
Garage: 2

Welcome to photos and footprint for a 3-bedroom two-story Tudor home. Here’s the floor plan:

Buy this Plan

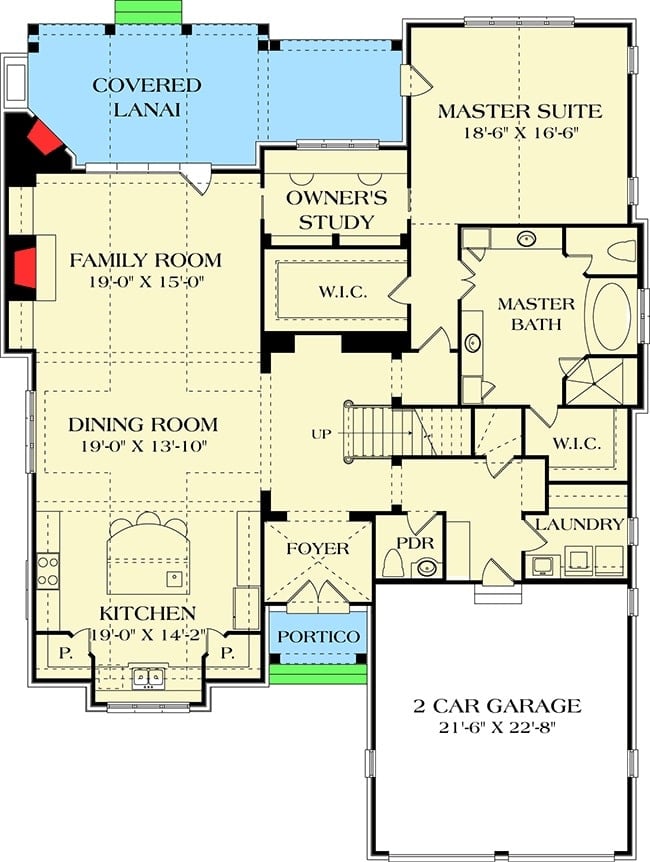

Main level floor plan of a 3-bedroom two-story Tudor home with a family room, eat-in kitchen, powder room, laundry room, and a primary suite with two walk-in closets and a private study. — Main level floor plan

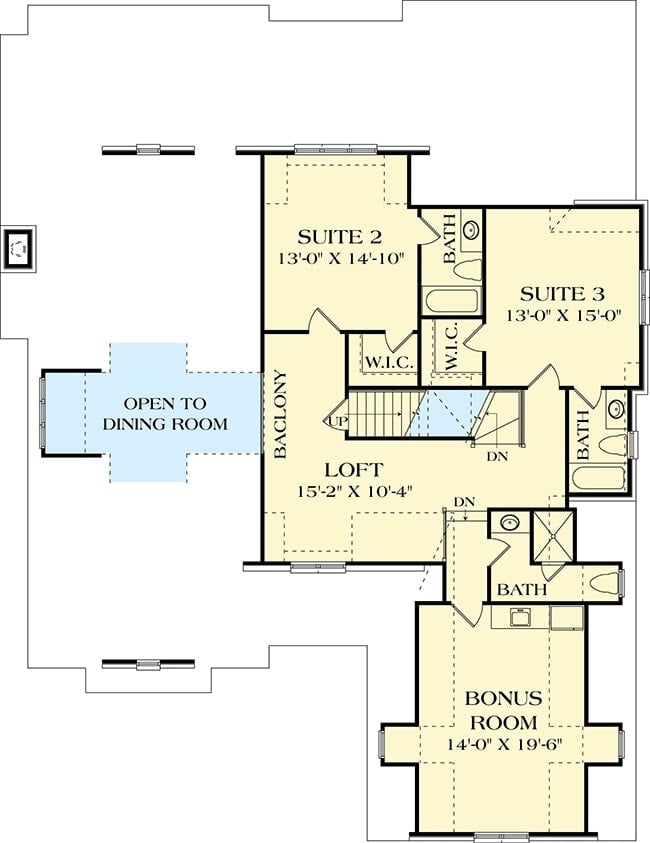

Second level floor plan with loft, two bedrooms suites, and a bonus room with a bath nearby. — Second level floor plan

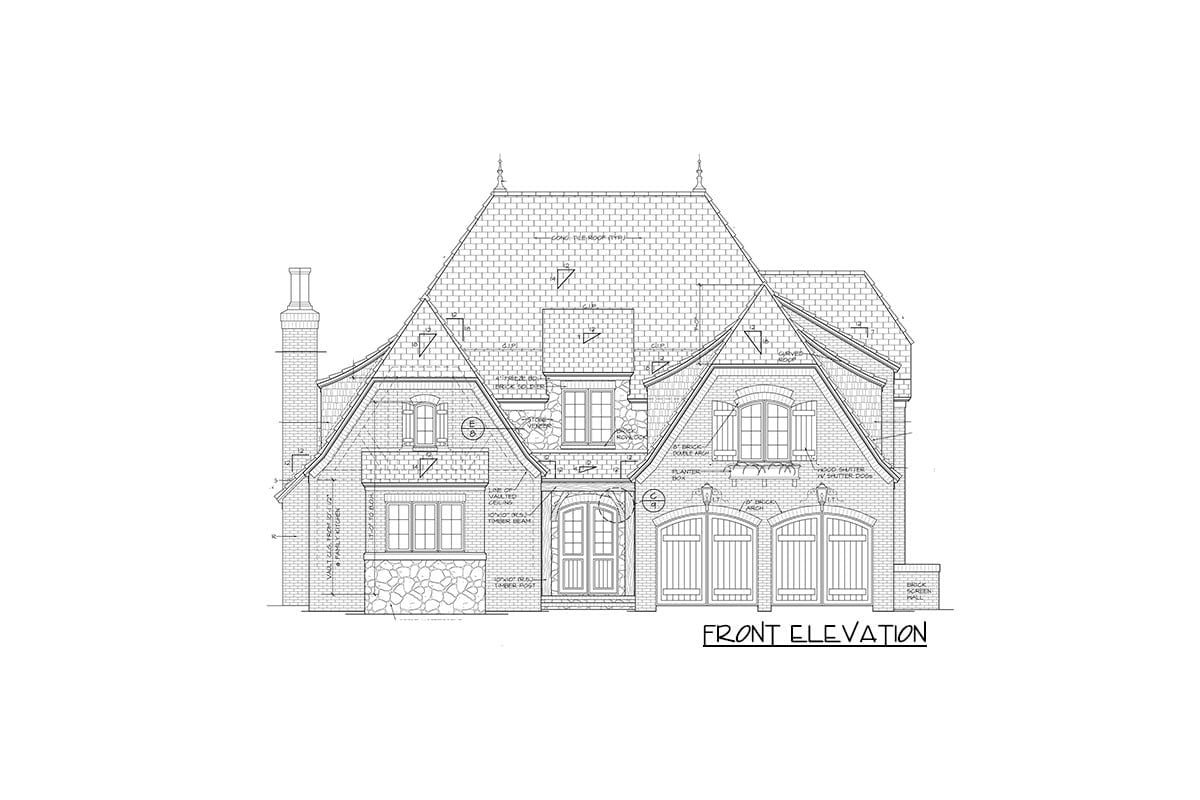

Front elevation sketch of the two-story Tudor home.

Right elevation sketch of the two-story Tudor home.

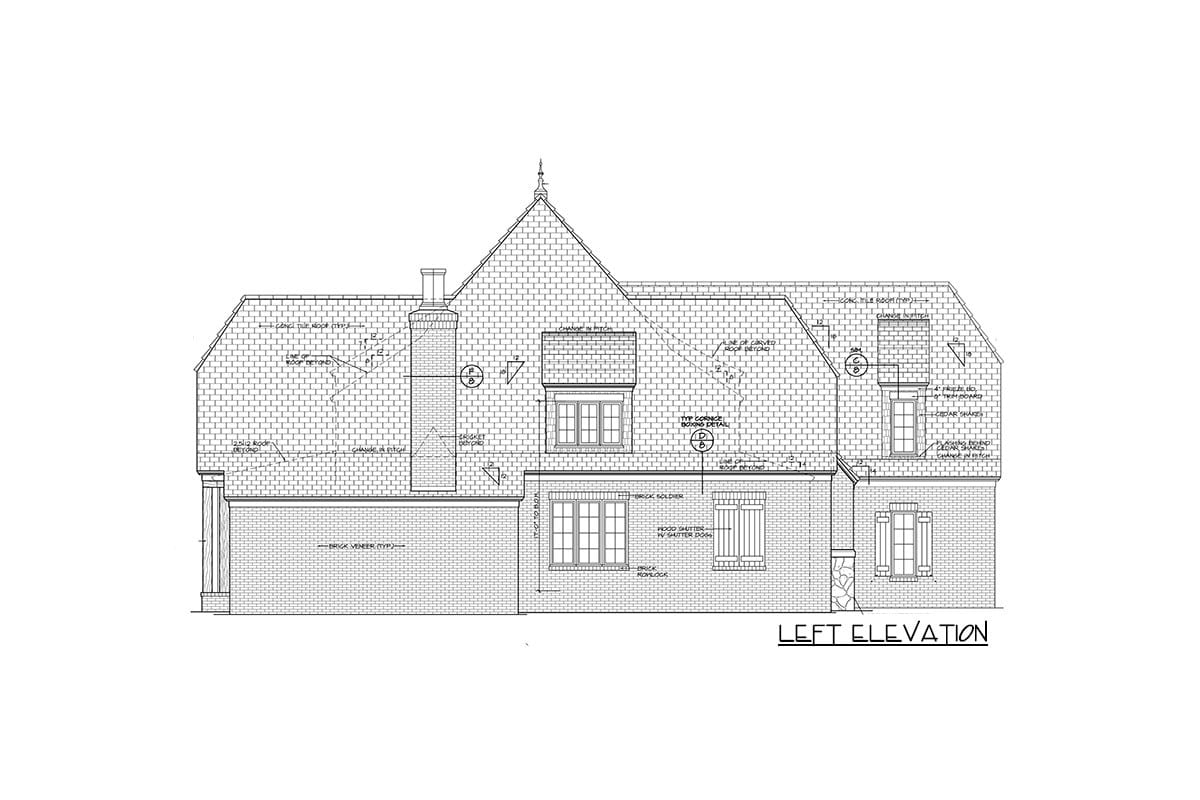

Left elevation sketch of the two-story Tudor home.

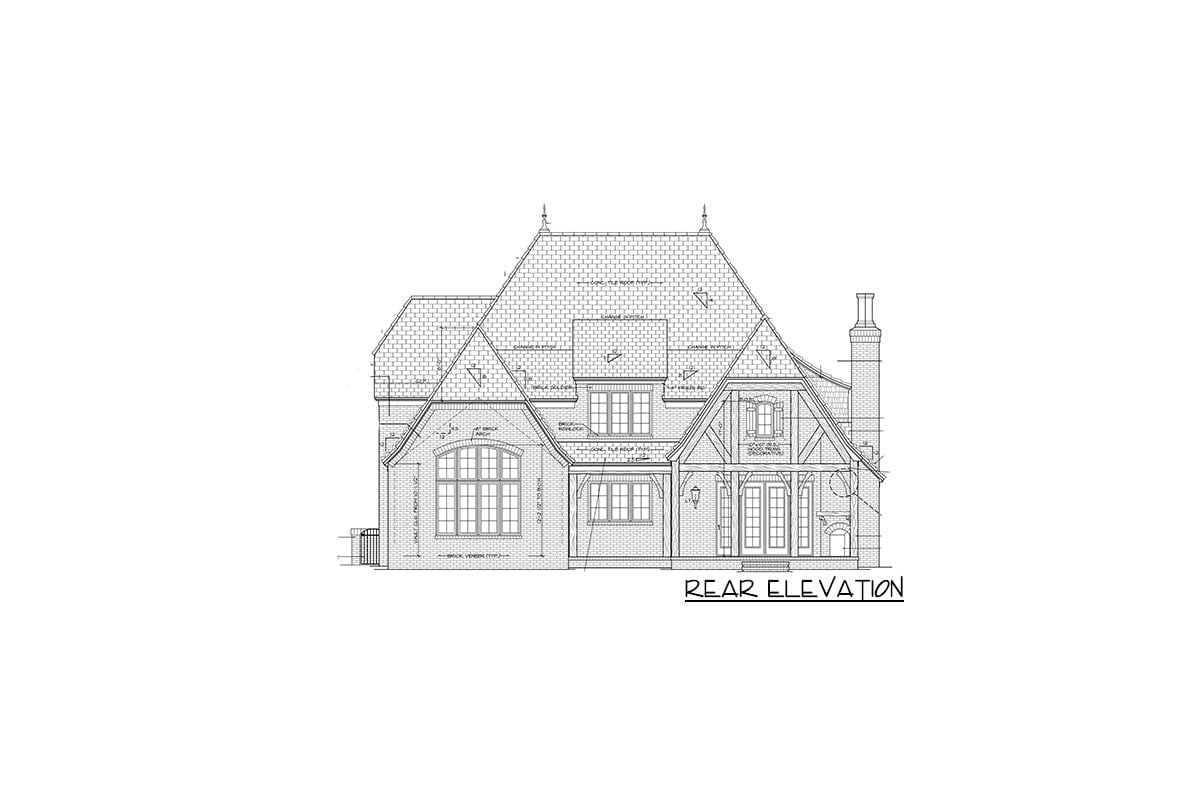

Rear elevation sketch of the two-story Tudor home.

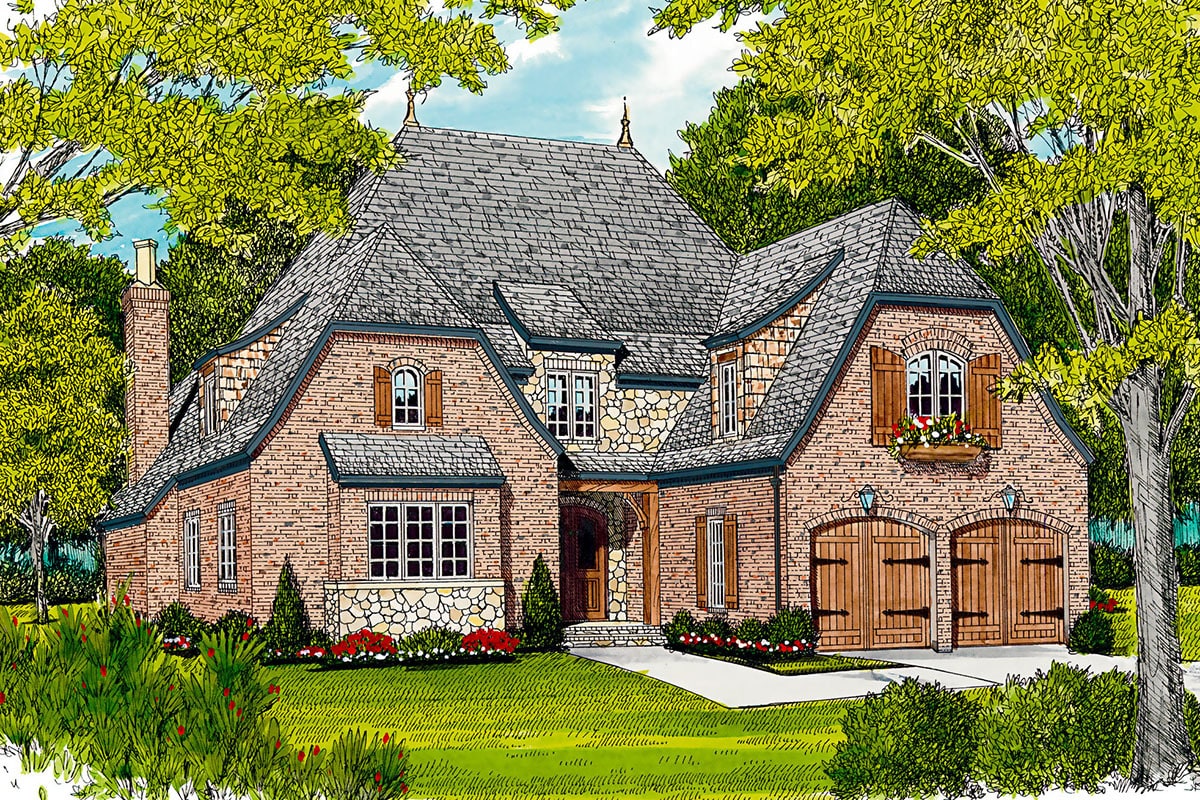

Front perspective sketch of the two-story Tudor home.

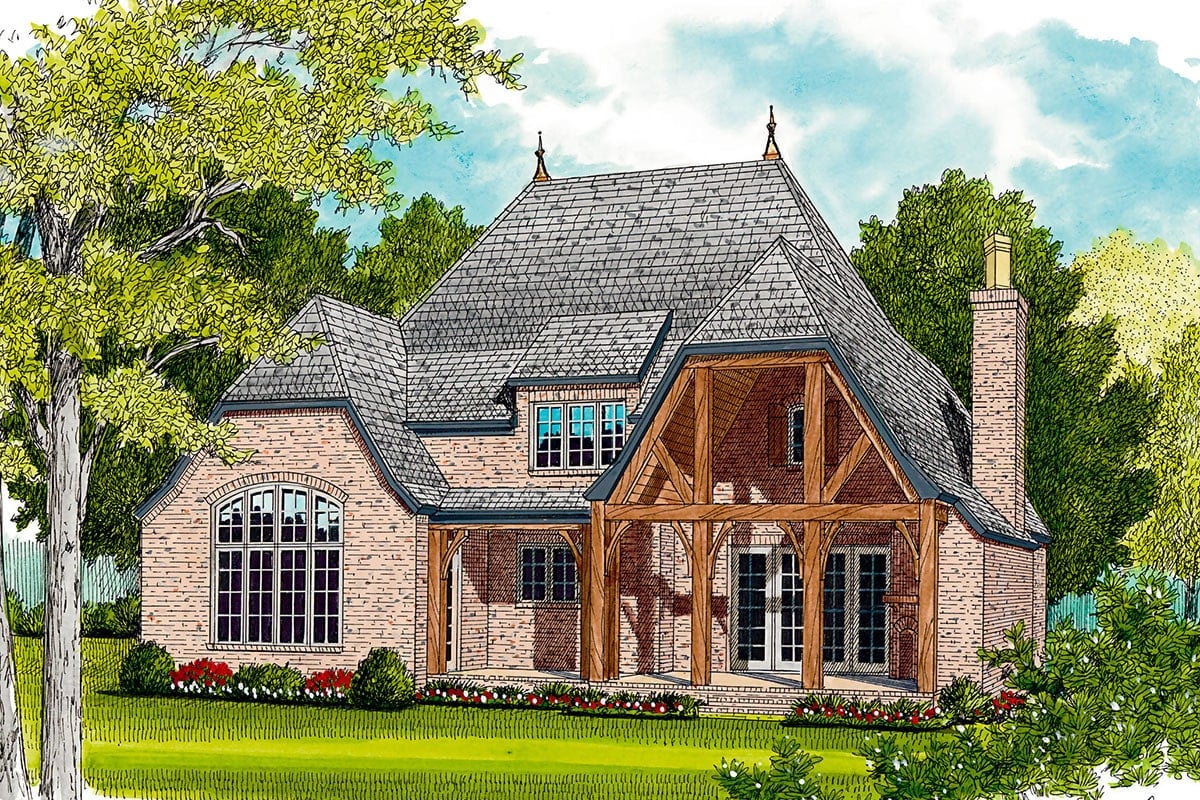

Rear perspective sketch of the two-story Tudor home.

Buy this Plan

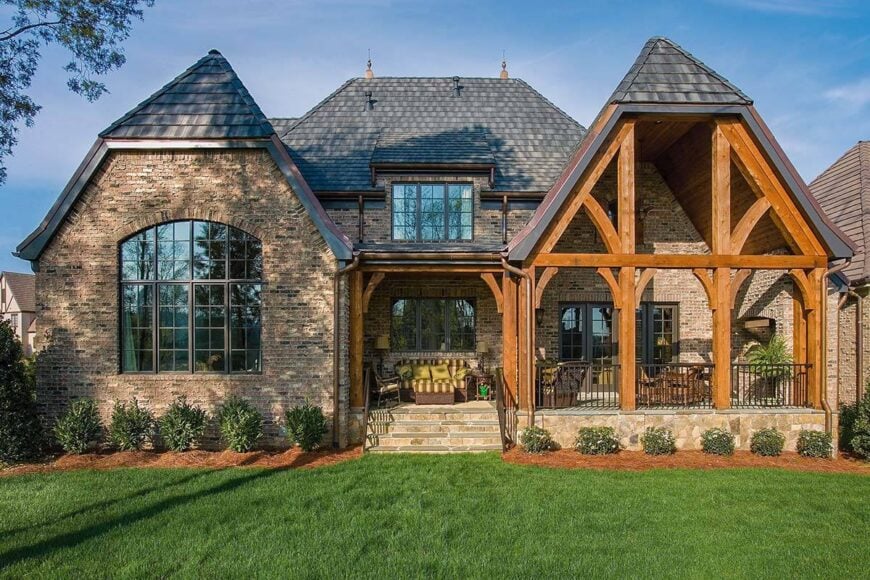

Home's rear view showing the clipped gables, brick exterior walls, and a covered porch framed with natural wood beams. — Home’s rear view showing the clipped gables, brick exterior walls, and a covered porch framed with natural wood beams.

The foyer has an arched french front door and a groin vault ceiling mounted with a warm semi-flush light.

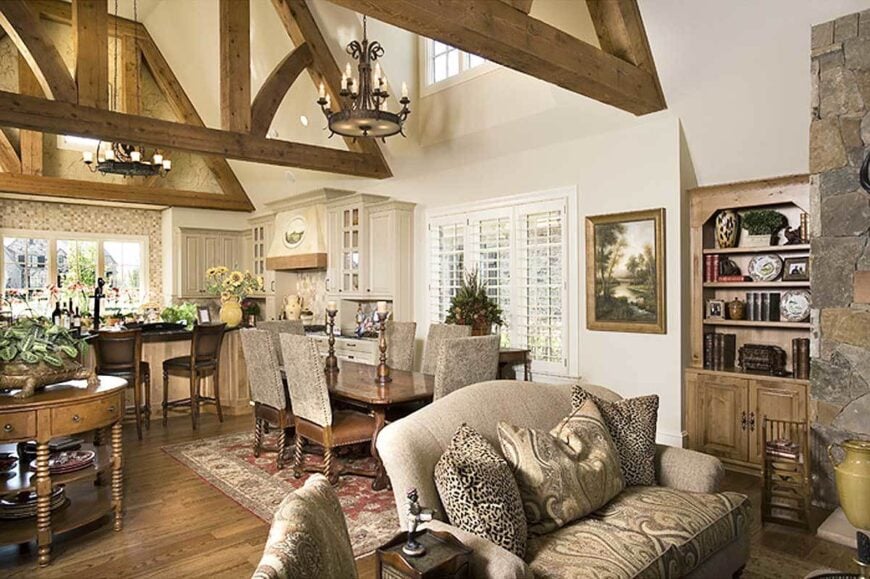

This open layout view shows the living room, dining area, and kitchen under the vaulted ceiling with exposed beams.

Living room with beige cozy seats and a stone fireplace flanked by built-in shelves.

The kitchen is equipped with white cabinetry, a farmhouse sink, and a wine fridge fitted on the two-tier breakfast island.

This view shows the second-floor balcony and a staircase defined with an open archway.

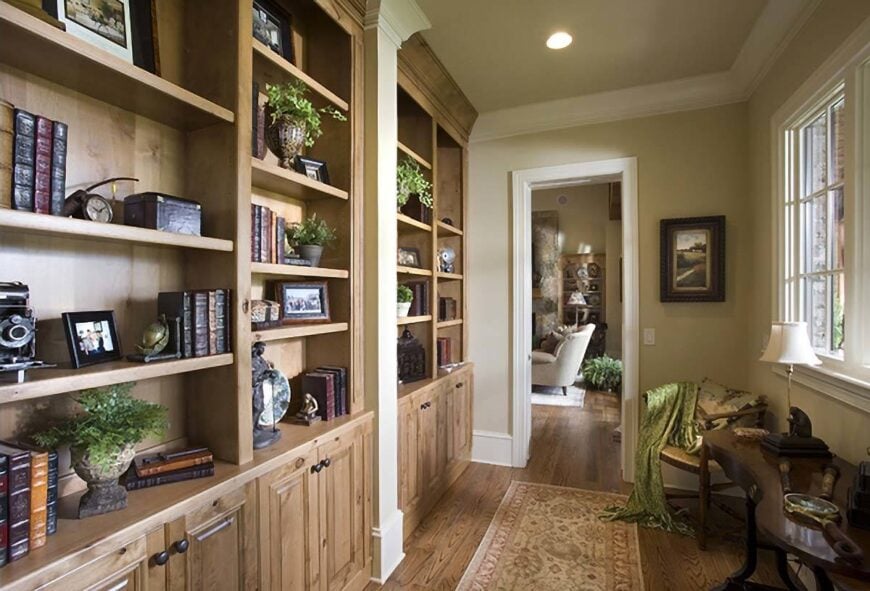

The study offers wooden furniture and a large built-in bookcase that blends in with the hardwood flooring.

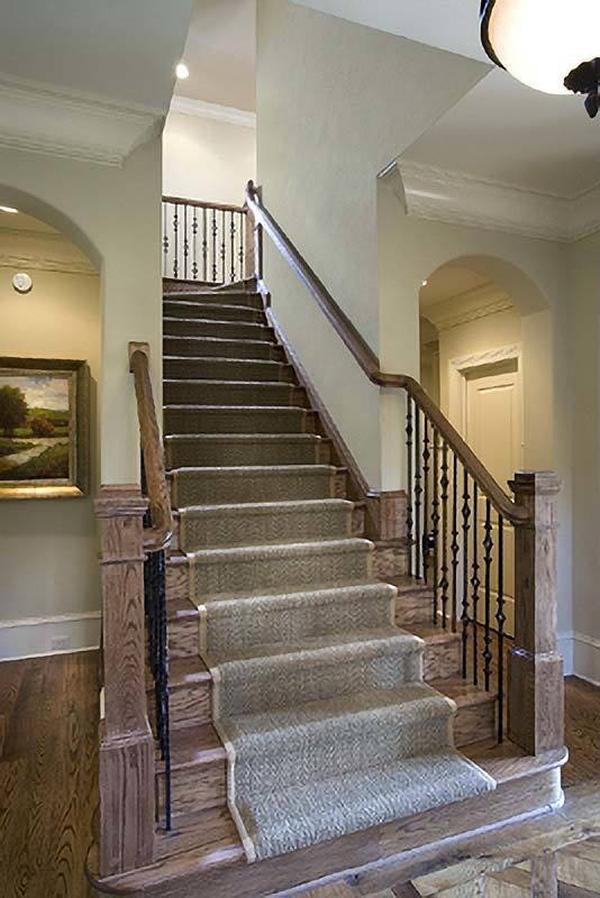

The traditional staircase has ornate wrought iron spindles and wooden steps topped with a classy carpet.

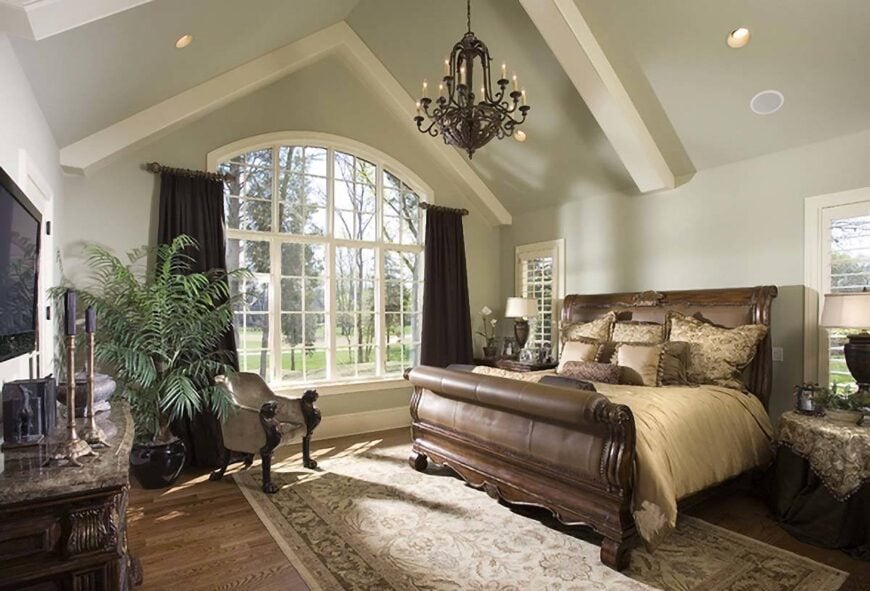

The primary bedroom features a large arched window and a cathedral ceiling lined with white decorative beams.

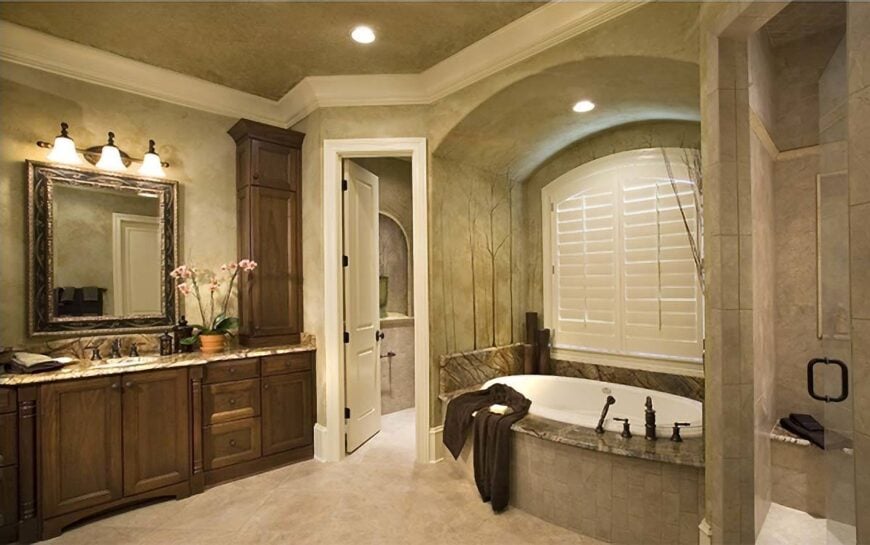

Primary bathroom with walk-in shower, a granite top sink vanity, and an alcove tub fixed under the white louvered window.

The loft is filled with dark wood furnishings and a vintage red area rug that lays on the hardwood flooring.

Recreation room with patterned carpet flooring and concrete vaulted walls mounted with a pair of flat-screen TVs.

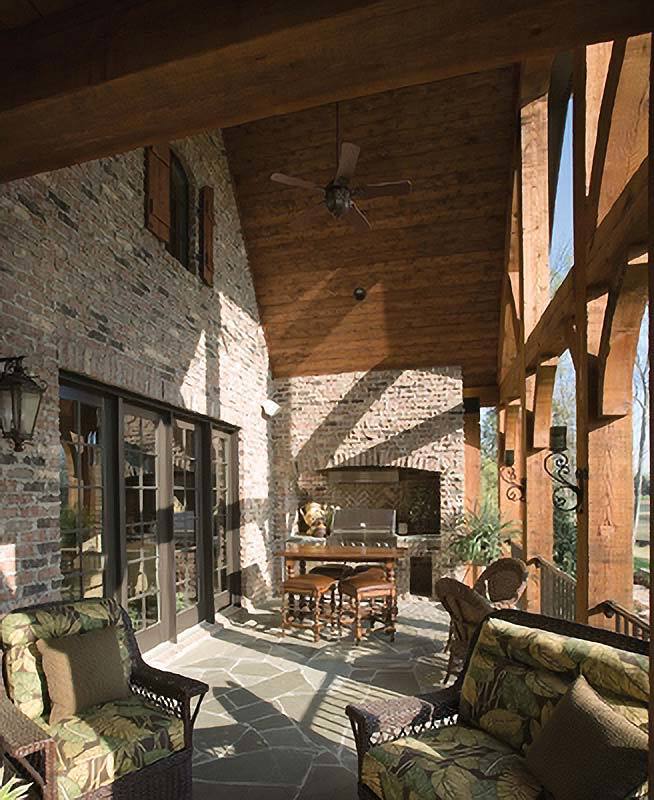

The covered patio has cushioned wicker seats, a wooden dining set, and a summer kitchen fixed against the stone brick walls.

Buy this Plan

This Tudor home exudes a traditional beauty with its beautiful brick exterior, arched windows with wooden shutters, and clipped gables that create a distinctive character. The house includes interesting ceiling treatments that make a dramatic statement in each room.

Inside is a great open floor plan combining the family room, dining area, and kitchen. The highlight of the main level is the primary suite with dual access. You can enter through the pocket door of your own study or via your private hall next to the staircase. You also have easy access to the covered lanai with a corner fireplace and a summer kitchen.

Laundry and powder rooms off the two-car garage complete the main floor.

The upper level holds two-bedroom suites and a large bonus room with a bathroom nearby. The loft surrounded by the rooms is a perfect hangout or gathering place.

Plan 17503LV
