1-Bedroom Two-Story New American Carriage Home with RV Garage and Open Concept Living (Floor Plan)

1-Bedroom Two-Story New American Carriage Home with RV Garage and Open Concept Living

Specifications:

  • Sq. Ft.: 967
  • Bedrooms: 1
  • Bathrooms: 2
  • Stories: 2
  • Garage: 3

Welcome to photos and footprint for a 1-bedroom two-story New American carriage home. Here’s the floor plan:

Main level floor plan of a 1-bedroom two-story New American carriage home with double garage plus an RV garage.

Main level floor plan

Second level floor plan with front and rear decks, a living room, dining area, kitchen, laundry, and primary suite.

Second level floor plan

Front elevation sketch of the 1-bedroom two-story New American carriage home.

Front elevation sketch of the 1-bedroom two-story New American carriage home.

Right elevation sketch of the 1-bedroom two-story New American carriage home.

Right elevation sketch of the 1-bedroom two-story New American carriage home.

Left elevation sketch of the 1-bedroom two-story New American carriage home.

Left elevation sketch of the 1-bedroom two-story New American carriage home.

Rear elevation sketch of the 1-bedroom two-story New American carriage home.

Rear elevation sketch of the 1-bedroom two-story New American carriage home.

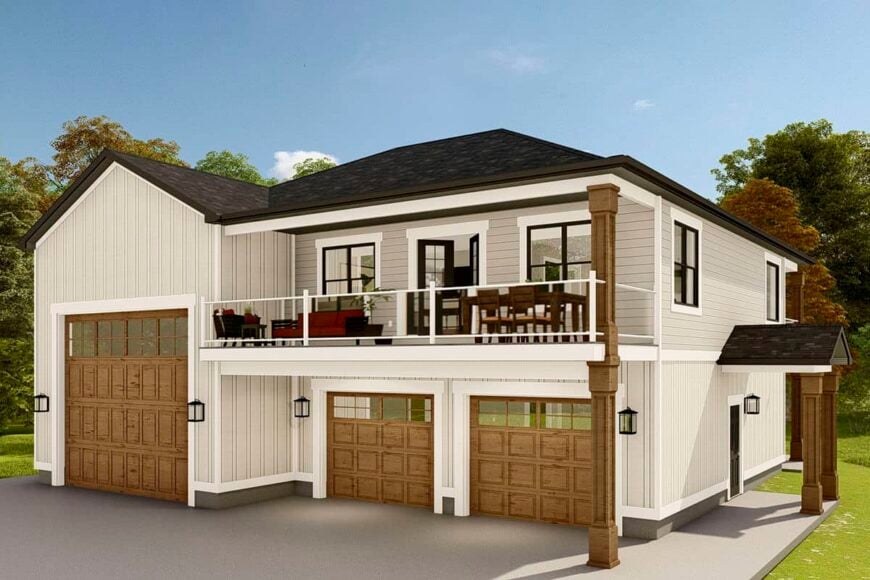

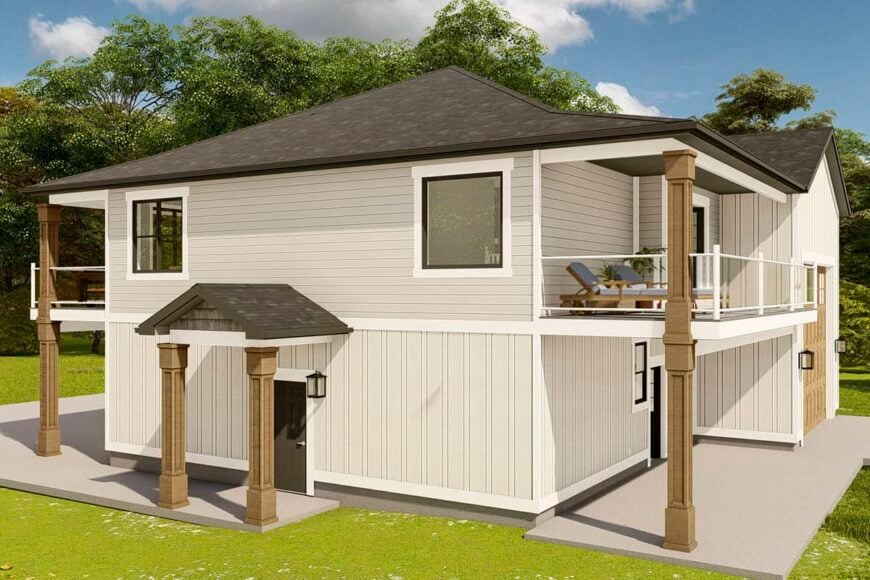

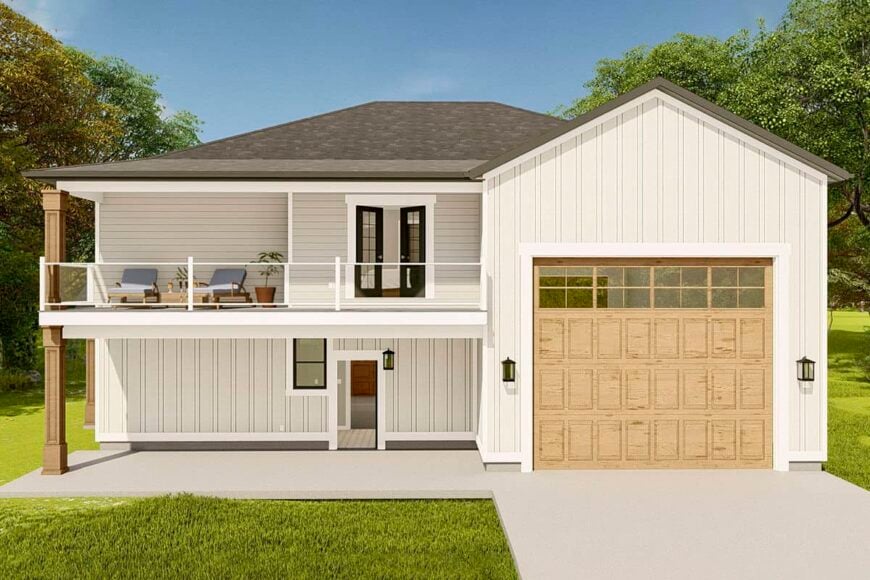

This 1-bedroom carriage home radiates a New American vibe with its board and batten siding accentuated with wooden garage doors and decorative columns. It features a 2-car garage plus a drive-through RV garage along with front and rear decks that extend the home’s living space outdoors.

The main level includes a mudroom nestled between the 3-car garage and a mechanical closet.

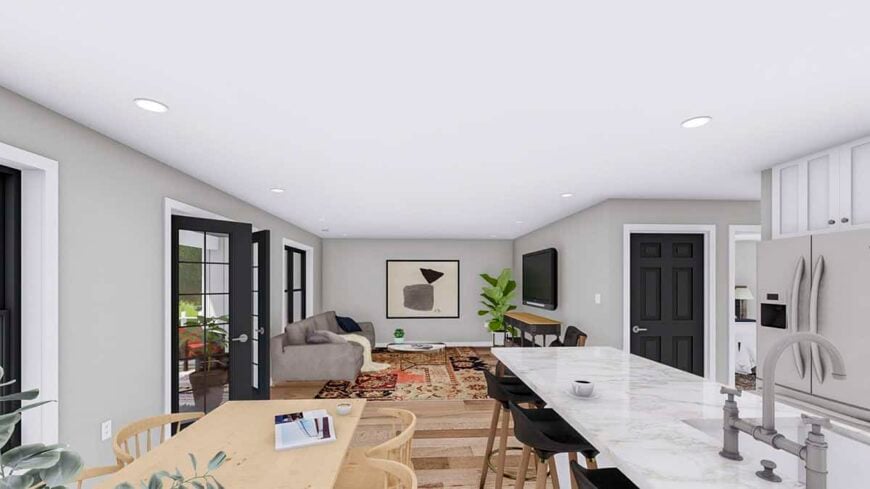

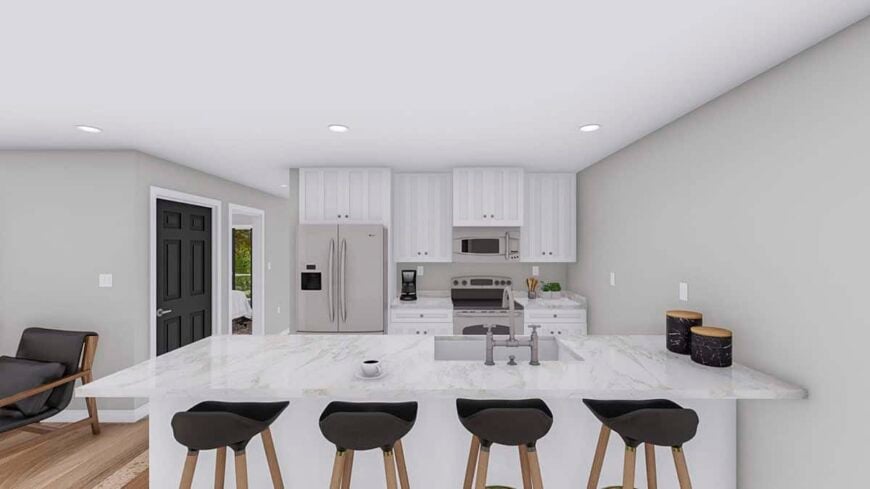

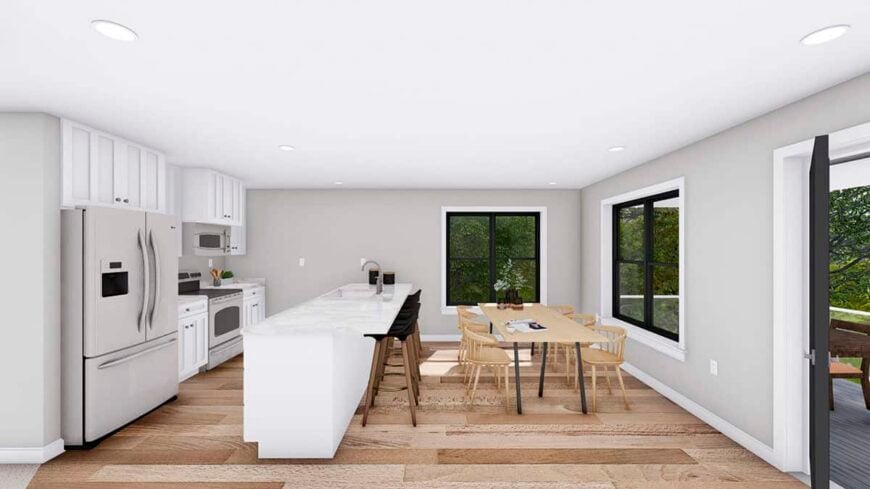

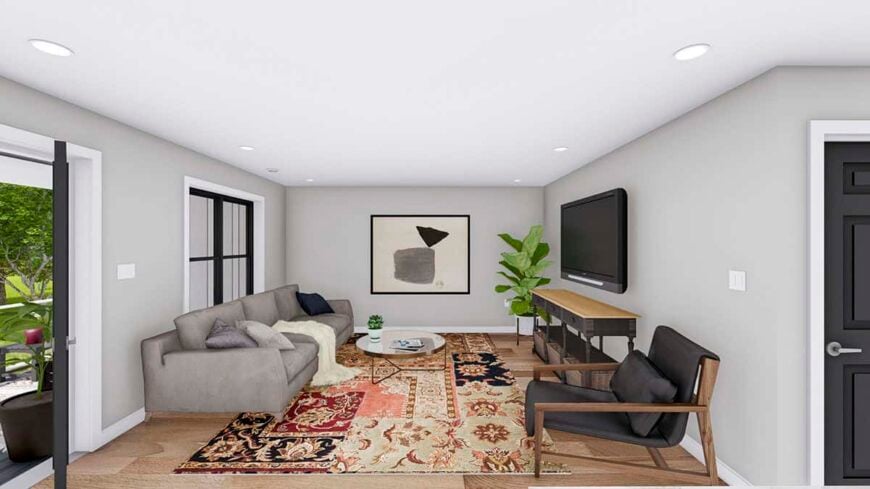

Upstairs, a bright open floor plan combines the living room, dining area, and kitchen. A peninsula separates the dining area from the kitchen and a french door provides access to the front deck.

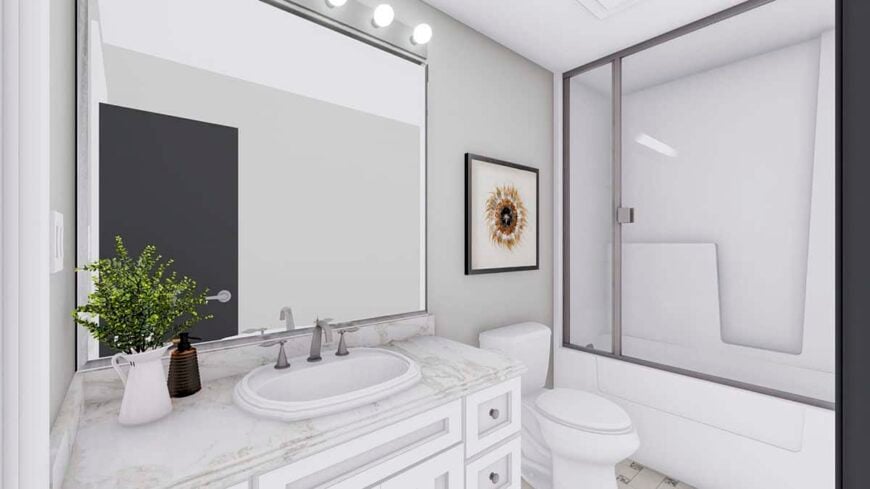

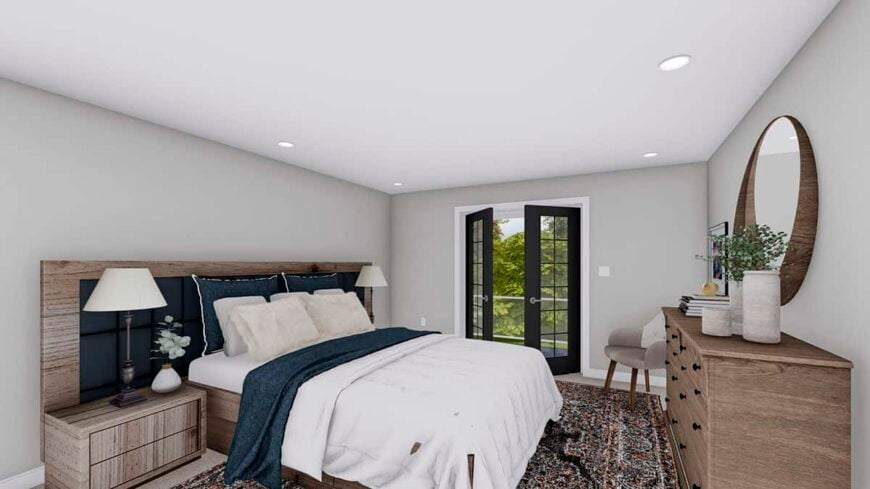

The primary suite is secluded on the back and neighbors the shared bathroom. It comes with a walk-in closet and a private deck.

Plan 61289UT
